Hydraulic Pump Capacity: 17.3 x 2 / 10.41 x 1 l/min
Aux Hydraulic Flow - AUX1: 27.7 l/min
Max. Breakout Force - Bucket: 1550 kgf
Max. Breakout Force - Arm: 870 kgf
Swing System: Zero Tail Swing
Unit Swing Speed: 9.1 rpm
Boom Swing Angle Left: 65 degree
Boom Swing Angle Right: 58 degree
Travelling Speed Low: 2.1 km/h
Travelling Speed High: 4.1 km/h
Length: 3545 mm
Width: 990 mm
Max. Width: 1240 mm
Height - Canopy: 2340 mm
Min. Ground Clearance: 150 mm
Operating Weight - Canopy: 1675 kg
Min. Blade Width: 990 mm
Max. Blade Width: 1240 mm
Blade Height: 260 mm
Max. Lift Above Ground: 280 mm
Max. Drop Below Ground: 190 mm
Fuel Reservoir: 19 l
Hydraulic Oil Reservoir: 13 l
Hydraulic Oil System: 23 l
Engine Oil: 3.6 l
Max. Digging Height: 3540 mm
Max. Dumping Height: 2440 mm
Max. Digging Depth: 2310 mm
Max. Vertical Digging Depth: 1910 mm
Max. Digging Radius At Ground: 3840 mm
Max. Digging Radius: 3900 mm
Min. Turning Radius - w/o Swing: 1440 mm
Min. Turning Radius - Swing: 1215 mm
Min. Tail Turning Radius: 620 mm
Description

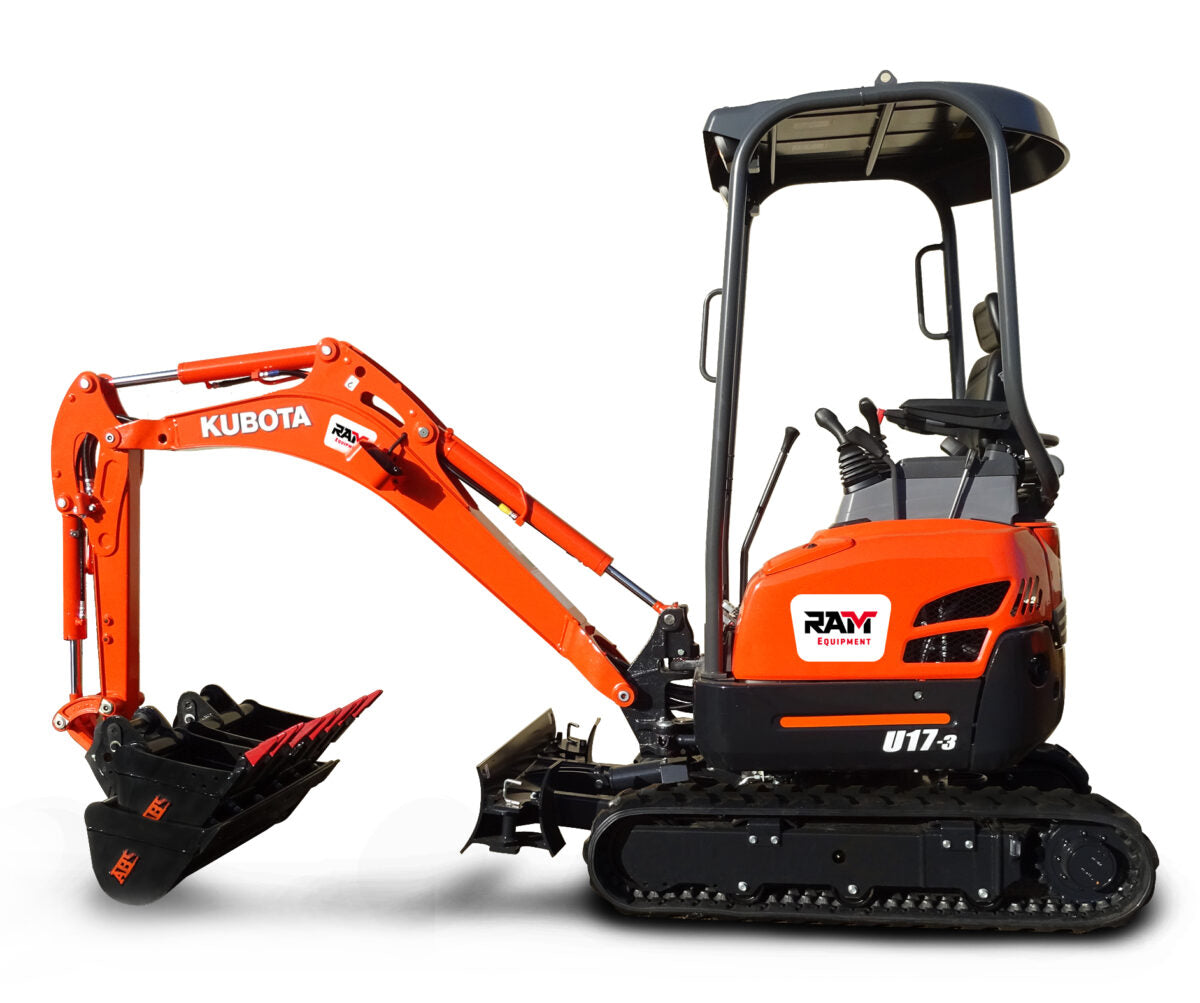

Product Description:
Easy to use and ideal in tight access areas for small to medium projects including drainage, trenches, pool excavations and building footings. Rubber tracks protect surfaces and ensure quiet travel. Fitted with backfill blade for user convenience.
Applications:
Features:
Trenching
Adjustable width tracks to allow passage through narrow spaces
