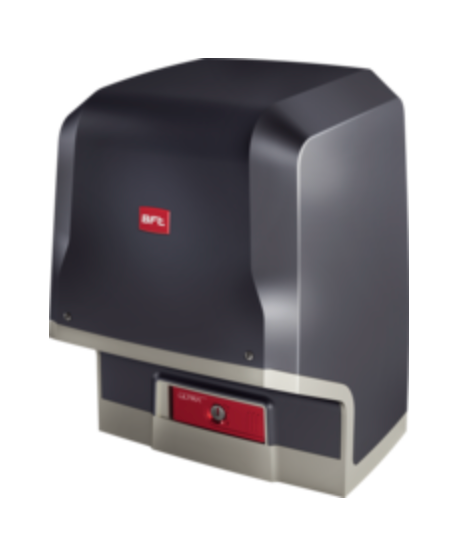

ICARO ULTRA AC2000
See more by Gate Motors

ICARO ULTRA AC2000

SKU: 2600854

$1,200.00

In stock
ICARO ULTRA AC2000

$1,200.00

$1,200.00

Overview

  • D-Track Dynamic Path Tracking
  • Oil Bath Gearbox Unit
  • Magnetic Limit Switches
  • Ensuring Minimal friction and Maximum Reliability for Heavy-Duty use
  • Release Lever with Personalised Key
  • Everything Occurs at the Highest Levels of Security
  • The Device Included in a Specific Range of Bft Barriers
  • The Algorithm Generated then Prevents the Reproduction of the Code.

230V operator designed for sliding gates weighing up to 2000 kg, featuring a relative encoder. The leaf speed is 9 m/min, and it includes a magnetic limit switch. Equipped with a mechanical safety clutch and torque management using D-Track technology, it also has a gear unit operating in an oil bath. The control unit supports communication via U-Link protocol and incorporates a tamper-proof function.

Power consumption 750 W
Frequency of use very intensive
Max. door/gate weight 2000 kg
Protection rating IP55
Gate panel speed 9 m/min
Type of limit switch Magnetic
Pinion module 4
Motor voltage 230 V
Slowdown Yes
Control unit LEO B CBB L02
Locking Mechanical
Board power supply 230 V
Release Lever-operated with personal key
Impact reaction Mechanical clutch + encoder
    Description

    230V operator designed for sliding gates weighing up to 2000 kg, featuring a relative encoder. The leaf speed is 9 m/min, and it includes a magnetic limit switch. Equipped with a mechanical safety clutch and torque management using D-Track technology, it also has a gear unit operating in an oil bath. The control unit supports communication via U-Link protocol and incorporates a tamper-proof function.

    Additional Information

    Power consumption 750 W
    Frequency of use very intensive
    Max. door/gate weight 2000 kg
    Protection rating IP55
    Gate panel speed 9 m/min
    Type of limit switch Magnetic
    Pinion module 4
    Motor voltage 230 V
    Slowdown Yes
    Control unit LEO B CBB L02
    Locking Mechanical
    Board power supply 230 V
    Release Lever-operated with personal key
    Impact reaction Mechanical clutch + encoder
