Description

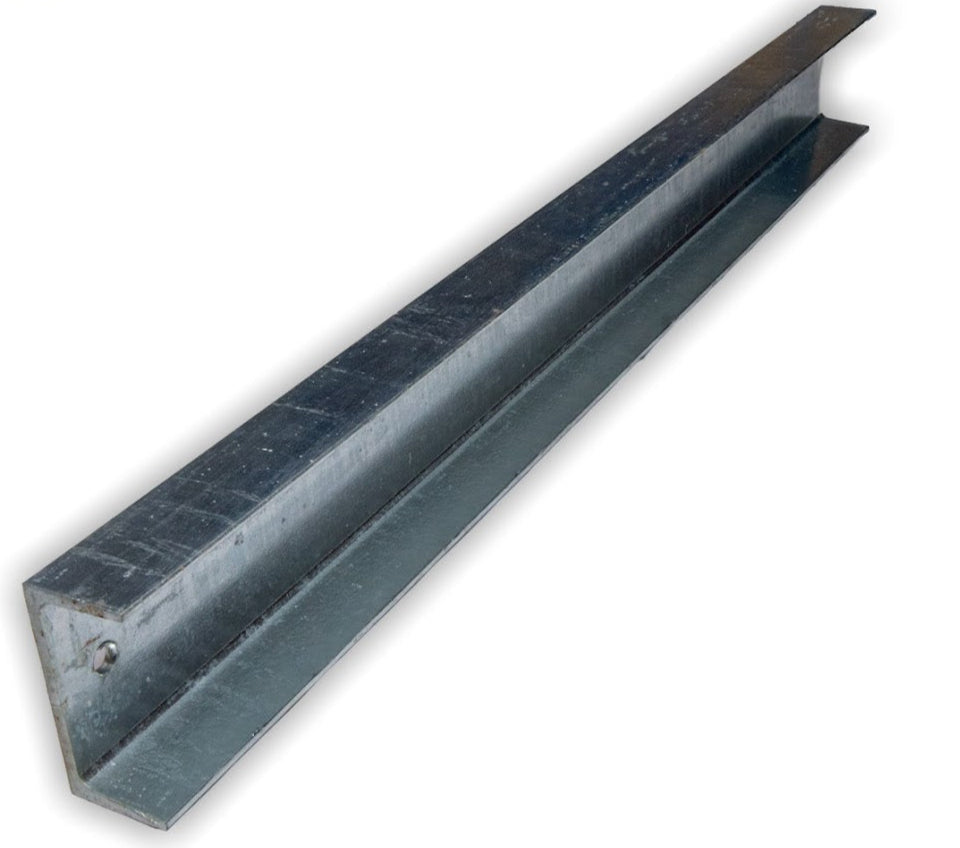

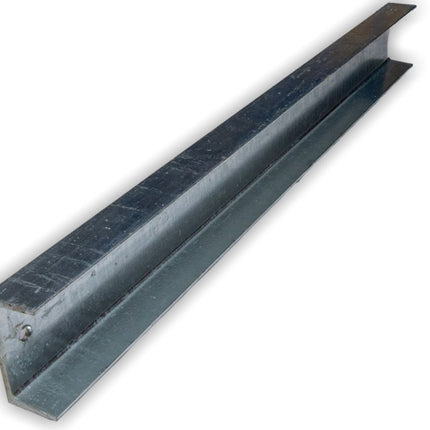

C Channel 150x75x7MM is 150MM in width, 75MM in hight and made from material with a thickness of 7MM. These channels are widely used in industrial construction and steel fabrication due to their versatility and strength in various load-bearing applications. These Channels are suitable for 100MM Sleepers. These are galvanised steel c-channels with below dimensions. The Channel Weighs 17.7KG/Meter.

Depth (Overall Height): 150mm
Flange Width: 75mm

Flange Thickness: 7mm
Web Thickness: 5mm
Root Radius: 8mm

Depth between flanges: 136mm

The come in different Lengths as mentioned below

  1. 2400MM
  2. 3000MM
  3. 3600MM
