Fasteners & Fixings

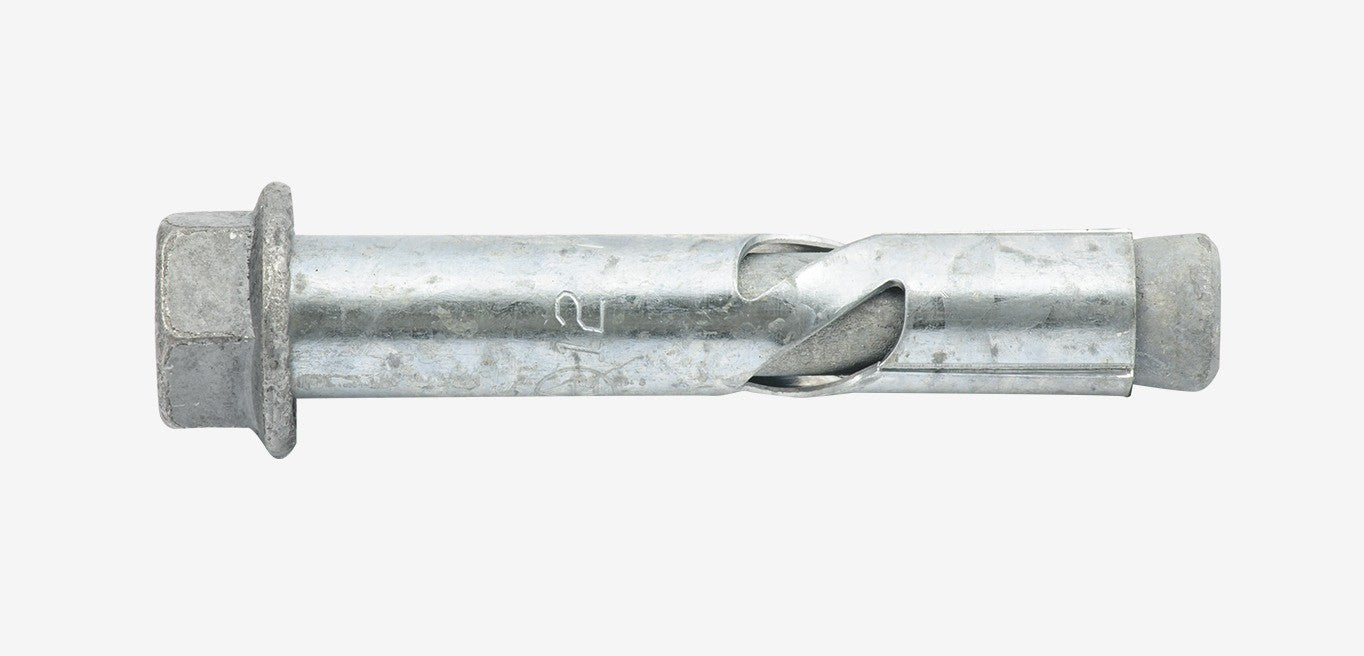

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M12
• Anchor length: 55mm
• Drilled hole diameter: 12mm
• Minimum hole depth: 70mm
• Max fixture thickness: 10mm
• Effective length: 47mm
• Fixture hole: 15mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M12
• Anchor length: 70mm
• Drilled hole diameter: 12mm
• Minimum hole depth: 70mm
• Max fixture thickness: 15mm
• Effective length: 62mm
• Fixture hole: 15mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M16
• Anchor length: 106mm
• Drilled hole diameter: 16mm
• Minimum hole depth: 120mm
• Max fixture thickness: 35mm
• Effective length: 95mm
• Fixture hole: 19mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M16
• Anchor length: 140mm
• Drilled hole diameter: 16mm
• Minimum hole depth: 120mm
• Max fixture thickness: 65mm
• Effective length: 129mm
• Fixture hole: 19mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M16
• Anchor length: 62mm
• Drilled hole diameter: 16mm
• Minimum hole depth: 80mm
• Max fixture thickness: 6mm
• Effective length: 51mm
• Fixture hole: 19mm
• Finish: Hot-dip galvanised, hex nut

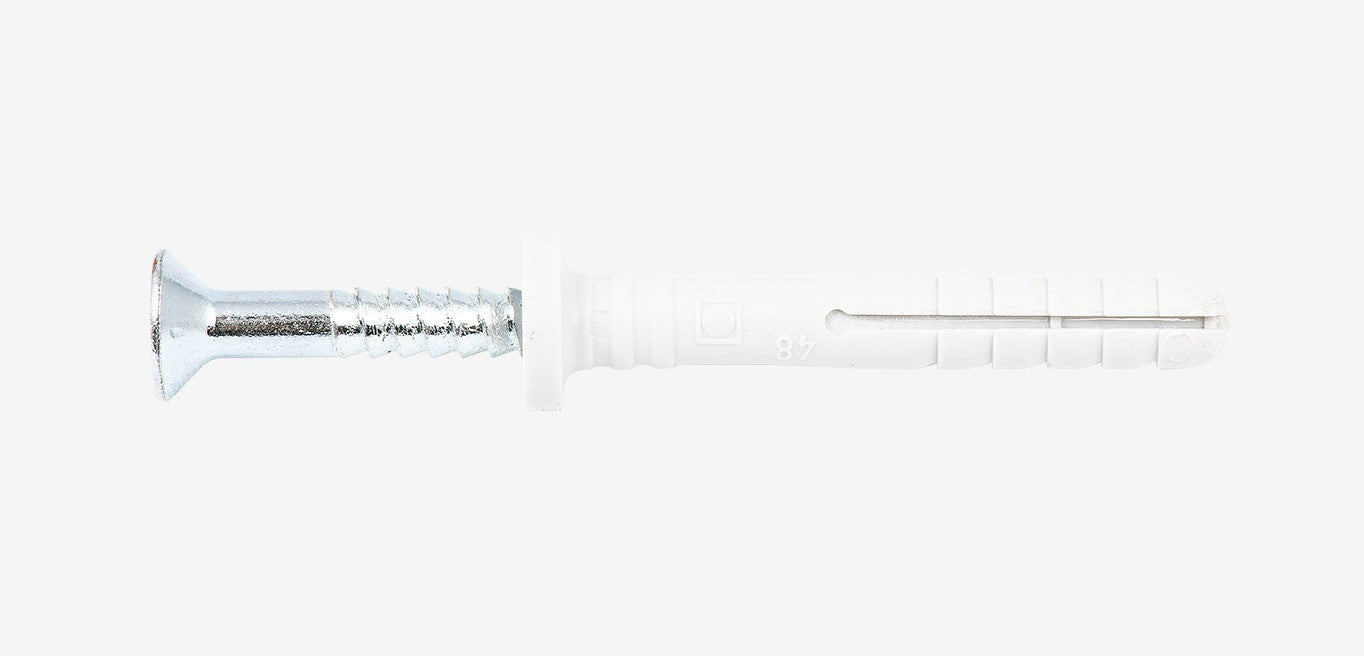

The EasyDrive Nylon Drive Anchor is a removable, light-duty, impact/rotation-setting interference-fit anchor for concrete, stone, solid brick, solid block, hollow brick, hollow block and hollow slab.

• Hammers all the way into the hole without pre-expansion
• Saw-tooth drive-screw thread makes it easy to drive and unscrew
• Wide, flat collar with a collapsible sleeve design for a tight fixing
• Nylon body provides electrical insulation

Specifications

• Anchor size: 5mm
• Effective length: 33mm
• Effective depth: 20mm
• Drilled hole: 5mm
• Working load (indicative): Shear 0.50kN / Tension 0.20kN
• Pack: card of 20

The EasyDrive Nylon Drive Anchor is a removable, light-duty, impact/rotation-setting interference-fit anchor for concrete, stone, solid brick, solid block, hollow brick, hollow block and hollow slab.

• Hammers all the way into the hole without pre-expansion
• Saw-tooth drive-screw thread makes it easy to drive and unscrew
• Wide, flat collar with a collapsible sleeve design for a tight fixing
• Nylon body provides electrical insulation

Specifications

• Anchor size: 6mm
• Effective length: 42mm
• Effective depth: 30mm
• Drilled hole: 6mm
• Working load (indicative): Shear 0.75kN / Tension 0.30kN
• Pack: card of 20

The EasyDrive Nylon Drive Anchor is a removable, light-duty, impact/rotation-setting interference-fit anchor for concrete, stone, solid brick, solid block, hollow brick, hollow block and hollow slab.

• Hammers all the way into the hole without pre-expansion
• Saw-tooth drive-screw thread makes it easy to drive and unscrew
• Wide, flat collar with a collapsible sleeve design for a tight fixing
• Nylon body provides electrical insulation

Specifications

• Anchor size: 6mm
• Effective length: 55mm
• Effective depth: 30mm
• Drilled hole: 6mm
• Working load (indicative): Shear 0.75kN / Tension 0.30kN
• Pack: card of 20

The handle and extension accessory for Ramset's modular hole-cleaning brush system, allowing the modular brushes to reach deeper holes and be driven by a standard drill.

• Compatible with the full Chemset Premium Modular brush range (M8-M24)

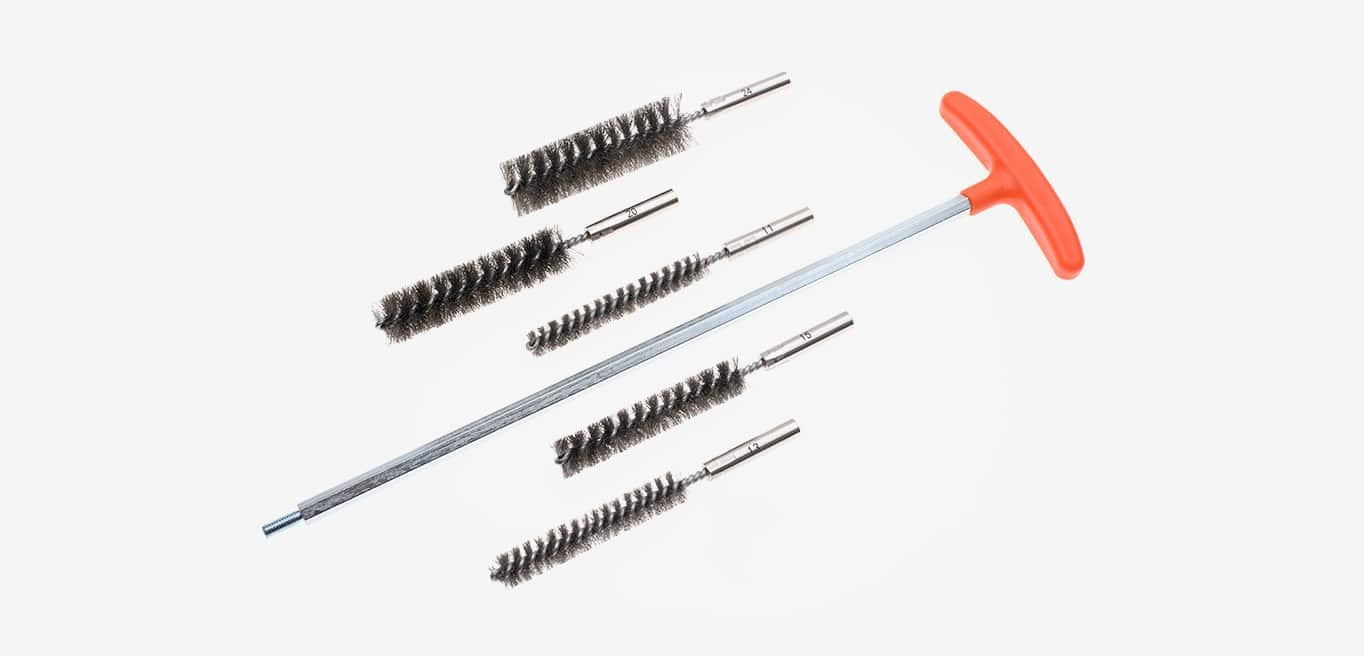

A high-performance modular brush system designed to ensure optimal hole cleaning for chemical anchoring applications, with drill compatibility and replaceable components for superior cleaning efficiency and bond strength.

• Hex-shaft fitting for a standard drill chuck
• Part of a modular range covering M8-M24 studs (11/13/15/19/24/30mm brush sizes)

Specifications

• Brush size: 13mm
• Suits stud size: M10
• Hole diameter: 12mm

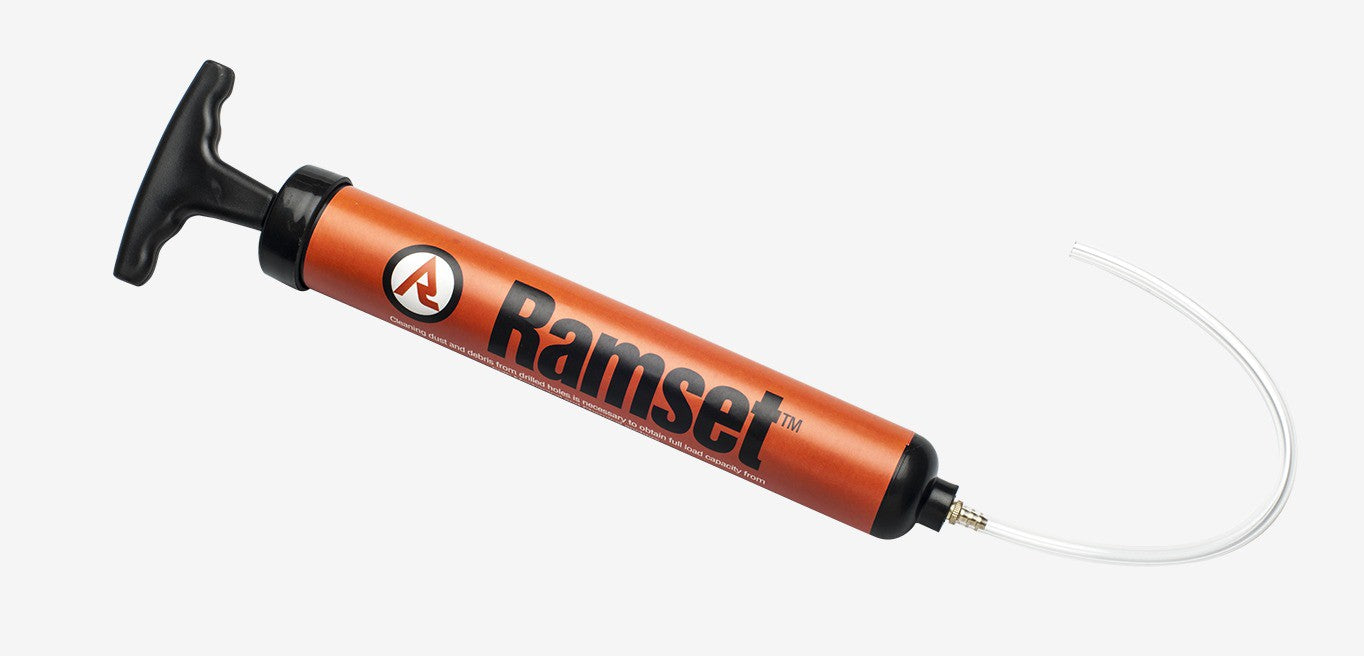

Used to blow dust and debris from drilled holes after drilling, ensuring full adhesion and rated load capacity from both chemical and mechanical anchors. Easy to use.

• Clears dust from drilled holes before anchor installation

Designed to anchor threaded studs into hollow brick and block, the Multifit Sieve forms a solid plug of adhesive within the brick or block cavity for a secure fixing.

• Fine metal mesh sleeve works with ChemSet 101 and UltraFix Plus adhesives
• Suited to 10-hole brick applications
• Zero expansion stress on the substrate when tightened

Specifications

• Thread sizes: M8 & M10
• Anchor length: 69mm
• Drill size: 16mm
• Pack quantity: 4

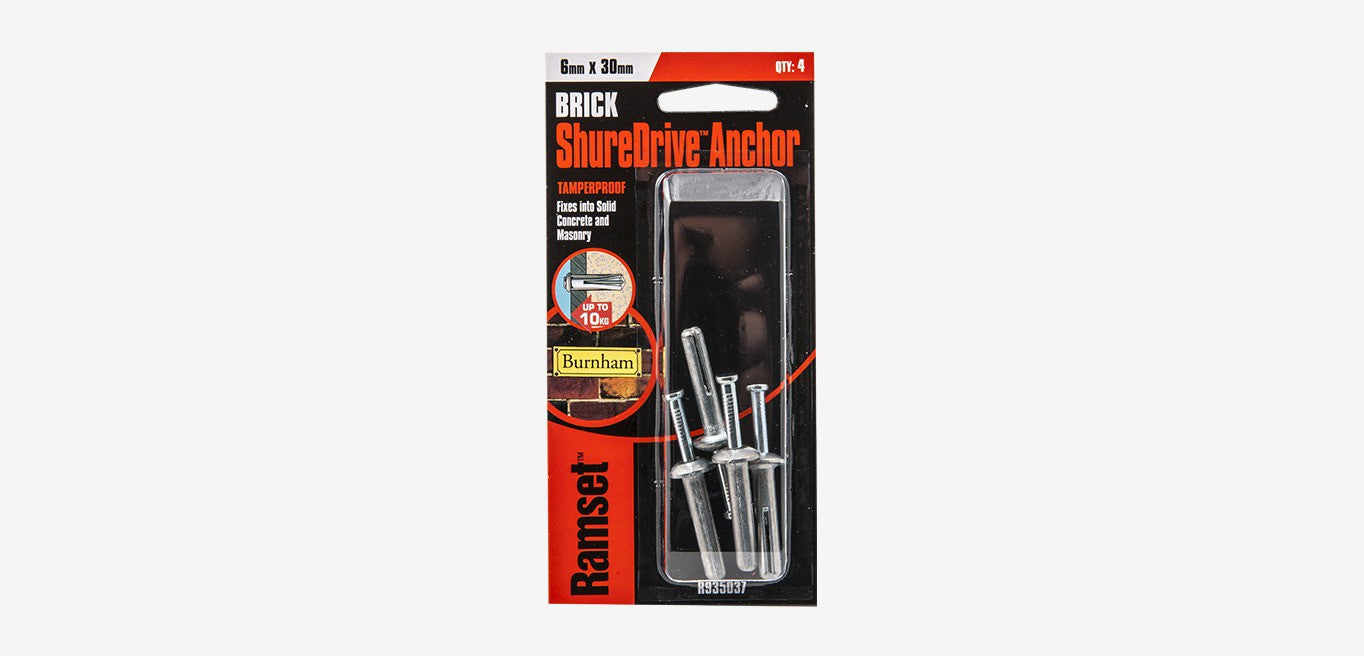

The ShureDrive Anchor is an all-metal, light-duty, impact-setting interference-fit anchor designed for tamper-resistant use in concrete, stone, solid brick, solid block, hollow brick, hollow block and hollow slab.

• Hammer-in installation is quick and easy
• Fully set when the expansion nail head sits flush with the flange
• Becomes tamper-resistant once fully set
• Large flange helps prevent pull-out
• Not rated for top-fix/overhead use

Specifications

• Anchor size: 6mm
• Length: 30mm
• Max fixture thickness: 5mm
• Drilled hole: 6mm
• Min hole depth: 35mm
• Fixture hole: 7mm
• Pack: card of 20

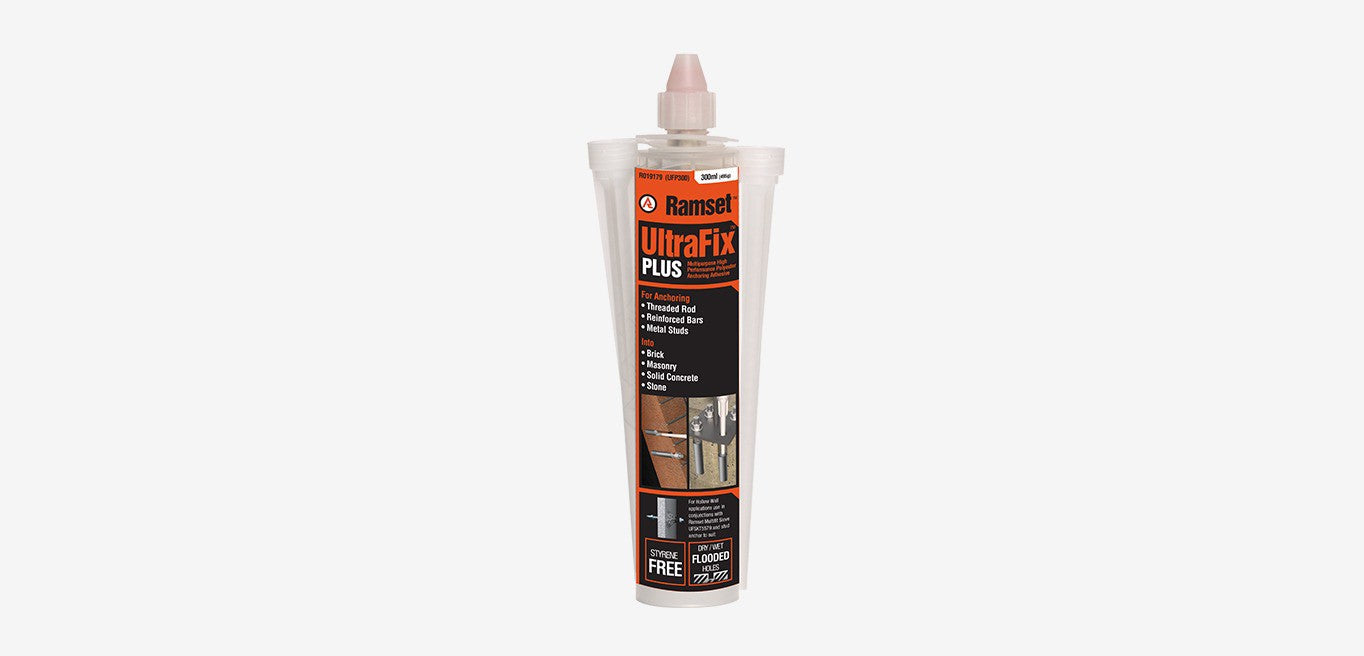

Ramset UltraFix PLUS is a general-purpose, fast-setting, marine-grade polyester resin in a convenient caulking cartridge for standard caulking guns. Certified for anchoring threaded rod and bar into solid concrete and hollow masonry.

• Ideal for general anchoring of steel and timber fixtures – fencing, gates, brackets, hinges, guard rails, handrails
• Works with standard silicone caulking guns
• Suited to small jobs and residential use

Specifications

• Cartridge size: 300ml
• Density: 1.69 kg/litre @ 20°C
• Compressive strength: 70 MPa
• Tensile strength: 12.2 MPa
• Flexural strength: 28.3 MPa
• Shore D hardness: 90

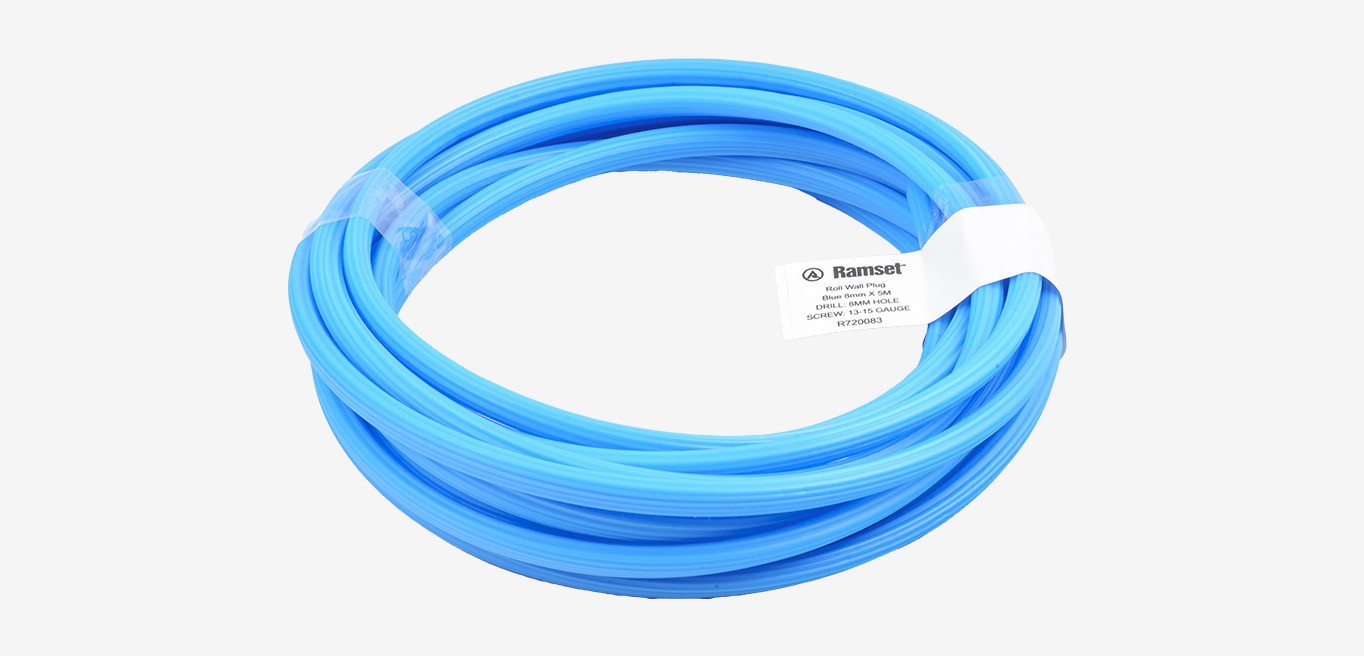

The Ramset Wall Plug Roll is an economical roll tapered at one end for quick, easy insertion — a traditional expansion plug for light-duty anchoring in concrete, stone, solid brick and solid block.

Specifications

• Drilled hole: 8mm
• Roll length: 5m
• Suits screw gauge: 14-16g

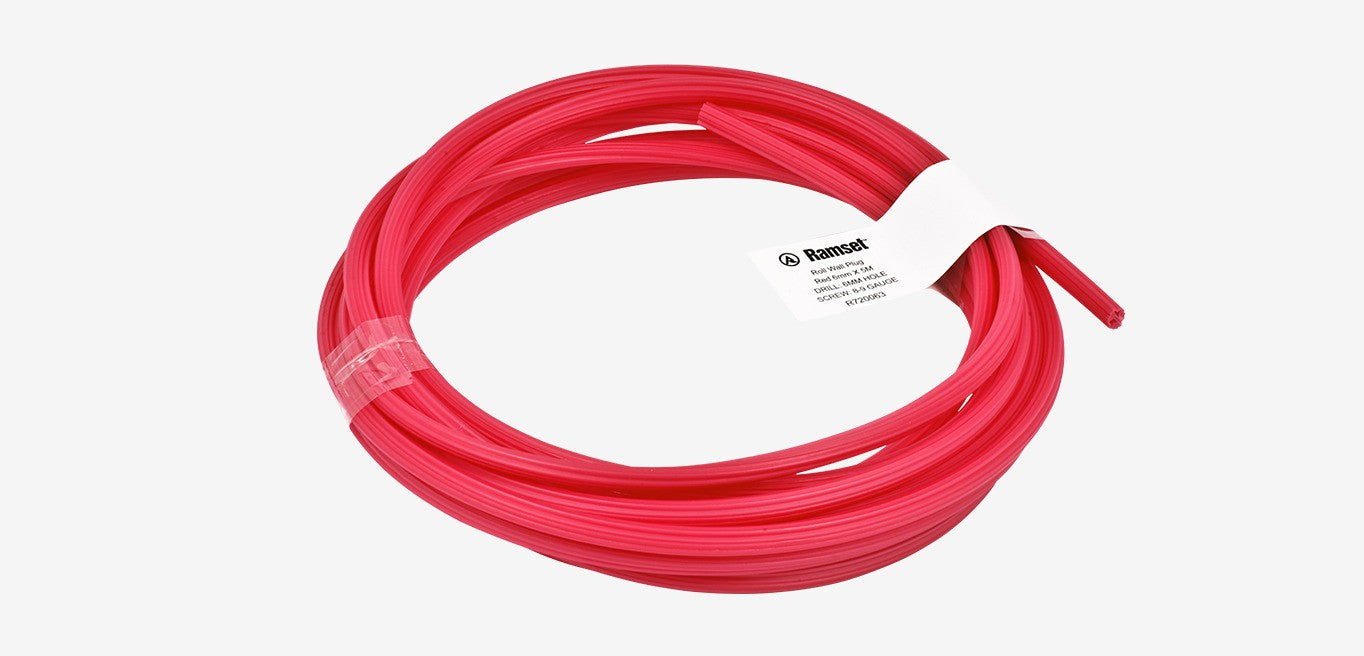

The Ramset Wall Plug Roll is an economical roll tapered at one end for quick, easy insertion — a traditional expansion plug for light-duty anchoring in concrete, stone, solid brick and solid block.

Specifications

• Drilled hole: 6mm
• Roll length: 5m
• Suits screw gauge: 10-12g

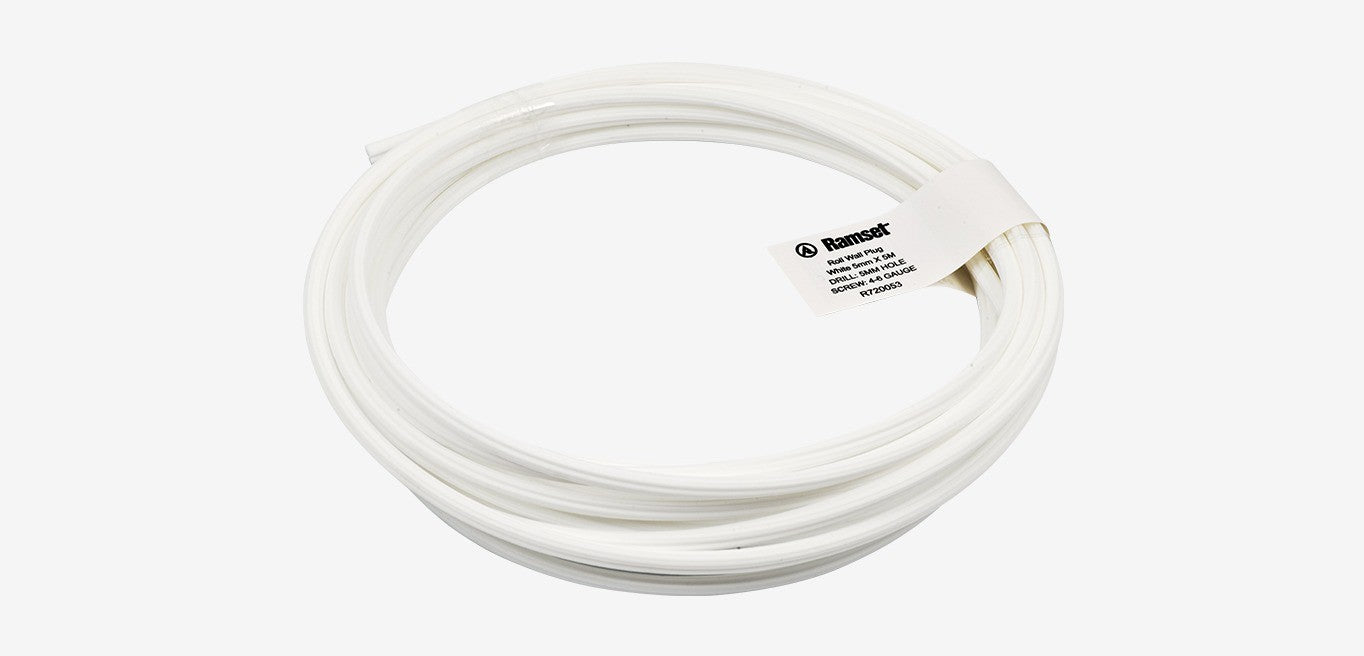

The Ramset Wall Plug Roll is an economical roll tapered at one end for quick, easy insertion — a traditional expansion plug for light-duty anchoring in concrete, stone, solid brick and solid block.

Specifications

• Drilled hole: 5mm
• Roll length: 5m
• Suits screw gauge: 4.5-6g
