Chemical & Mechanical Anchors

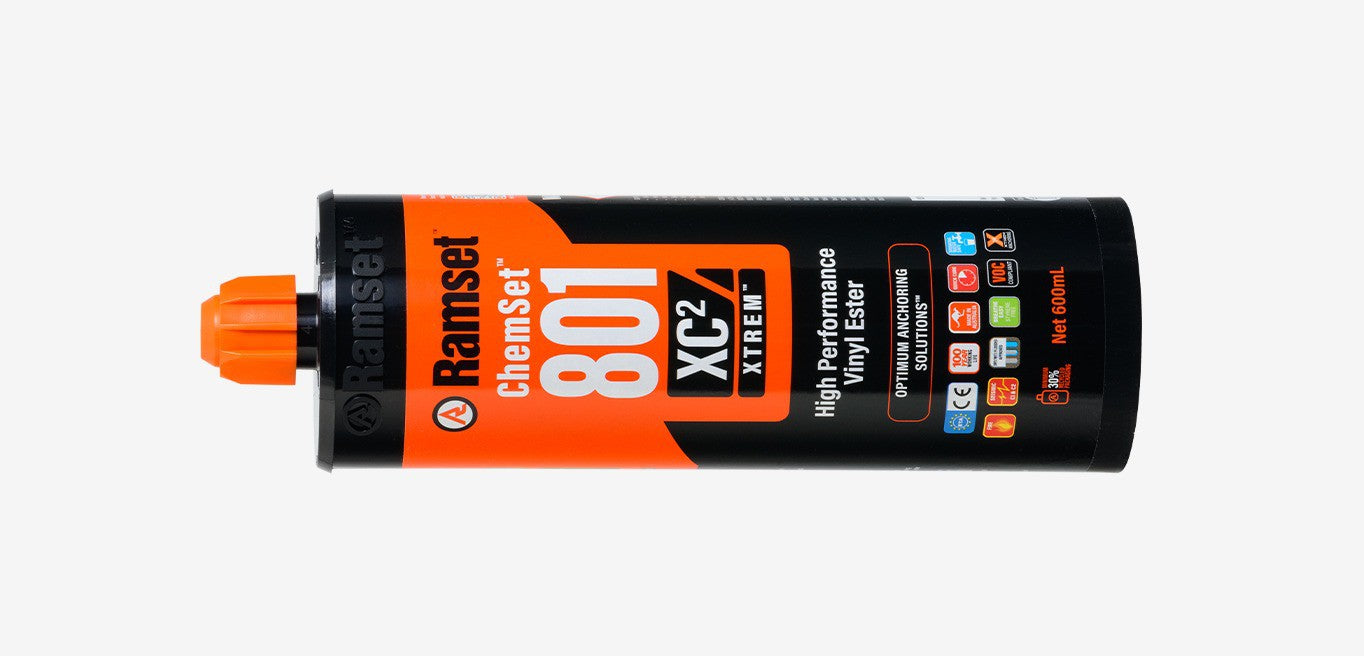

ChemSet 801 XTREM XC² is a fast-setting, heavy-duty vinyl ester adhesive. Its premium high-strength formulation is certified for seismic and flooded conditions and is fire rated.

• Meets the highest seismic performance standards (C1 & C2 certified)
• Suited to fast-assembly structural applications – steel, handrails, balustrades
• 100-year working life claim

Specifications

• Cartridge size: 600ml
• Pack quantity: 16/pack

• Cut to length as required
• 50 metre roll
• Easy to use

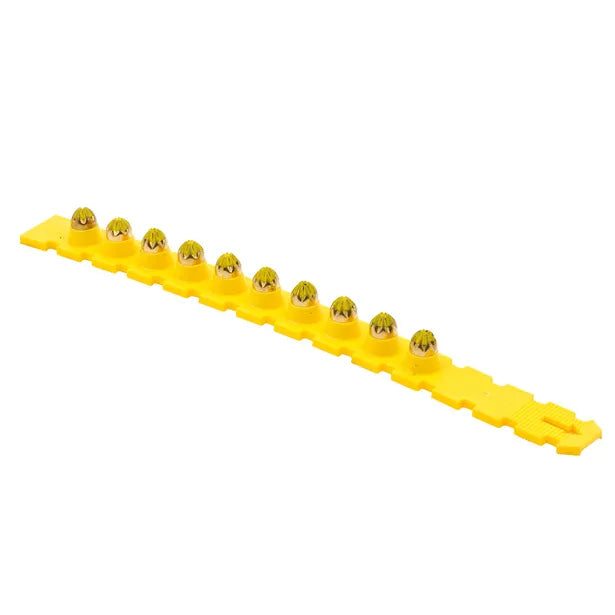

High strength power load strip charges for Ramset™ strip feed powder actuated fixing tools.

• High Strength
• Power load strip
• To use with Ramset power tools

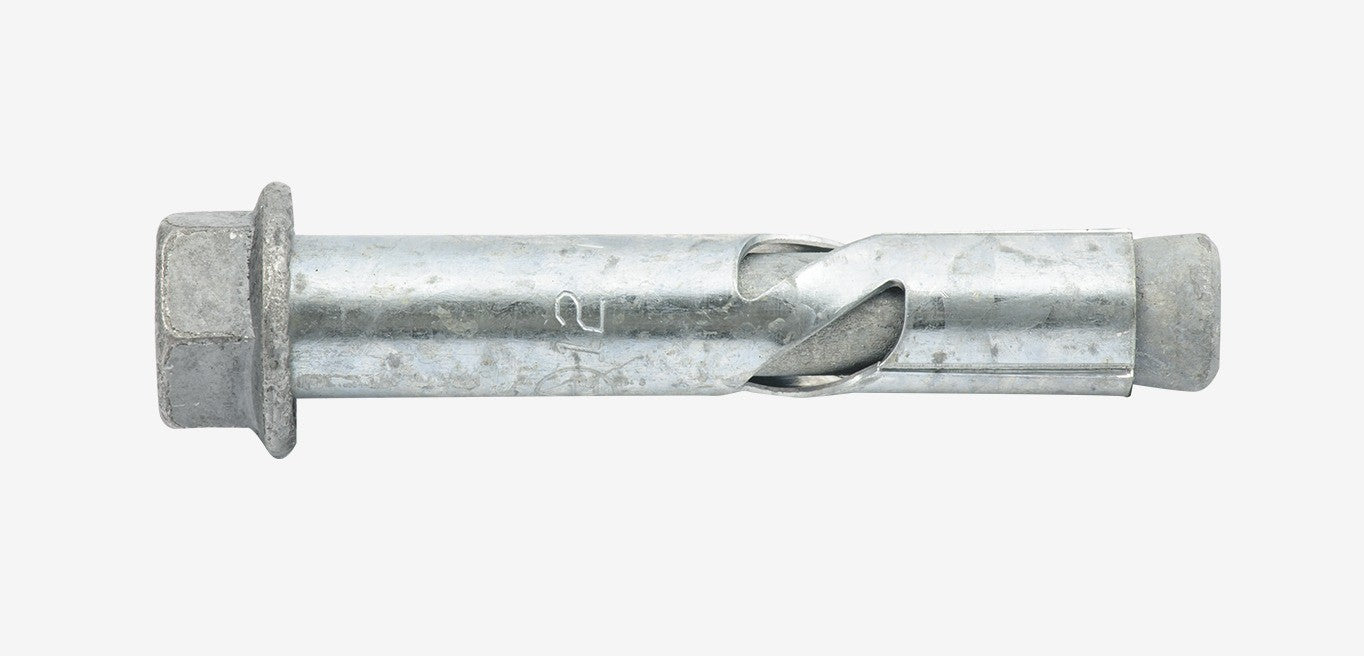

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M8
• Anchor length: 92mm
• Drilled hole diameter: 8mm
• Minimum hole depth: 75mm
• Max fixture thickness: 50mm
• Effective length: 86mm
• Fixture hole: 10mm
• Finish: Zinc plated, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M10
• Anchor length: 41mm
• Drilled hole diameter: 10mm
• Minimum hole depth: 50mm
• Max fixture thickness: 3mm
• Effective length: 34mm
• Fixture hole: 12mm
• Finish: Zinc plated, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M10
• Anchor length: 49mm
• Drilled hole diameter: 10mm
• Minimum hole depth: 55mm
• Max fixture thickness: 20mm
• Effective length: 42mm
• Fixture hole: 12mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M10
• Anchor length: 103mm
• Drilled hole diameter: 10mm
• Minimum hole depth: 80mm
• Max fixture thickness: 50mm
• Effective length: 96mm
• Fixture hole: 12mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M10
• Anchor length: 103mm
• Drilled hole diameter: 10mm
• Minimum hole depth: 80mm
• Max fixture thickness: 50mm
• Effective length: 96mm
• Fixture hole: 12mm
• Finish: Zinc plated, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M10
• Anchor length: 41mm
• Drilled hole diameter: 10mm
• Minimum hole depth: 50mm
• Max fixture thickness: 3mm
• Effective length: 34mm
• Fixture hole: 12mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M10
• Anchor length: 49mm
• Drilled hole diameter: 10mm
• Minimum hole depth: 55mm
• Max fixture thickness: 20mm
• Effective length: 42mm
• Fixture hole: 12mm
• Finish: Zinc plated, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M10
• Anchor length: 76mm
• Drilled hole diameter: 10mm
• Minimum hole depth: 65mm
• Max fixture thickness: 30mm
• Effective length: 69mm
• Fixture hole: 12mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M10
• Anchor length: 76mm
• Drilled hole diameter: 10mm
• Minimum hole depth: 65mm
• Max fixture thickness: 30mm
• Effective length: 69mm
• Fixture hole: 12mm
• Finish: Zinc plated, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M12
• Anchor length: 98mm
• Drilled hole diameter: 12mm
• Minimum hole depth: 95mm
• Max fixture thickness: 45mm
• Effective length: 90mm
• Fixture hole: 15mm
• Finish: Hot-dip galvanised, hex nut

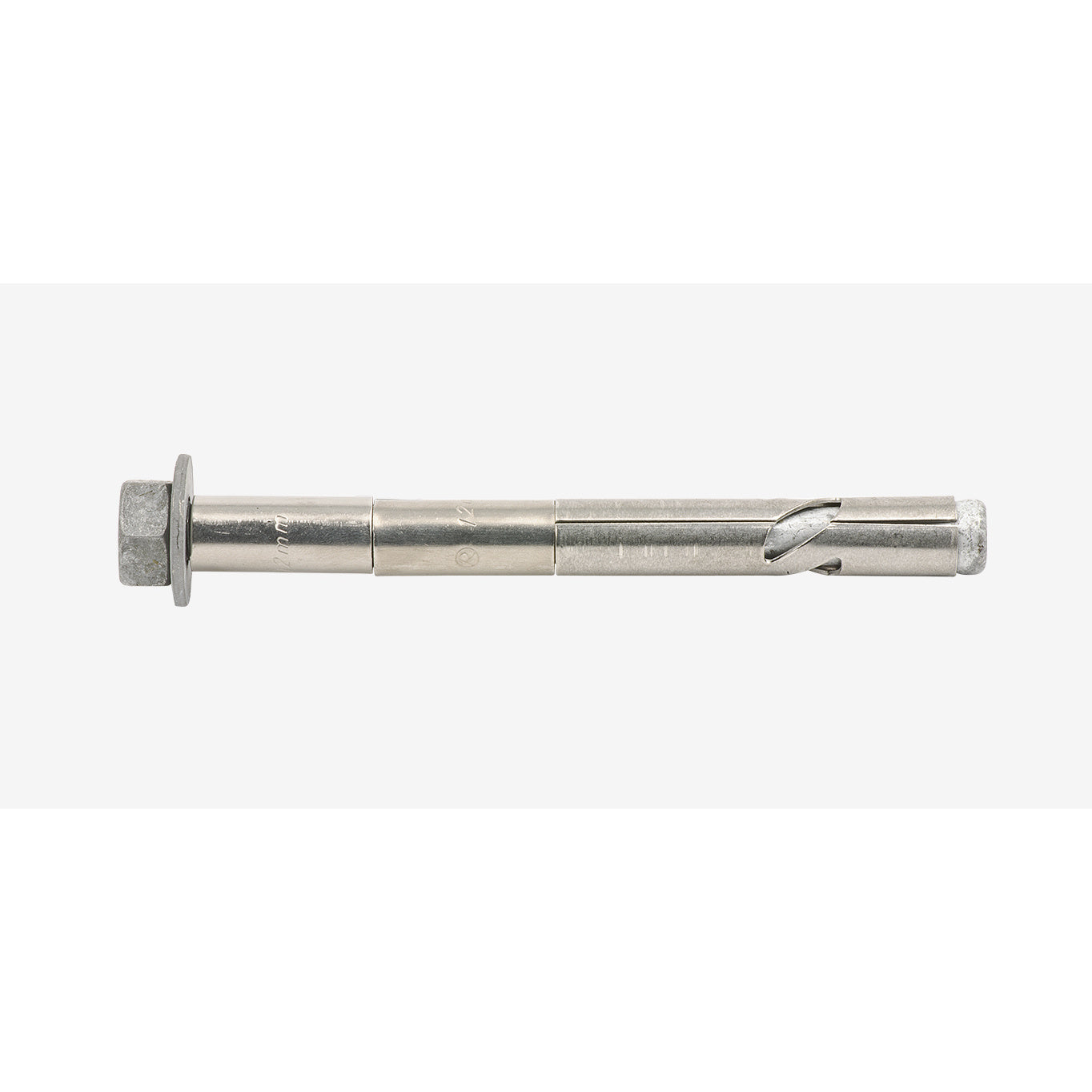

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M12
• Anchor length: 126mm
• Drilled hole diameter: 12mm
• Minimum hole depth: 95mm
• Max fixture thickness: 70mm
• Effective length: 118mm
• Fixture hole: 15mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M12
• Anchor length: 55mm
• Drilled hole diameter: 12mm
• Minimum hole depth: 70mm
• Max fixture thickness: 10mm
• Effective length: 47mm
• Fixture hole: 15mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M12
• Anchor length: 55mm
• Drilled hole diameter: 12mm
• Minimum hole depth: 70mm
• Max fixture thickness: 10mm
• Effective length: 47mm
• Fixture hole: 15mm
• Finish: Zinc plated, hex nut

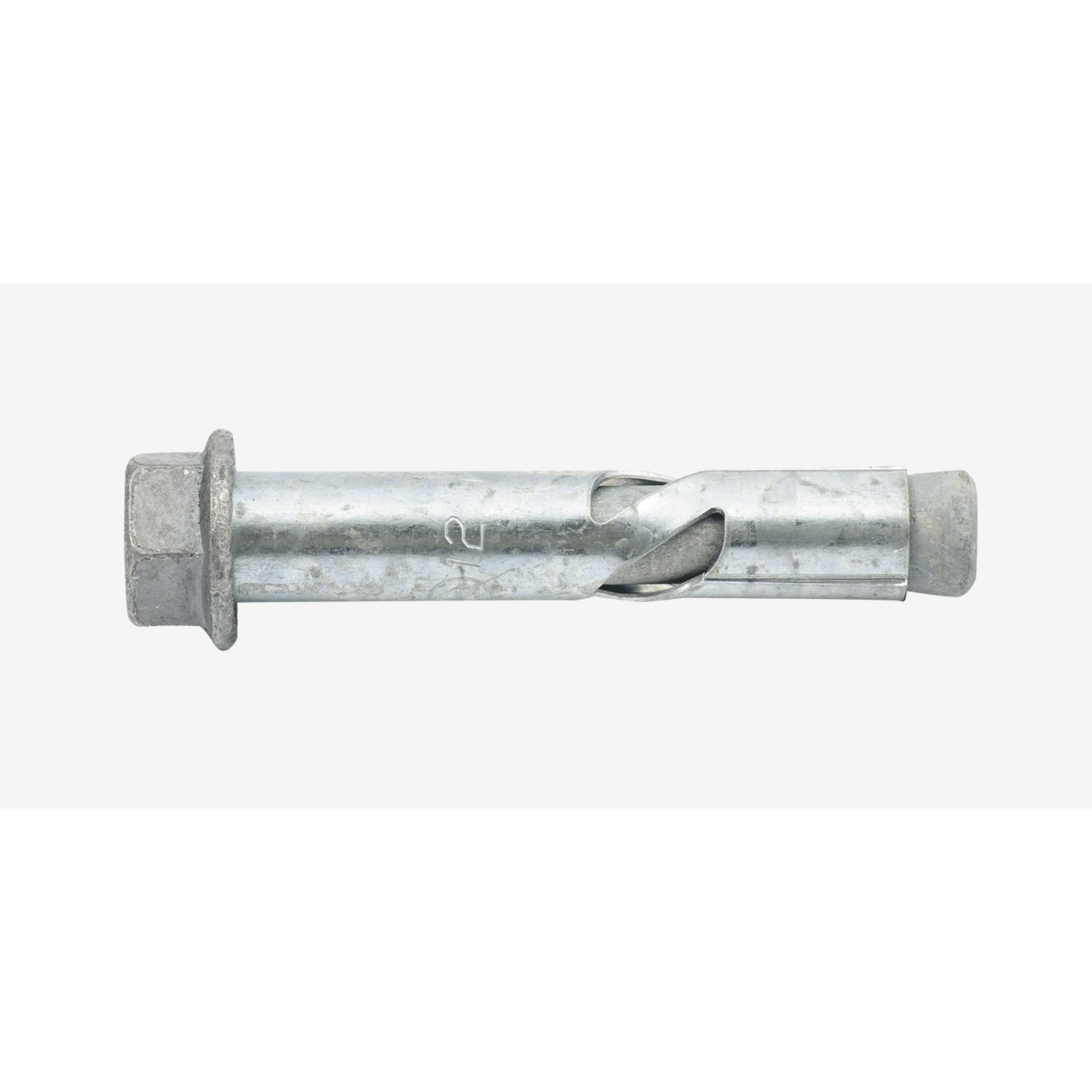

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M12
• Anchor length: 70mm
• Drilled hole diameter: 12mm
• Minimum hole depth: 70mm
• Max fixture thickness: 15mm
• Effective length: 62mm
• Fixture hole: 15mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M12
• Anchor length: 70mm
• Drilled hole diameter: 12mm
• Minimum hole depth: 70mm
• Max fixture thickness: 15mm
• Effective length: 62mm
• Fixture hole: 15mm
• Finish: Zinc plated, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M16
• Anchor length: 62mm
• Drilled hole diameter: 16mm
• Minimum hole depth: 80mm
• Max fixture thickness: 6mm
• Effective length: 51mm
• Fixture hole: 19mm
• Finish: Hot-dip galvanised, hex nut

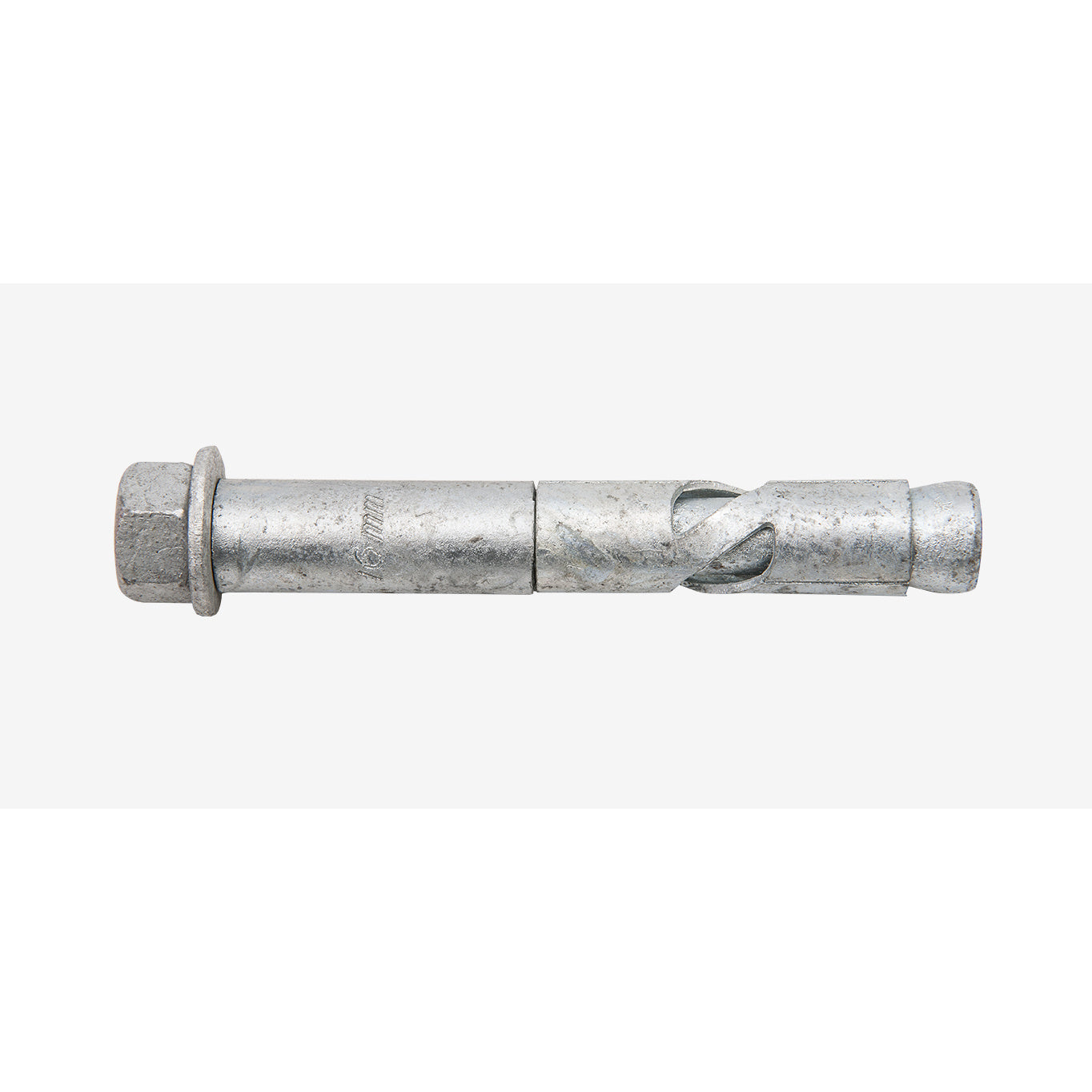

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M16
• Anchor length: 106mm
• Drilled hole diameter: 16mm
• Minimum hole depth: 120mm
• Max fixture thickness: 35mm
• Effective length: 95mm
• Fixture hole: 19mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M16
• Anchor length: 140mm
• Drilled hole diameter: 16mm
• Minimum hole depth: 120mm
• Max fixture thickness: 65mm
• Effective length: 129mm
• Fixture hole: 19mm
• Finish: Hot-dip galvanised, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M20
• Anchor length: 113mm
• Drilled hole diameter: 20mm
• Minimum hole depth: 125mm
• Max fixture thickness: 25mm
• Effective length: 102mm
• Fixture hole: 24mm
• Finish: Zinc plated, hex nut

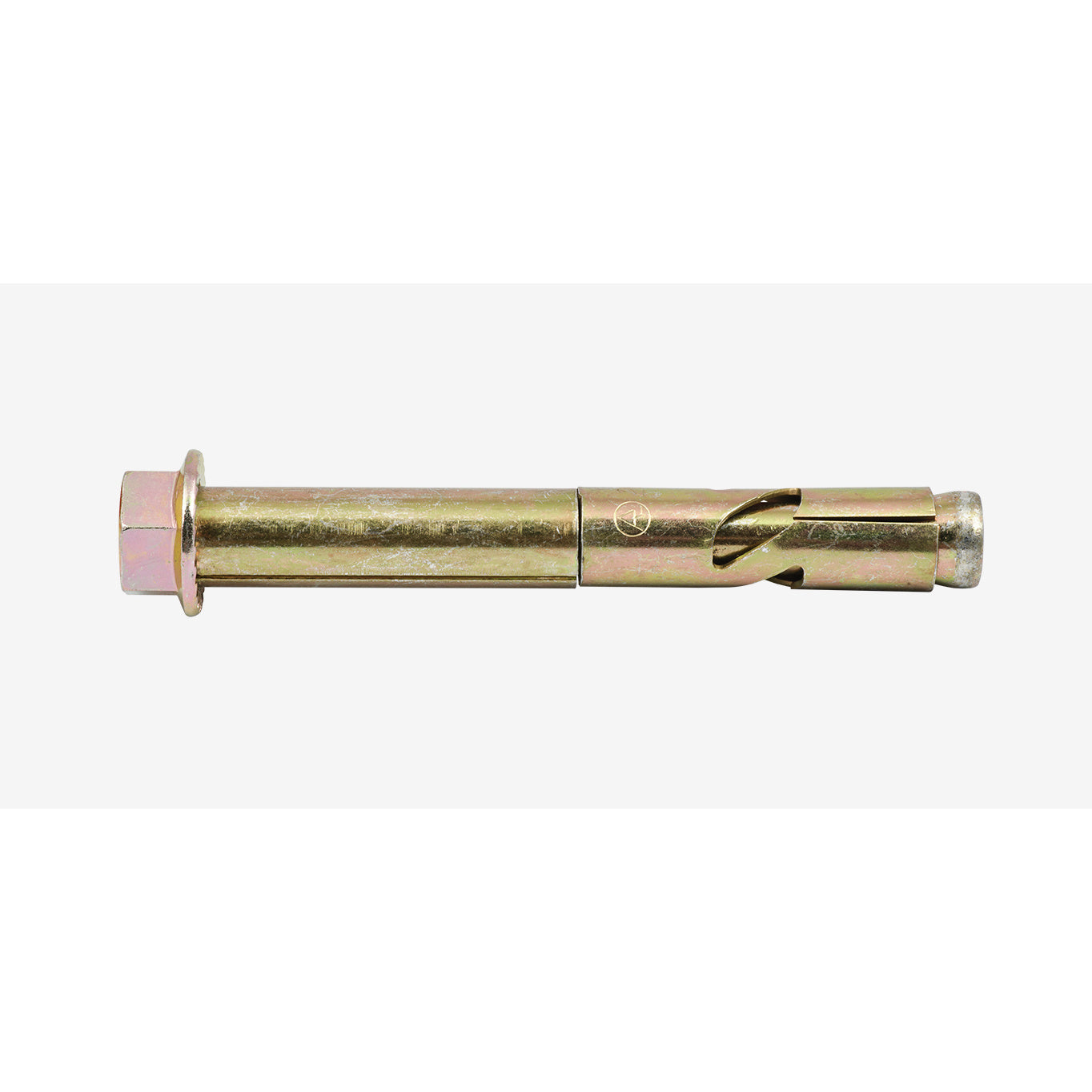

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M20
• Anchor length: 157mm
• Drilled hole diameter: 20mm
• Minimum hole depth: 155mm
• Max fixture thickness: 70mm
• Effective length: 146mm
• Fixture hole: 24mm
• Finish: Zinc plated, hex nut

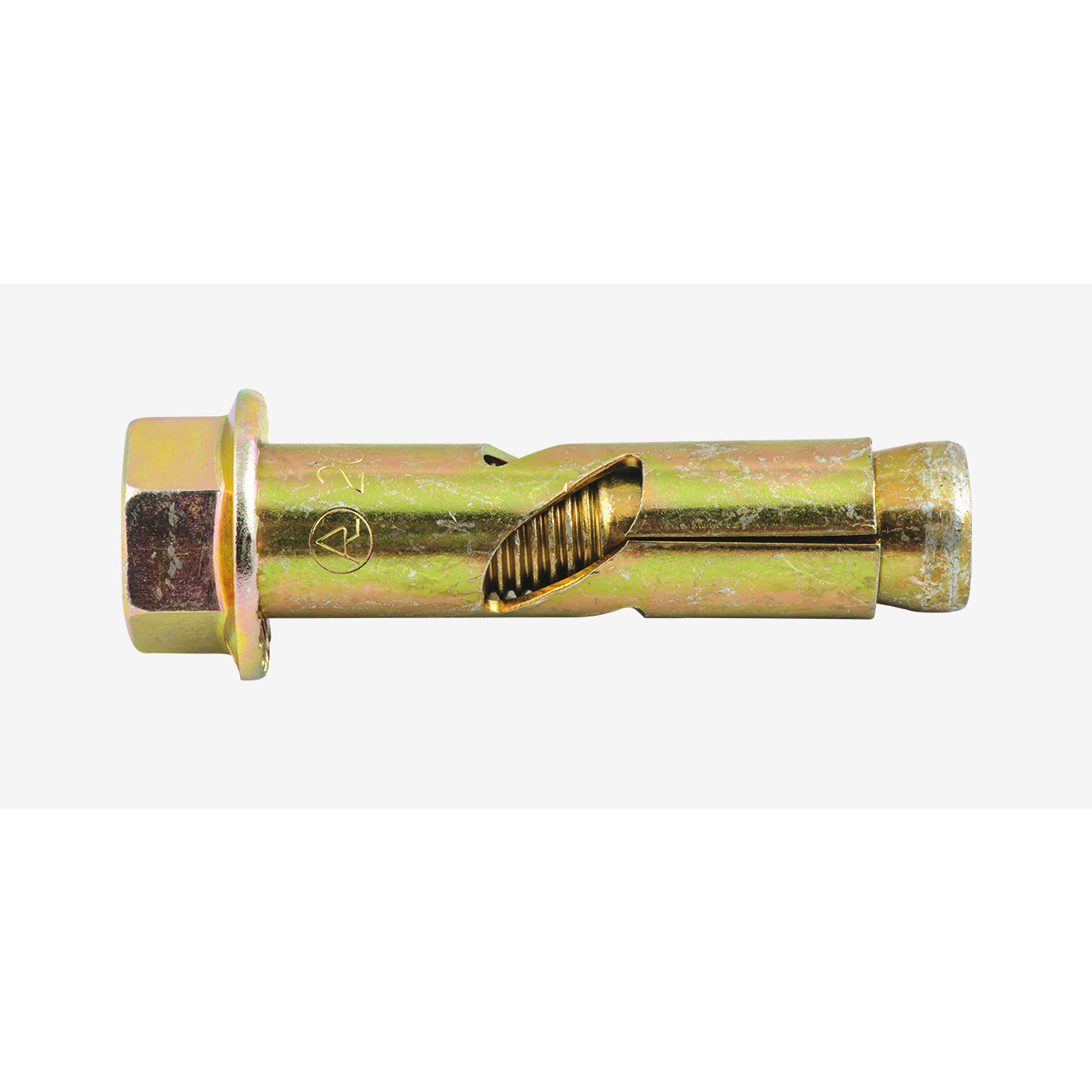

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M20
• Anchor length: 81mm
• Drilled hole diameter: 20mm
• Minimum hole depth: 100mm
• Max fixture thickness: 8mm
• Effective length: 70mm
• Fixture hole: 24mm
• Finish: Zinc plated, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M6
• Anchor length: 57mm
• Drilled hole diameter: 6mm
• Minimum hole depth: 55mm
• Max fixture thickness: 30mm
• Effective length: 53mm
• Fixture hole: 8mm
• Finish: Zinc plated, hex nut

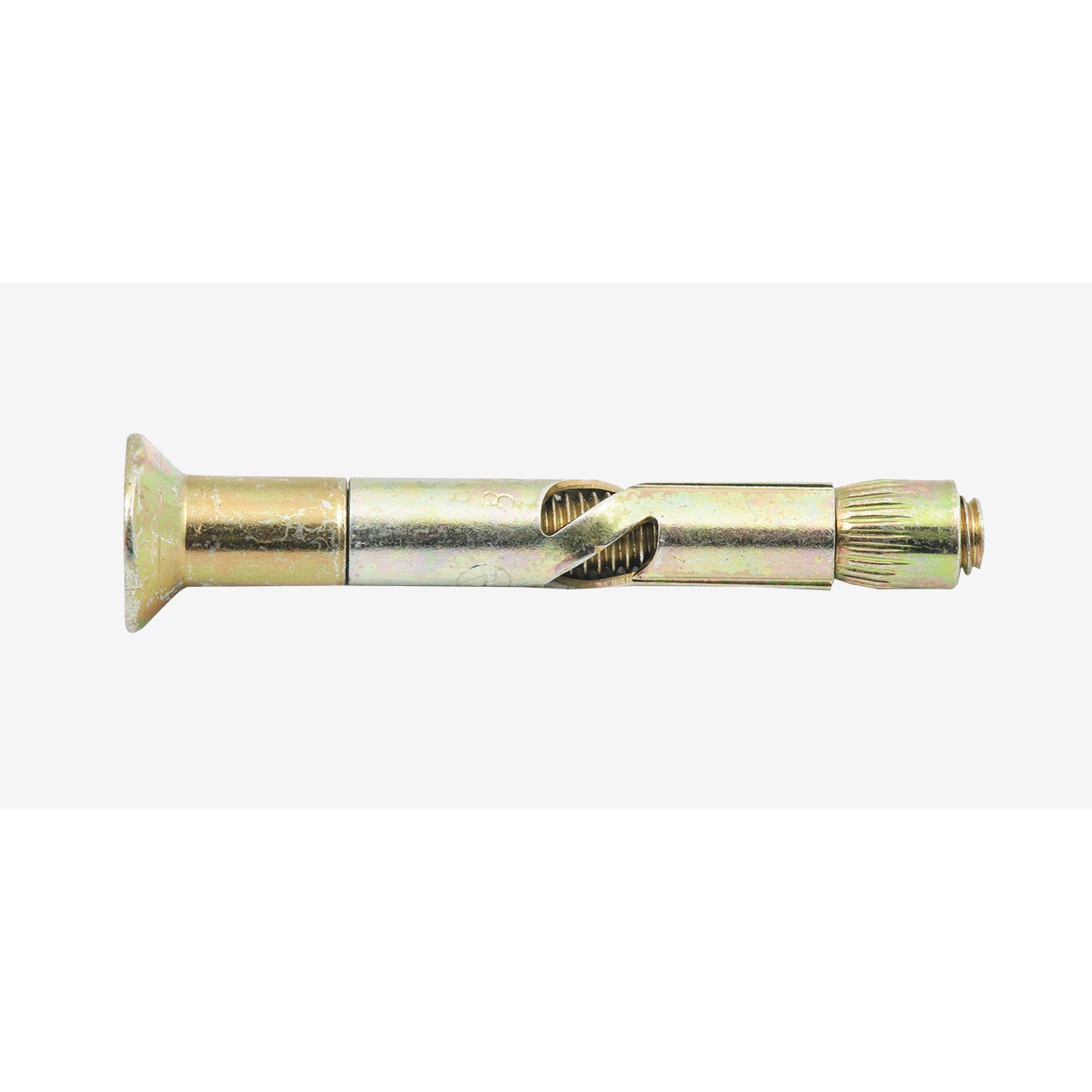

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M8
• Anchor length: 60mm
• Drilled hole diameter: 8mm
• Minimum hole depth: 70mm
• Max fixture thickness: 20mm
• Effective length: 30mm
• Fixture hole: 10mm
• Finish: Zinc plated, countersunk/flat head

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M8
• Anchor length: 66mm
• Drilled hole diameter: 8mm
• Minimum hole depth: 65mm
• Max fixture thickness: 25mm
• Effective length: 60mm
• Fixture hole: 10mm
• Finish: Zinc plated, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M8
• Anchor length: 40mm
• Drilled hole diameter: 8mm
• Minimum hole depth: 50mm
• Max fixture thickness: 6mm
• Effective length: 34mm
• Fixture hole: 10mm
• Finish: Zinc plated, hex nut

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M8
• Anchor length: 85mm
• Drilled hole diameter: 8mm
• Minimum hole depth: 75mm
• Max fixture thickness: 45mm
• Effective length: 30mm
• Fixture hole: 10mm
• Finish: Zinc plated, countersunk/flat head

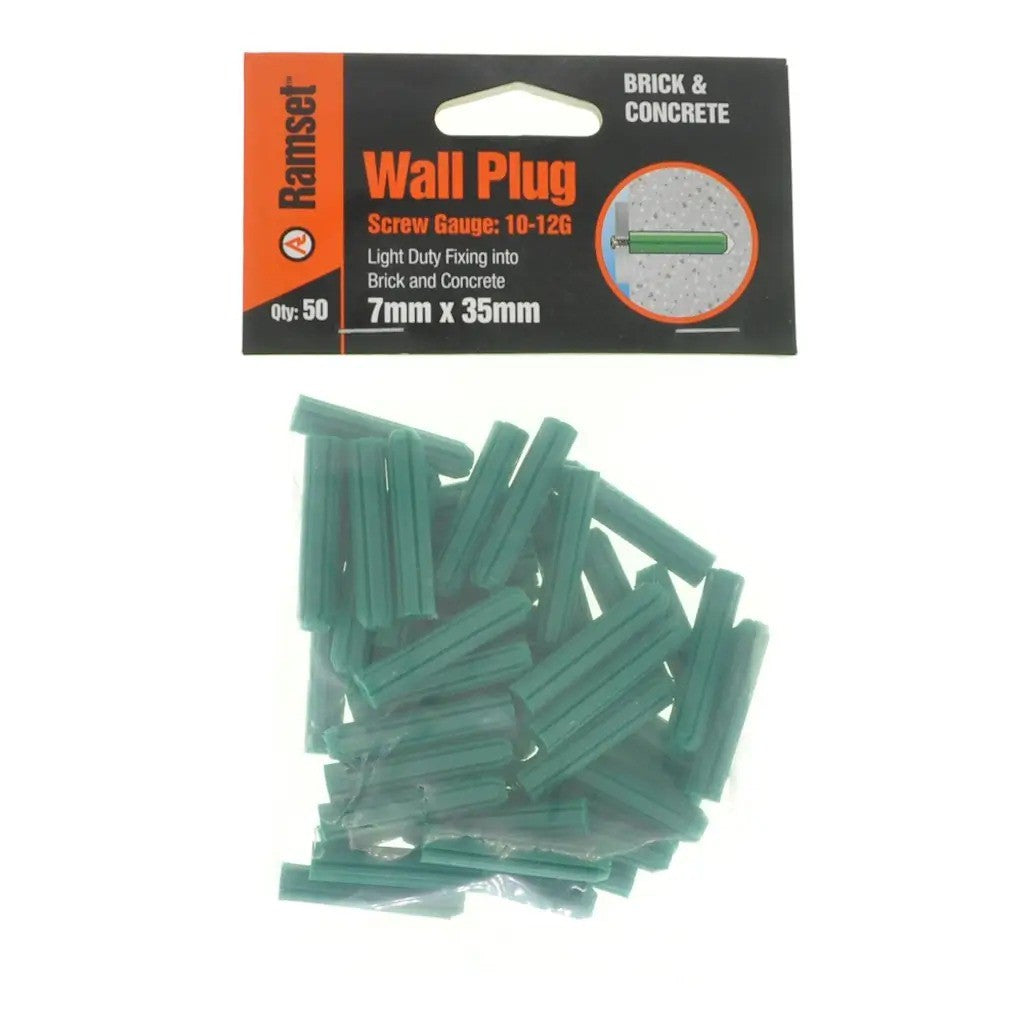

A general-purpose masonry fixing wall plug for 10-12 gauge screws.

Specifications

• Size: 7mm x 35mm
• Hole size: 6.5mm
• Bag quantity: 50 wallplugs

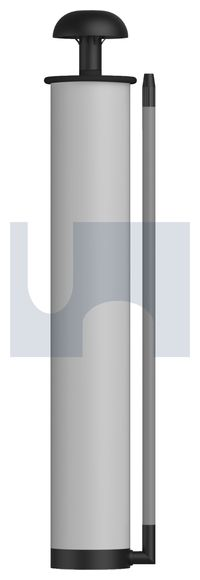

Hobson Cleaning BLOW OUT PUMP. BLOW OUT PUMP: SIZE 50. 840ml, PURGING PUMP. HEC.

Key Features

• Product: CLEANING BLOW OUT PUMP
• Finish: PURGING PUMP
• Size: 840ml
• Specification: HEC

Specifications

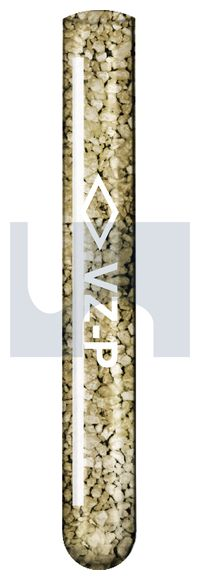

Hobson C601 Capsule VZ-P. C601 CAPSULE VZ-P: M10 X 90. M10, 90, EPOXY-ACRYLATE. HEC XCHEM PRO.

Key Features

• Product: C601 CAPSULE VZ-P
• Finish: EPOXY-ACRYLATE
• Size: M10
• Length: 90
• Specification: HEC XCHEM PRO

Specifications

Related Parts

• MCXCBHSD08300 — NYLON BRUSH HAND: 8 X 300
• MCXCBHSD10300 — NYLON BRUSH HAND: 10 X 300
• MCXCBPAPM06 — BRUSH POWER SDS-PLUS ADAPT: M6
• MCXCBPSD10170 — STEEL BRUSH POWER: 10 X 170
• MCXCPB-50 — BLOW OUT PUMP: SIZE 50
• PXDMSP3C120170 — SP-3C SDS-PLUS: 12 X 100/170
• PXDMSP3C120220 — SP-3C SDS-PLUS: 12 X 150/220
• PXDMSX3C120350 — SX-3C SDS-MAX: 12 X 200/350

Documents

• Did You Know: XCHEM PRO C601 Capsule VZ-P
• Did You Know: XCHEM PRO Range Spotlight
• Did You Know: Hobson Chemical Volume Calculator
• Hobson Chemical Volume Calculator
• DOC 10043 Hobson C601 Capsule XCHEM PRO
• C601 XCHEM PRO Capsule MSDS
• Hobson Conxtruct Product Guide

Hobson C601 Capsule VZ-P. C601 CAPSULE VZ-P: M12 X 95. M12, 95, EPOXY-ACRYLATE. HEC XCHEM PRO.

Key Features

• Product: C601 CAPSULE VZ-P
• Finish: EPOXY-ACRYLATE
• Size: M12
• Length: 95
• Specification: HEC XCHEM PRO

Specifications

Related Parts

• MCXCBHSD10300 — NYLON BRUSH HAND: 10 X 300
• MCXCBPAPM06 — BRUSH POWER SDS-PLUS ADAPT: M6
• MCXCBPSD12170 — STEEL BRUSH POWER: 12 X 170
• MCXCPB-50 — BLOW OUT PUMP: SIZE 50
• PXDMSP3C140170 — SP-3C SDS-PLUS: 14 X 100/170
• PXDMSP3C140220 — SP-3C SDS-PLUS: 14 X 150/220
• PXDMSX3C140350 — SX-3C SDS-MAX: 14 X 200/350

Documents

• Did You Know: XCHEM PRO C601 Capsule VZ-P
• Did You Know: XCHEM PRO Range Spotlight
• Did You Know: Hobson Chemical Volume Calculator
• Hobson Chemical Volume Calculator
• DOC 10043 Hobson C601 Capsule XCHEM PRO
• C601 XCHEM PRO Capsule MSDS
• Hobson Conxtruct Product Guide

Hobson C601 Capsule VZ-P. C601 CAPSULE VZ-P: M20 X 145. M20, 145, EPOXY-ACRYLATE. HEC XCHEM PRO.

Key Features

• Product: C601 CAPSULE VZ-P
• Finish: EPOXY-ACRYLATE
• Size: M20
• Length: 145
• Specification: HEC XCHEM PRO

Specifications

Related Parts

• MCXCBHSD22300 — NYLON BRUSH HAND: 22 X 300
• MCXCBPAPM06 — BRUSH POWER SDS-PLUS ADAPT: M6
• MCXCBPSD20250
• MCXCPB-50 — BLOW OUT PUMP: SIZE 50
• PXDMSXYC220330 — SX-YC SDS-MAX: 22 X 200/330

Documents

• Did You Know: XCHEM PRO C601 Capsule VZ-P
• Did You Know: XCHEM PRO Range Spotlight
• Did You Know: Hobson Chemical Volume Calculator
• Hobson Chemical Volume Calculator
• DOC 10043 Hobson C601 Capsule XCHEM PRO
• C601 XCHEM PRO Capsule MSDS
• Hobson Conxtruct Product Guide

Hobson C601 Capsule VZ-P. C601 CAPSULE VZ-P: M24 X 190. M24, 190, EPOXY-ACRYLATE. HEC XCHEM PRO.

Key Features

• Product: C601 CAPSULE VZ-P
• Finish: EPOXY-ACRYLATE
• Size: M24
• Length: 190
• Specification: HEC XCHEM PRO

Specifications

Related Parts

• MCXCBHSD22300 — NYLON BRUSH HAND: 22 X 300
• MCXCBPAPM06 — BRUSH POWER SDS-PLUS ADAPT: M6
• MCXCBPSD24250
• MCXCPB-50 — BLOW OUT PUMP: SIZE 50

Documents

• Did You Know: XCHEM PRO C601 Capsule VZ-P
• Did You Know: XCHEM PRO Range Spotlight
• Did You Know: Hobson Chemical Volume Calculator
• Hobson Chemical Volume Calculator
• DOC 10043 Hobson C601 Capsule XCHEM PRO
• C601 XCHEM PRO Capsule MSDS
• Hobson Conxtruct Product Guide

Hobson E701 PURE Epoxy. E701 EPOXY: 585ML. 585 ml, 585 ML CARTRIDGE. HEC XCHEM PRO.

Key Features

• Product: E701 PURE EPOXY
• Finish: 585 ML CARTRIDGE
• Size: 585 ml
• Specification: HEC XCHEM PRO

Specifications

Related Parts

• MCXAM585 — XCHEM APPLICATOR MANUAL: 585ML
• MCXCPB-50 — BLOW OUT PUMP: SIZE 50
• MCXND1 — MIXER NOZZLE: E701
• MCXNE5 — MIXER NOZZLE EXTENSION: 250MM
• MCXNE7 — MIXER NOZZLE EXTENSION: 1M

Documents

• E701 XCHEM PRO Epoxy 585 ml - Performance Data
• Did You Know: Anchor 3Design Software
• Did You Know: XCHEM PRO Range
• Did You Know: XCHEM PRO Range Spotlight
• Did You Know: Hobson Chemical Volume Calculator
• XCHEM PRO - FAQ - Chemical Anchoring & XCHEM PRO - Easy Guide
• Hobson Anchor 3DESIGN Software
• Hobson Chemical Volume Calculator
• DOC 0515 E701 XCHEM Pure Epoxy - Rebar / Fire Resistant
• DOC 0514 E701 XCHEM Pure Epoxy - Option 1 / C1 / C2
• E701 XCHEM PRO Epoxy MSDS
• XCHEM PRO Chemical Chart - A1 Poster
• Hobson Conxtruct Product Guide

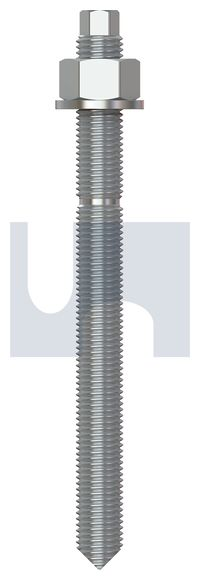

Hobson STUD CHEM Anchor KIT (EXT HEX). GAL-HX CHEM ANCH KIT:M10 X 130. M10, 130, HOT DIP GALVANISED. HEC / CLASS 5.8 / CHISEL POINT.

Key Features

• Product: STUD CHEM ANCHOR KIT (EXT HEX)
• Finish: HOT DIP GALVANISED
• Size: M10
• Length: 130
• Thread: M10-1.50
• Specification: HEC / CLASS 5.8 / CHISEL POINT
• Category: Conxtruct

Specifications

Related Parts

• MUCMTAPD1690008 — MIT-AP-D1
• MUCMTAPG1690011 — MIT-AP-HG1 BLOW PUMP: 840 ML
• MUCMTBH01690023 — MIT-BS-H0: 12 / 14X300
• MUCMTBH11690020 — MIT-BS-H1: 10-12 / 14X300
• MUCMTBM11690041 — MIT-BS-M1: 12 / 14X170
• MUCMTBMA1690052 — MIT-BS-MA SDS-PLUS ADAPTER: M6
• MUCMTBMV1690051 — MIT-BS-MV BRUSH EXT: 300 MM
• MUCMTBNH1690013 — MIT-BN-H1: 10-16 / 20X300
• MUDMHPD02151215 — MHP-D DRILL BIT:12 X 210/150

Documents

• Chemical Stud Anchors
• Product Finish Comparison
• Hobson Conxtruct Product Guide
• A different shade of grey
• Clean Holes

Hobson STUD CHEM Anchor KIT (EXT HEX). GAL-HX CHEM ANCH KIT:M12 X 160. M12, 160, HOT DIP GALVANISED. HEC / CLASS 5.8 / CHISEL POINT.

Key Features

• Product: STUD CHEM ANCHOR KIT (EXT HEX)
• Finish: HOT DIP GALVANISED
• Size: M12
• Length: 160
• Thread: M12-1.75
• Specification: HEC / CLASS 5.8 / CHISEL POINT
• Category: Conxtruct

Specifications

Related Parts

• MUCMTAPD1690008 — MIT-AP-D1
• MUCMTAPG1690011 — MIT-AP-HG1 BLOW PUMP: 840 ML
• MUCMTBH01690015 — MIT-BS-H0: 14 / 16X300
• MUCMTBH11690021 — MIT-BS-H1: 14-18 / 20X300
• MUCMTBM11690042 — MIT-BS-M1: 14 / 16X170
• MUCMTBMA1690052 — MIT-BS-MA SDS-PLUS ADAPTER: M6
• MUCMTBMV1690051 — MIT-BS-MV BRUSH EXT: 300 MM
• MUCMTBNH1690013 — MIT-BN-H1: 10-16 / 20X300

Documents

• Chemical Stud Anchors
• Product Finish Comparison
• Hobson Conxtruct Product Guide
• A different shade of grey
• Clean Holes

Hobson STUD CHEM Anchor KIT (EXT HEX). GAL-HX CHEM ANCH KIT:M16 X 190. M16, 190, HOT DIP GALVANISED. HEC / CLASS 5.8 / CHISEL POINT.

Key Features

• Product: STUD CHEM ANCHOR KIT (EXT HEX)
• Finish: HOT DIP GALVANISED
• Size: M16
• Length: 190
• Thread: M16-2.00
• Specification: HEC / CLASS 5.8 / CHISEL POINT
• Category: Conxtruct

Specifications

Related Parts

• MUCMTAPD1690008 — MIT-AP-D1
• MUCMTAPG1690011 — MIT-AP-HG1 BLOW PUMP: 840 ML
• MUCMTBH01690016 — MIT-BS-H0: 18 / 20X300
• MUCMTBH11690021 — MIT-BS-H1: 14-18 / 20X300
• MUCMTBM11690044 — MIT-BS-M1: 18 / 20X200
• MUCMTBMA1690052 — MIT-BS-MA SDS-PLUS ADAPTER: M6
• MUCMTBMV1690051 — MIT-BS-MV BRUSH EXT: 300 MM

Documents

• Chemical Stud Anchors
• Product Finish Comparison
• Hobson Conxtruct Product Guide
• A different shade of grey
• Clean Holes

Hobson STUD CHEM Anchor KIT (EXT HEX). GAL-HX CHEM ANCH KIT:M20 X 260. M20, 260, HOT DIP GALVANISED. HEC / CLASS 5.8 / CHISEL POINT.

Key Features

• Product: STUD CHEM ANCHOR KIT (EXT HEX)
• Finish: HOT DIP GALVANISED
• Size: M20
• Length: 260
• Thread: M20-2.50
• Specification: HEC / CLASS 5.8 / CHISEL POINT
• Category: Conxtruct

Specifications

Related Parts

• MUCMTAPD1690008 — MIT-AP-D1
• MUCMTAPG1690011 — MIT-AP-HG1 BLOW PUMP: 840 ML
• MUCMTBH01690017 — MIT-BS-H0: 24 / 26X300
• MUCMTBH11690022 — MIT-BS-H1: 22-26 / 29X300
• MUCMTBM11690046 — MIT-BS-M1: 24 / 26X250
• MUCMTBMA1690052 — MIT-BS-MA SDS-PLUS ADAPTER: M6
• MUCMTBMV1690051 — MIT-BS-MV BRUSH EXT: 300 MM
• MUDMHPD02152440 — MHP-D DRILL BIT:24 X 450/400
• MUDMHXY02162440 — MHX-Y DRILL BIT:24 X 520/400

Documents

• Chemical Stud Anchors
• Product Finish Comparison
• Hobson Conxtruct Product Guide
• A different shade of grey
• Clean Holes
