Imex i88G Green Beam Self-Levelling Rotating Laser LRX10 Receiver 012-I88G

SKU: 012-I88G

$1,959.00

In stock
Imex i88G Green Beam Self-Levelling Rotating Laser LRX10 Receiver 012-I88G

$1,959.00

$1,959.00

With self-levelling, grade slope function, scan mode, horizontal and vertical, remote controller and 9Ah lithium-ion mm Digital Detector battery the iMEX range represents excellent value with versatile capabilities for a full range of construction functions.

Combined with this is the highly visible heavy duty and robust, water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use. A sensor based self-levelling system utilizing a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy.

This listing is Imex i88G Green Beam Rotating Laser - LRX10 Receiver.

Key Features

  • The simplified design elements and robust componentry also mean reduced calibration and service requirements
  • All backed by iMEX warranty, service and innovative approach
  • The i88G laser comes with a new green beam laser diode
  • The human eye responds many times better to green than red, subsequently the laser diodes use less power for better performance, run cooler are safer and perform better in both exterior and interior
  • Potential eye damage is minimized and the laser line is more accurate and precise

Specifications

iMEX i88G 012-I88G -Specifications
Self Levelling Range +/-5°
Working Distance 600m Diameter
Function Horizontal/Vertical
Scan Mode Yes, 0°, 10°, 45°, 90°, 180°
Slope Mode Yes – Single manual grade to 5° 8.8%
Accuracy 1.5mm @ 30m
Rotation Speeds 0, 60, 120, 300, 600 rpm
Waterproof/Shockproof IP66
Light Source Red 635nm Class II
Power 9 Ah 3.7v lithium-ion

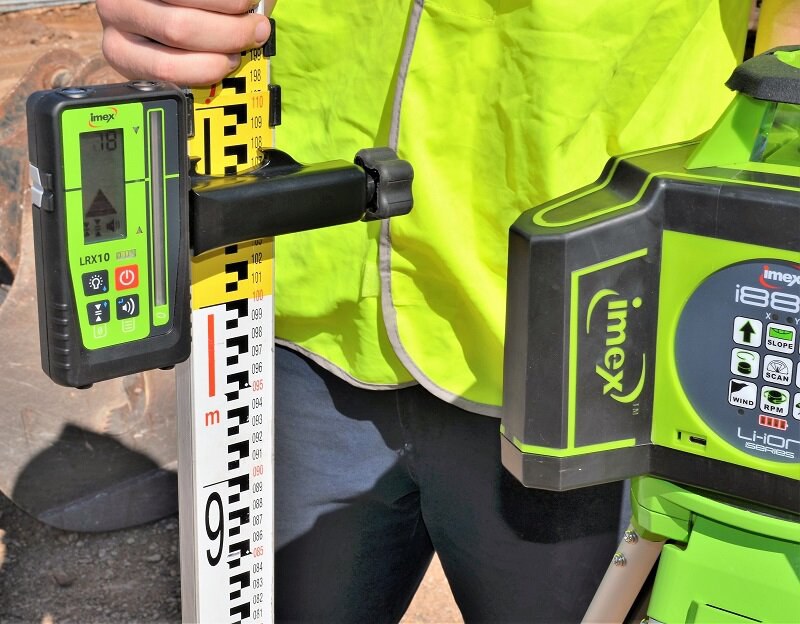

Detector LRX10 Double Sided
Working time – continuous use 40hrs approx Red
Charging Time 4 hours
USBC Charging Yes; including 12v car charger
High Wind Sensitivity Re-set Yes
Remote Control Yes, iCR8
Weight – Unit Only 2.48kg

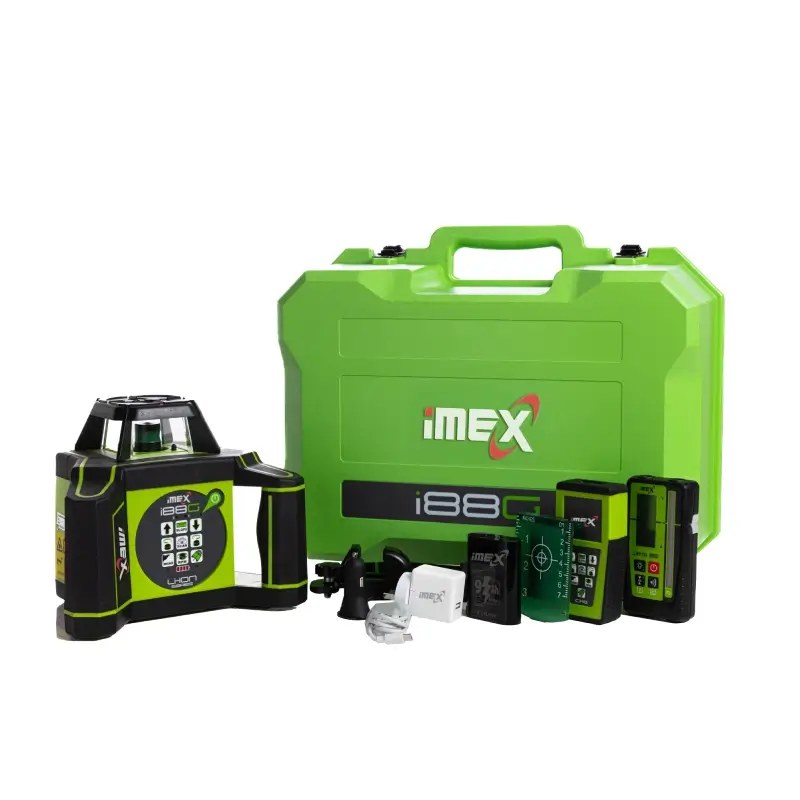

What's Included

  • LRX10 detector and holder
  • Instructions and carry case

Documents

Description

With self-levelling, grade slope function, scan mode, horizontal and vertical, remote controller and 9Ah lithium-ion mm Digital Detector battery the iMEX range represents excellent value with versatile capabilities for a full range of construction functions.

Combined with this is the highly visible heavy duty and robust, water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use. A sensor based self-levelling system utilizing a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy.

This listing is Imex i88G Green Beam Rotating Laser - LRX10 Receiver.

Key Features

  • The simplified design elements and robust componentry also mean reduced calibration and service requirements
  • All backed by iMEX warranty, service and innovative approach
  • The i88G laser comes with a new green beam laser diode
  • The human eye responds many times better to green than red, subsequently the laser diodes use less power for better performance, run cooler are safer and perform better in both exterior and interior
  • Potential eye damage is minimized and the laser line is more accurate and precise

Specifications

iMEX i88G 012-I88G -Specifications
Self Levelling Range +/-5°
Working Distance 600m Diameter
Function Horizontal/Vertical
Scan Mode Yes, 0°, 10°, 45°, 90°, 180°
Slope Mode Yes – Single manual grade to 5° 8.8%
Accuracy 1.5mm @ 30m
Rotation Speeds 0, 60, 120, 300, 600 rpm
Waterproof/Shockproof IP66
Light Source Red 635nm Class II
Power 9 Ah 3.7v lithium-ion
Detector LRX10 Double Sided
Working time – continuous use 40hrs approx Red
Charging Time 4 hours
USBC Charging Yes; including 12v car charger
High Wind Sensitivity Re-set Yes
Remote Control Yes, iCR8
Weight – Unit Only 2.48kg

What's Included

  • LRX10 detector and holder
  • Instructions and carry case

Documents
