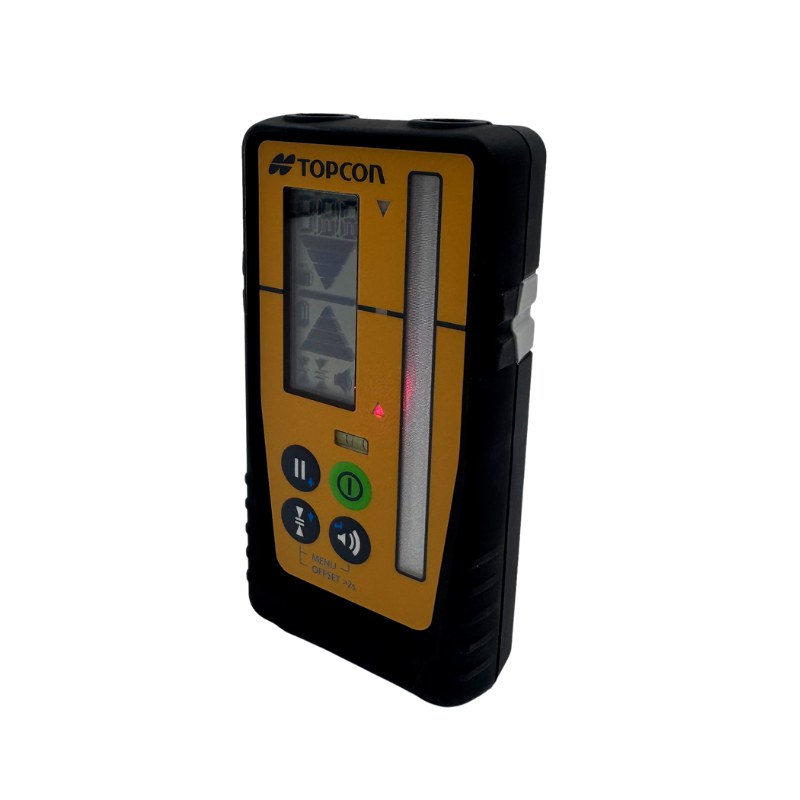

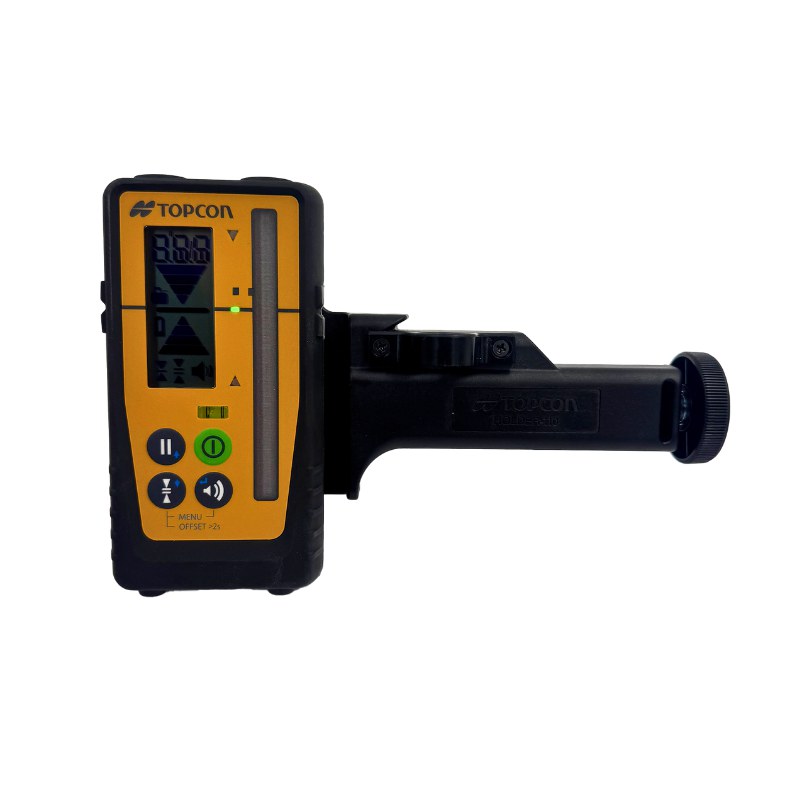

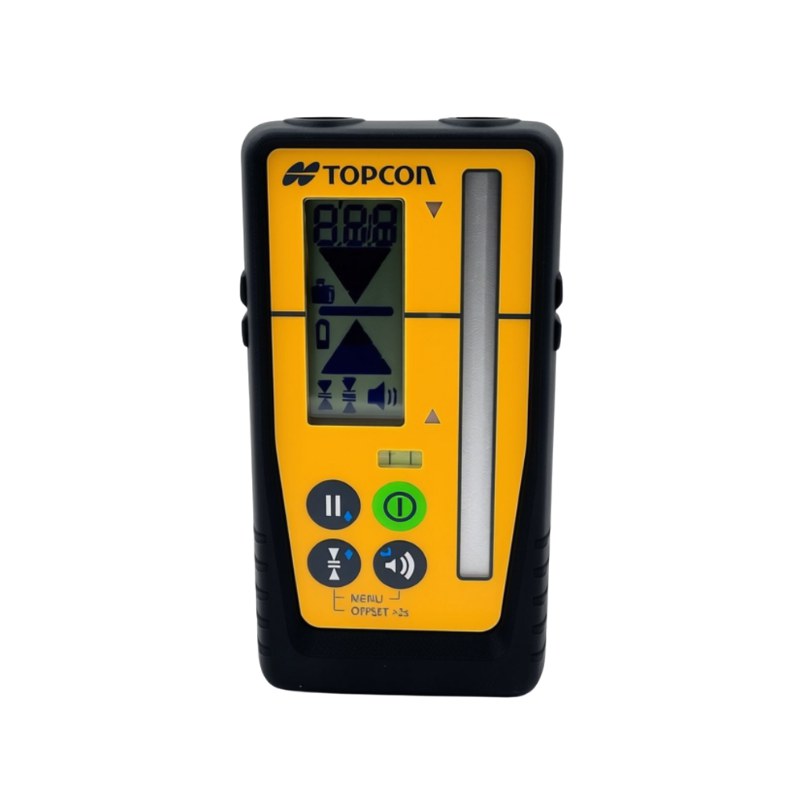

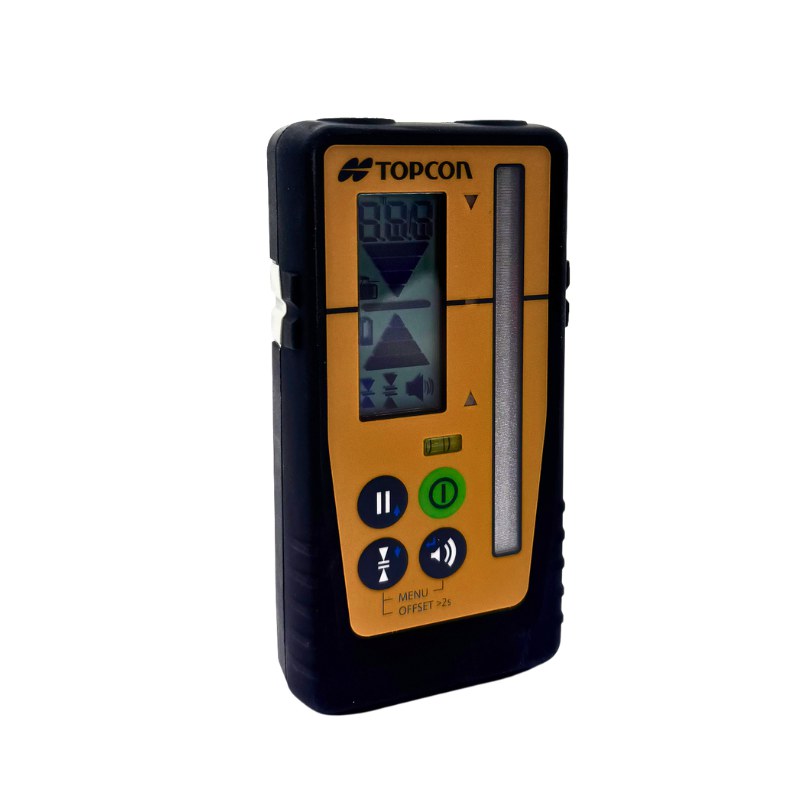

Topcon LS-110D Digital Laser Receiver 1091205-01
$589.00
Pay with
$589.00
$589.00
The LS-110D digital laser sensor is designed to increase speed and productivity on any job, by providing the perfect blend of operator-friendly technology and enhanced precision for elevation and vertical alignment control.
The LS-110D Topcon receiver has 4 accuracy resolutions from ±0.5 mm to ±10 mm and a 90 mm reception height for extra-wide beam capture. Extra-wide capture includes strobe-proof protection so you get a quick, accurate result.
This listing is Topcon LS-110D Level Sensor.
Key Features
- Four accuracy resolutions from ±0.5 mm to ±10 mm
- 90 mm reception height for extra-wide beam capture
- Strobe-proof protection on the capture sensor
- Bright LCD displays front and back, readable in strong sunlight
- Nine channels of grade information and a digital distance-to-on-grade readout
- Three coloured LEDs and a hold button to lock the display
- Embedded magnets for vertical and horizontal operation (steel erection or excavation grade checking)
- Works with Topcon RL-H5A, RL-SV2S and RL-200 series lasers
Specifications
| Accuracy resolutions | 4 settings from ±0.5 mm to ±10 mm |
| Reception height | 90 mm extra-wide beam capture |
| Strobe protection | Yes |
| Display | LCD front and rear; 9-channel grade; digital distance to on-grade |
| Indicators | Three coloured LEDs; hold lock |
| Mounting | Embedded magnets for vertical and horizontal use |
| Compatible lasers | RL-H5A, RL-SV2S, RL-200 series |
What's Included
- LS-110D laser receiver as supplied
Video
Documents
Description
The LS-110D digital laser sensor is designed to increase speed and productivity on any job, by providing the perfect blend of operator-friendly technology and enhanced precision for elevation and vertical alignment control.
The LS-110D Topcon receiver has 4 accuracy resolutions from ±0.5 mm to ±10 mm and a 90 mm reception height for extra-wide beam capture. Extra-wide capture includes strobe-proof protection so you get a quick, accurate result.
This listing is Topcon LS-110D Level Sensor.
Key Features
- Four accuracy resolutions from ±0.5 mm to ±10 mm
- 90 mm reception height for extra-wide beam capture
- Strobe-proof protection on the capture sensor
- Bright LCD displays front and back, readable in strong sunlight
- Nine channels of grade information and a digital distance-to-on-grade readout
- Three coloured LEDs and a hold button to lock the display
- Embedded magnets for vertical and horizontal operation (steel erection or excavation grade checking)
- Works with Topcon RL-H5A, RL-SV2S and RL-200 series lasers
Specifications
| Accuracy resolutions | 4 settings from ±0.5 mm to ±10 mm |
| Reception height | 90 mm extra-wide beam capture |
| Strobe protection | Yes |
| Display | LCD front and rear; 9-channel grade; digital distance to on-grade |
| Indicators | Three coloured LEDs; hold lock |
| Mounting | Embedded magnets for vertical and horizontal use |
| Compatible lasers | RL-H5A, RL-SV2S, RL-200 series |
What's Included
- LS-110D laser receiver as supplied
Video
Documents
