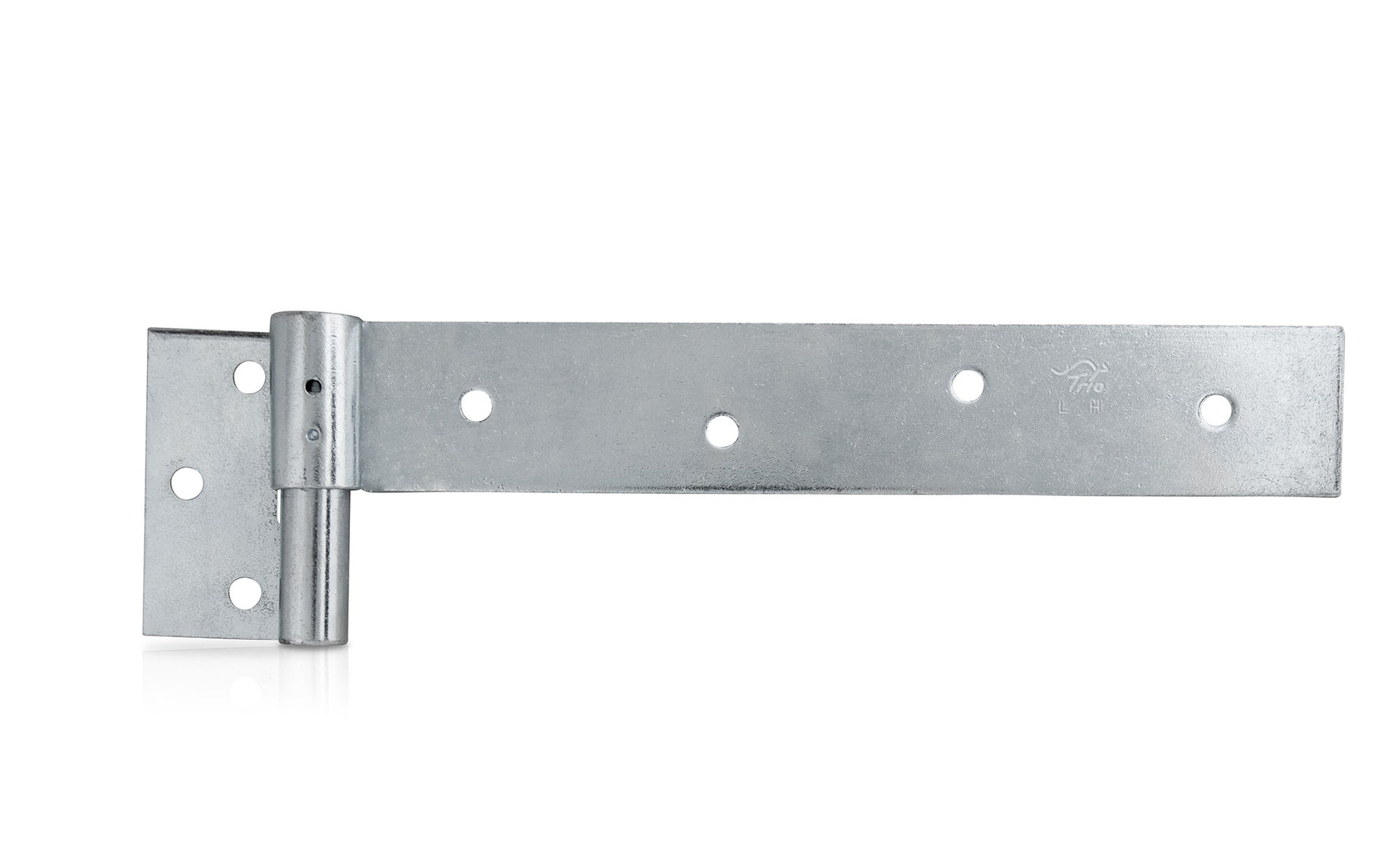

Trio Australia Gate Hinge Heavy Duty Lh 88x338x4.0 BT2000LHZP
See more by Door Hinges

Trio Australia Gate Hinge Heavy Duty Lh 88x338x4.0 BT2000LHZP

SKU: BT2000LHZP
: 9328879104225

$37.40

In stock
Trio Australia Gate Hinge Heavy Duty Lh 88x338x4.0 BT2000LHZP

$37.40

$37.40

A 4mm-thick steel gate hinge with a 300mm strap that carries the weight of heavy timber gates across a long bearing surface. Supplied as a zinc-plated pair, handed left or right, with Trio's patent security pin.

Key Features

  • Patent security pin
  • For steel and timber gates and wooden posts
  • Gate opens inwards
  • Long strap gives more support over a larger surface area, for heavy wooden gates
  • Heavy 4mm steel section, 88 x 338mm overall – supplied as a handed pair

Technical Specifications

Variant Left hand, pair
Finish Zinc Plated (ZP)
Size 88 x 338 x 4mm
Range REVIVE T2000 Heavy Duty Strap
Overall size 88 x 338 x 4mm
Post leaf 60mm wide x 88mm high
Strap 300mm from the knuckle
Material thickness 4mm
Material Steel – grade not published
Pack Retail pack (RPk), supplied as a pair; 5 per inner
Handing Left hand and right hand are separate SKUs
Load rating Not published
Dimensions recorded 338 x 88 x 4 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Weight Trio does not publish a weight for this product. Confirmed absent from the product page and every relevant Trio catalogue PDF.
Barcode / EAN 9328879104225
Description

A 4mm-thick steel gate hinge with a 300mm strap that carries the weight of heavy timber gates across a long bearing surface. Supplied as a zinc-plated pair, handed left or right, with Trio's patent security pin.

Key Features

  • Patent security pin
  • For steel and timber gates and wooden posts
  • Gate opens inwards
  • Long strap gives more support over a larger surface area, for heavy wooden gates
  • Heavy 4mm steel section, 88 x 338mm overall – supplied as a handed pair

Technical Specifications

Variant Left hand, pair
Finish Zinc Plated (ZP)
Size 88 x 338 x 4mm
Range REVIVE T2000 Heavy Duty Strap
Overall size 88 x 338 x 4mm
Post leaf 60mm wide x 88mm high
Strap 300mm from the knuckle
Material thickness 4mm
Material Steel – grade not published
Pack Retail pack (RPk), supplied as a pair; 5 per inner
Handing Left hand and right hand are separate SKUs
Load rating Not published
Dimensions recorded 338 x 88 x 4 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Weight Trio does not publish a weight for this product. Confirmed absent from the product page and every relevant Trio catalogue PDF.
Barcode / EAN 9328879104225
