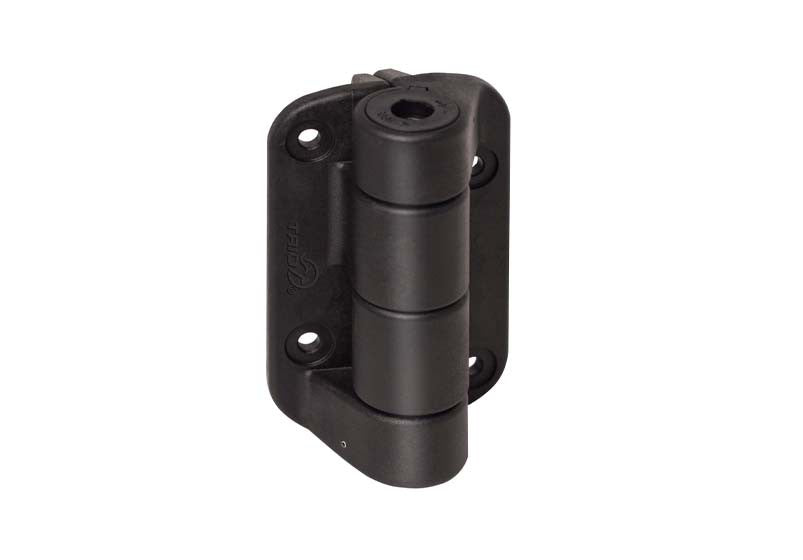

Trio Australia Hinge, Heavy Duty, Adj Tension, Align Legs 60kg Pr DPH610
See more by Deadlocks & Latches

Trio Australia Hinge, Heavy Duty, Adj Tension, Align Legs 60kg Pr DPH610

SKU: DPH610
: 9328879117027

$91.56

In stock
Trio Australia Hinge, Heavy Duty, Adj Tension, Align Legs 60kg Pr DPH610

$91.56

$91.56

Heavy Duty Adjustable Hinge with Alignment Legs in black polymer, supplied as a pair. Self-closes gates up to 60kg per pair.

Key Features

  • Supplied as a matched pair
  • Impact-resistant black polymer – anti-rust, unaffected by moisture
  • Slotted leaves allow vertical adjustment during installation
  • Symmetrical holes let the hinge be inverted to suit left- or right-hand gates
  • Alignment legs speed up squaring the gate against the post

Technical Specifications

Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product name Heavy Duty Adjustable Hinge with Alignment Legs
Self-closing capacity Self-closes gates up to 60kg per pair.
Tension adjustment Adjustable, 6mm allen key in quarter-turn increments, maximum two full turns
Mounting style Alignment legs for fast and easy installation
Maximum gate load Not published – Trio publishes a self-closing capacity only
Supplied as Pair
Mounting positions Maximum 150mm from the top and bottom of the gate
Difference from DPH600 Alignment legs instead of a flat back
Barcode / EAN 9328879117027
Description

Heavy Duty Adjustable Hinge with Alignment Legs in black polymer, supplied as a pair. Self-closes gates up to 60kg per pair.

Key Features

  • Supplied as a matched pair
  • Impact-resistant black polymer – anti-rust, unaffected by moisture
  • Slotted leaves allow vertical adjustment during installation
  • Symmetrical holes let the hinge be inverted to suit left- or right-hand gates
  • Alignment legs speed up squaring the gate against the post

Technical Specifications

Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product name Heavy Duty Adjustable Hinge with Alignment Legs
Self-closing capacity Self-closes gates up to 60kg per pair.
Tension adjustment Adjustable, 6mm allen key in quarter-turn increments, maximum two full turns
Mounting style Alignment legs for fast and easy installation
Maximum gate load Not published – Trio publishes a self-closing capacity only
Supplied as Pair
Mounting positions Maximum 150mm from the top and bottom of the gate
Difference from DPH600 Alignment legs instead of a flat back
Barcode / EAN 9328879117027
