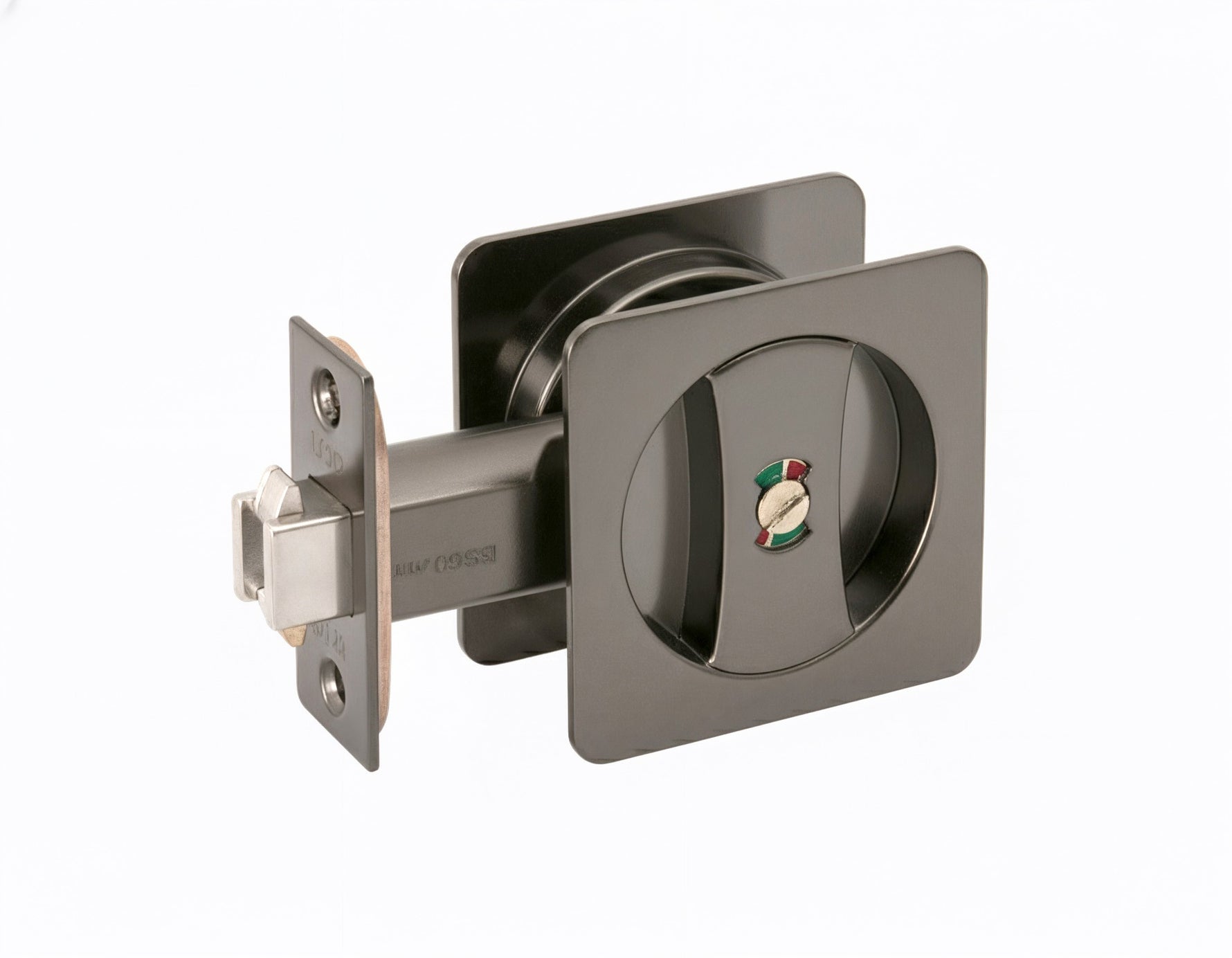

Trio Australia Square Sliding Door Privacy Gun Metal Grey CD1 BSPRS366GN

Trio Australia Square Sliding Door Privacy Gun Metal Grey CD1 BSPRS366GN

SKU: BSPRS366GN
: 9328879122304

$86.90

In stock
Trio Australia Square Sliding Door Privacy Gun Metal Grey CD1 BSPRS366GN

$86.90

$86.90

A safety lock component designed specifically for sliding doors. The square-rose version of Trio's cavity sliding door privacy set – the same recessed chassis and inside thumb-turn, presented with a squared faceplate to suit contemporary square-profile door hardware.

Key Features

  • Square rose and faceplate – matches square-profile levers, pulls and door furniture
  • Privacy function – inside thumb-turn with an outside occupied / vacant indicator
  • Recesses flush into the door face; decorative cover conceals the mounting screws
  • Suits interior sliding doors 31–51mm thick; 54mm face bore, 60mm backset
  • Non-handed; the widest finish choice in Trio's sliding privacy range

Technical Specifications

Variant Privacy
Finish Gun Metal Grey (GN)
Range REVIVE Sliding Door Square Lock – Privacy
Rose shape Square (the additional S in the code denotes the square rose)
Function Privacy – inside thumb-turn with an outside occupied / vacant indicator
Application Trio: “This product is designed for lightweight interior doors. Do not use it on exterior or heavy metal doors.”
Door thickness 31–51mm (privacy function)
Face bore 54mm diameter through the door face
Edge bore 25mm diameter in the door edge
Backset 60mm
Strike 22mm diameter; strike plate approximately 67 x 34mm, chiselled to a 3mm-deep indentation
Recommended height 914mm from the floor to the centre of the lock
Tailpiece length by door thickness 31–36mm → 29mm; 36–44mm → 37mm; 44–51mm → 45mm
Mounting screw length by door thickness 31–35mm → 12mm; 35–40mm → 18mm; 40–45mm → 22mm; 45–55mm → 28mm
Handing Non-handed / field-reversible – the same set fits left- or right-handed doors. There are no separate LH/RH SKUs.
Finger pull Optional and sold separately – Trio's instruction sheet labels the round and square finger pulls “optional”. Requires a 25mm diameter hole 25mm deep, 150mm above the centre of the lock.
Emergency release Not published – Trio does not claim an emergency release for these sets. It reserves that claim for its separate BTPL barn-door locks.
Pack contents Not published as a parts list. The instruction sheet shows an outside lock with indicator, inside lock with turn, latch, strike, tailpiece and mounting screws.
Material Not published
Rose / faceplate dimensions Not published
Weight / packed dimensions Not published
Warranty 10 years on the product (material and workmanship, including mechanical parts); 5 years on the finish against corrosion, tarnishing and discolouration. Note Trio's finish carve-outs: Matte Black and Gun Metal Grey carry 12 months finish cover only, and Matte Gold and Satin Brass finishes are not covered.
Barcode / EAN 9328879122304
