Joist Blocking

This H2S SmartJoist blocking piece is 560 mm long (56 cm), cut to fit between the 40 mm flanges of a 300 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 560 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 560 mm long (56 cm), cut to fit between the 40 mm flanges of a 240 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 560 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 556 mm long (55.6 cm), cut to fit between the 44 mm flanges of a 200 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 200 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 130 mm hole on a piece at least 1050 mm long, which this 556 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

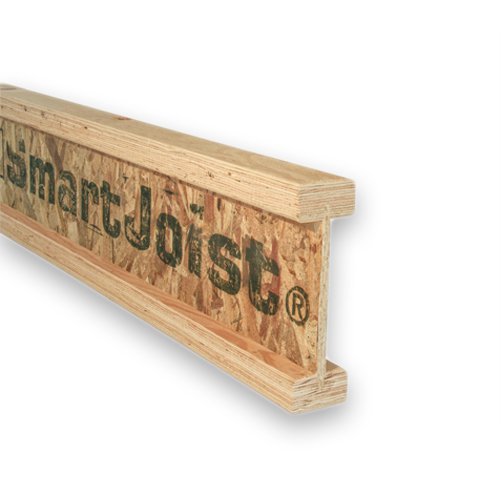

This H2S SmartJoist blocking piece is 549 mm long (54.9 cm), cut to fit between the 51 mm flanges of a 300 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 549 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 549 mm long (54.9 cm), cut to fit between the 51 mm flanges of a 240 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 549 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 542 mm long (54.2 cm), cut to fit between the 58 mm flanges of a 360 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 360 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 235 mm hole on a piece at least 1900 mm long, which this 542 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 530 mm long (53 cm), cut to fit between the 70 mm flanges of a 300 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 530 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 530 mm long (53 cm), cut to fit between the 70 mm flanges of a 240 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 530 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 510 mm long (51 cm) at 600 mm centres for a 400 mm depth, and this length is the clear opening left by a 90 mm flange.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 400 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 265 mm hole on a piece at least 2100 mm long, which this 510 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 510 mm long (51 cm), cut to fit between the 90 mm flanges of a 360 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 360 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 235 mm hole on a piece at least 1900 mm long, which this 510 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 510 mm long (51 cm), cut to fit between the 90 mm flanges of a 300 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 510 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 510 mm long (51 cm), cut to fit between the 90 mm flanges of a 240 mm SmartJoist at 600 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 510 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 410 mm long (41 cm), cut to fit between the 40 mm flanges of a 300 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 410 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

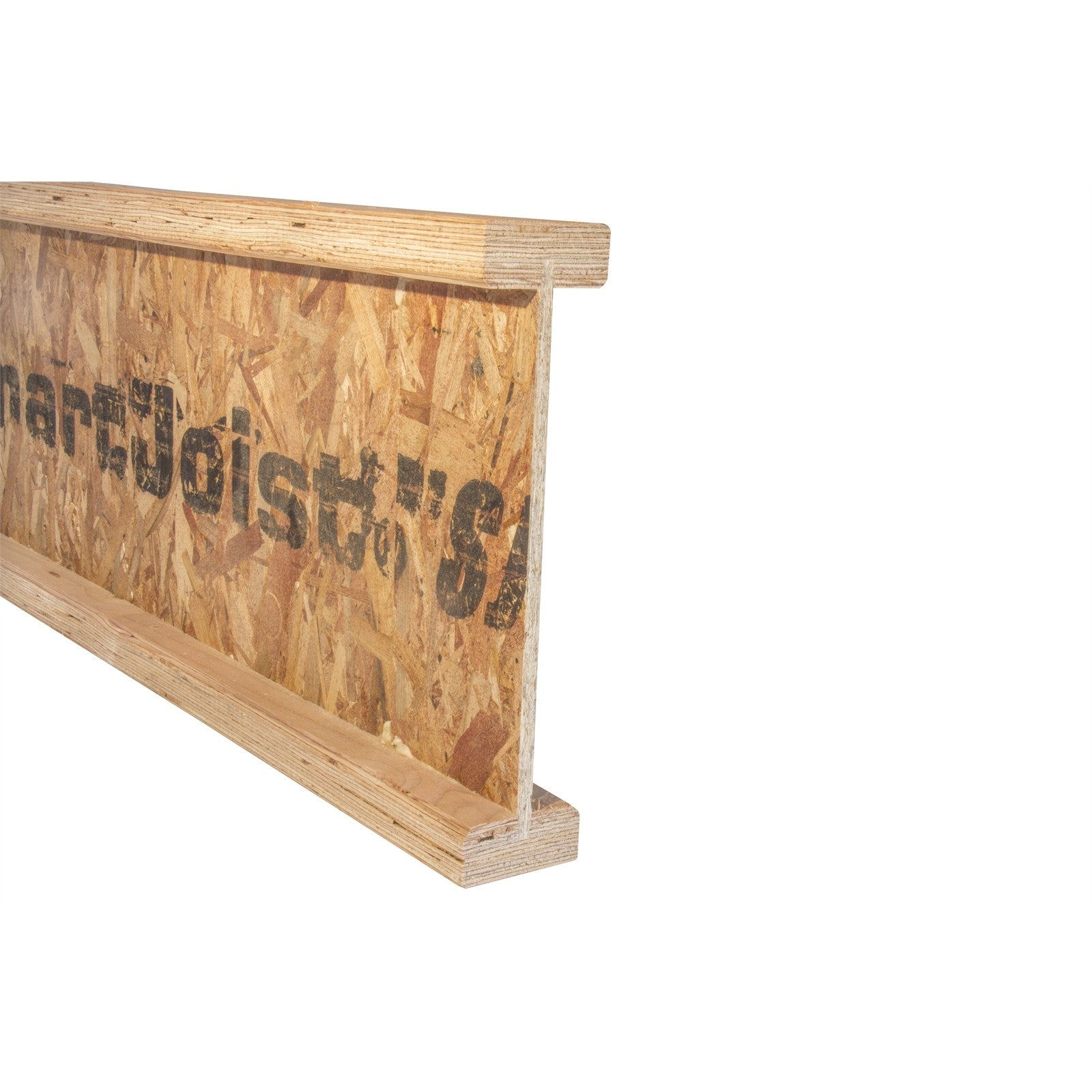

This H2S SmartJoist blocking piece is 410 mm long (41 cm), cut to fit between the 40 mm flanges of a 240 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 410 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 406 mm long (40.6 cm), cut to fit between the 44 mm flanges of a 200 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 200 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 130 mm hole on a piece at least 1050 mm long, which this 406 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 399 mm long (39.9 cm), cut to fit between the 51 mm flanges of a 300 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 399 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 399 mm long (39.9 cm), cut to fit between the 51 mm flanges of a 240 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 399 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 392 mm long (39.2 cm), cut to fit between the 58 mm flanges of a 360 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 360 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 235 mm hole on a piece at least 1900 mm long, which this 392 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 380 mm long (38 cm), cut to fit between the 70 mm flanges of a 300 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 380 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 380 mm long (38 cm), cut to fit between the 70 mm flanges of a 240 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 380 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 360 mm long (36 cm) at 450 mm centres for a 400 mm depth, and this length is the clear opening left by a 90 mm flange.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 400 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 265 mm hole on a piece at least 2100 mm long, which this 360 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 360 mm long (36 cm), cut to fit between the 90 mm flanges of a 360 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 360 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 235 mm hole on a piece at least 1900 mm long, which this 360 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 360 mm long (36 cm), cut to fit between the 90 mm flanges of a 300 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 360 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 360 mm long (36 cm), cut to fit between the 90 mm flanges of a 240 mm SmartJoist at 450 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 360 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 260 mm long (26 cm), cut to fit between the 40 mm flanges of a 300 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 260 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 260 mm long (26 cm), cut to fit between the 40 mm flanges of a 240 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 260 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 256 mm long (25.6 cm), cut to fit between the 44 mm flanges of a 200 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 200 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 130 mm hole on a piece at least 1050 mm long, which this 256 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 249 mm long (24.9 cm), cut to fit between the 51 mm flanges of a 300 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 249 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 249 mm long (24.9 cm), cut to fit between the 51 mm flanges of a 240 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 249 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 242 mm long (24.2 cm), cut to fit between the 58 mm flanges of a 360 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 360 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 235 mm hole on a piece at least 1900 mm long, which this 242 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 230 mm long (23 cm), cut to fit between the 70 mm flanges of a 300 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 230 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 230 mm long (23 cm), cut to fit between the 70 mm flanges of a 240 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 230 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 210 mm long (21 cm) at 300 mm centres for a 400 mm depth, and this length is the clear opening left by a 90 mm flange.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 400 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 265 mm hole on a piece at least 2100 mm long, which this 210 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 210 mm long (21 cm), cut to fit between the 90 mm flanges of a 360 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 360 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 235 mm hole on a piece at least 1900 mm long, which this 210 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 210 mm long (21 cm), cut to fit between the 90 mm flanges of a 300 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 300 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 200 mm hole on a piece at least 1600 mm long, which this 210 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This H2S SmartJoist blocking piece is 210 mm long (21 cm), cut to fit between the 90 mm flanges of a 240 mm SmartJoist at 300 mm centres.

Installation

• It keeps the joists upright, carries vertical load through the floor and restrains the joist end.
• Both guides' simple method is blocking or SmartRim at every joist end on an external load-bearing wall, face-nailed with 3.15 mm by 65 mm nails at 150 mm centres.
• Do not load the floor until this blocking, the hangers, the rim, the nailing and the bracing are in place.
• A hole may reach two-thirds of the 240 mm depth only if the piece is at least eight times the hole.
• The Design Guide allows a 160 mm hole on a piece at least 1280 mm long, which this 210 mm block is not.
• Do not cut a flange.

Treatment

H2S is inside, above ground, south of the Tropic of Capricorn, against borers and termites, and the shape is not for outside use.

Storage

• The Design Guide limits moisture content to 18 percent and does not guarantee weather exposure past 90 days.
• The Installation Guide untreated note uses 20 percent.
• Keep packs off the ground.
• The Design Guide says store material flat under a breathable cover, and both guides also say stack joists upright.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023
