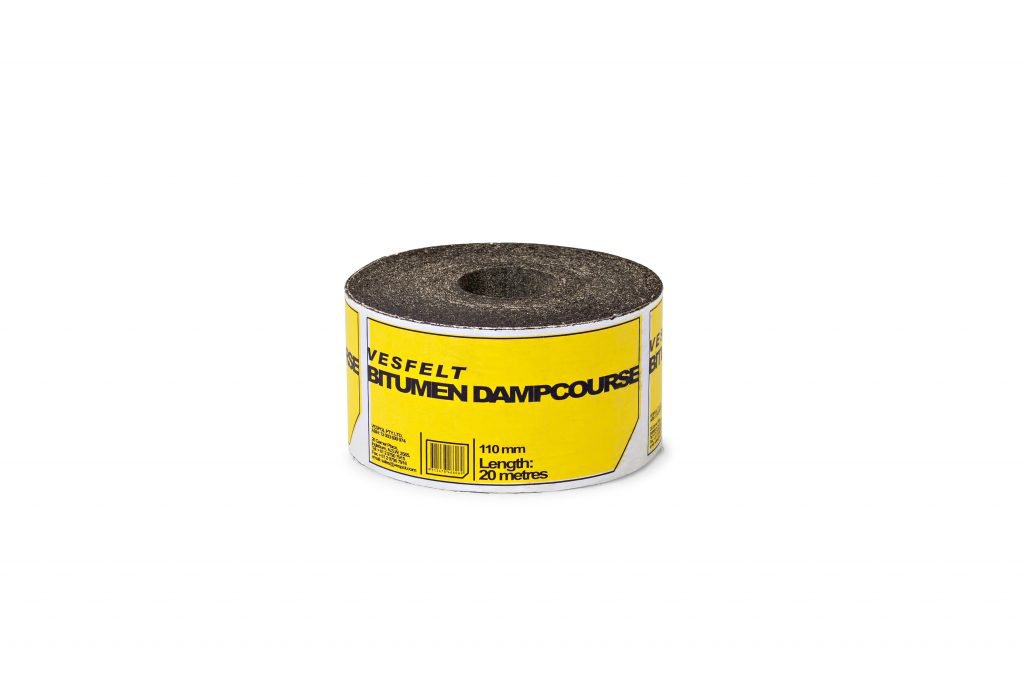

Dampcourse and roofing.

An organic fibre felt which is completely saturated in hot bitumen then coated with further selected bitumens and finished with a dusting of fine powder to prevent sticking when rolled.

Uses

• Waterproofing flat roofs, roof tiles, corrugated fibre cement and corrugated iron sheet roofing.
• Dampcourse for brickwork etc.
• Separation strip, for timber brickwork and concrete.
• Underneath galvanised water tanks to prevent condensation.

Features & Benefits

• Highly economical waterproofing membrane.
• Mild acid, alkali and moisture resistant.
• Easy to lay.

Surface Preparation

• Surface must be structurally sound and free from grease, oil, wax and other loose or contaminating material which may affect adhesion.
• Area to be waterproofed should have adequate drainage to prevent water ponding.

Application

If you have conventional planked or sheet timber roof, nail the first underlayer of felt to the decking, parallel with the drainage fall, using 20mm extra large head galvanised clout nails. Start nailing at 150mm centres. Overlap the second and subsequent sheets by about 50mm, seal the overlap with Bitumen Paint and nail along the overlap at 50mm centres.

The second underlay must be bonded to the first with Bitumen Paint. You will find it easier to handle half a length of felt at a time: lay the sheet flat on the roof, roll half of it back and then paint the Bitumen Paint on to the roof. Unroll the sheet on to the Bitumen Paint, press it into place, making sure that there aren’t any air pockets trapped underneath. Roll back the other half, apply the Bitumen Paint, then smooth this half into place. You can fix the top layer of felt (the cap sheet) in the same way. Cover the edges of the roof with felt strips called “welted aprons”.

Finish off the roof by applying a coat of Silver Aluminium based paint to the entire roof for U.V. protection.

Precautions

• Store rolls upright.

Clean Up

Tools and other equipment can be cleaned with turpentine.

Packaging

• 20 metre rolls × 90mm, 110mm, 150mm, 230mm, 270mm, 300mm, 350mm, 450mm and 1 metre

Documents

• Technical Data Sheet
• Safety Data Sheet

Dampcourse and roofing.

An organic fibre felt which is completely saturated in hot bitumen then coated with further selected bitumens and finished with a dusting of fine powder to prevent sticking when rolled.

Uses

• Waterproofing flat roofs, roof tiles, corrugated fibre cement and corrugated iron sheet roofing.
• Dampcourse for brickwork etc.
• Separation strip, for timber brickwork and concrete.
• Underneath galvanised water tanks to prevent condensation.

Features & Benefits

• Highly economical waterproofing membrane.
• Mild acid, alkali and moisture resistant.
• Easy to lay.

Surface Preparation

• Surface must be structurally sound and free from grease, oil, wax and other loose or contaminating material which may affect adhesion.
• Area to be waterproofed should have adequate drainage to prevent water ponding.

Application

If you have conventional planked or sheet timber roof, nail the first underlayer of felt to the decking, parallel with the drainage fall, using 20mm extra large head galvanised clout nails. Start nailing at 150mm centres. Overlap the second and subsequent sheets by about 50mm, seal the overlap with Bitumen Paint and nail along the overlap at 50mm centres.

The second underlay must be bonded to the first with Bitumen Paint. You will find it easier to handle half a length of felt at a time: lay the sheet flat on the roof, roll half of it back and then paint the Bitumen Paint on to the roof. Unroll the sheet on to the Bitumen Paint, press it into place, making sure that there aren’t any air pockets trapped underneath. Roll back the other half, apply the Bitumen Paint, then smooth this half into place. You can fix the top layer of felt (the cap sheet) in the same way. Cover the edges of the roof with felt strips called “welted aprons”.

Finish off the roof by applying a coat of Silver Aluminium based paint to the entire roof for U.V. protection.

Precautions

• Store rolls upright.

Clean Up

Tools and other equipment can be cleaned with turpentine.

Packaging

• 20 metre rolls × 90mm, 110mm, 150mm, 230mm, 270mm, 300mm, 350mm, 450mm and 1 metre

Documents

• Technical Data Sheet
• Safety Data Sheet

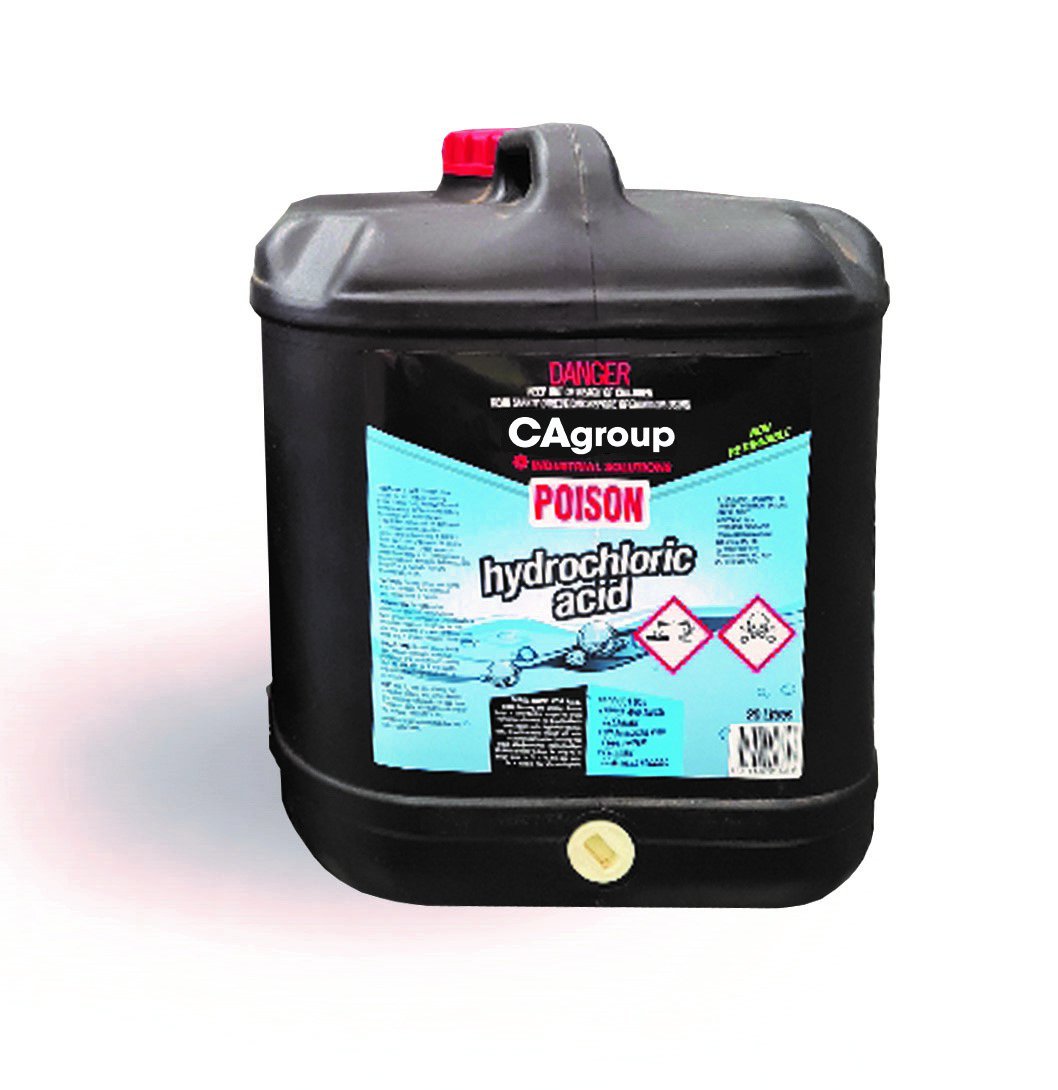

Spirit of salts is a strong acid also known as Hydrochloric acid or muriatic acid.

It is a solution of hydrogen chloride in water that is used as a surface preparation treatment and pool pH adjuster.

Spirit of salts is a colourless liquid with a sharp odour and widely used in the mining, building and pool industries.

Typically used for cleaning brick and metal or etching concrete floors prior to painting.

Specifications

Documents

• Emergency Procedure Guide
• Safety Data Sheet

Spirit of salts is a strong acid also known as Hydrochloric acid or muriatic acid.

It is a solution of hydrogen chloride in water that is used as a surface preparation treatment and pool pH adjuster.

Spirit of salts is a colourless liquid with a sharp odour and widely used in the mining, building and pool industries.

Typically used for cleaning brick and metal or etching concrete floors prior to painting.

Specifications

Documents

• Emergency Procedure Guide
• Safety Data Sheet

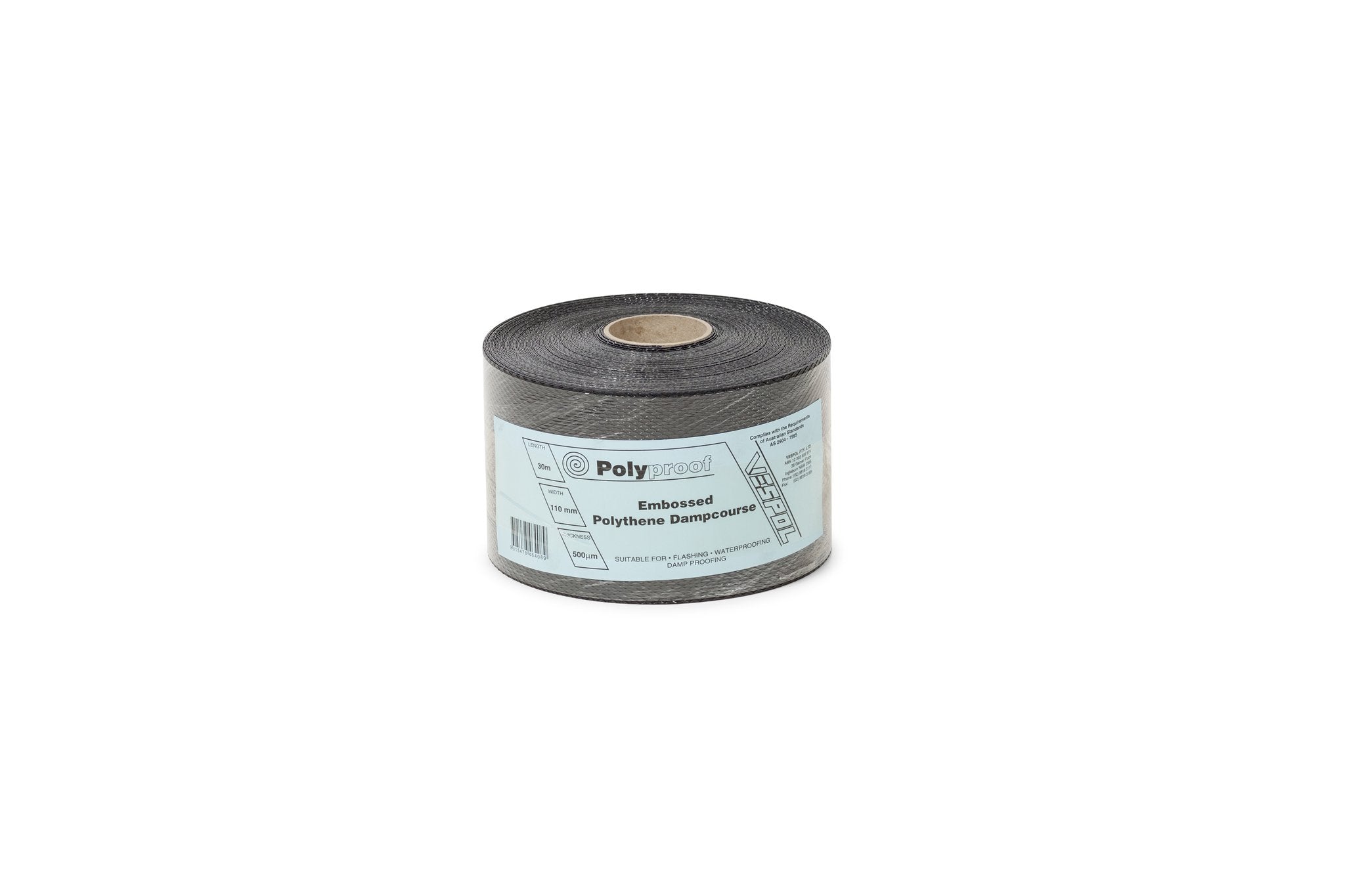

Polythene Dampcourse and Concealed Flashing (Embossed).

Technical Information

• Base thickness: 0.5mm
• Embossed thickness: 0.75mm
• Length: 30m rolls
• Sizes (roll widths): 110mm, 150mm, 230mm, 300mm, 380mm, 450mm, 600mm
• Complies with the requirements of Australian Standard AS 2904-1995

Suitable for flashing and damp proofing. Not to be used for exposed flashing.

Documents

• Technical Data Sheet
• Product Flyer

Polythene Dampcourse and Concealed Flashing (Embossed).

Technical Information

• Base thickness: 0.5mm
• Embossed thickness: 0.75mm
• Length: 30m rolls
• Sizes (roll widths): 110mm, 150mm, 230mm, 300mm, 380mm, 450mm, 600mm
• Complies with the requirements of Australian Standard AS 2904-1995

Suitable for flashing and damp proofing. Not to be used for exposed flashing.

Documents

• Technical Data Sheet
• Product Flyer

Polythene Dampcourse and Concealed Flashing (Embossed).

Technical Information

• Base thickness: 0.5mm
• Embossed thickness: 0.75mm
• Length: 30m rolls
• Sizes (roll widths): 110mm, 150mm, 230mm, 300mm, 380mm, 450mm, 600mm
• Complies with the requirements of Australian Standard AS 2904-1995

Suitable for flashing and damp proofing. Not to be used for exposed flashing.

Documents

• Technical Data Sheet
• Product Flyer

Polythene Dampcourse and Concealed Flashing (Embossed).

Technical Information

• Base thickness: 0.5mm
• Embossed thickness: 0.75mm
• Length: 30m rolls
• Sizes (roll widths): 110mm, 150mm, 230mm, 300mm, 380mm, 450mm, 600mm
• Complies with the requirements of Australian Standard AS 2904-1995

Suitable for flashing and damp proofing. Not to be used for exposed flashing.

Documents

• Technical Data Sheet
• Product Flyer

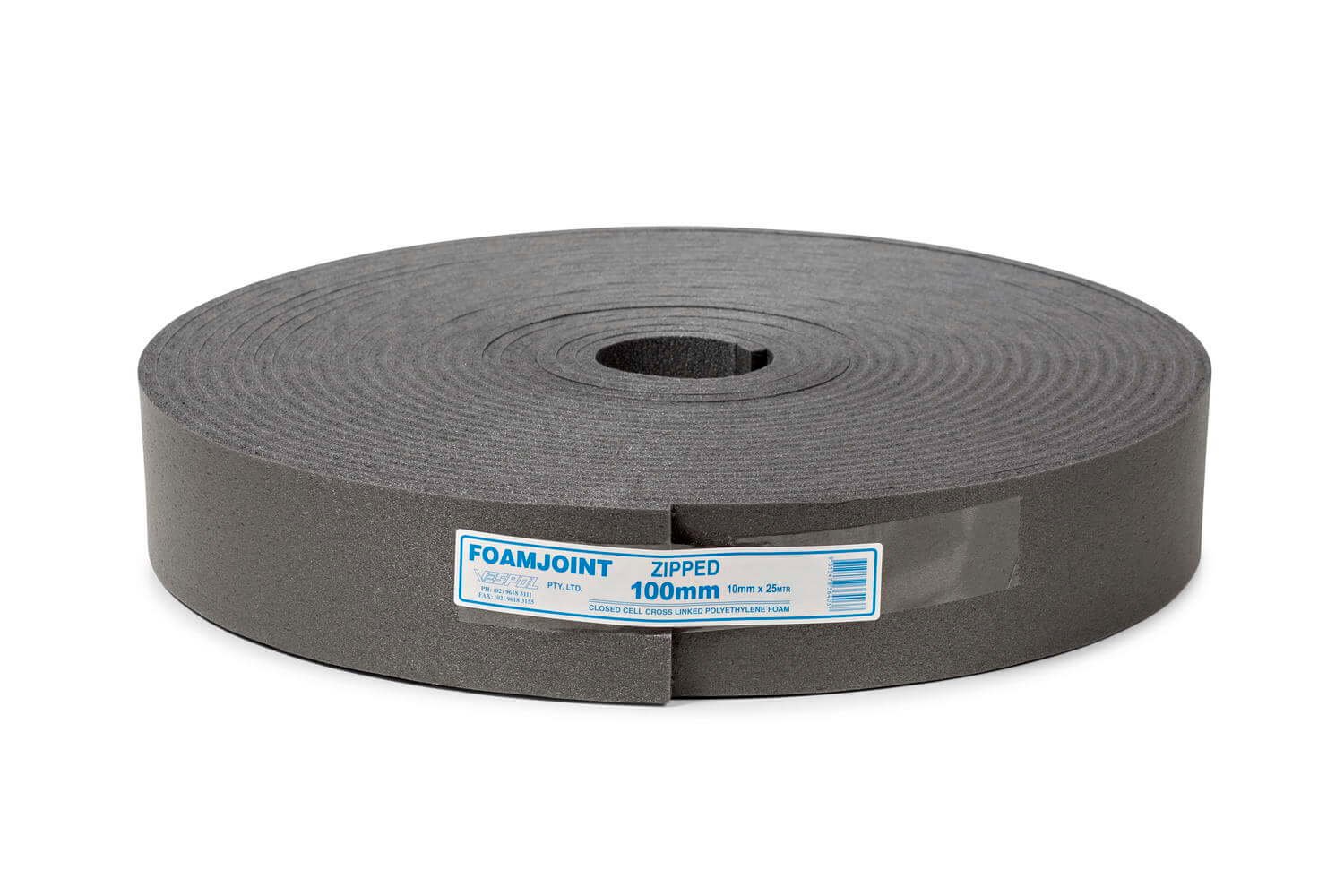

Foamjoint is a crucial component used in construction projects to accommodate the expansion and contraction of materials, such as concrete, due to temperature changes and other environmental factors. Made from flexible, resilient polyurethane, these joints are inserted between slabs, walls, and other structural elements to prevent cracking, buckling, or other forms of damage that could compromise the integrity of a building. By absorbing and distributing the stresses caused by thermal fluctuations and movement, foam expansion joints enhance the durability and longevity of structures, ensuring they remain safe and functional over time. Whether used in sidewalks, driveways, bridges, or large commercial buildings, these joints play a vital role in modern construction practices.

Size & Thickness

• Lengths – 25 metres
• Thickness – 10mm
• Widths – 50mm, 75mm, 100mm, 125mm, 150mm, 200mm, 250mm and 300mm
• Available with adhesive backing

Sof-Form™ Expansion Joint is a foam based material with optional adhesive backing. It incorporates Softlon®, a closed cell, electron beam crosslinked, polyolefin foam with an outer skin. Sof-Form™ Expansion Joint is free of heavy metals, plasticisers and CFCs.

Technical Data

Documents

• Foamjoint
• Safety Data Sheet

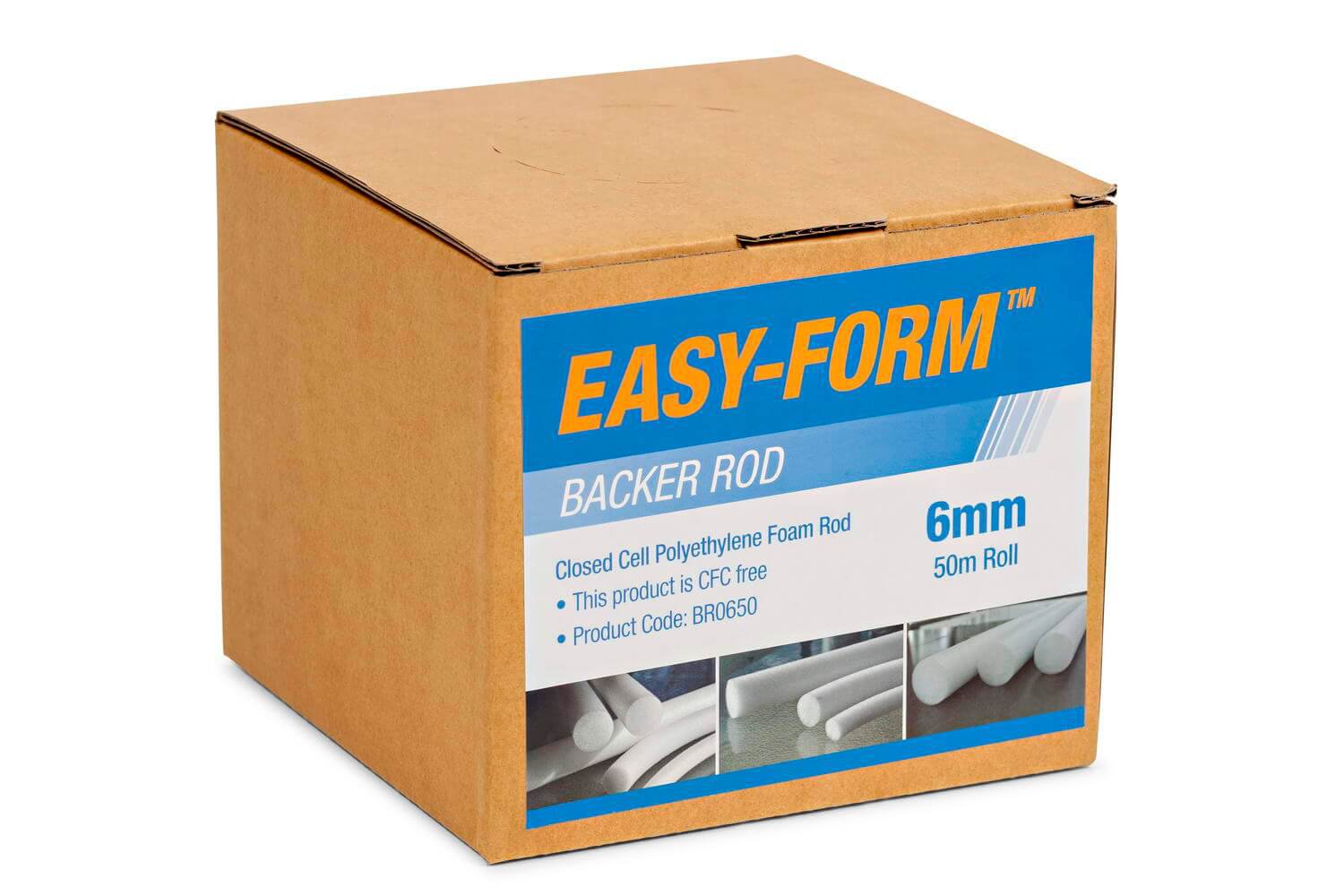

Easy-Form™ Closed Cell Backer Rod is a compressible, closed cell polyolefin foam tube with an outer skin. It is used as a backing for cold applied sealants in expansion/construction joints and building seal applications. The foam is free of heavy metals, plasticisers and CFCs. Easy-Form™ Closed Cell Backer Rod is available in white colour.

Technical Data

Tolerances

Diameters and production tolerances of standard Easy-Form™ Closed Cell Backer Rod products:

Other diameters and/or tolerances subject to confirmation.

Documents

• Technical Data Sheet
• Safety Data Sheet

Easy-Form™ Closed Cell Backer Rod is a compressible, closed cell polyolefin foam tube with an outer skin. It is used as a backing for cold applied sealants in expansion/construction joints and building seal applications. The foam is free of heavy metals, plasticisers and CFCs. Easy-Form™ Closed Cell Backer Rod is available in white colour.

Technical Data

Tolerances

Diameters and production tolerances of standard Easy-Form™ Closed Cell Backer Rod products:

Other diameters and/or tolerances subject to confirmation.

Documents

• Technical Data Sheet
• Safety Data Sheet
