I-Joists

This 2.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 40 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 2.4 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24040 stack weight at up to 600 mm spacing is 210 kg in the Design Guide and 230 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.7 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 40 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 2.7 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24040 stack weight at up to 600 mm spacing is 210 kg in the Design Guide and 230 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 40 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 3.0 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24040 stack weight at up to 600 mm spacing is 210 kg in the Design Guide and 230 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.6 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 40 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 3.6 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24040 stack weight at up to 600 mm spacing is 210 kg in the Design Guide and 230 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 4.2 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 40 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 4.2 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24040 stack weight at up to 600 mm spacing is 210 kg in the Design Guide and 230 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 4.8 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 40 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 4.8 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24040 stack weight at up to 600 mm spacing is 210 kg in the Design Guide and 230 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

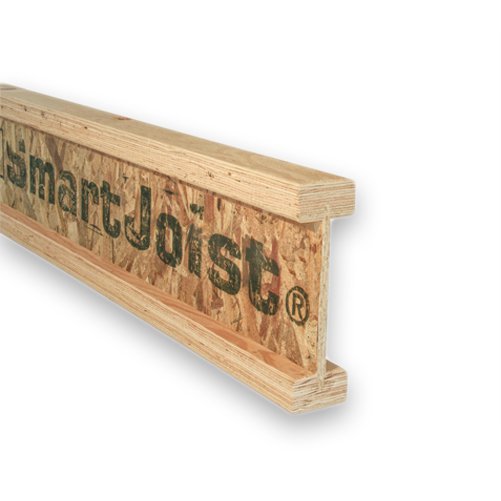

This 5.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 40 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 5.4 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24040 stack weight at up to 600 mm spacing is 210 kg in the Design Guide and 230 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 6.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 40 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 6.0 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24040 stack weight at up to 600 mm spacing is 210 kg in the Design Guide and 230 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 2.4 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24051 stack weight at up to 600 mm spacing is 235 kg in the Design Guide and 240 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.7 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 2.7 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24051 stack weight at up to 600 mm spacing is 235 kg in the Design Guide and 240 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 3.0 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24051 stack weight at up to 600 mm spacing is 235 kg in the Design Guide and 240 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.6 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 3.6 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24051 stack weight at up to 600 mm spacing is 235 kg in the Design Guide and 240 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 4.2 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 4.2 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24051 stack weight at up to 600 mm spacing is 235 kg in the Design Guide and 240 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 4.8 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 4.8 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24051 stack weight at up to 600 mm spacing is 235 kg in the Design Guide and 240 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 5.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 5.4 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24051 stack weight at up to 600 mm spacing is 235 kg in the Design Guide and 240 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 6.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 6.0 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24051 stack weight at up to 600 mm spacing is 235 kg in the Design Guide and 240 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 2.4 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24070 stack weight at up to 600 mm spacing is 270 kg in the Design Guide and 265 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.7 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 2.7 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24070 stack weight at up to 600 mm spacing is 270 kg in the Design Guide and 265 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 3.0 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24070 stack weight at up to 600 mm spacing is 270 kg in the Design Guide and 265 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.6 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 3.6 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24070 stack weight at up to 600 mm spacing is 270 kg in the Design Guide and 265 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

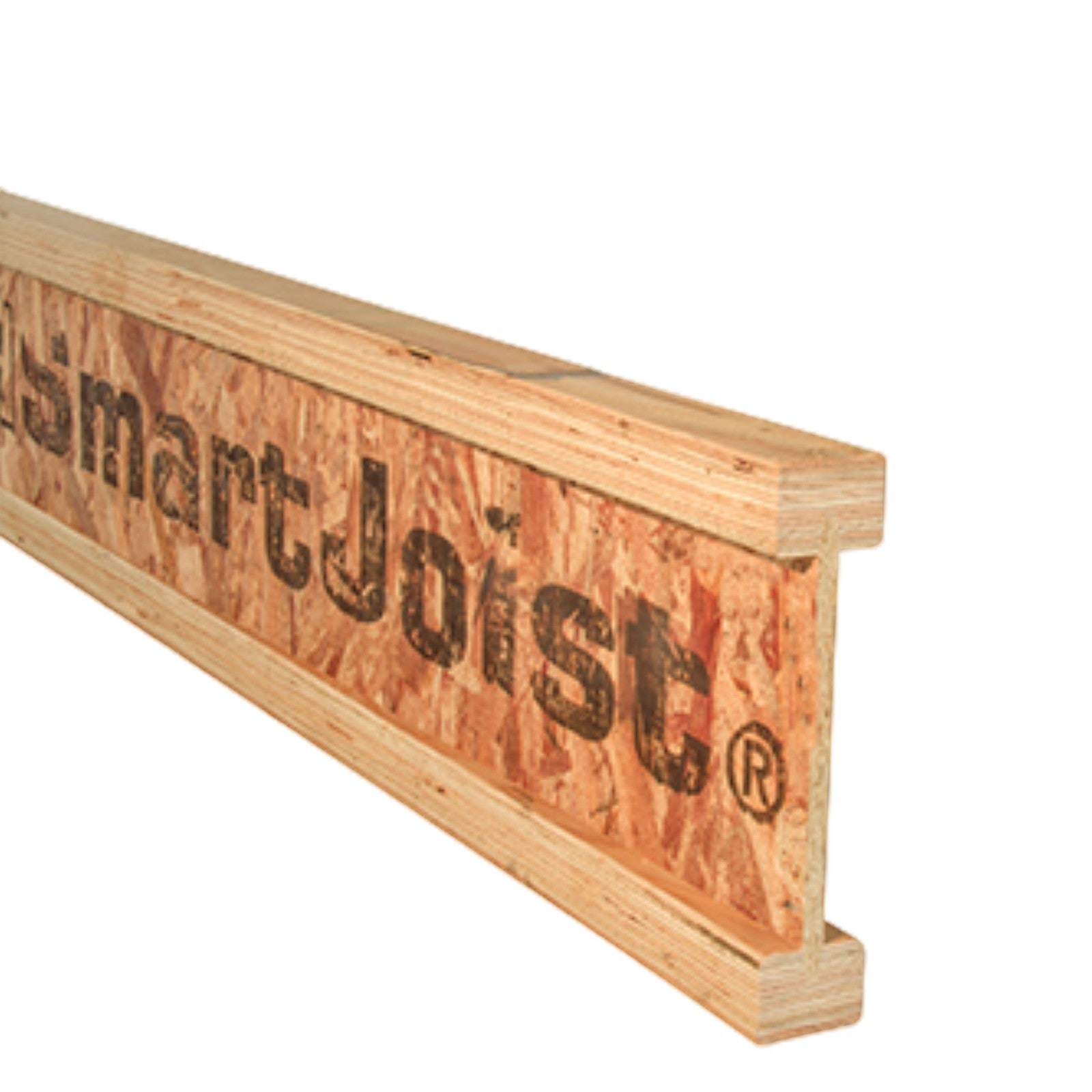

This 4.2 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 4.2 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24070 stack weight at up to 600 mm spacing is 270 kg in the Design Guide and 265 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 4.8 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 4.8 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24070 stack weight at up to 600 mm spacing is 270 kg in the Design Guide and 265 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 5.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 5.4 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24070 stack weight at up to 600 mm spacing is 270 kg in the Design Guide and 265 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 6.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 6.0 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24070 stack weight at up to 600 mm spacing is 270 kg in the Design Guide and 265 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 90 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 2.4 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24090 stack weight at up to 600 mm spacing is 300 kg in the Design Guide and 290 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.7 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 90 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 2.7 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24090 stack weight at up to 600 mm spacing is 300 kg in the Design Guide and 290 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 90 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 3.0 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24090 stack weight at up to 600 mm spacing is 300 kg in the Design Guide and 290 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.6 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 90 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 3.6 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24090 stack weight at up to 600 mm spacing is 300 kg in the Design Guide and 290 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 4.2 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 90 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 4.2 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24090 stack weight at up to 600 mm spacing is 300 kg in the Design Guide and 290 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 4.8 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 90 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 4.8 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24090 stack weight at up to 600 mm spacing is 300 kg in the Design Guide and 290 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 5.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 90 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 5.4 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24090 stack weight at up to 600 mm spacing is 300 kg in the Design Guide and 290 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 6.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 240 mm deep by 90 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 6.0 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ24090 stack weight at up to 600 mm spacing is 300 kg in the Design Guide and 290 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• SJ25551 is not in the Design Guide tables. Do not copy a neighbour. This 2.4 m length is not the span.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Braced or sheeted, SJ25551 is 255 kg in the Installation Guide only; the Design Guide platform table omits it.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.7 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• SJ25551 is not in the Design Guide tables. Do not copy a neighbour. This 2.7 m length is not the span.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Braced or sheeted, SJ25551 is 255 kg in the Installation Guide only; the Design Guide platform table omits it.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• SJ25551 is not in the Design Guide tables. Do not copy a neighbour. This 3.0 m length is not the span.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Braced or sheeted, SJ25551 is 255 kg in the Installation Guide only; the Design Guide platform table omits it.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.6 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• SJ25551 is not in the Design Guide tables. Do not copy a neighbour. This 3.6 m length is not the span.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Braced or sheeted, SJ25551 is 255 kg in the Installation Guide only; the Design Guide platform table omits it.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 4.2 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• SJ25551 is not in the Design Guide tables. Do not copy a neighbour. This 4.2 m length is not the span.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Braced or sheeted, SJ25551 is 255 kg in the Installation Guide only; the Design Guide platform table omits it.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 4.8 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• SJ25551 is not in the Design Guide tables. Do not copy a neighbour. This 4.8 m length is not the span.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Braced or sheeted, SJ25551 is 255 kg in the Installation Guide only; the Design Guide platform table omits it.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 5.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• SJ25551 is not in the Design Guide tables. Do not copy a neighbour. This 5.4 m length is not the span.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Braced or sheeted, SJ25551 is 255 kg in the Installation Guide only; the Design Guide platform table omits it.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 6.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 51 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• SJ25551 is not in the Design Guide tables. Do not copy a neighbour. This 6.0 m length is not the span.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Braced or sheeted, SJ25551 is 255 kg in the Installation Guide only; the Design Guide platform table omits it.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.4 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 2.4 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ25570 stack weight at up to 600 mm spacing is 290 kg in the Design Guide and 275 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 2.7 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 2.7 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ25570 stack weight at up to 600 mm spacing is 290 kg in the Design Guide and 275 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.0 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 3.0 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ25570 stack weight at up to 600 mm spacing is 290 kg in the Design Guide and 275 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023

This 3.6 m length is a Tilling Timber SmartFrame SmartJoist for floors, rafters or ceilings, 255 mm deep by 70 mm thick and H2S treated, with Douglas Fir LVL flanges, an OSB web and 40 mm knockouts.

Cutting

• Do not cut a flange except an end notch at most 12 mm deep, cut clean, no more than 5 mm past the support.

Treatment

H2S covers borers and termites inside, above ground, south of the Tropic of Capricorn. Outside use, even H3, is not recommended, because the shape will not shed water.

Installation

• Span it from the Design Guide or SmartFrame software, not from this 3.6 m length.
• Do not load it until blocking, hangers, rims, nailing and bracing are installed.
• Except where noted, bearing is 30 mm at ends and 42 mm at intermediate supports; the gravity table also lists 45, 65 and 90 mm by spacing and load.
• Once braced or sheeted, SJ25570 stack weight at up to 600 mm spacing is 290 kg in the Design Guide and 275 kg in the Installation Guide.

Storage

• Moisture is 18 percent in the Design Guide and 20 percent in the Installation Guide untreated note.
• Weather is not guaranteed past 90 days, and framed exposure is separately not greater than 3 months.
• Keep packs off the ground.
• Flat under a breathable cover, and upright stacking, are both printed.

Documents

• SmartJoist Design Guide 2021 Edition 2
• SmartJoist Installation Guide, dated October 2023
