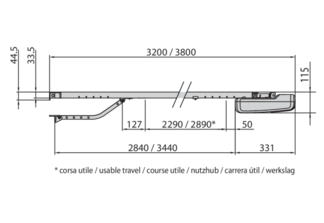

BFT Botticelli Smart BT A1250 Australia
SKU: 2611547
$655.00
In stock
Pay with
BFT Botticelli Smart BT A1250 Australia
$655.00
$655.00
24 V operator for sectional garage doors with tractive force 120 kg and very intensive use. Max door surface area 16 m². Opening speed 190 mm/sec.
Main Features
- Fast and powerful motors: fast opening to minimise waiting times and intensive use of the automation for all types of application
- Improved fast mechanical installation: by even just one person thanks to the new rapid Autoset procedure.
- Encoder and exclusive D-Track force management system: for safe installation in all conditions.
- Integrated burglar alarm: models with a full-display control unit offer the unique burglar alarm function; the circuit board can become the control unit of a wired burglar alarm system.
Specifications
| Tractive force and thrust | 1250 N |
| Max opening speed (belt rail) | N/A mm/sec |
| Environmental conditions | -20 ÷ 60 °C |
| Number of daily movements at 60° | 100 |
| Interconnectivity | Yes |
| Door surface area | 16 m² |
| Max opening speed (chain rail) | 190 mm/sec |
| Type of limit switch | Encoder + mechanical stop for opening |
| Slowdown | Yes |
| Locking | Mechanical |
| Control unit | VENERE BT A DIS |
| Release | Steel cord or cable |
| Nominal voltage | 24 V |
| Impact reaction | D-Track |
| Power consumption | 236 W |
| Protection rating | IP20 |
| Reference | P915213 |
| Part number | 2611547 |
Documents
- Document (708903) (2611547_manual_708903.pdf)
- Document (708902) (2611547_manual_708902.pdf)
- Document (742186) (2611547_manual_742186.pdf)
- Document (742187) (2611547_manual_742187.pdf)
- Document (742189) (2611547_manual_742189.pdf)
- Document (742190) (2611547_manual_742190.pdf)
- BFT Technical Download (P915213)
Description
24 V operator for sectional garage doors with tractive force 120 kg and very intensive use. Max door surface area 16 m². Opening speed 190 mm/sec.
Main Features
- Fast and powerful motors: fast opening to minimise waiting times and intensive use of the automation for all types of application
- Improved fast mechanical installation: by even just one person thanks to the new rapid Autoset procedure.
- Encoder and exclusive D-Track force management system: for safe installation in all conditions.
- Integrated burglar alarm: models with a full-display control unit offer the unique burglar alarm function; the circuit board can become the control unit of a wired burglar alarm system.
Specifications
| Tractive force and thrust | 1250 N |
| Max opening speed (belt rail) | N/A mm/sec |
| Environmental conditions | -20 ÷ 60 °C |
| Number of daily movements at 60° | 100 |
| Interconnectivity | Yes |
| Door surface area | 16 m² |
| Max opening speed (chain rail) | 190 mm/sec |
| Type of limit switch | Encoder + mechanical stop for opening |
| Slowdown | Yes |
| Locking | Mechanical |
| Control unit | VENERE BT A DIS |
| Release | Steel cord or cable |
| Nominal voltage | 24 V |
| Impact reaction | D-Track |
| Power consumption | 236 W |
| Protection rating | IP20 |
| Reference | P915213 |
| Part number | 2611547 |
Documents
- Document (708903) (2611547_manual_708903.pdf)
- Document (708902) (2611547_manual_708902.pdf)
- Document (742186) (2611547_manual_742186.pdf)
- Document (742187) (2611547_manual_742187.pdf)
- Document (742189) (2611547_manual_742189.pdf)
- Document (742190) (2611547_manual_742190.pdf)
- BFT Technical Download (P915213)
