BFT Kustos BT B40 (Replaces 2600868)

Irreversible electromechanical operator 24 V for swing gates weighing up to 700 kg and 4 m long.

Main Features

• Thanks to the protected worm screw, the operator is better suited to dusty or sandy environments.
• The limit switches positioned at the top of the motor are easy to adjust thanks to the exclusive vibration or flashing light feedback function (patented). The built-in mechanical stop avoids the use of a ground stop.
• Thanks to the increase in opening speed, waiting times are reduced and ease of use improves.
• The 24 V technology and electronic control help to keep people safe from impacts without a need for supplementary safety devices.
• The exclusive D-Track technology increases the safety of the automation by ensuring the thrust applied is the minimum necessary to ensure movement and permits adaptive control of the force according to changes in usage and environmental conditions, reducing maintenance operations as a result.
• Exclusive Hi-Tech design in line with current style trends
• One of the most compact operators on the market, it is versatile for use in a wide range of installation conditions, even with limited space or thick pillars.

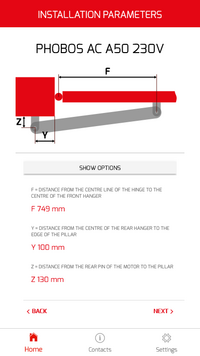

• The exclusive Easy Set App helps the installer to define the correct installation positions to achieve the required opening angle and fluid movement.
• 94% less power consumption in standby mode, resulting in 69.82 kWh saved annually. Energy consumption of accessories connected to the board is not counted.

Specifications

Documents

• Document (707974) (2614563_manual_707974.pdf)
• Document (708903) (2614563_manual_708903.pdf)
• Document (708902) (2614563_manual_708902.pdf)
• Document (710175) (2614563_manual_710175.pdf)
• BFT Technical Download (P935128)
