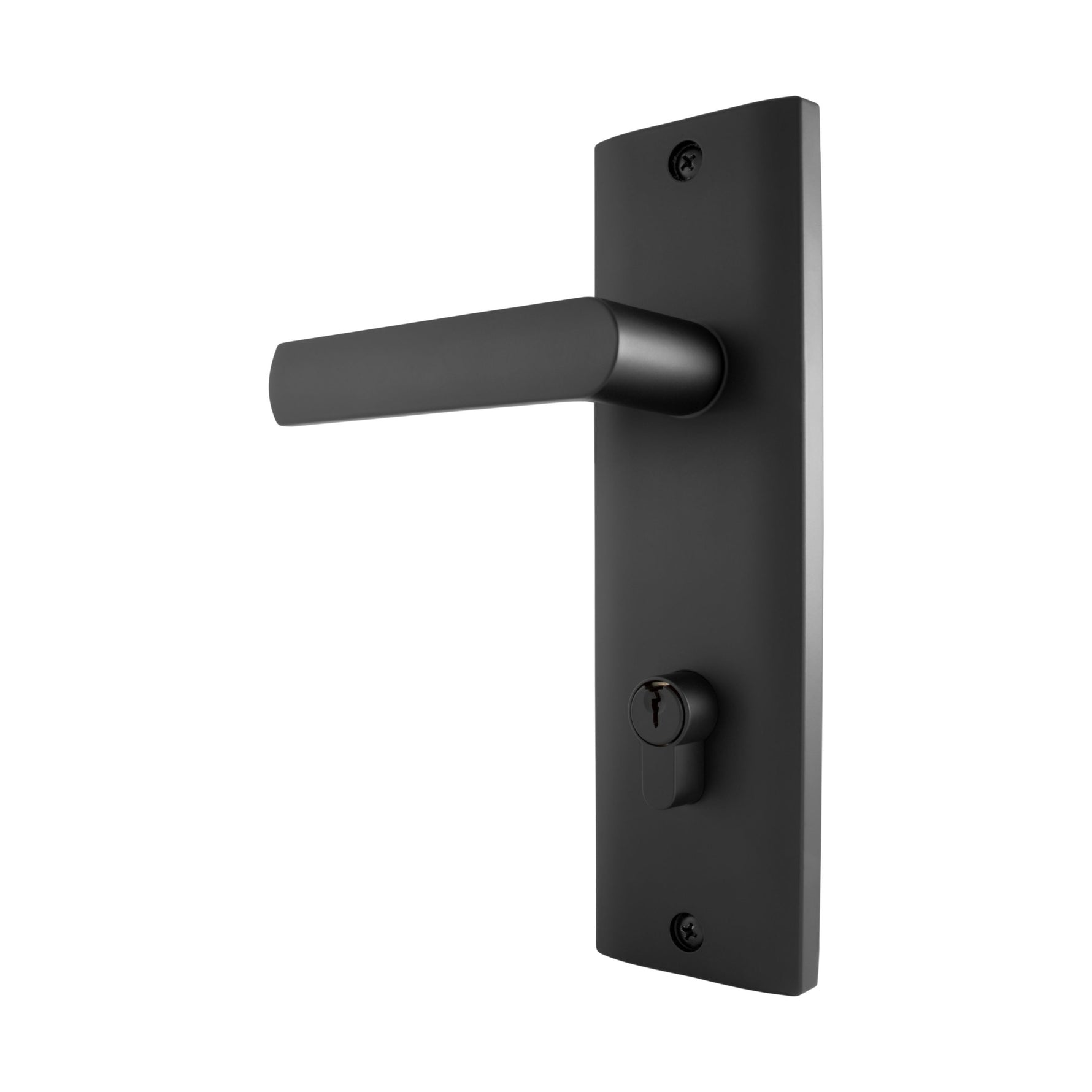

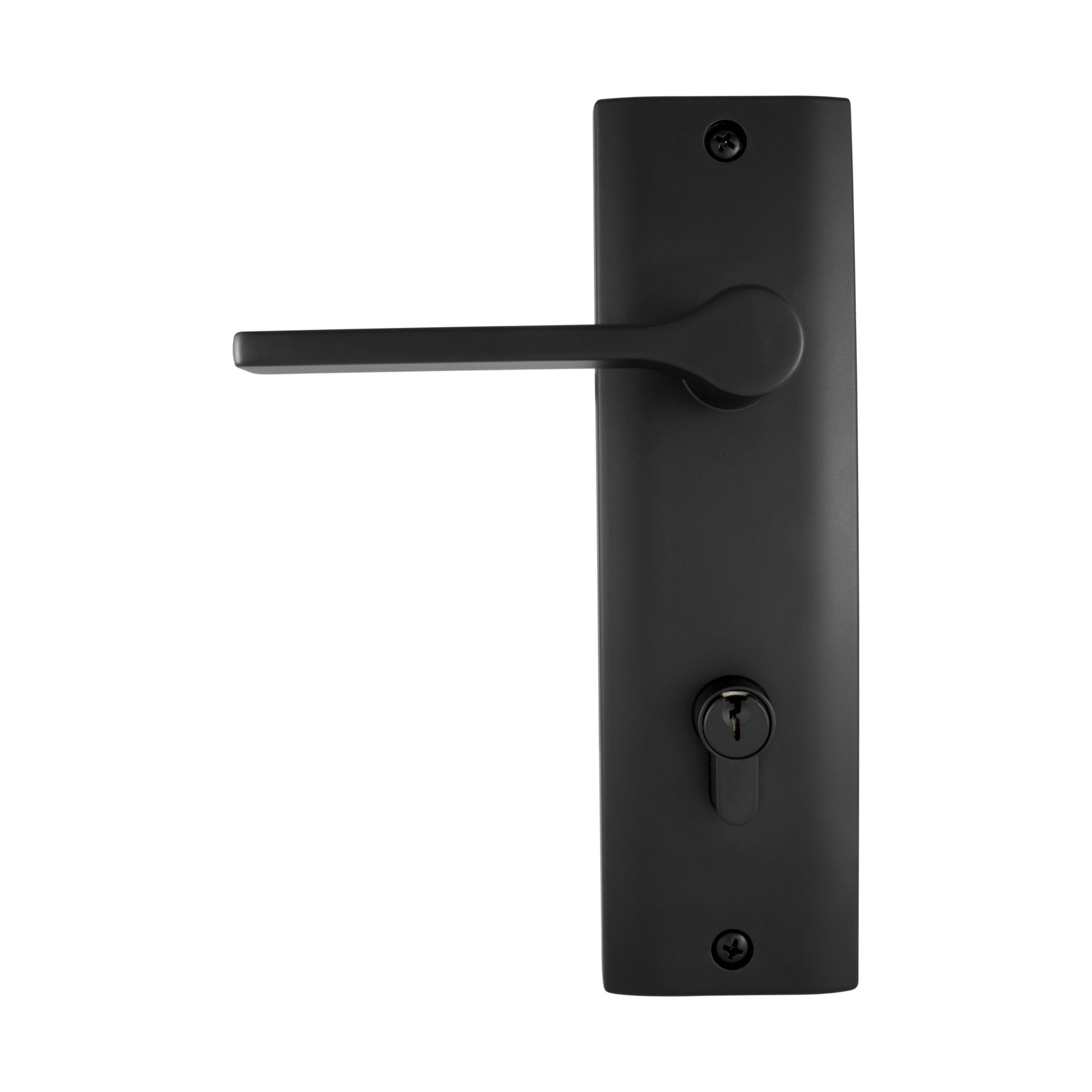

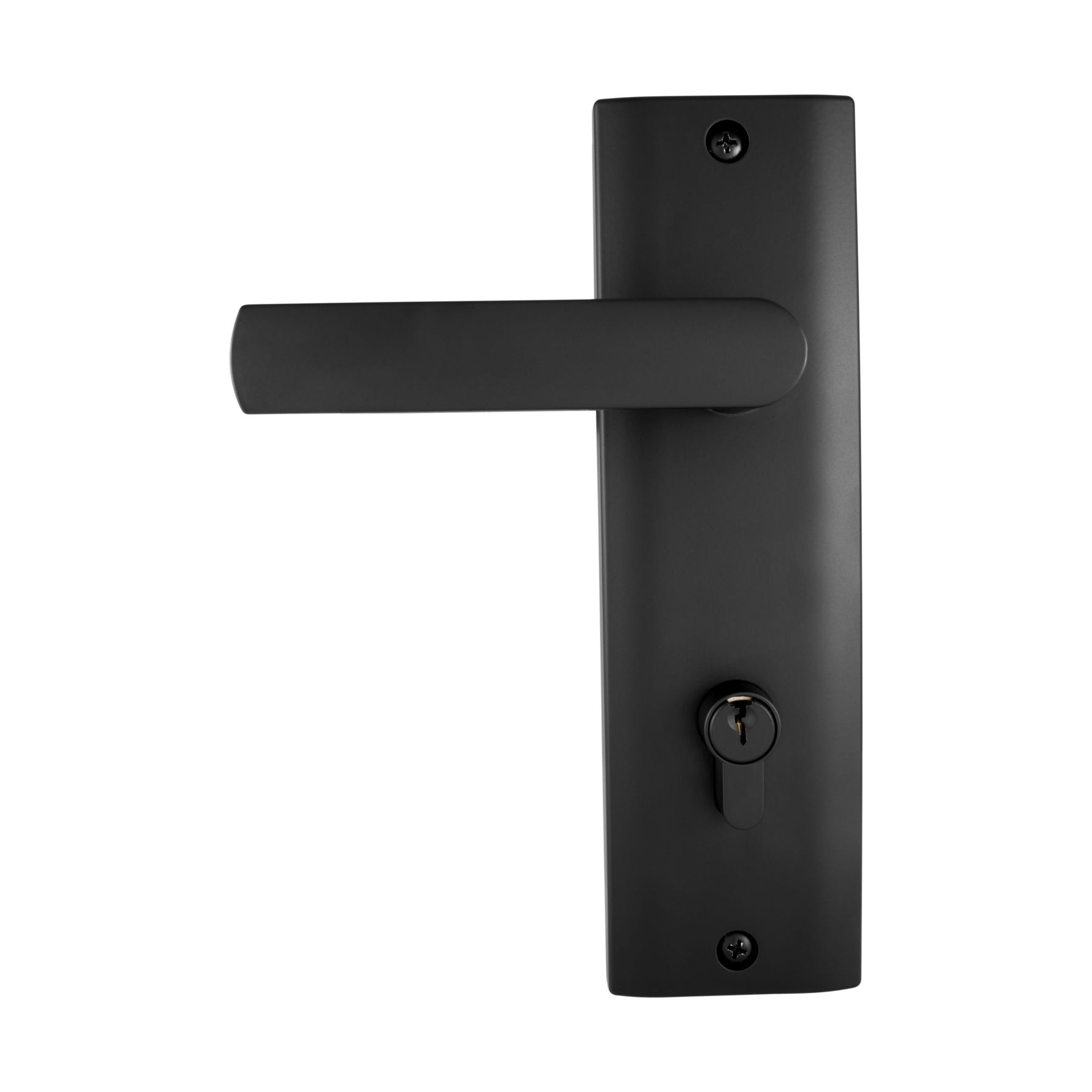

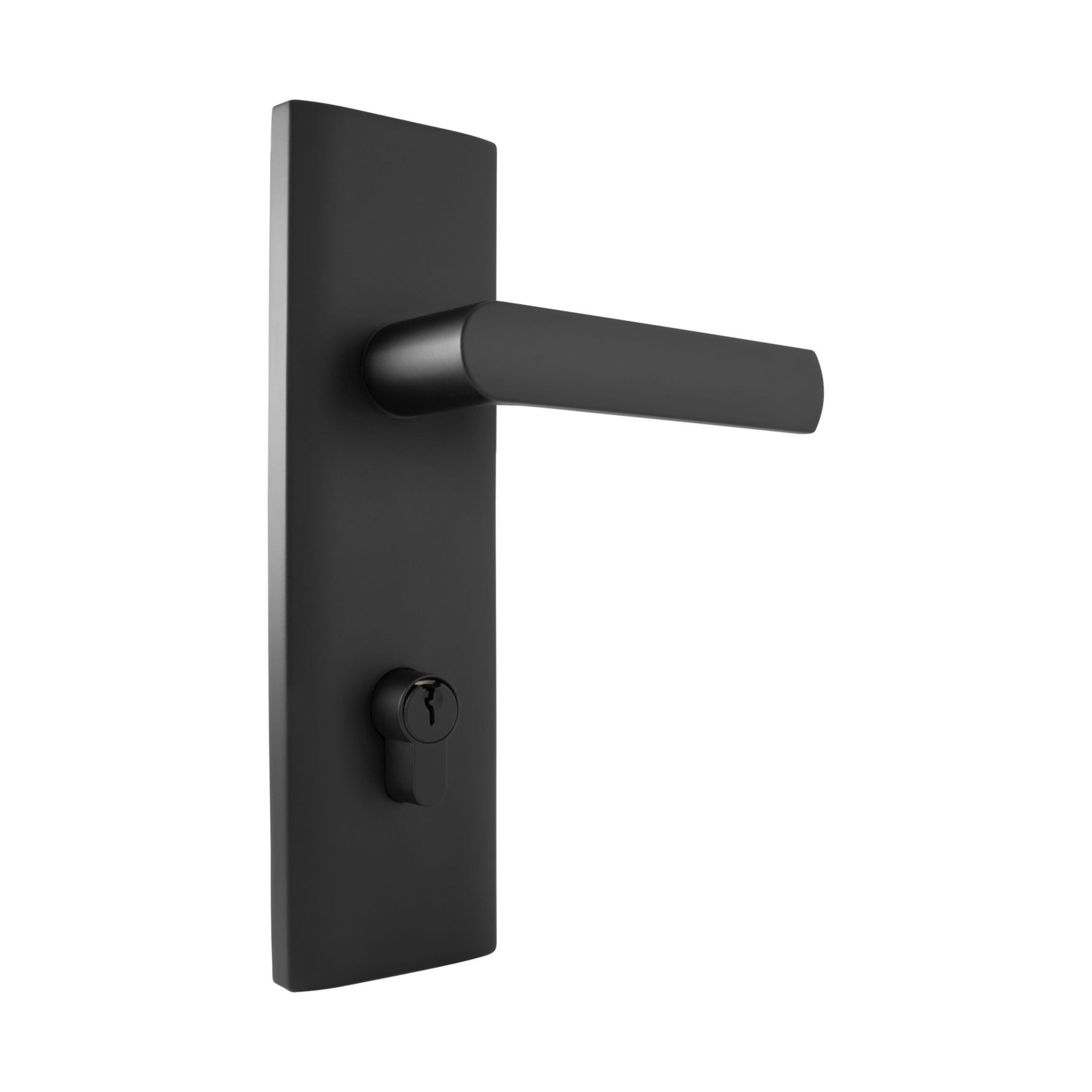

Gainsborough Matte Black Tradepro Bela Long Plate Entrance Lever Set
$210.00
The modern design of the Bela lever is the perfect choice of entry door hardware for a modern Australian home. This stylish yet incredibly functional design features Gainsborough's GR9 profile and a 220mm backplate. The entrance set can be keyed with the Gainsborough GR9 Keying System for added convenience, delivering a complete solution. To install, follow the step-by-step instructions provided.
Features
- Contemporary yet functional entrance lever set with a sleek 220mm backplate
- Key entry with GR9 profile for added security, can be project keyed on request
- Double cylinder deadbolt for added security
- Easy to install with instructions provided
Specifications
| Finish | Matte Black |
|---|---|
| Style Name | Bela |
| Application | External |
| Backset (mm) | 60-70 |
| Bore Hole (mm) | 54 |
| Edge Bore (mm) | 25 |
| Lever Length (mm) | 121 |
| Locking | Locking |
| Latch included | Yes |
| Door Thickness | 35-45mm |
| Dimensions | |
| Assembled Latch Depth (mm) | 95 |
| Exterior Assembled Width (mm) | 142 |
| Exterior Assembled Height (mm) | 220 |
| Exterior Assembled Depth (mm) | 58 |
| Interior Assembled Width (mm) | 142 |
| Interior Assembled Height (mm) | 220 |
| Interior Assembled Depth (mm) | 56 |
| Individual Height (mm) | 148 |
| Individual Width (mm) | 151 |
| Individual Depth (mm) | 232 |
| Upper Cross Bore (mm) | 54 |
| Assembled Weight (kg) | 1.53 |
| Product Weight (kg) | 1.81 |
About the TradePro Range
TradePro is an affordable door hardware range developed for residential homes, delivering security, quality and performance across entrance locksets, internal levers & knobs, and deadbolts. TradePro can be builder keyed and used with the Gainsborough GR9 Keying System.
