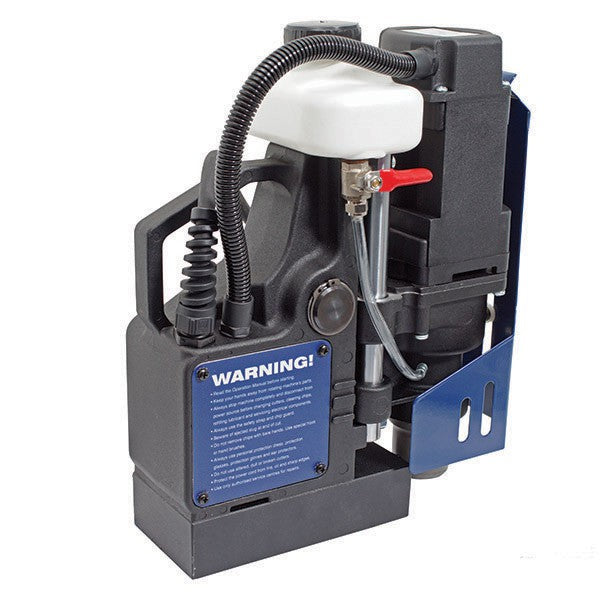

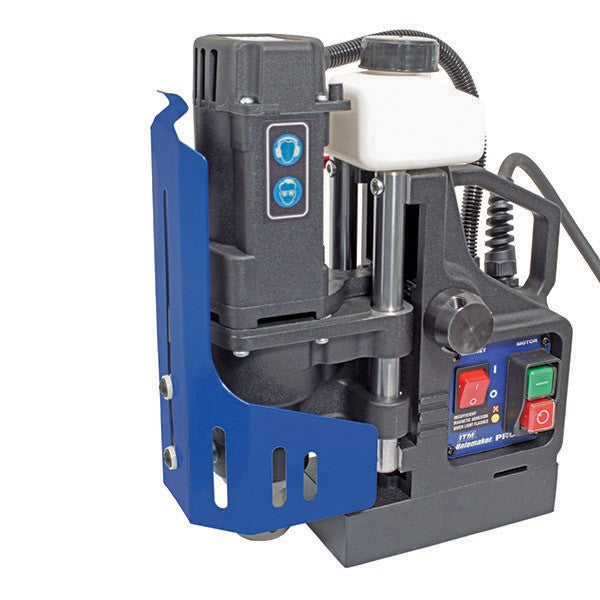

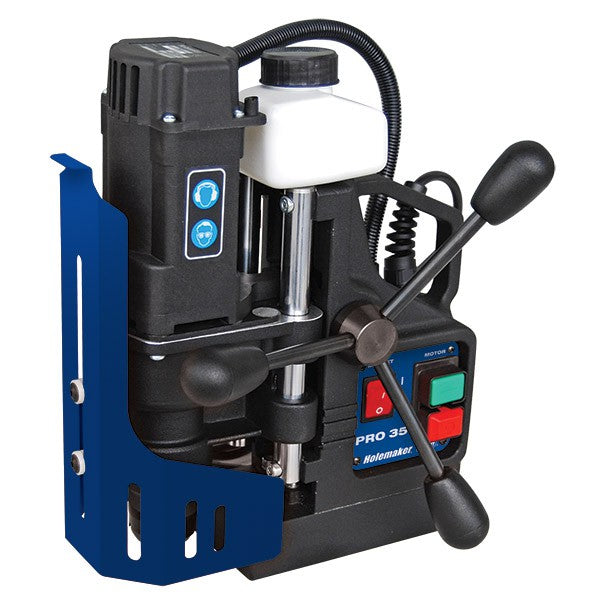

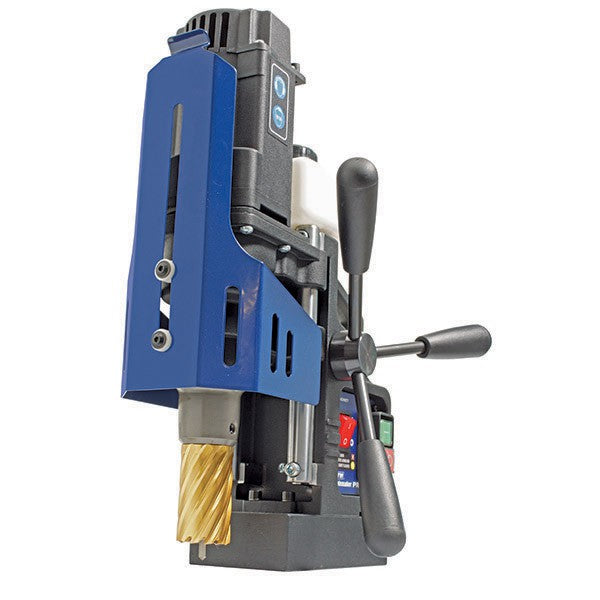

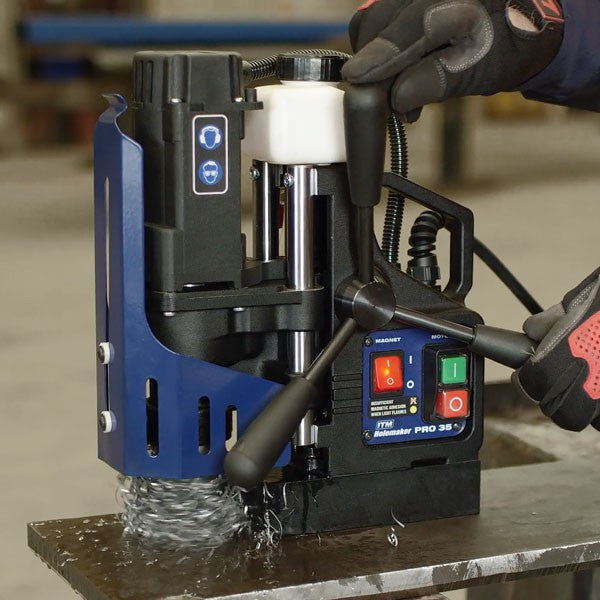

Holemaker PRO35 Magnetic Base Drill 240V Capacity 35mm Dia X 52mm Complete with Asset-Z HMPRO35K1

SKU: HMPRO35K1
: 44042549253

$1,249.00

In stock
Holemaker PRO35 Magnetic Base Drill 240V Capacity 35mm Dia X 52mm Complete with Asset-Z HMPRO35K1

$1,249.00

$1,249.00

Features

  • The Holemaker PRO 35 is a high quality, compact and robust, fully featured machine.
  • Weighing in at just 10kg, this machine is ideal for those on-site and overhead tasks, whilst the solid, robust construction means the HMPRO35 is perfect for everyday manufacturing type applications.
  • The 35mm diameter and 52mm depth cutting capacity will suffice for most general holemaking requirements.
  • Other standard features include a gravity feed coolant system with a magnetically attached coolant bottle, which can be easily removed and attached to the work piece, allowing coolant feed whilst drilling in horizontal applications.
  • The feed handles can be placed on either the left or right hand side, providing further versatility when using this compact machine in tight positions.
  • Dual rail slide system provides rigidity and eliminates the need for gib adjustments.
  • The well designed cutter guard system is easy to use and practical.
  • 16mm twist drill capacity using Weldon Shank twist drill bits.

Specifications

Specification Value
Capacity ( Diameter ) 35mm
Capacity ( Depth ) 52mm
Motor Power 920 watt
Input Power 1000 watt Single Phase 240V
Speed 350rpm
Weight 10.0kg
Magnetic Dead Lift 9500Nm On 25mm Steel Plate
Stroke 70mm

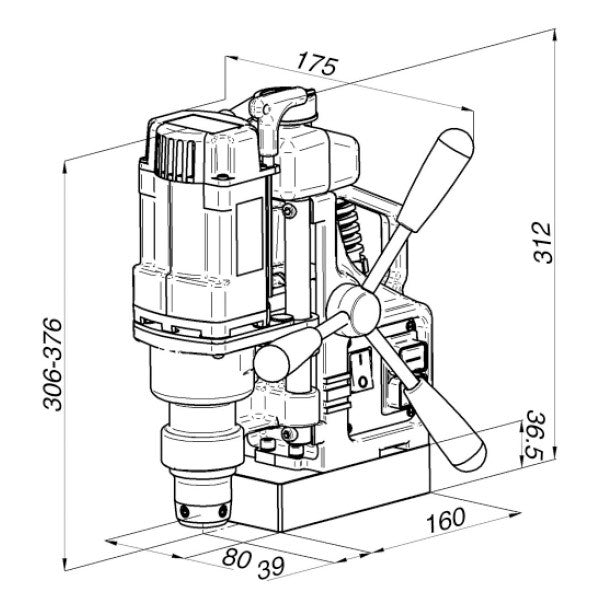

Height 306mm min / 376mm max

Video

Holemaker Pro 35 Promotional Video

Description

Features

  • The Holemaker PRO 35 is a high quality, compact and robust, fully featured machine.
  • Weighing in at just 10kg, this machine is ideal for those on-site and overhead tasks, whilst the solid, robust construction means the HMPRO35 is perfect for everyday manufacturing type applications.
  • The 35mm diameter and 52mm depth cutting capacity will suffice for most general holemaking requirements.
  • Other standard features include a gravity feed coolant system with a magnetically attached coolant bottle, which can be easily removed and attached to the work piece, allowing coolant feed whilst drilling in horizontal applications.
  • The feed handles can be placed on either the left or right hand side, providing further versatility when using this compact machine in tight positions.
  • Dual rail slide system provides rigidity and eliminates the need for gib adjustments.
  • The well designed cutter guard system is easy to use and practical.
  • 16mm twist drill capacity using Weldon Shank twist drill bits.

Specifications

Specification Value
Capacity ( Diameter ) 35mm
Capacity ( Depth ) 52mm
Motor Power 920 watt
Input Power 1000 watt Single Phase 240V
Speed 350rpm
Weight 10.0kg
Magnetic Dead Lift 9500Nm On 25mm Steel Plate
Stroke 70mm
Height 306mm min / 376mm max

Video

Holemaker Pro 35 Promotional Video
