Imex i88R Red Beam Self-Levelling Rotating Laser LRX10 Receiver 012-I88R

SKU: 012-I88R

$1,859.00

In stock
Imex i88R Red Beam Self-Levelling Rotating Laser LRX10 Receiver 012-I88R

$1,859.00

$1,859.00

The Imex i88R is a red-beam horizontal and vertical rotating laser with electronic self-levelling, dual manual grade, scan mode and a German-made LRX10 millimetre detector. The hi-visibility, fully enclosed IP66 housing is built for construction, concreting, earthworks, plumbing and interior fit-out.

A sensor and stepping-motor self-levelling system keeps the beam accurate. Dual grade lets you set slope on the X and Y axes at the same time — useful for pipe layout and concrete slab falls. Scan mode limits beam rotation on interiors or busy sites where other lasers may interfere. Top and bottom plumb-spot beams help set up over a point. The remote control handles grade and other functions from up to 20 m away.

Key Features

  • Horizontal and vertical electronic self-levelling
  • 600 m diameter working range
  • Accuracy ±1.5 mm at 30 m
  • Dual manual grade to 5° (8.8%) on X and Y together
  • Scan mode — 0°, 10°, 45°, 90°, 180°
  • Rotation speeds 0, 60, 120, 300, 600 rpm
  • 9 Ah lithium-ion battery — about 40 hours (red beam); USB-C charge plus 12 V car charger
  • LRX10 German-made digital detector (90 mm pick-up, 0.5–10 mm readings)
  • High-wind sensitivity reset
  • Hi-visibility IP66 case with enclosed laser diode
  • 5 year warranty on the laser unit (2 years on the battery)

Specifications

Accuracy ±1.5 mm at 30 m
Self-levelling range ±5°
Working distance 600 m diameter
Function Horizontal / vertical
Slope Dual manual grade to 5° (8.8%)
Scan mode 0°, 10°, 45°, 90°, 180°
Rotation speeds 0, 60, 120, 300, 600 rpm
Light source Red 635 nm, Class II
Dust / water protection IP66
Power 9 Ah 3.7 V lithium-ion
Run time About 40 hours (red)
Charge time About 4 hours (in unit or removed)
Remote Yes (up to 20 m)
Detector LRX10 double-sided, 90 mm pick-up
Detector readings 0.5 / 1.0 / 2.0 / 5.0 / 10.0 mm
Weight (unit only) 2.48 kg
Warranty 5 years unit / 2 years battery

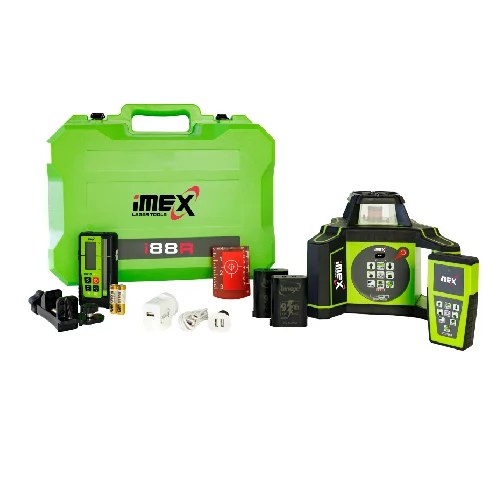

What's Included

  • Imex i88R rotating laser
  • LRX10 detector and holder
  • Remote control
  • 9.0 Ah lithium-ion battery
  • USB cable, spare charger and 12 V car charger
  • Target plate
  • Instructions and hard carry case

Documents

Description

The Imex i88R is a red-beam horizontal and vertical rotating laser with electronic self-levelling, dual manual grade, scan mode and a German-made LRX10 millimetre detector. The hi-visibility, fully enclosed IP66 housing is built for construction, concreting, earthworks, plumbing and interior fit-out.

A sensor and stepping-motor self-levelling system keeps the beam accurate. Dual grade lets you set slope on the X and Y axes at the same time — useful for pipe layout and concrete slab falls. Scan mode limits beam rotation on interiors or busy sites where other lasers may interfere. Top and bottom plumb-spot beams help set up over a point. The remote control handles grade and other functions from up to 20 m away.

Key Features

  • Horizontal and vertical electronic self-levelling
  • 600 m diameter working range
  • Accuracy ±1.5 mm at 30 m
  • Dual manual grade to 5° (8.8%) on X and Y together
  • Scan mode — 0°, 10°, 45°, 90°, 180°
  • Rotation speeds 0, 60, 120, 300, 600 rpm
  • 9 Ah lithium-ion battery — about 40 hours (red beam); USB-C charge plus 12 V car charger
  • LRX10 German-made digital detector (90 mm pick-up, 0.5–10 mm readings)
  • High-wind sensitivity reset
  • Hi-visibility IP66 case with enclosed laser diode
  • 5 year warranty on the laser unit (2 years on the battery)

Specifications

Accuracy ±1.5 mm at 30 m
Self-levelling range ±5°
Working distance 600 m diameter
Function Horizontal / vertical
Slope Dual manual grade to 5° (8.8%)
Scan mode 0°, 10°, 45°, 90°, 180°
Rotation speeds 0, 60, 120, 300, 600 rpm
Light source Red 635 nm, Class II
Dust / water protection IP66
Power 9 Ah 3.7 V lithium-ion
Run time About 40 hours (red)
Charge time About 4 hours (in unit or removed)
Remote Yes (up to 20 m)
Detector LRX10 double-sided, 90 mm pick-up
Detector readings 0.5 / 1.0 / 2.0 / 5.0 / 10.0 mm
Weight (unit only) 2.48 kg
Warranty 5 years unit / 2 years battery

What's Included

  • Imex i88R rotating laser
  • LRX10 detector and holder
  • Remote control
  • 9.0 Ah lithium-ion battery
  • USB cable, spare charger and 12 V car charger
  • Target plate
  • Instructions and hard carry case

Documents
