Imex LX3DG Green Beam Multi-Line Laser 3 × 360° Lines with LD100 Detector 012-LX3DGD
$950.95
$950.95
$950.95
The iMEX LX3DG is a multiline laser level with everything.
Now with PreciseALIGN™ fine adjustment to get that perfect 90-degree set out. With three, 360 degree lines and an offset to ensure uninterrupted laser lines, this versatile green beam laser is the ultimate for all interior alignment tasks.
This listing is Imex LX3DG Green Beam Multi-LINE Laser 3 X 360° Lines with LD100 Detector.
Key Features
- Series II features an all-new quick release lithium battery platform, compatible across all Series II LX models, plus new rubberised housing for a comfortable, non-slip grip
- NEW PreciseAlign™ fine adjustment to pivot laser NEW 5.2Ah lithium battery pack – swaps to all LX series II models
Specifications
| iMEX LX3DG Green Beam 360 laser | Specifications |
| Self levelling range | 4 ° ± 1 |
| Out of level indication | laser blinks on/off |
| Laser accuracy | ± 3mm @10m |
| Laser class | Class 2 |
| Laser wavelength | 520 ± 10 nm |
| Laser distance | 20m light-dependent |
| Laser distance with optional detector | 50m |
| Laser fan angle -lines | H 36 0 ° V 36 0 ° |
| Power source | 5.2 Ah lithium-ion |
| Charging type | USB-C |
| Run time – all beams and dots | 6 hrs |
| Control switch | 1 button, pendulum lock |
| Unit adjustment | Precise align, fine adjustment screw |
| IP Rating | IP54 |
| Operating temperature | -10 ° to +50 ° C |
| Storage temperature | -20 ° to +70 ° C |

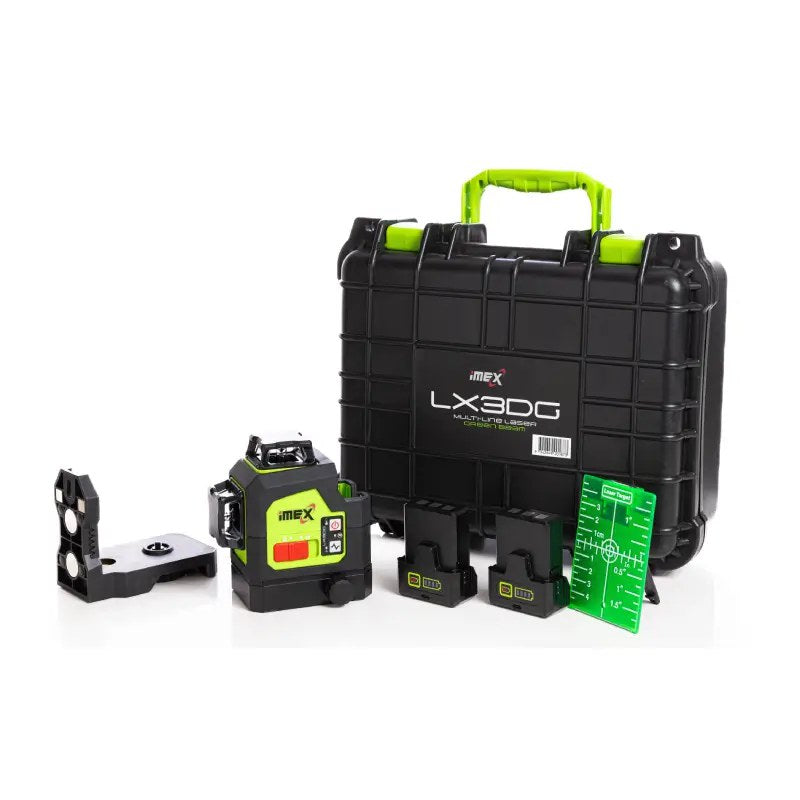

| Kit Inclusions | lithium battery, USB-C, alkaline batteries, magnetic bracket operating manual, plastic carry case |
What's Included
- Instructions and carry case
Documents
Description
The iMEX LX3DG is a multiline laser level with everything.
Now with PreciseALIGN™ fine adjustment to get that perfect 90-degree set out. With three, 360 degree lines and an offset to ensure uninterrupted laser lines, this versatile green beam laser is the ultimate for all interior alignment tasks.
This listing is Imex LX3DG Green Beam Multi-LINE Laser 3 X 360° Lines with LD100 Detector.
Key Features
- Series II features an all-new quick release lithium battery platform, compatible across all Series II LX models, plus new rubberised housing for a comfortable, non-slip grip
- NEW PreciseAlign™ fine adjustment to pivot laser NEW 5.2Ah lithium battery pack – swaps to all LX series II models
Specifications
| iMEX LX3DG Green Beam 360 laser | Specifications |
| Self levelling range | 4 ° ± 1 |
| Out of level indication | laser blinks on/off |
| Laser accuracy | ± 3mm @10m |
| Laser class | Class 2 |
| Laser wavelength | 520 ± 10 nm |
| Laser distance | 20m light-dependent |
| Laser distance with optional detector | 50m |
| Laser fan angle -lines | H 36 0 ° V 36 0 ° |
| Power source | 5.2 Ah lithium-ion |
| Charging type | USB-C |
| Run time – all beams and dots | 6 hrs |
| Control switch | 1 button, pendulum lock |
| Unit adjustment | Precise align, fine adjustment screw |
| IP Rating | IP54 |
| Operating temperature | -10 ° to +50 ° C |
| Storage temperature | -20 ° to +70 ° C |
| Kit Inclusions | lithium battery, USB-C, alkaline batteries, magnetic bracket operating manual, plastic carry case |
What's Included
- Instructions and carry case
Documents
