Thalia BT A80 DUO

Control panel for one or two 24V operators for swing gates, for highly complex systems. The product complies with the new energy efficiency regulations.

Main Features

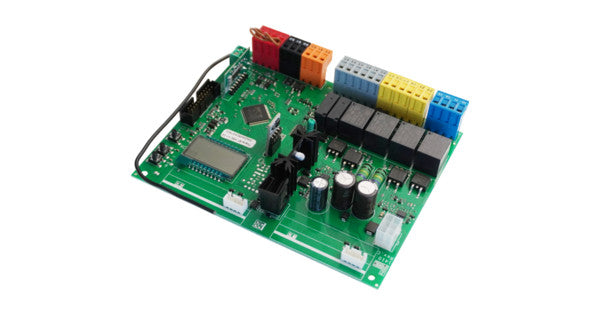

• Modular: with the additional modules you can offer more installation options to meet the requirements of a wider range of customers. The new smart board can, if necessary, provide greater electrical power for operating larger motors or motors which operate in demanding conditions
• Connectible: with the dual connector, you can connect a gateway and leave it permanently connected, using the second slot for harnessing the full potential of the B-EBA family of cards
• Advanced: the U-LINK communication protocol is technologically advanced and can now communicate with the cloud and modern data communications technologies. It is very fast and reactive, meaning it can communicate data bi-directionally and it supports OTA technology which means that firmware updates can be scheduled remotely
• Portable: the memory capacity for remote controls has been expanded from 64 to 128 positions but, if needed, the 2,048-position module can be selected for managing installations with a large number of stored remote controls. The memory can be removed and inserted into a new motherboard without losing any remote controls or the stored list of parameters and logic

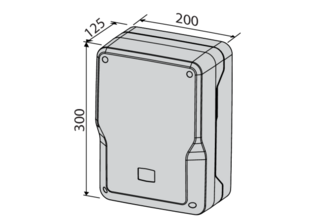

• Spacious: the box housing the electronics is completely new. There is more room for maintenance, wiring is quicker and easier with the new system with seals, the battery pack for emergency operation can be fitted into the box and the wall mounting system has been revised and simplified
• 94% less power consumption in standby mode, resulting in 69.82 kWh saved annually. Energy consumption of accessories connected to the board is not counted.

Technologies

U-Security The thrust required to operate safely. A smart torque management system based on the microprocessor technology of BFT control units. Acquiring data from several indicators, it updates the level of thrust required to perform the operation. D-Track also facilitates the installer in providing for the certifications required by law. Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations. BFT control devices record the slightest variation in the gate or door force, for example due to differences in temperature or wear, constantly supplying the optimum torque to the motor. A conventional control unit could not detect these thrust variations,…

Specifications

Documents

• BFT Technical Download (I300396)
