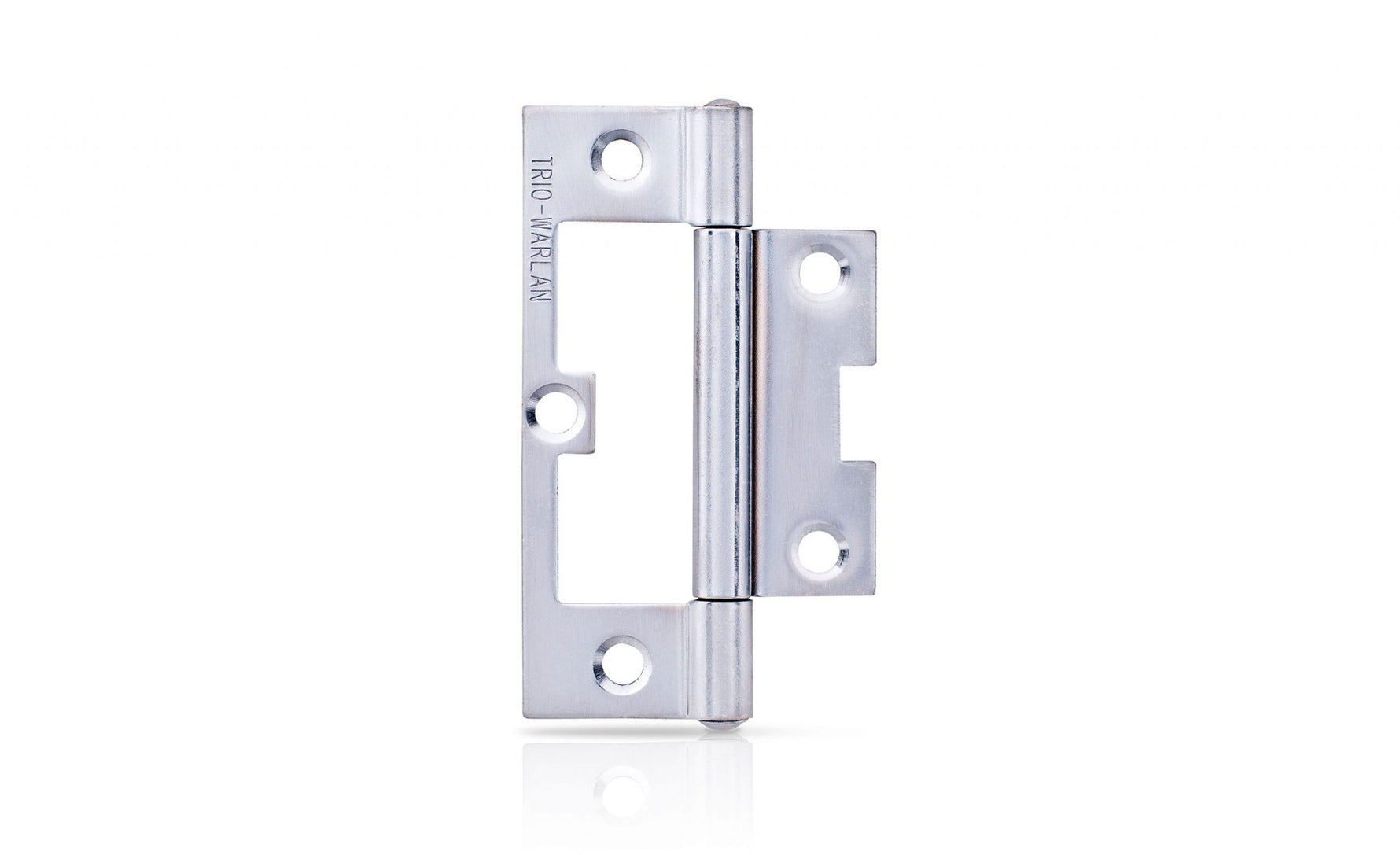

Trio Australia 90mm Zp hirlines bagged/screws PBWLH790FPZP
See more by Door Hinges

Trio Australia 90mm Zp hirlines bagged/screws PBWLH790FPZP

SKU: PBWLH790FPZP
: 9328879104423

$3.34

In stock
Trio Australia 90mm Zp hirlines bagged/screws PBWLH790FPZP

$3.34

$3.34

Trio's Warlan Hirline – a non-mortice quick fit hinge, “Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” These lines are supplied bagged with screws, so each hinge arrives ready to hang.

Key Features

  • Non-mortice – fits straight into the door gap with no rebate to cut
  • Supplied bagged with screws
  • Fixed pin
  • Recommended fixing 8 gauge x 25/30mm
  • Offered in stainless steel, zinc plated and black

Technical Specifications

Variant Fixed pin, timber fix
Finish Zinc Plated (ZP)
Size 90 x 52 x 1.6mm
Material Not published
Pack quantities Not published
Size note Trio publishes 90 x 52 x 1.6mm for this code. Closely-related codes are published at 90 x 53 x 1.6mm and 90 x 53 x 1.8mm – each figure belongs to its own code.
Range REVIVE Warlan Quick Fit Hinge Light & Narrow
Hinge type Trio's definition: “Hirline Hinge (sometimes referred to as Quick Fix Hinge or Non Mortice Hinge or centre pin). Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” The leaves nest around a central pin so the hinge sits in the door gap with no rebate to cut.
Bearing Plain
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk)
Screws Included – Trio's description string ends “bagged/screws”
Recommended screw 8 gauge x 25/30mm
Material grade Not published for these codes
Weight / packed dimensions Not published
Dimensions recorded 90 x 52 x 1.6 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879104423
Description

Trio's Warlan Hirline – a non-mortice quick fit hinge, “Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” These lines are supplied bagged with screws, so each hinge arrives ready to hang.

Key Features

  • Non-mortice – fits straight into the door gap with no rebate to cut
  • Supplied bagged with screws
  • Fixed pin
  • Recommended fixing 8 gauge x 25/30mm
  • Offered in stainless steel, zinc plated and black

Technical Specifications

Variant Fixed pin, timber fix
Finish Zinc Plated (ZP)
Size 90 x 52 x 1.6mm
Material Not published
Pack quantities Not published
Size note Trio publishes 90 x 52 x 1.6mm for this code. Closely-related codes are published at 90 x 53 x 1.6mm and 90 x 53 x 1.8mm – each figure belongs to its own code.
Range REVIVE Warlan Quick Fit Hinge Light & Narrow
Hinge type Trio's definition: “Hirline Hinge (sometimes referred to as Quick Fix Hinge or Non Mortice Hinge or centre pin). Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” The leaves nest around a central pin so the hinge sits in the door gap with no rebate to cut.
Bearing Plain
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk)
Screws Included – Trio's description string ends “bagged/screws”
Recommended screw 8 gauge x 25/30mm
Material grade Not published for these codes
Weight / packed dimensions Not published
Dimensions recorded 90 x 52 x 1.6 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879104423
