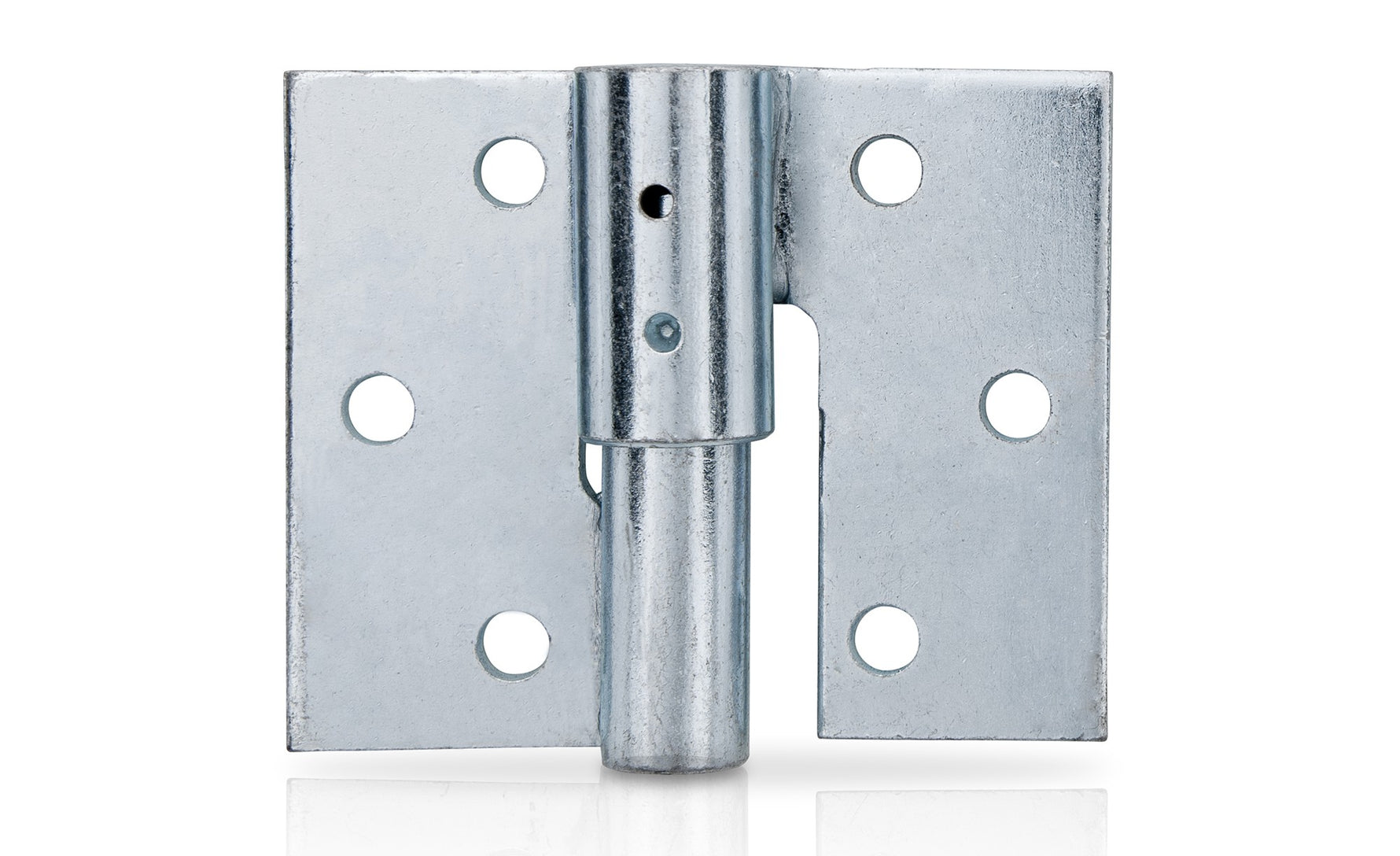

Trio Australia Gate Hinge Heavy Rh 88x101x4.0 BT2200RHZP
See more by Door Hinges

Trio Australia Gate Hinge Heavy Rh 88x101x4.0 BT2200RHZP

SKU: BT2200RHZP
: 9328879104126

$44.15

In stock
Trio Australia Gate Hinge Heavy Rh 88x101x4.0 BT2200RHZP

$44.15

$44.15

A 4mm steel timber-to-timber gate hinge with two broad 88mm-high leaves for a solid, flush fix into gate and post. Zinc plated and handed left or right.

Key Features

  • Heavy 4mm steel section, 88 x 101mm overall
  • Timber to timber – broad 60mm and 63mm leaves fix flush into gate stile and post
  • Suitable for heavy wooden gates
  • Zinc plated for outdoor corrosion resistance
  • Supplied handed (LH / RH), 2 per retail pack

Technical Specifications

Variant Right hand, pair
Finish Zinc Plated (ZP)
Size 88 x 101 x 4mm
Range REVIVE T2200 Heavy Duty Butt
Overall size 88 x 101 x 4mm
Post leaf 60mm wide x 88mm high
Gate leaf 63mm wide x 88mm high
Material thickness 4mm
Material Steel – grade not published
Pack Retail pack (RPk), supplied as a pair; 10 per inner
Load rating Not published
Dimensions recorded 101 x 88 x 4 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Weight Trio does not publish a weight for this product. Confirmed absent from the product page and every relevant Trio catalogue PDF.
Barcode / EAN 9328879104126
Description

A 4mm steel timber-to-timber gate hinge with two broad 88mm-high leaves for a solid, flush fix into gate and post. Zinc plated and handed left or right.

Key Features

  • Heavy 4mm steel section, 88 x 101mm overall
  • Timber to timber – broad 60mm and 63mm leaves fix flush into gate stile and post
  • Suitable for heavy wooden gates
  • Zinc plated for outdoor corrosion resistance
  • Supplied handed (LH / RH), 2 per retail pack

Technical Specifications

Variant Right hand, pair
Finish Zinc Plated (ZP)
Size 88 x 101 x 4mm
Range REVIVE T2200 Heavy Duty Butt
Overall size 88 x 101 x 4mm
Post leaf 60mm wide x 88mm high
Gate leaf 63mm wide x 88mm high
Material thickness 4mm
Material Steel – grade not published
Pack Retail pack (RPk), supplied as a pair; 10 per inner
Load rating Not published
Dimensions recorded 101 x 88 x 4 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Weight Trio does not publish a weight for this product. Confirmed absent from the product page and every relevant Trio catalogue PDF.
Barcode / EAN 9328879104126
