Trio Australia Hinge, Heavy Duty, Adj Tension 60kg (Pair) DPH600
Trio Australia Hinge, Heavy Duty, Adj Tension 60kg (Pair) DPH600

Trio Australia Hinge, Heavy Duty, Adj Tension 60kg (Pair) DPH600

SKU: DPH600
: 9328879117010

$82.43

In stock
Trio Australia Hinge, Heavy Duty, Adj Tension 60kg (Pair) DPH600

$82.43

$82.43

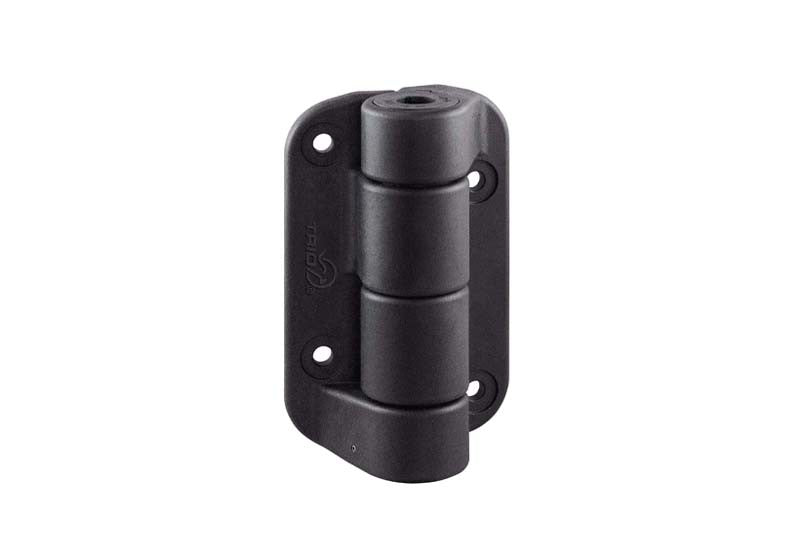

Heavy Duty Hinge in black polymer, supplied as a pair. Self-closes gates up to 60kg per pair – Trio's highest published capacity.

Key Features

  • Supplied as a matched pair
  • Impact-resistant black polymer – anti-rust, unaffected by moisture
  • Slotted leaves allow vertical adjustment during installation
  • Symmetrical holes let the hinge be inverted to suit left- or right-hand gates
  • Trio's highest-capacity self-closing gate hinge
  • Compatible with the DPH250 safety cap, sold separately

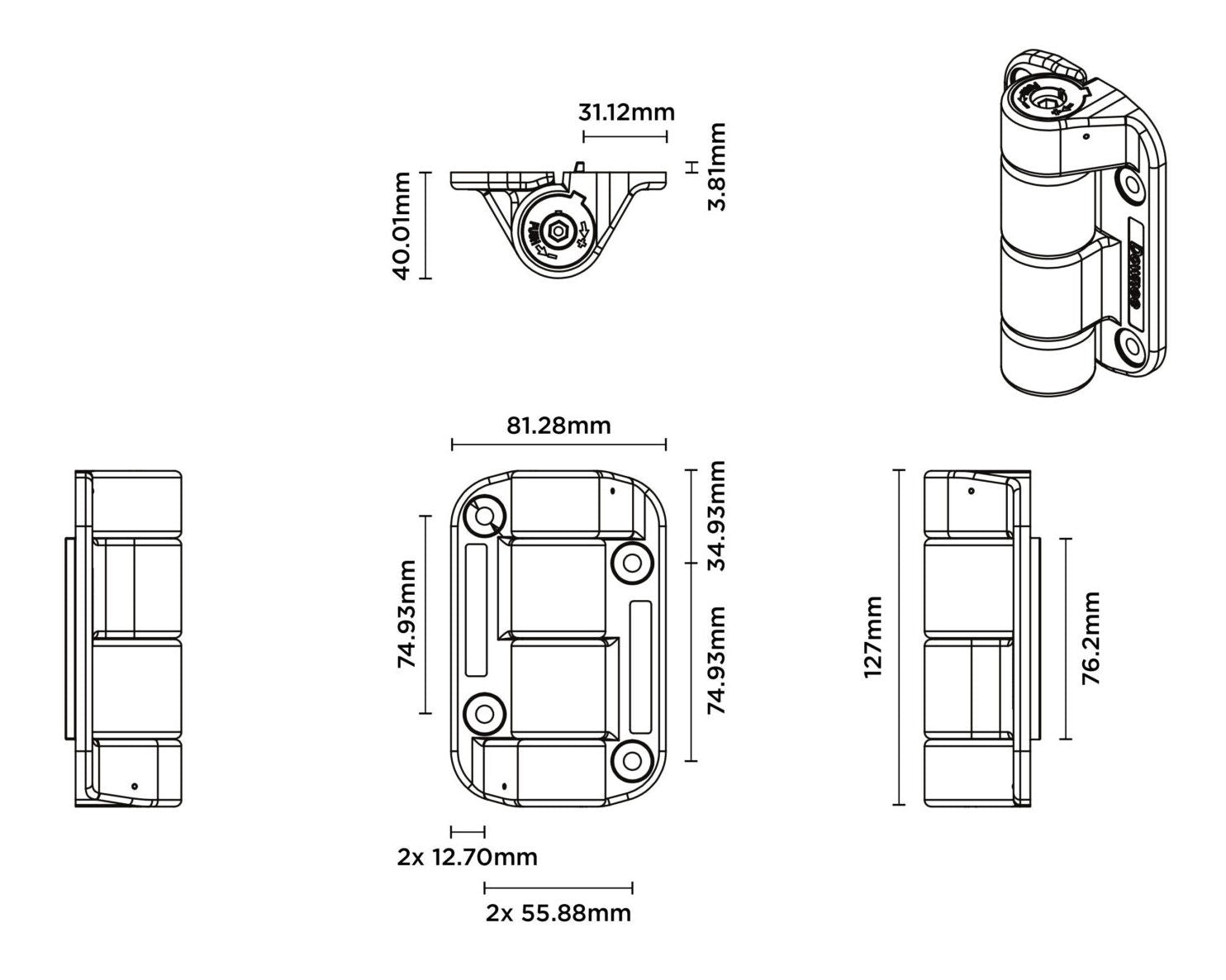

Technical Specifications

Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product name Heavy Duty Hinge
Self-closing capacity Self-closes gates up to 60kg per pair – Trio's highest published capacity.
Tension adjustment Adjustable, 6mm allen key in quarter-turn increments. Trio: “Do not rotate tensioner more than two full turns.” Support the gate weight while adjusting.
Mounting style Flat back, with an alignment tab
Maximum gate load Not published – Trio publishes a self-closing capacity only
Supplied as Pair
Mounting positions Maximum 150mm from the top and bottom of the gate
Clearance check Check clearance by opening the gate 25mm
Safety cap DPH250 available separately
Barcode / EAN 9328879117010
Description

Heavy Duty Hinge in black polymer, supplied as a pair. Self-closes gates up to 60kg per pair – Trio's highest published capacity.

Key Features

  • Supplied as a matched pair
  • Impact-resistant black polymer – anti-rust, unaffected by moisture
  • Slotted leaves allow vertical adjustment during installation
  • Symmetrical holes let the hinge be inverted to suit left- or right-hand gates
  • Trio's highest-capacity self-closing gate hinge
  • Compatible with the DPH250 safety cap, sold separately

Technical Specifications

Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product name Heavy Duty Hinge
Self-closing capacity Self-closes gates up to 60kg per pair – Trio's highest published capacity.
Tension adjustment Adjustable, 6mm allen key in quarter-turn increments. Trio: “Do not rotate tensioner more than two full turns.” Support the gate weight while adjusting.
Mounting style Flat back, with an alignment tab
Maximum gate load Not published – Trio publishes a self-closing capacity only
Supplied as Pair
Mounting positions Maximum 150mm from the top and bottom of the gate
Clearance check Check clearance by opening the gate 25mm
Safety cap DPH250 available separately
Barcode / EAN 9328879117010
