Trio Australia Hinge, Medium Duty, Adjustable Wide Leaves DPH230

SKU: DPH230
: 9328879117188

$127.56

In stock
Trio Australia Hinge, Medium Duty, Adjustable Wide Leaves DPH230

$127.56

$127.56

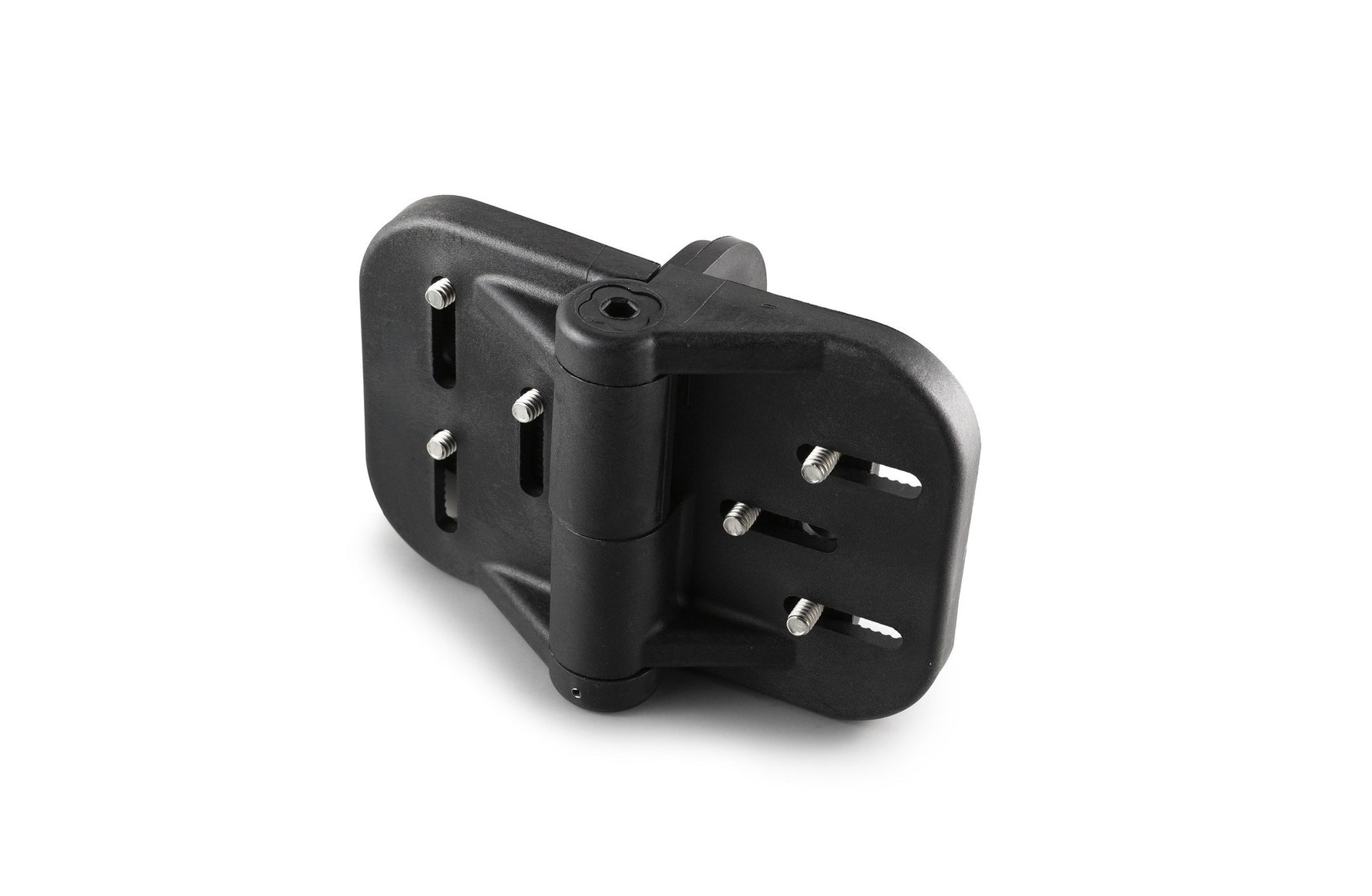

A wide-leaf self-closing hinge set with horizontal screw adjustment on one flange and vertical on the other, for gates up to 45kg per pair. Spring tension adjusts in quarter-turn increments with the supplied allen key.

Key Features

  • Wide flange with horizontal screw adjustment on one side and vertical on the other
  • Self-closing with adjustable tensioning, for gates up to 45kg per pair
  • Alignment legs and slotted holes for precise positioning
  • Supplied with a quarter-inch allen key for tension adjustment

Technical Specifications

Variant Wide leaves, flat post
Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product name Wide Leaf Hinge Set, horizontal & vertical
Self-closing capacity Gates up to 45kg per pair

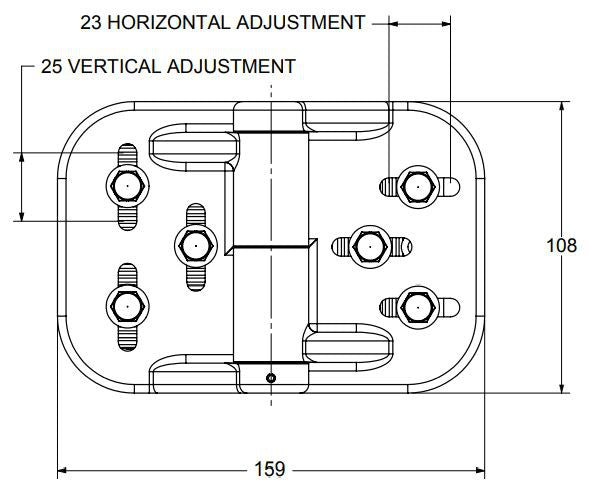

Adjustment Horizontal screw adjustment on one side, vertical on the other
Tension adjustment Insert the supplied quarter-inch (or 6mm) allen key into the cam at the end of the hinge barrel, press down and rotate clockwise to increase tension. Adjust one hinge at a time in quarter-turn increments. Trio warns: spring tension should never be increased more than 2 full turns (8 quarter turns) from neutral.
Mounting positions Within 150mm of the top and bottom rail
Related codes Trio's DPH240 is the round-post version of this hinge set and is already present in your sheet under that code.
Supplied as Pair
Maximum gate load Not published – Trio publishes a self-closing capacity only, not a maximum gate load or maximum leaf size
Barcode / EAN 9328879117188
