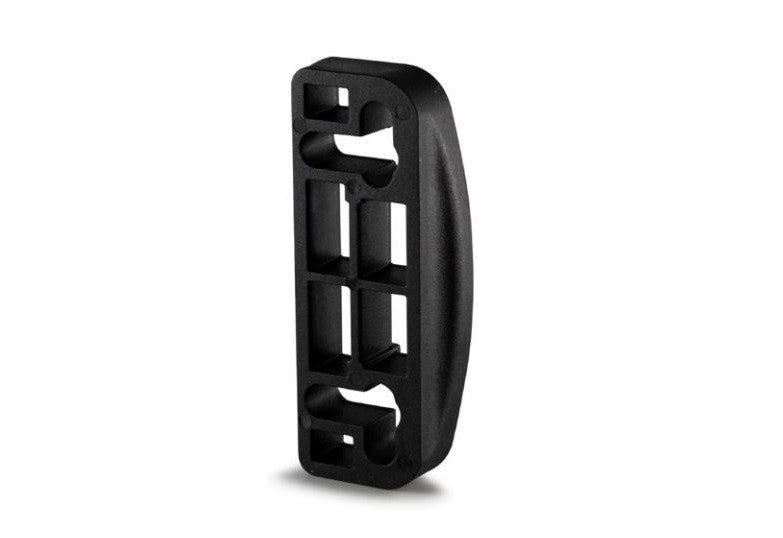

Trio Australia Side pull Magnetic Latch DPL900

Trio Australia Side pull Magnetic Latch DPL900

SKU: DPL900
: 9328879107073

$53.90

In stock
Trio Australia Side pull Magnetic Latch DPL900

$53.90

$53.90

A magnetic side-pull latch that mounts to the inside of the gate, engineered around an 8–12mm latch gap (10mm optimal). Easily adjustable via slotted fixings, and suited to gates at least 1200mm high.

Key Features

  • Magnetic latching
  • Fits to the inside of the gate
  • Easily adjustable – slotted fixings give the adjustment range
  • A 10mm spacer (DPL900SPACER) is available for different glass thicknesses
  • Trio recommends fitting a gate stop to stop the gate swinging past the fence post

Technical Specifications

Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product name Side Pull Latch
Mechanism Magnetic
Latch gap range 8–12mm, 10mm optimal. Trio adds: “Gate gap 10mm maximum for swimming pool application – check local authorities for codes.”
Minimum gate height 1200mm
Pilot holes 4mm (5/32 inch) recommended
Fixings Fixing screws are not included.
Accessory DPL900SPACER, 10mm spacer, for different glass thicknesses
Locking Trio's general boilerplate mentions lockability but publishes no key or cylinder detail for this code.
Barcode / EAN 9328879107073
Description

A magnetic side-pull latch that mounts to the inside of the gate, engineered around an 8–12mm latch gap (10mm optimal). Easily adjustable via slotted fixings, and suited to gates at least 1200mm high.

Key Features

  • Magnetic latching
  • Fits to the inside of the gate
  • Easily adjustable – slotted fixings give the adjustment range
  • A 10mm spacer (DPL900SPACER) is available for different glass thicknesses
  • Trio recommends fitting a gate stop to stop the gate swinging past the fence post

Technical Specifications

Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product name Side Pull Latch
Mechanism Magnetic
Latch gap range 8–12mm, 10mm optimal. Trio adds: “Gate gap 10mm maximum for swimming pool application – check local authorities for codes.”
Minimum gate height 1200mm
Pilot holes 4mm (5/32 inch) recommended
Fixings Fixing screws are not included.
Accessory DPL900SPACER, 10mm spacer, for different glass thicknesses
Locking Trio's general boilerplate mentions lockability but publishes no key or cylinder detail for this code.
Barcode / EAN 9328879107073
