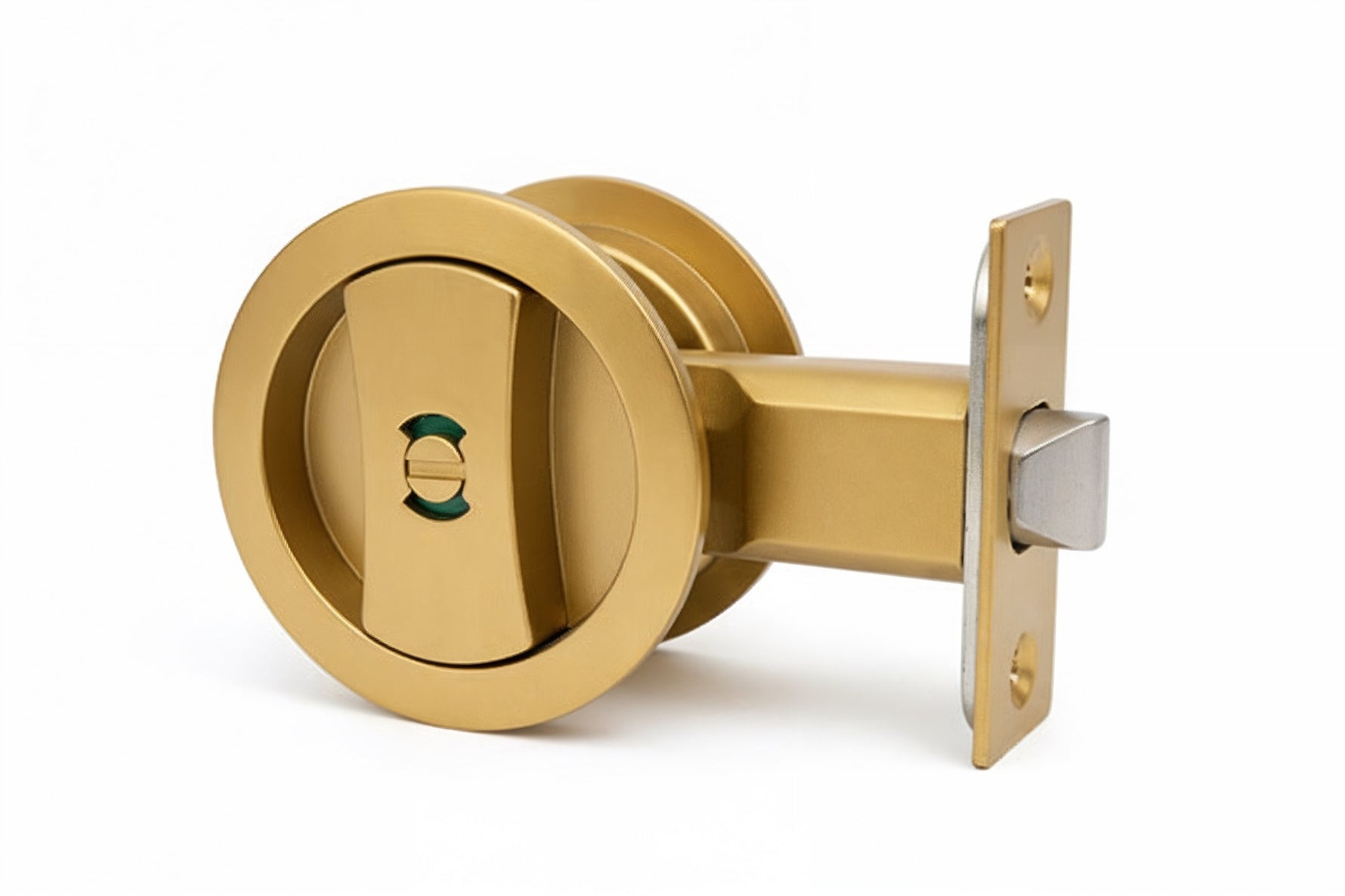

Trio Australia Sliding Door Privacy Matte Gold CD1 BSPR365MG

Trio Australia Sliding Door Privacy Matte Gold CD1 BSPR365MG

SKU: BSPR365MG
: 9328879122311

$86.90

In stock
Trio Australia Sliding Door Privacy Matte Gold CD1 BSPR365MG

$86.90

$86.90

A safety lock component designed specifically for sliding doors. This privacy set recesses into the face of a cavity or pocket sliding door, giving a flush round rose with an inside thumb-turn and an outside occupied / vacant indicator – privacy for bathrooms, ensuites and bedrooms with no protruding hardware.

Key Features

  • Privacy function – inside thumb-turn with an outside occupied / vacant indicator
  • Round rose recessed flush into the door so nothing fouls the cavity
  • Handle folds away and the decorative cover conceals the mounting screws
  • Suits interior sliding doors 31–51mm thick; 54mm face bore, 60mm backset
  • Non-handed – the same set fits left- or right-handed doors

Technical Specifications

Variant Privacy
Finish Matte Gold (MG)
Range REVIVE Sliding Door Round Lock – Privacy
Rose shape Round
Function Privacy – inside thumb-turn with an outside occupied / vacant indicator
Application Trio: “This product is designed for lightweight interior doors. Do not use it on exterior or heavy metal doors.”
Door thickness 31–51mm (privacy function)
Face bore 54mm diameter through the door face
Edge bore 25mm diameter in the door edge
Backset 60mm
Strike 22mm diameter; strike plate approximately 67 x 34mm, chiselled to a 3mm-deep indentation
Recommended height 914mm from the floor to the centre of the lock
Tailpiece length by door thickness 31–36mm → 29mm; 36–44mm → 37mm; 44–51mm → 45mm
Mounting screw length by door thickness 31–35mm → 12mm; 35–40mm → 18mm; 40–45mm → 22mm; 45–55mm → 28mm
Handing Non-handed / field-reversible – the same set fits left- or right-handed doors. There are no separate LH/RH SKUs.
Finger pull Optional and sold separately – Trio's instruction sheet labels the round and square finger pulls “optional”. Requires a 25mm diameter hole 25mm deep, 150mm above the centre of the lock.
Emergency release Not published – Trio does not claim an emergency release for these sets. It reserves that claim for its separate BTPL barn-door locks.
Pack contents Not published as a parts list. The instruction sheet shows an outside lock with indicator, inside lock with turn, latch, strike, tailpiece and mounting screws.
Material Not published
Rose / faceplate dimensions Not published
Weight / packed dimensions Not published
Warranty 10 years on the product (material and workmanship, including mechanical parts); 5 years on the finish against corrosion, tarnishing and discolouration. Note Trio's finish carve-outs: Matte Black and Gun Metal Grey carry 12 months finish cover only, and Matte Gold and Satin Brass finishes are not covered.
Barcode / EAN 9328879122311
Description

A safety lock component designed specifically for sliding doors. This privacy set recesses into the face of a cavity or pocket sliding door, giving a flush round rose with an inside thumb-turn and an outside occupied / vacant indicator – privacy for bathrooms, ensuites and bedrooms with no protruding hardware.

Key Features

  • Privacy function – inside thumb-turn with an outside occupied / vacant indicator
  • Round rose recessed flush into the door so nothing fouls the cavity
  • Handle folds away and the decorative cover conceals the mounting screws
  • Suits interior sliding doors 31–51mm thick; 54mm face bore, 60mm backset
  • Non-handed – the same set fits left- or right-handed doors

Technical Specifications

Variant Privacy
Finish Matte Gold (MG)
Range REVIVE Sliding Door Round Lock – Privacy
Rose shape Round
Function Privacy – inside thumb-turn with an outside occupied / vacant indicator
Application Trio: “This product is designed for lightweight interior doors. Do not use it on exterior or heavy metal doors.”
Door thickness 31–51mm (privacy function)
Face bore 54mm diameter through the door face
Edge bore 25mm diameter in the door edge
Backset 60mm
Strike 22mm diameter; strike plate approximately 67 x 34mm, chiselled to a 3mm-deep indentation
Recommended height 914mm from the floor to the centre of the lock
Tailpiece length by door thickness 31–36mm → 29mm; 36–44mm → 37mm; 44–51mm → 45mm
Mounting screw length by door thickness 31–35mm → 12mm; 35–40mm → 18mm; 40–45mm → 22mm; 45–55mm → 28mm
Handing Non-handed / field-reversible – the same set fits left- or right-handed doors. There are no separate LH/RH SKUs.
Finger pull Optional and sold separately – Trio's instruction sheet labels the round and square finger pulls “optional”. Requires a 25mm diameter hole 25mm deep, 150mm above the centre of the lock.
Emergency release Not published – Trio does not claim an emergency release for these sets. It reserves that claim for its separate BTPL barn-door locks.
Pack contents Not published as a parts list. The instruction sheet shows an outside lock with indicator, inside lock with turn, latch, strike, tailpiece and mounting screws.
Material Not published
Rose / faceplate dimensions Not published
Weight / packed dimensions Not published
Warranty 10 years on the product (material and workmanship, including mechanical parts); 5 years on the finish against corrosion, tarnishing and discolouration. Note Trio's finish carve-outs: Matte Black and Gun Metal Grey carry 12 months finish cover only, and Matte Gold and Satin Brass finishes are not covered.
Barcode / EAN 9328879122311
