Tuff Range 22.5 Degree Long Heavy Duty Fascia Bracket F12058
Tuff Range 22.5 Degree Long Heavy Duty Fascia Bracket F12058
See more by Brackets

Tuff Range 22.5 Degree Long Heavy Duty Fascia Bracket F12058

SKU: F12058

$16.01

In stock
Tuff Range 22.5 Degree Long Heavy Duty Fascia Bracket F12058

$16.01

$16.01

Tuff Long Heavy Duty Fascia Bracket

Key Features

  • Used to connect the overhangs of rafters or trusses to fascias or fascia ledgers of a pergola / carport / verandah so that the pergola / carport / verandah can be adequately supported from the fascia line
  • Available in various angles

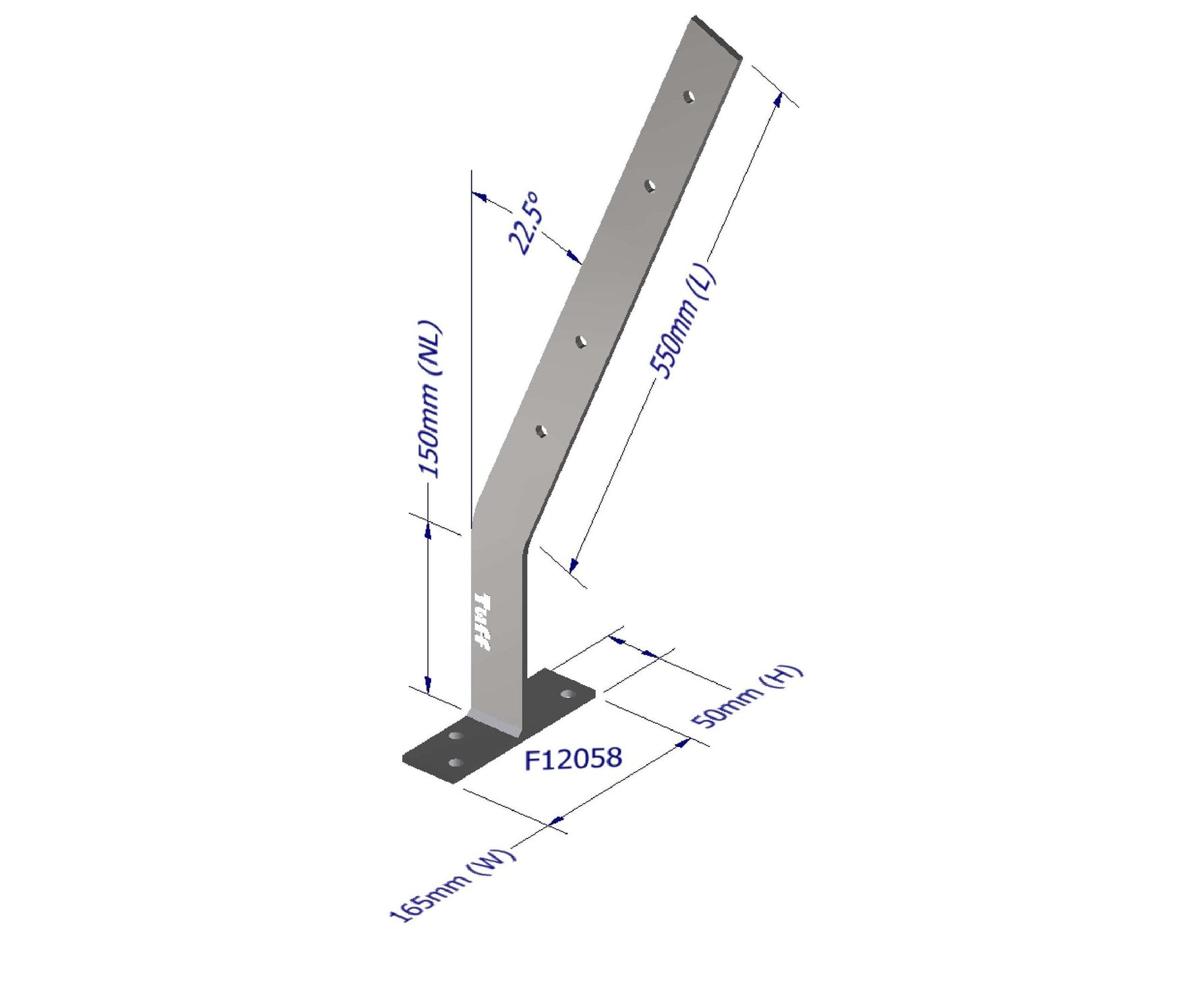

Specifications

Specification Value
Sales Quantity Each
Carton Quantity 6 (supplied in cartons of 6)
Dimension 22.5°
Rafter 550mm + 150mm Length
Fascia 165mm Wide
Bolt Hole M10
Made From 50mm x 6mm Steel
Finishing Hot-Dip Galvanised

Documents

Description

Tuff Long Heavy Duty Fascia Bracket

Key Features

  • Used to connect the overhangs of rafters or trusses to fascias or fascia ledgers of a pergola / carport / verandah so that the pergola / carport / verandah can be adequately supported from the fascia line
  • Available in various angles

Specifications

Specification Value
Sales Quantity Each
Carton Quantity 6 (supplied in cartons of 6)
Dimension 22.5°
Rafter 550mm + 150mm Length
Fascia 165mm Wide
Bolt Hole M10
Made From 50mm x 6mm Steel
Finishing Hot-Dip Galvanised

Documents
