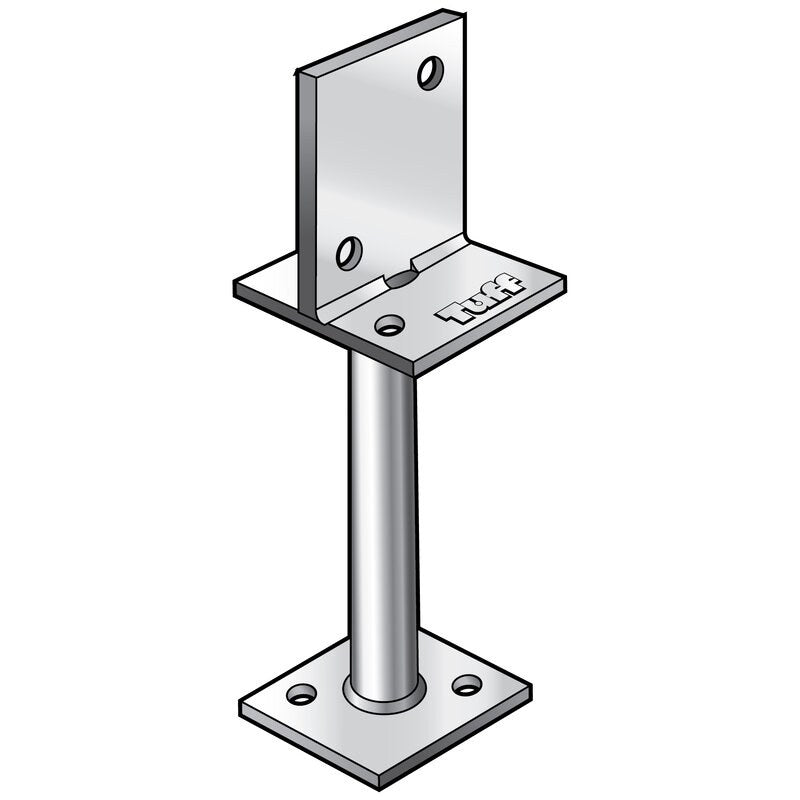

Tuff Range T Blade Post Support 165mm Shaft F11758
See more by Post Supports

Tuff Range T Blade Post Support 165mm Shaft F11758

SKU: F11758

$9.00

In stock
Tuff Range T Blade Post Support 165mm Shaft F11758

$9.00

$9.00

Tuff T-Blade Post Support

Key Features

  • Ideal for pergola, carport and verandah posts
  • Can be used for bolting to existing timber decking or concrete base
  • Can also be used for setting into concrete
  • Suitable for round timber posts up to 100mm diameter
  • Termite resistant
  • Made from heavy duty extra weight bearing shaft
  • TB90 series suitable for Queensland climate conditions

Specifications

Specification Value
Sales Quantity Each
Carton Quantity 20 (supplied in cartons of 20)
Blade Size 75mm (W) X 100mm (H)
Shaft Height 165mm
Post Bolt Hole M12 / Base Bolt Hole: Ø13.5mm
Made From 4mm Steel + Heavy Duty Shaft (Ø25mm)
Finishing Hot-Dip Galvanised

Documents

Description

Tuff T-Blade Post Support

Key Features

  • Ideal for pergola, carport and verandah posts
  • Can be used for bolting to existing timber decking or concrete base
  • Can also be used for setting into concrete
  • Suitable for round timber posts up to 100mm diameter
  • Termite resistant
  • Made from heavy duty extra weight bearing shaft
  • TB90 series suitable for Queensland climate conditions

Specifications

Specification Value
Sales Quantity Each
Carton Quantity 20 (supplied in cartons of 20)
Blade Size 75mm (W) X 100mm (H)
Shaft Height 165mm
Post Bolt Hole M12 / Base Bolt Hole: Ø13.5mm
Made From 4mm Steel + Heavy Duty Shaft (Ø25mm)
Finishing Hot-Dip Galvanised

Documents
