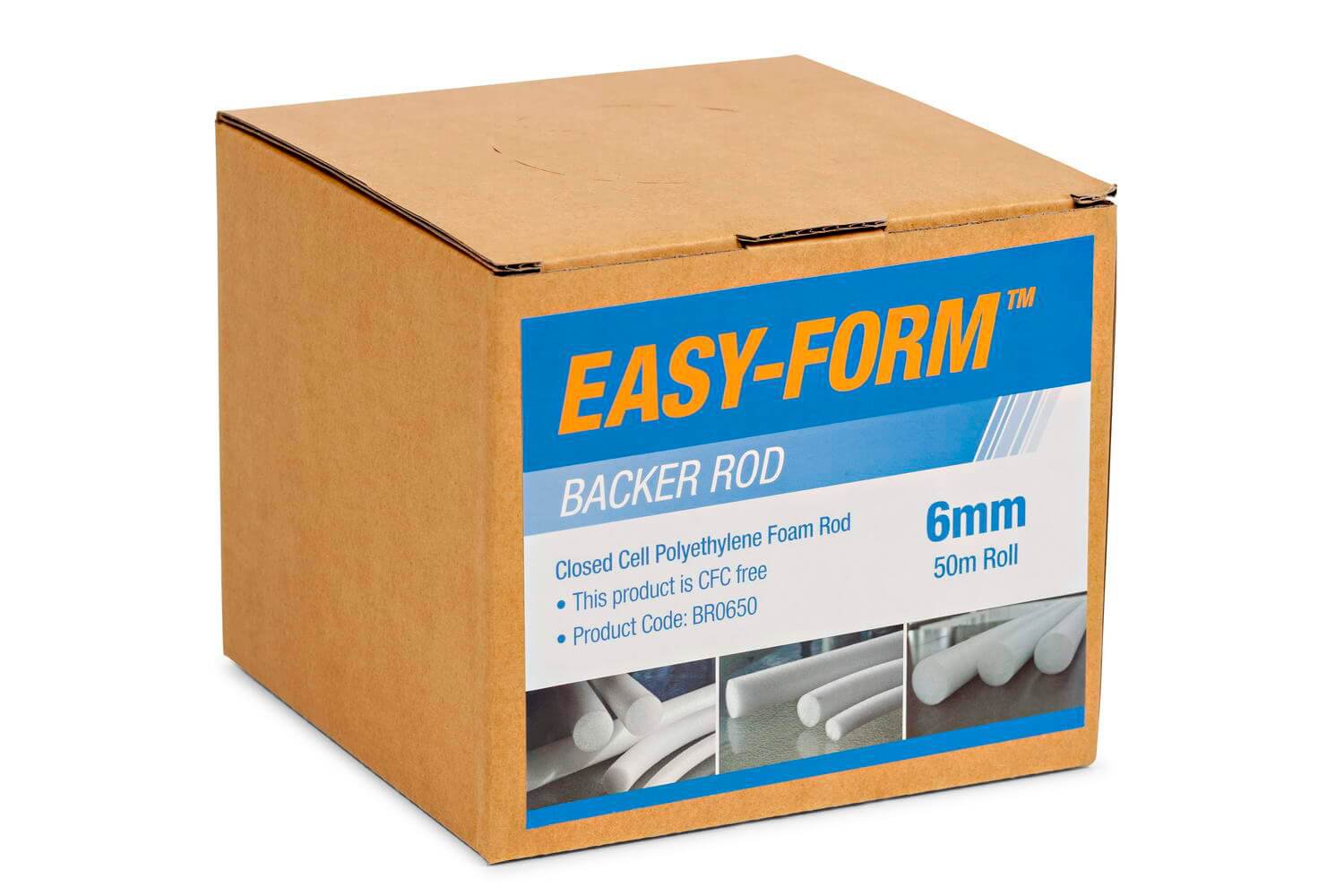

Vespol B-Rod Poly Closed Cell 6mm x 50m Trade 70345
$25.95
$25.95
$25.95
Easy-Form™ Closed Cell Backer Rod is a compressible, closed cell polyolefin foam tube with an outer skin. It is used as a backing for cold applied sealants in expansion/construction joints and building seal applications. The foam is free of heavy metals, plasticisers and CFCs. Easy-Form™ Closed Cell Backer Rod is available in white colour.
Technical Data
| Property | Typical Value | Test Method |
|---|---|---|
| Density | 33 kg/m³ (nominal) | Internal |
| Tensile Strength | 3.3 – 5.8 kg/cm² (longitudinal) | JIS K6767 |
| Elongation | 49 – 140% (longitudinal) | JIS K6767 |
| Tear Strength | 2.0 kg/cm | JIS K6767 |
| Compression Strength | 0.5 – 0.82 kg/cm² @ 25% deflection; 1.0 – 1.4 kg/cm² @ 50% deflection | Internal |
| Compression Set | 16 – 25% @ 50% deflection (radial) | Internal |
| Dimensional Change Heat | −1.50% (longitudinal); −0.90% (crosswise) 70°C, 22HR | Internal |
| Water Absorption | 0.4 mg/cm² | JIS K6767 |
| Operating Temperature Range | −80 / +80 °C | Internal |
Tolerances
Diameters and production tolerances of standard Easy-Form™ Closed Cell Backer Rod products:
| Nominal Diameter | Tolerance |
|---|---|
| 6mm | −0.5mm / +1.5mm |
| 10mm | −1.0mm / +1.5mm |
| 13mm | −1.0mm / +1.5mm |
| 15mm | −1.0mm / +2.0mm |
| 20mm | −1.5mm / +2.5mm |
| 25mm | −1.5mm / +2.5mm |
| 30mm | −2.0mm / +3.5mm |
| 40mm | −2.5mm / +4.5mm |
| 50mm | −3.5mm / +5.0mm |
Other diameters and/or tolerances subject to confirmation.
Documents
Description
Easy-Form™ Closed Cell Backer Rod is a compressible, closed cell polyolefin foam tube with an outer skin. It is used as a backing for cold applied sealants in expansion/construction joints and building seal applications. The foam is free of heavy metals, plasticisers and CFCs. Easy-Form™ Closed Cell Backer Rod is available in white colour.
Technical Data
| Property | Typical Value | Test Method |
|---|---|---|
| Density | 33 kg/m³ (nominal) | Internal |
| Tensile Strength | 3.3 – 5.8 kg/cm² (longitudinal) | JIS K6767 |
| Elongation | 49 – 140% (longitudinal) | JIS K6767 |
| Tear Strength | 2.0 kg/cm | JIS K6767 |
| Compression Strength | 0.5 – 0.82 kg/cm² @ 25% deflection; 1.0 – 1.4 kg/cm² @ 50% deflection | Internal |
| Compression Set | 16 – 25% @ 50% deflection (radial) | Internal |
| Dimensional Change Heat | −1.50% (longitudinal); −0.90% (crosswise) 70°C, 22HR | Internal |
| Water Absorption | 0.4 mg/cm² | JIS K6767 |
| Operating Temperature Range | −80 / +80 °C | Internal |
Tolerances
Diameters and production tolerances of standard Easy-Form™ Closed Cell Backer Rod products:
| Nominal Diameter | Tolerance |
|---|---|
| 6mm | −0.5mm / +1.5mm |
| 10mm | −1.0mm / +1.5mm |
| 13mm | −1.0mm / +1.5mm |
| 15mm | −1.0mm / +2.0mm |
| 20mm | −1.5mm / +2.5mm |
| 25mm | −1.5mm / +2.5mm |
| 30mm | −2.0mm / +3.5mm |
| 40mm | −2.5mm / +4.5mm |
| 50mm | −3.5mm / +5.0mm |
Other diameters and/or tolerances subject to confirmation.
