Door Closers & Stops

Suitable for outward opening doors up to 35kg

PowerEN power size 2Closing SpeedAdjustableHandingNon-handed, Suitable for left or right hand doors

Specifications

Documents

• Lockwood Surface Mounted Door Closers Catalogue.pdf

The Lockwood range of economy door closers is particularly quick and easy to install on most applications, ideally suitable where cost is a high priority.

Multi position mounting template enables adjustment on site to meet most conditions also low stock holding as one model will cover 3 power sizes. Suitable for doors up to 1100 mm in width.

All products include parallel arm bracket; multi strength mounting (one model covers size 2, 3 and 4) ; parallel arm size 2 and 3.

Power SelectionThe power of the door closer is altered by adjusting the position of the door closer body on the mounting template.

Specifications

Documents

• Lockwood Surface Mounted Door Closers Catalogue.pdf

A range of adjustable power door closer units suitable for architectural and commercial applications. Standard Features 2 - 4 Power Adjustable Hold Open Adjustable Backcheck Speed Controls Overload Protection Non-Handed Regular, Parallel & Over Door mounting Tested on fire door assemblies up to 4 hours in accordance with Australian Standard AS 1905.1-1997, Part 1: Fire-resistant doorsets

Specifications

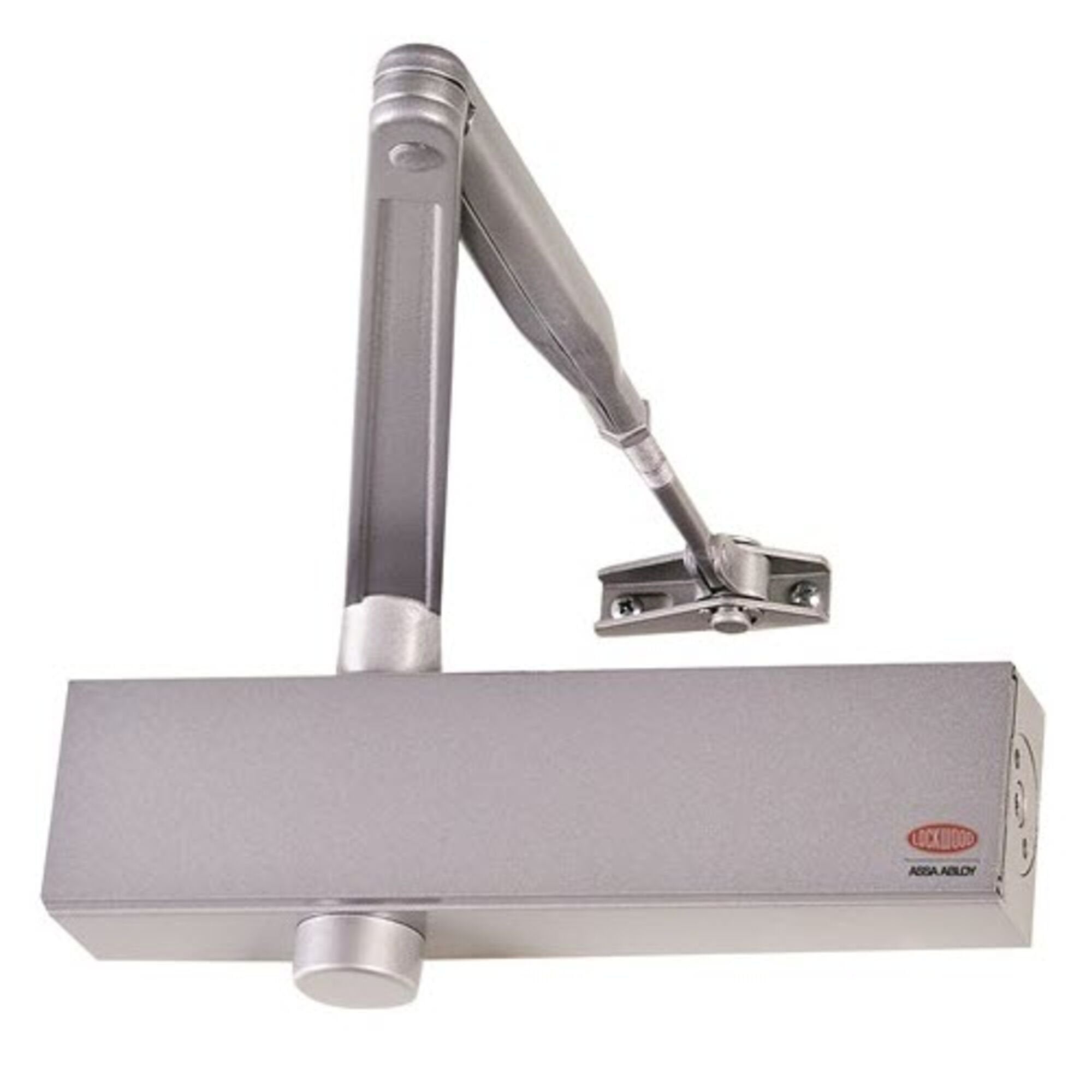

Lockwood 7724DA Series Premium Range Surface Mounted Door Closer

Rack and Pinion adjustable power door closer suitable for architectural and commercial applications.

Features

• EN adjustable power 2 to 4
• Adjustable back check (BC)
• Non hold-open
• Non-handed
• Suitable for left or right hand doors
• Fully formed metal cover
• Extruded aluminium body manufactured from high-performance silicon alloy
• Rack and pinion mechanism design
• Regular, parallel and over-door mounting
• Two pressure relief valves are a standard feature to protect against abuse
• Adjustable delayed action
• Supplied in display clam pack

Specifications
