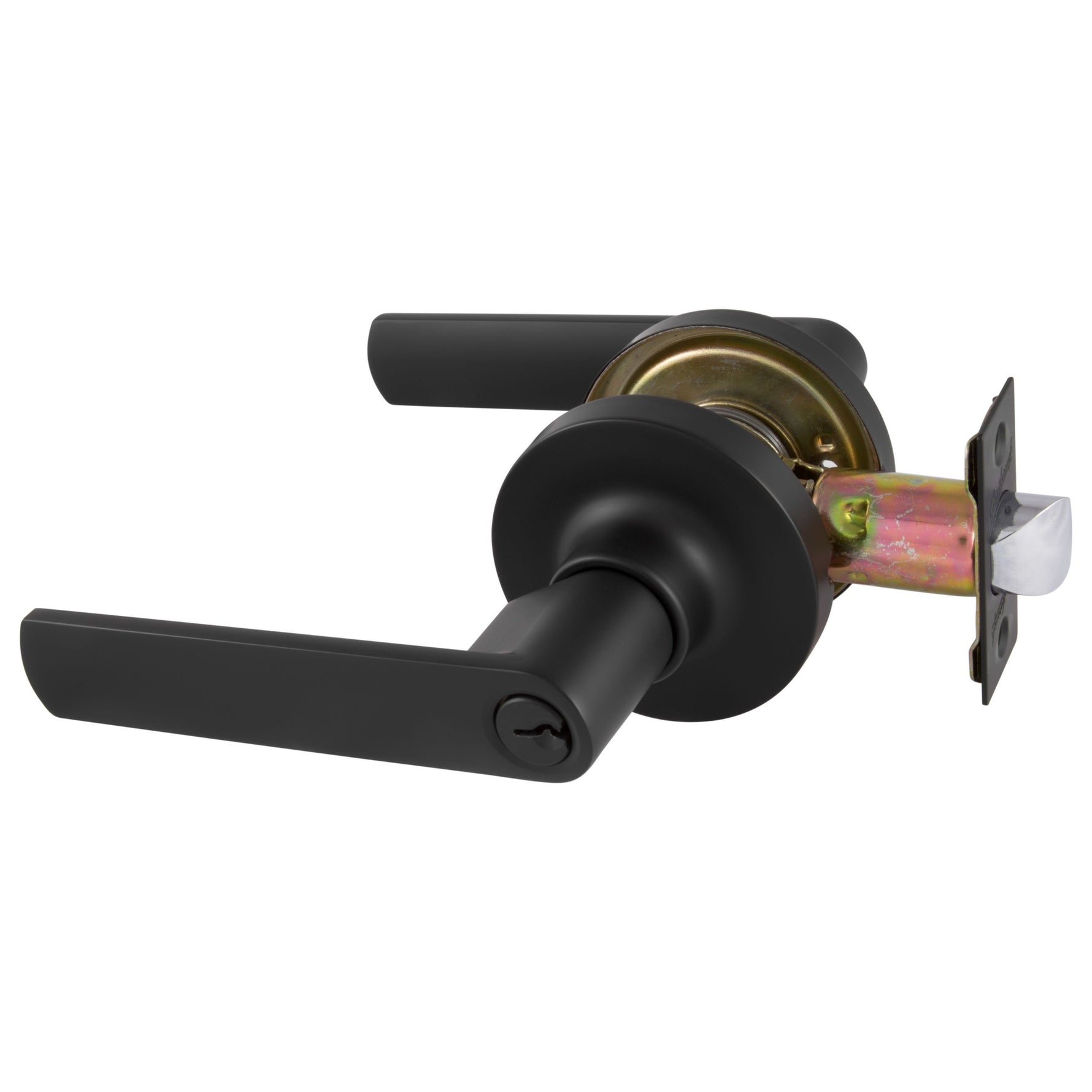

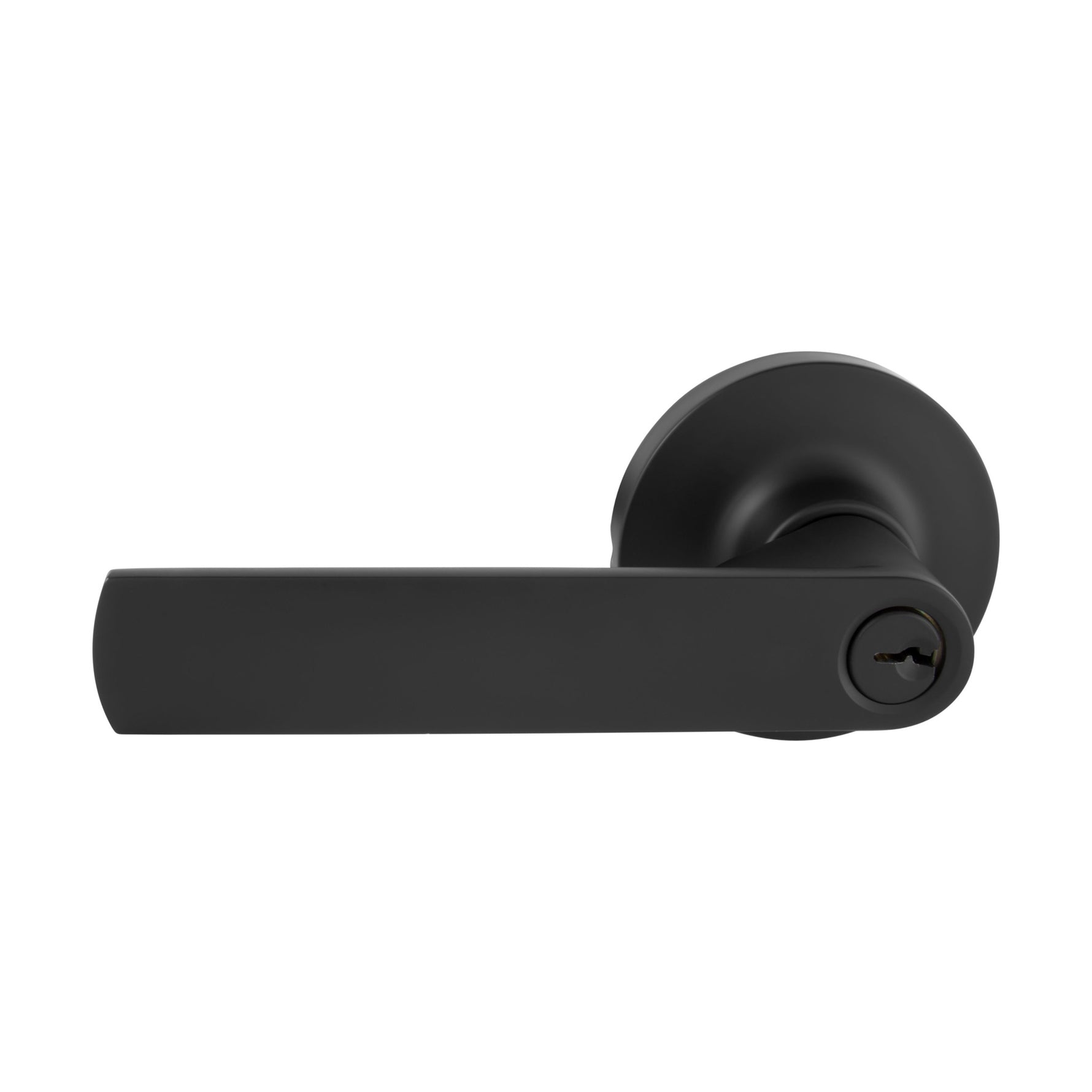

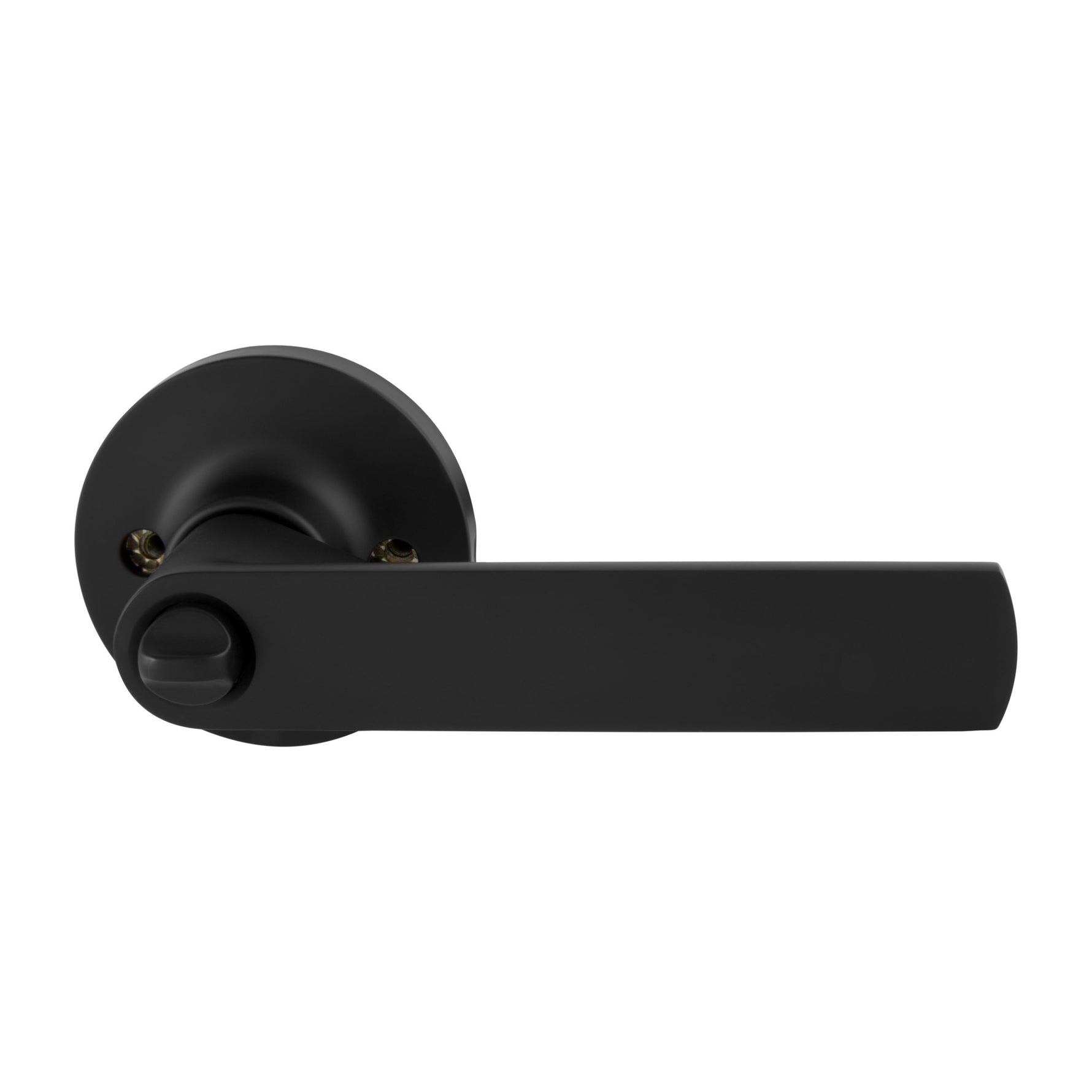

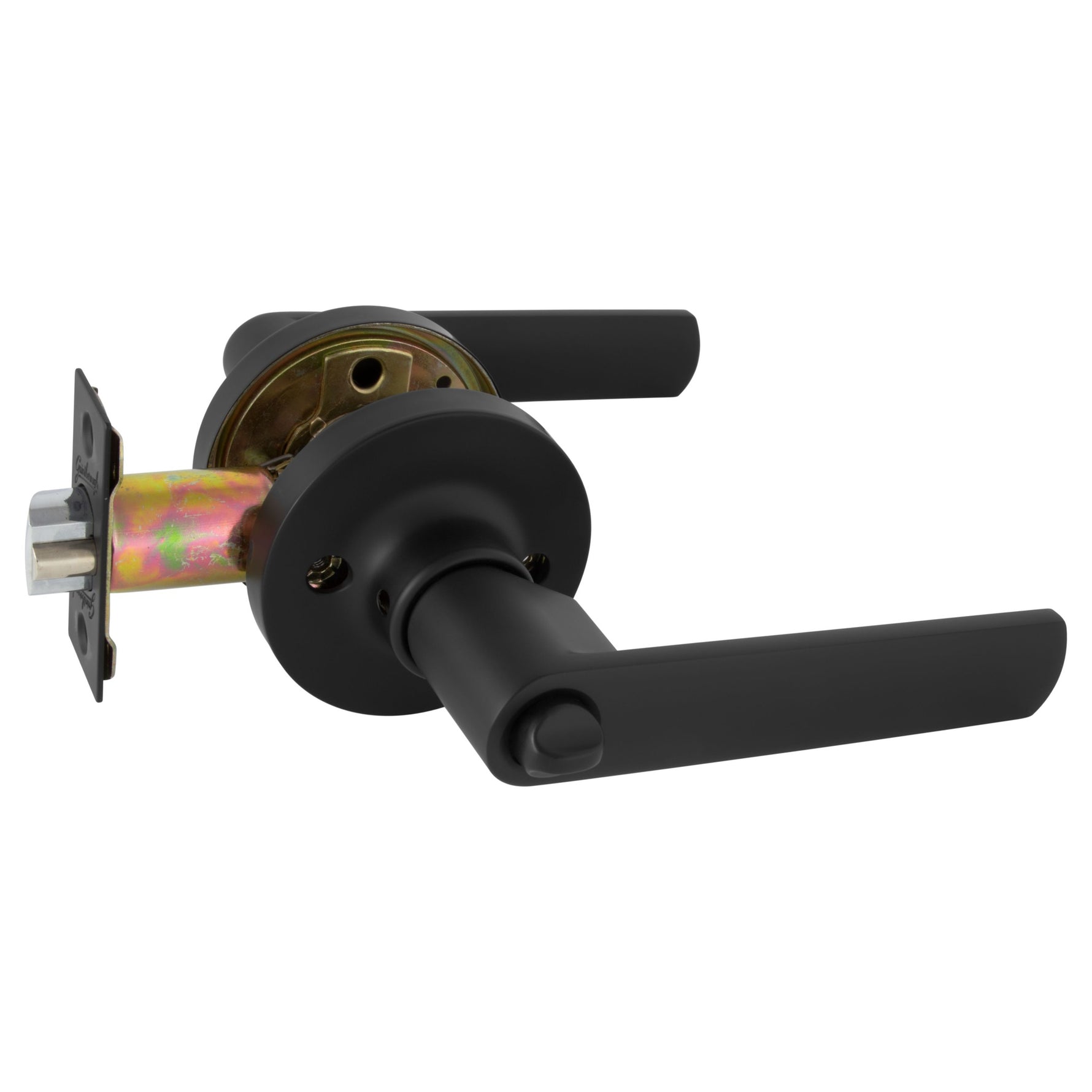

Gainsborough Matte Black Tradepro Round Rose Bela Entrance Key-in-Lever Set
$47.60
The modern design of the Bela lever is the perfect choice of entry door hardware for a modern Australian home. This stylish yet incredibly functional design is also available in privacy, passage and dummy functions. The lock set can be keyed with the Gainsborough GR9 Keying System for added convenience. To install, follow the step-by-step instructions provided.
Features
- Contemporary yet functional lever lock set on a round rose
- Key entry with GR9 profile for added security, can be project keyed on request
- Suitable for locking doors
- Easy to install with instructions provided
Specifications
| Finish | Matte Black |
|---|---|
| Style Name | Bela |
| Application | External |
| Backset (mm) | 60-70 |
| Bore Hole (mm) | 54 |
| Edge Bore (mm) | 25 |
| Lever Length (mm) | 123 |
| Locking | Locking |
| Latch included | Yes |
| Door Thickness | 35-45mm |
| Dimensions | |
| Assembled Latch Depth (mm) | 95 |
| Exterior Assembled Width (mm) | 145 |
| Exterior Assembled Height (mm) | 66 |
| Exterior Assembled Depth (mm) | 63 |
| Interior Assembled Width (mm) | 145 |
| Interior Assembled Height (mm) | 66 |
| Interior Assembled Depth (mm) | 63 |
| Individual Height (mm) | 78 |
| Individual Width (mm) | 139 |
| Individual Depth (mm) | 172 |
| Assembled Weight (kg) | 0.79 |
| Product Weight (kg) | 0.89 |
About the TradePro Range
TradePro is an affordable door hardware range developed for residential homes, delivering security, quality and performance across entrance locksets, internal levers & knobs, and deadbolts. TradePro can be builder keyed and used with the Gainsborough GR9 Keying System.
