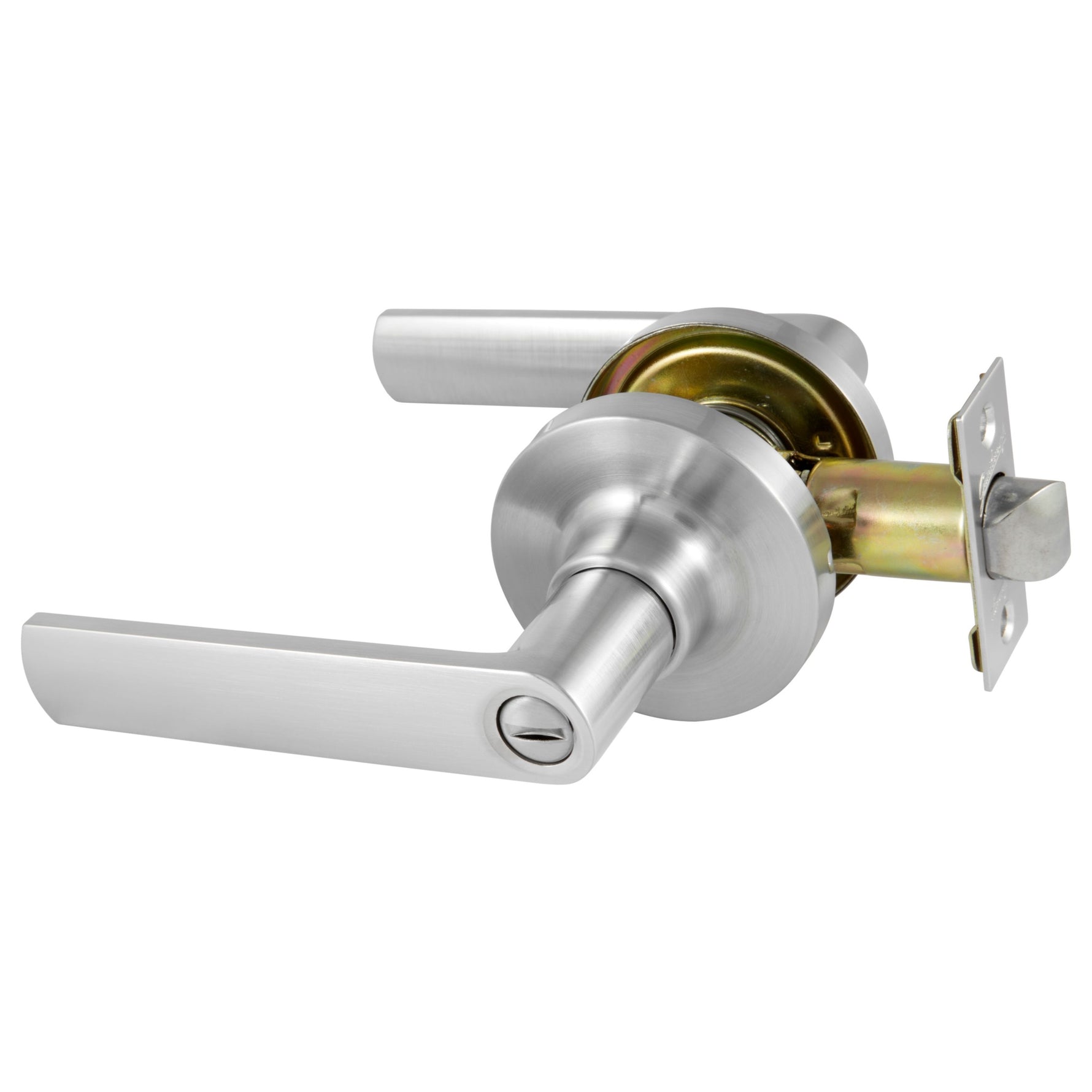

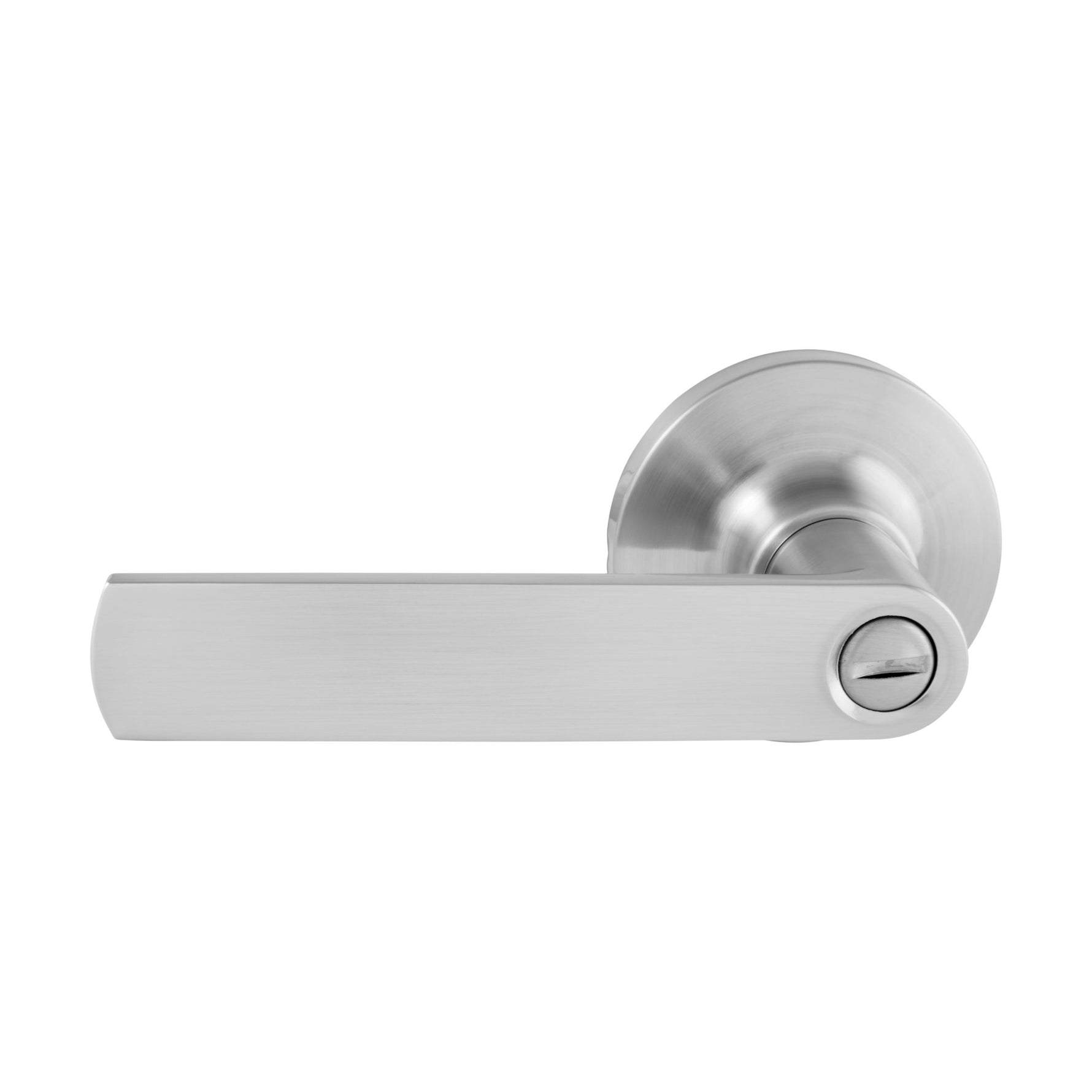

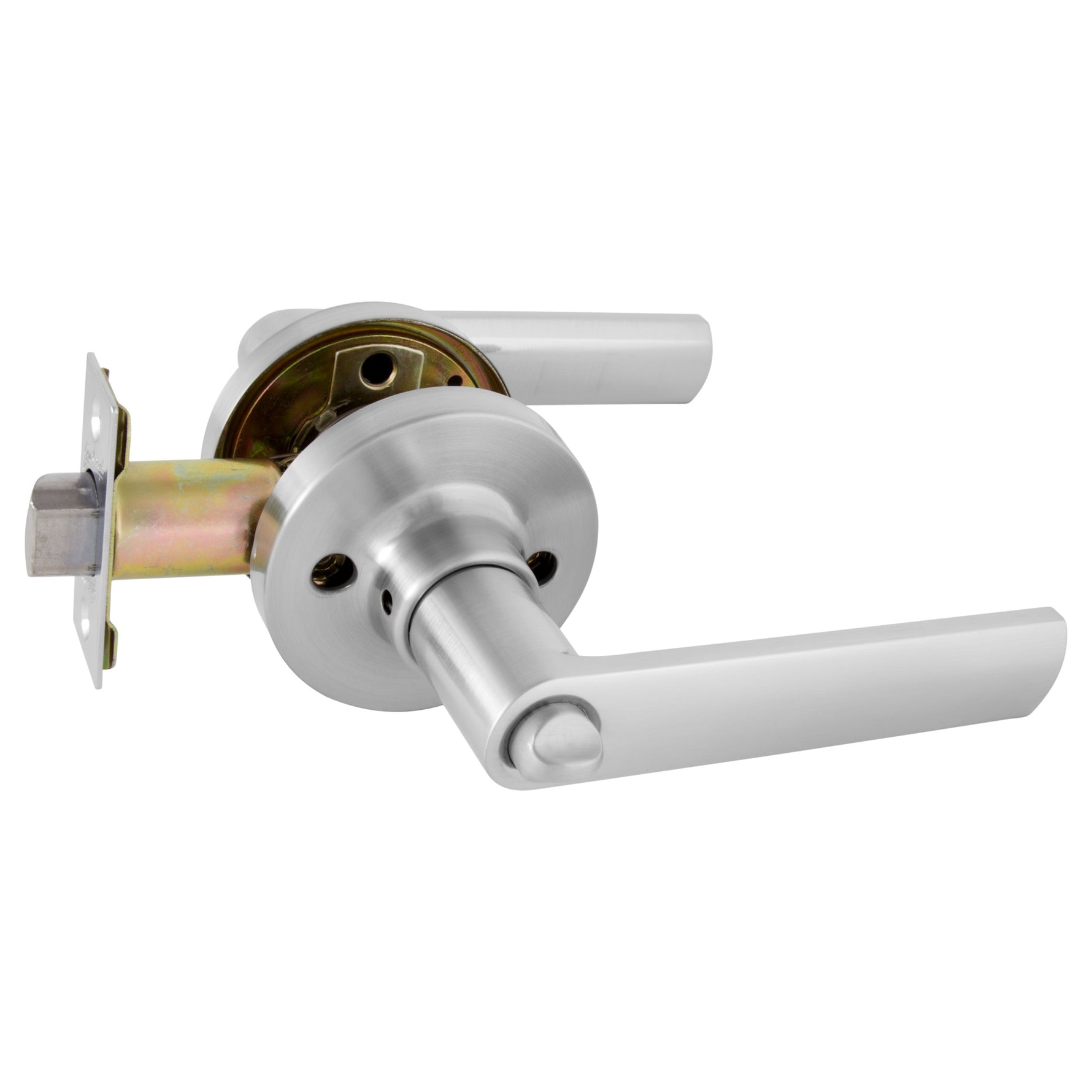

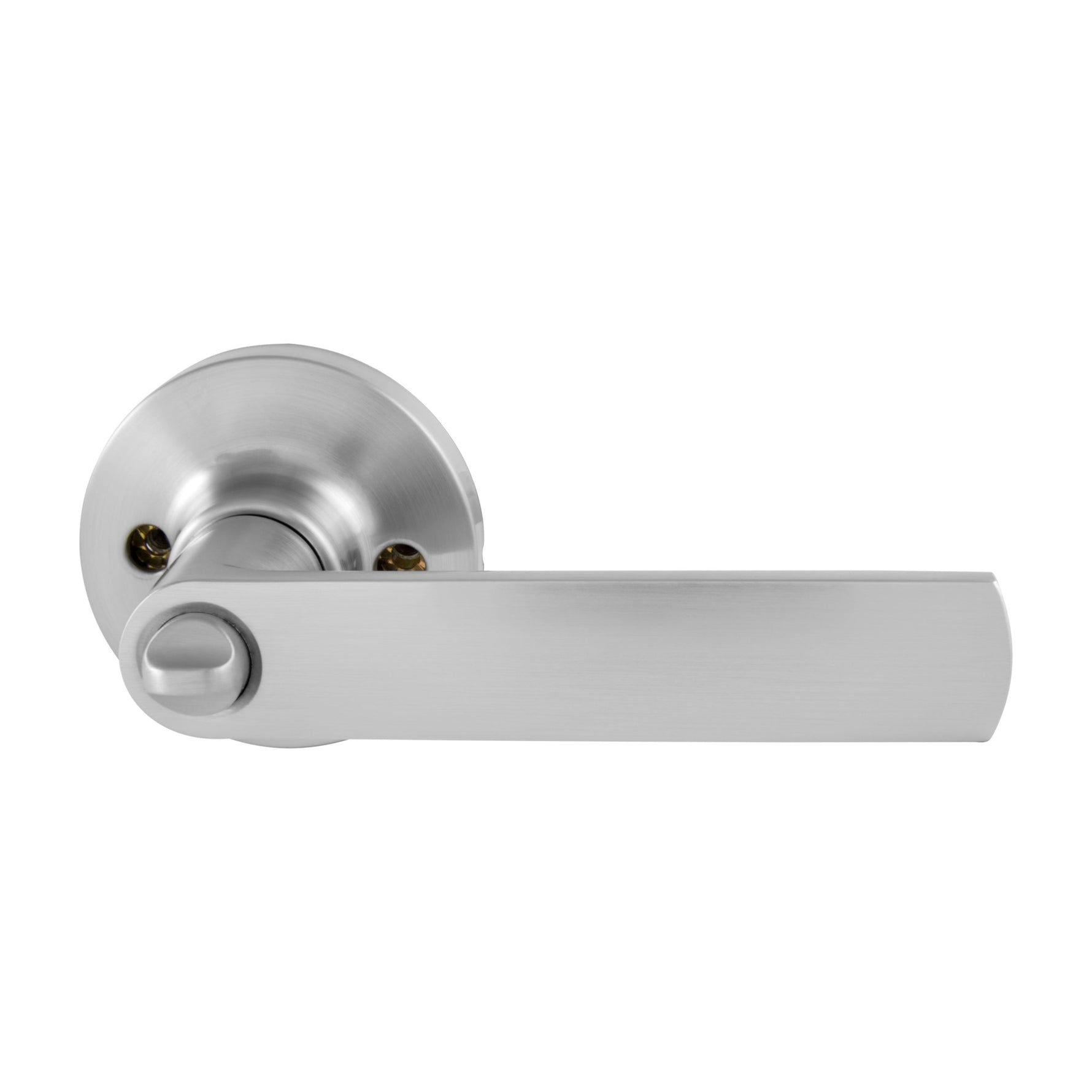

Gainsborough Satin Chrome Tradepro Round Rose Bela Privacy Lever Set
$47.60
The contemporary form of the Bela privacy lever will create a modern, minimalist look for your internal doors. Suitable for bedroom and bathroom doors, the lever features an internal snib and an external emergency release and comes in three on-trend finishes. To install, follow the step-by-step instructions.
Features
- Contemporary design with a flat profile and subtle curves
- Privacy lever for locking internal doors on a 65mm round rose
- Internal locking snib and external emergency release
- Dual sprung latch included
- Easy to install with instructions provided
Specifications
| Finish | Satin Chrome |
|---|---|
| Style Name | Bela |
| Application | Internal |
| Backset (mm) | 60-70 |
| Bore Hole (mm) | 54 |
| Edge Bore (mm) | 25 |
| Lever Length (mm) | 121 |
| Locking | Locking |
| Latch included | Yes |
| Door Thickness | 35-45mm |
| Dimensions | |
| Assembled Latch Depth (mm) | 95 |
| Exterior Assembled Width (mm) | 145 |
| Exterior Assembled Height (mm) | 66 |
| Exterior Assembled Depth (mm) | 63 |
| Interior Assembled Width (mm) | 145 |
| Interior Assembled Height (mm) | 66 |
| Interior Assembled Depth (mm) | 63 |
| Individual Height (mm) | 78 |
| Individual Width (mm) | 139 |
| Individual Depth (mm) | 172 |
| Escutcheon Width (mm) | 65 |
| Assembled Weight (kg) | 0.7 |
| Product Weight (kg) | 0.8 |
About the TradePro Range
TradePro is an affordable door hardware range developed for residential homes, delivering security, quality and performance across entrance locksets, internal levers & knobs, and deadbolts. TradePro can be builder keyed and used with the Gainsborough GR9 Keying System.
Downloads
Description
The contemporary form of the Bela privacy lever will create a modern, minimalist look for your internal doors. Suitable for bedroom and bathroom doors, the lever features an internal snib and an external emergency release and comes in three on-trend finishes. To install, follow the step-by-step instructions.
Features
- Contemporary design with a flat profile and subtle curves
- Privacy lever for locking internal doors on a 65mm round rose
- Internal locking snib and external emergency release
- Dual sprung latch included
- Easy to install with instructions provided
Specifications
| Finish | Satin Chrome |
|---|---|
| Style Name | Bela |
| Application | Internal |
| Backset (mm) | 60-70 |
| Bore Hole (mm) | 54 |
| Edge Bore (mm) | 25 |
| Lever Length (mm) | 121 |
| Locking | Locking |
| Latch included | Yes |
| Door Thickness | 35-45mm |
| Dimensions | |
| Assembled Latch Depth (mm) | 95 |
| Exterior Assembled Width (mm) | 145 |
| Exterior Assembled Height (mm) | 66 |
| Exterior Assembled Depth (mm) | 63 |
| Interior Assembled Width (mm) | 145 |
| Interior Assembled Height (mm) | 66 |
| Interior Assembled Depth (mm) | 63 |
| Individual Height (mm) | 78 |
| Individual Width (mm) | 139 |
| Individual Depth (mm) | 172 |
| Escutcheon Width (mm) | 65 |
| Assembled Weight (kg) | 0.7 |
| Product Weight (kg) | 0.8 |
About the TradePro Range
TradePro is an affordable door hardware range developed for residential homes, delivering security, quality and performance across entrance locksets, internal levers & knobs, and deadbolts. TradePro can be builder keyed and used with the Gainsborough GR9 Keying System.
Downloads
Height
Length
Width
Weight
