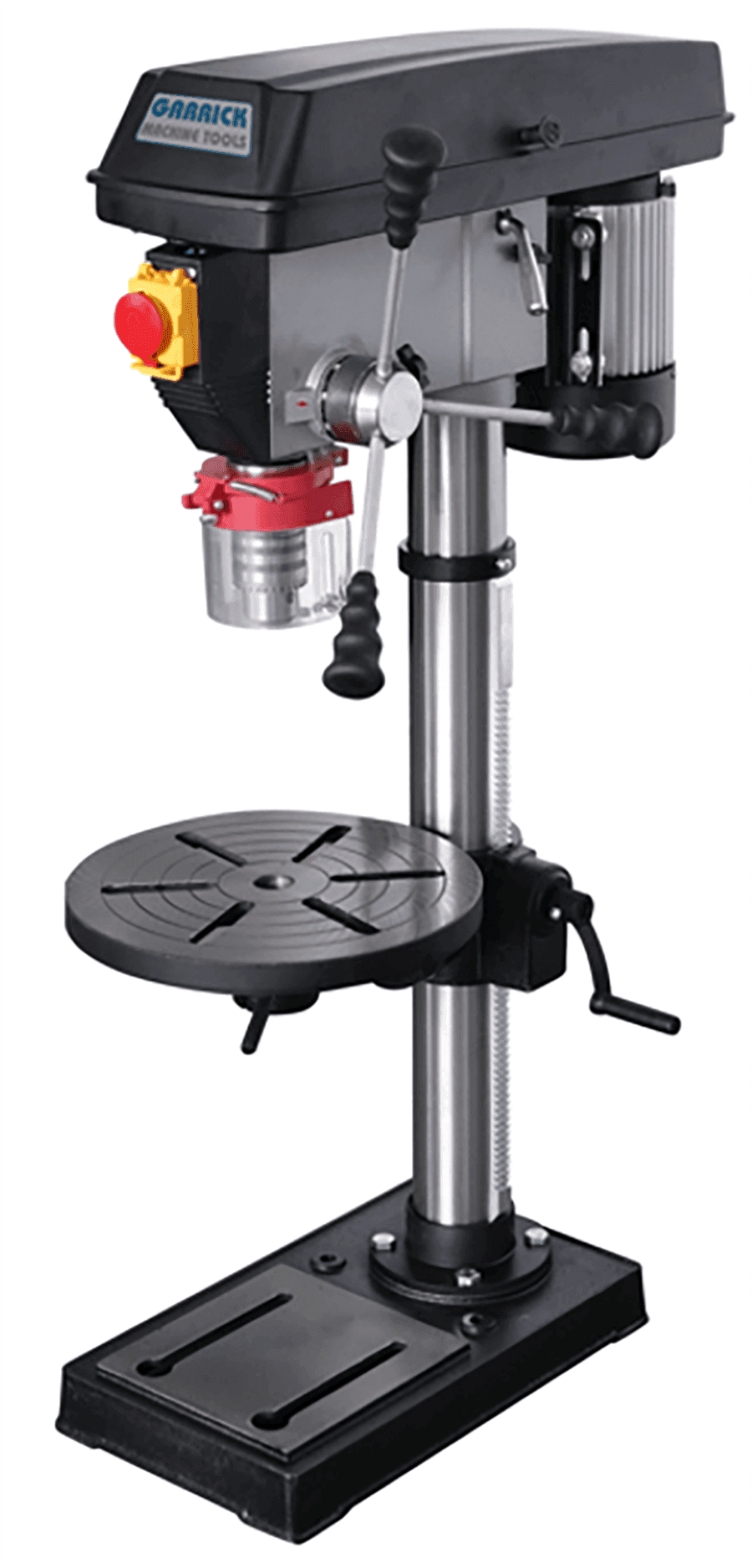

Garrick Workshop Bench Drill Press 16mm capacity DBW16
See more by Workshop

Garrick Workshop Bench Drill Press 16mm capacity DBW16

SKU: DBW16
: 9343662001901

$556.55

In stock
Garrick Workshop Bench Drill Press 16mm capacity DBW16

$556.55

$556.55

Garrick Workshop Drill Press range offers 3 sizes to cover most workshop requrements. We have introduced a 16mm capacity Bench and Pedestal Drill Press as well as a 25mm Pedestal Drill Press.

The Workshop range is perfectly suited for machine shops, fabrication shops and home tool shed use.Each Garrick Drill Press comes standard with:

Micro switch, Drill Chuck, Chuck Guard, E stop switch, cast iron table and base.

Specifications

Model Type Motor Max Drilling Capacity Chuck Size Spindle Taper No. Speeds Speed Range (rpm) Weight Height
DBW16 Bench 550W 16mm 3-16mm MT2 16 180-2770/220-3320 36kg 980mm
DPW16 Pedestal 550W 16mm 3-16mm MT2 16 180-2770/220-3320 56kg 1600mm
DPW25 Pedestal 750W 25mm 3-16mm MT3 12 280-2380/340-2860 60kg 1600mm
270 mm
800 mm
540 mm
50 kg
Description

Garrick Workshop Drill Press range offers 3 sizes to cover most workshop requrements. We have introduced a 16mm capacity Bench and Pedestal Drill Press as well as a 25mm Pedestal Drill Press.

The Workshop range is perfectly suited for machine shops, fabrication shops and home tool shed use.Each Garrick Drill Press comes standard with:

Micro switch, Drill Chuck, Chuck Guard, E stop switch, cast iron table and base.

Specifications

Model Type Motor Max Drilling Capacity Chuck Size Spindle Taper No. Speeds Speed Range (rpm) Weight Height
DBW16 Bench 550W 16mm 3-16mm MT2 16 180-2770/220-3320 36kg 980mm
DPW16 Pedestal 550W 16mm 3-16mm MT2 16 180-2770/220-3320 56kg 1600mm
DPW25 Pedestal 750W 25mm 3-16mm MT3 12 280-2380/340-2860 60kg 1600mm
Height
270 mm
Length
800 mm
Width
540 mm
Weight
50 kg
