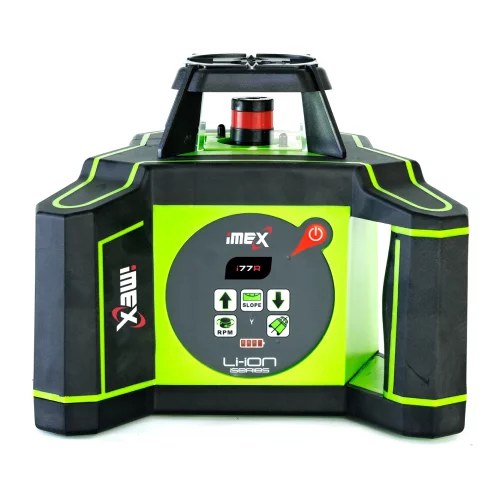

Imex i77R Red Beam Self-Levelling Rotating Laser LRX10 Receiver 012-I77R

SKU: 012-I77R

$1,639.00

In stock
Imex i77R Red Beam Self-Levelling Rotating Laser LRX10 Receiver 012-I77R

$1,639.00

$1,639.00

The iMEX rotating laser level range has been specified by our construction trained team, designed by industry professionals and proven in all conditions to perform a vast range of levelling tasks in an efficient and accurate manner.

With self-levelling, grade slope function, horizontal scan mode, remote controller and re-chargeable lithium-ion batteries the iMEX range represents excellent value with versatile capabilities for a full range of construction functions. Combined with this is the highly visible heavy duty and robust, water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use.

This listing is Imex i77R Red Beam Rotating Laser - LRX10 Receiver.

Key Features

  • A sensor based self-levelling system utilising a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy
  • The simplified design elements and robust componentry also mean reduced calibration and service requirements
  • All backed by iMEX warranty, service and innovative approach

Specifications

Self Levelling Range +/-5°
Working Distance 600m Diameter
Accuracy 1.5mm @ 30m
Rotation Speeds 0, 60, 120, 300, 600 rpm
Waterproof/Shockproof IP66
Light Source Red laser diode, 635nm Class II
Power 9 Ah 3.7v lithium-ion

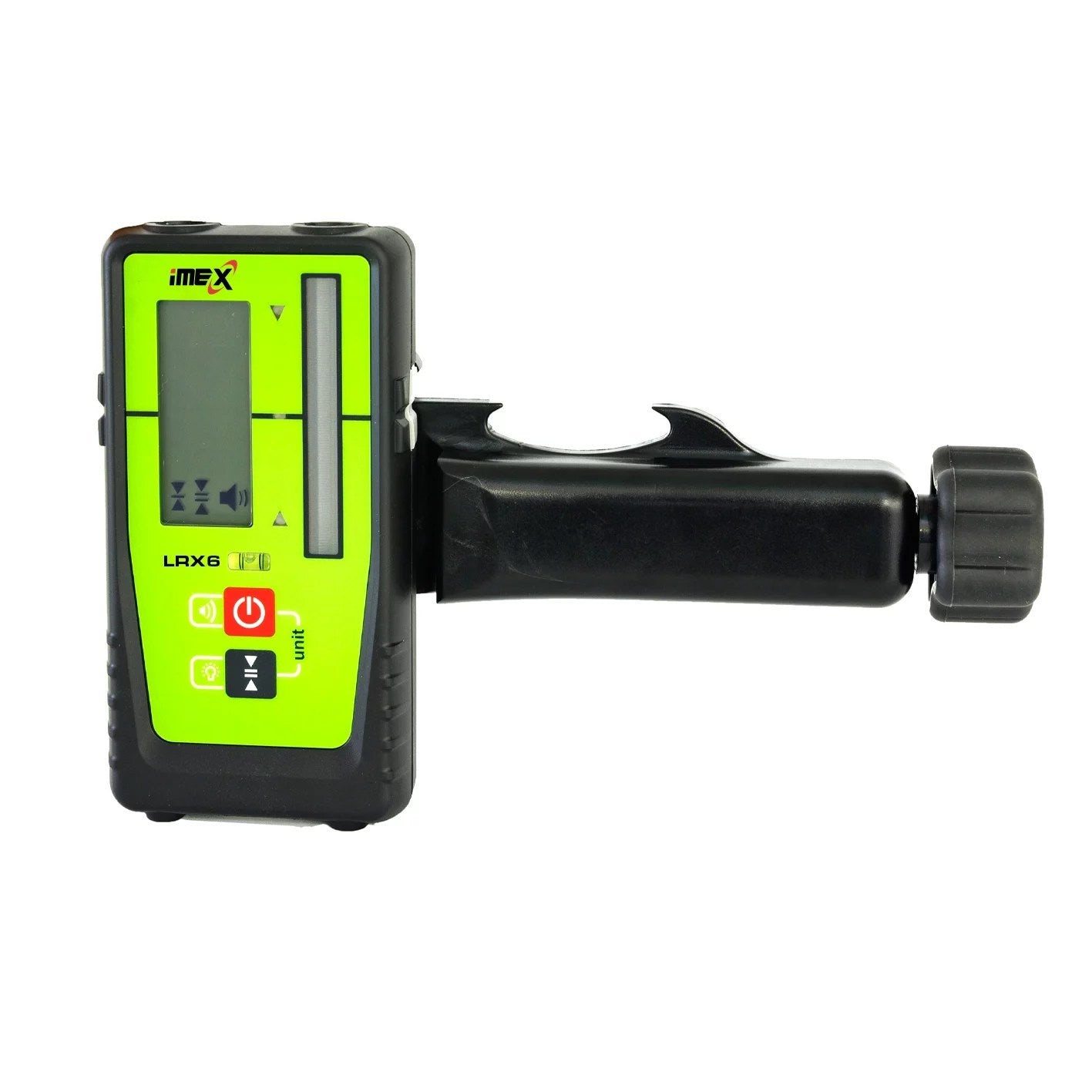

Detector LRX6 Double Sided
Working time – continuous use 40 hours approx.
Charging Time 4 hours in unit or removed from unit
USBC Charging Yes; including 12v car charger
High Wind Sensitivity Re-set Yes
Remote Control Yes, iCR7
Weight – Unit Only 2.48kg

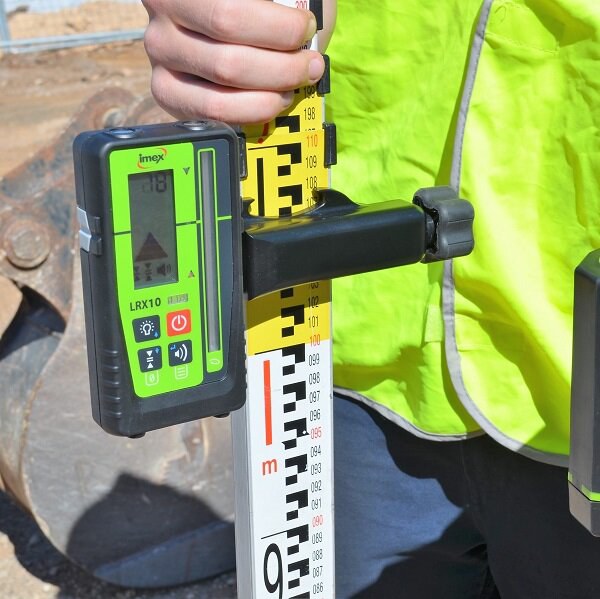

Detector – German Made LRX10 Double Sided
Detector – Pick Up 90mm -30mm to +60mm
Detector Reading Ultrafine – 0.5mm | Fine – 1.0mm | Medium – 2.0mm | Course – 5.0mm | Ultra Course – 10.0mm
Detector Power 1-AA > 50 hrs run

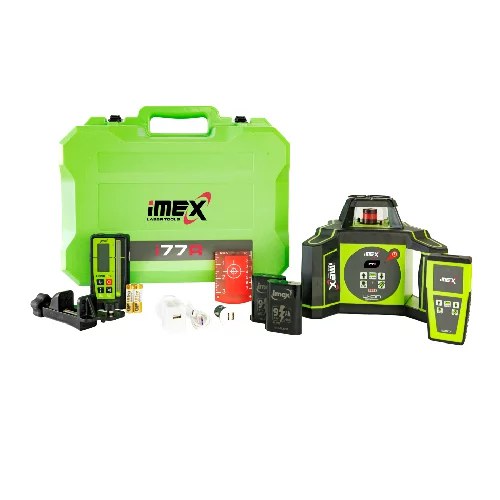

What's Included

  • LRX10 detector and holder
  • Instructions and carry case

Documents

Description

The iMEX rotating laser level range has been specified by our construction trained team, designed by industry professionals and proven in all conditions to perform a vast range of levelling tasks in an efficient and accurate manner.

With self-levelling, grade slope function, horizontal scan mode, remote controller and re-chargeable lithium-ion batteries the iMEX range represents excellent value with versatile capabilities for a full range of construction functions. Combined with this is the highly visible heavy duty and robust, water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use.

This listing is Imex i77R Red Beam Rotating Laser - LRX10 Receiver.

Key Features

  • A sensor based self-levelling system utilising a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy
  • The simplified design elements and robust componentry also mean reduced calibration and service requirements
  • All backed by iMEX warranty, service and innovative approach

Specifications

Self Levelling Range +/-5°
Working Distance 600m Diameter
Accuracy 1.5mm @ 30m
Rotation Speeds 0, 60, 120, 300, 600 rpm
Waterproof/Shockproof IP66
Light Source Red laser diode, 635nm Class II
Power 9 Ah 3.7v lithium-ion
Detector LRX6 Double Sided
Working time – continuous use 40 hours approx.
Charging Time 4 hours in unit or removed from unit
USBC Charging Yes; including 12v car charger
High Wind Sensitivity Re-set Yes
Remote Control Yes, iCR7
Weight – Unit Only 2.48kg
Detector – German Made LRX10 Double Sided
Detector – Pick Up 90mm -30mm to +60mm
Detector Reading Ultrafine – 0.5mm | Fine – 1.0mm | Medium – 2.0mm | Course – 5.0mm | Ultra Course – 10.0mm
Detector Power 1-AA > 50 hrs run

What's Included

  • LRX10 detector and holder
  • Instructions and carry case

Documents
