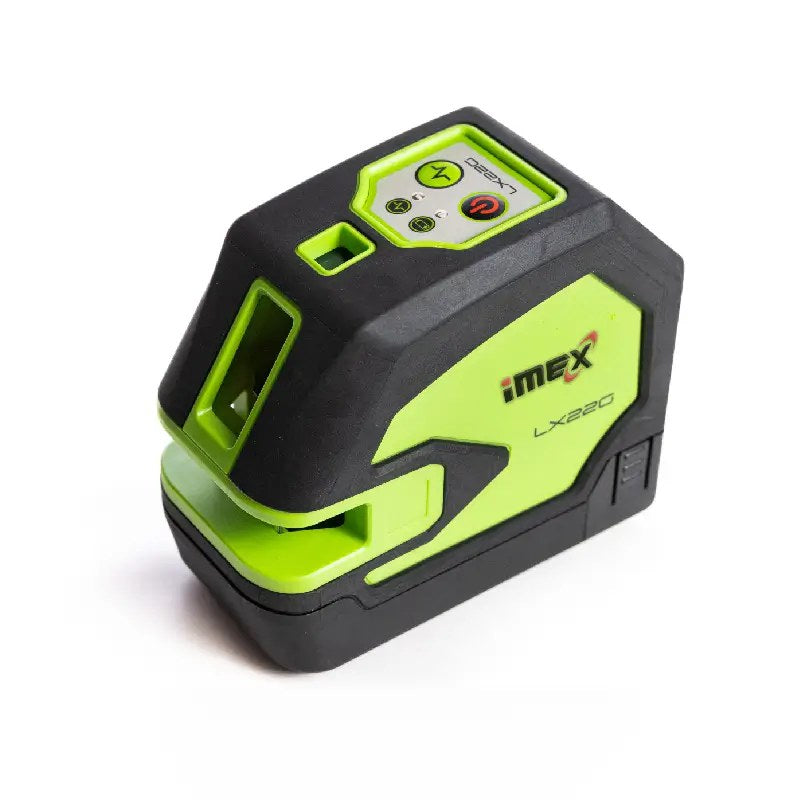

The iMEX LX22G cross line laser level features ultra-bright green beam technology with one horizontal and one vertical line, plumb up and plumb down.
Series II features an all-new sturdy magnetic bracket enabling quick release of the laser without screws to hold it in place. The new 5.2Ah lithium battery pack gives you plenty of run time to keep up with your busy day on site, featuring USB-C fast charge.
This listing is Imex LX22G Green Beam.
Key Features
- Locally calibrated and tough to withstand the knocks and bumps on site, the LX22G Series II has rubberised housing for a comfortable, non-slip grip
- NEW quick release magnetic bracket – no screws to hold laser in place NEW 5.2Ah lithium battery pack – swaps to all LX series II models
Specifications
| Imex LX22G Green Beam | Specifications |
| Self levelling range | 4 ° ± 1 |
| Out of level indication | laser blinks on/off |
| Laser lines / dots | 1 vertical, 1 horizontal line , plumb up/down dots |
| Laser accuracy | ± 3mm @10m |
| Laser class | Class 2 |
| Laser wavelength | 635 ± 10 nm |
| Laser distance | 10m light-dependent |
| Laser distance with optional detector | 50m |
| Power source | 5.2 Ah lithium ion |
| Charging type | USB-C |
| Run time- both beams | 10 hrs |
| Control switch | 1 button, pendulum lock |
| IP Rating | IP54 |
| Operating temperature | -10 ° to +50 ° C |
| Storage temperature | -20 ° to +70 ° C |

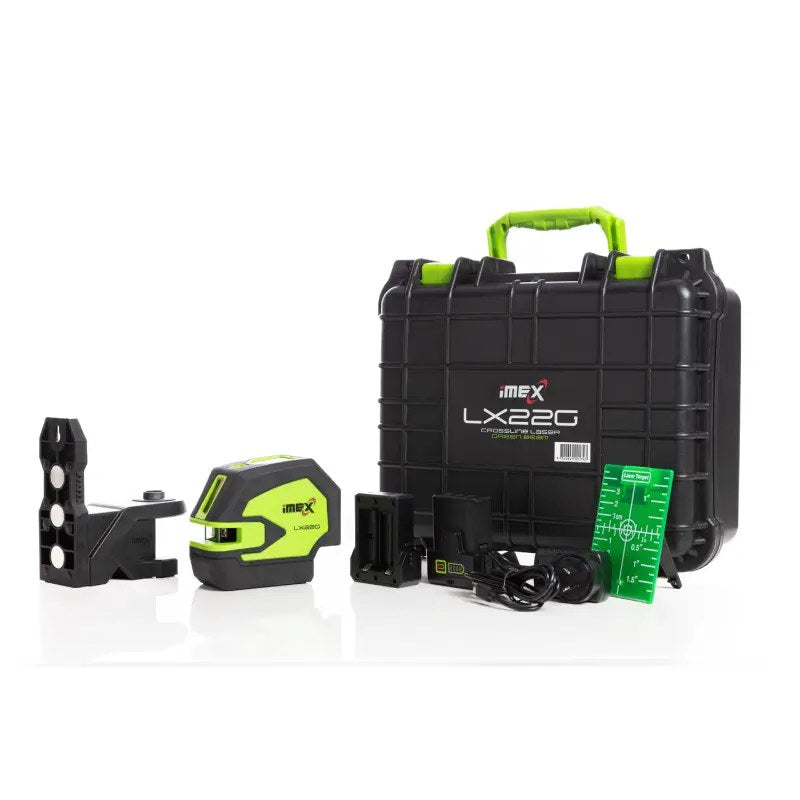

| Kit Inclusions | lithium battery,alkaline batteries, magnetic bracket operating manual, plastic carry case |
What's Included
- Instructions and carry case
Documents
