Lockwood Lever V2 Satin Brass PVD Privacy Set With Latch VIV2/V2SBPVD
$120.95
$120.95
$120.95

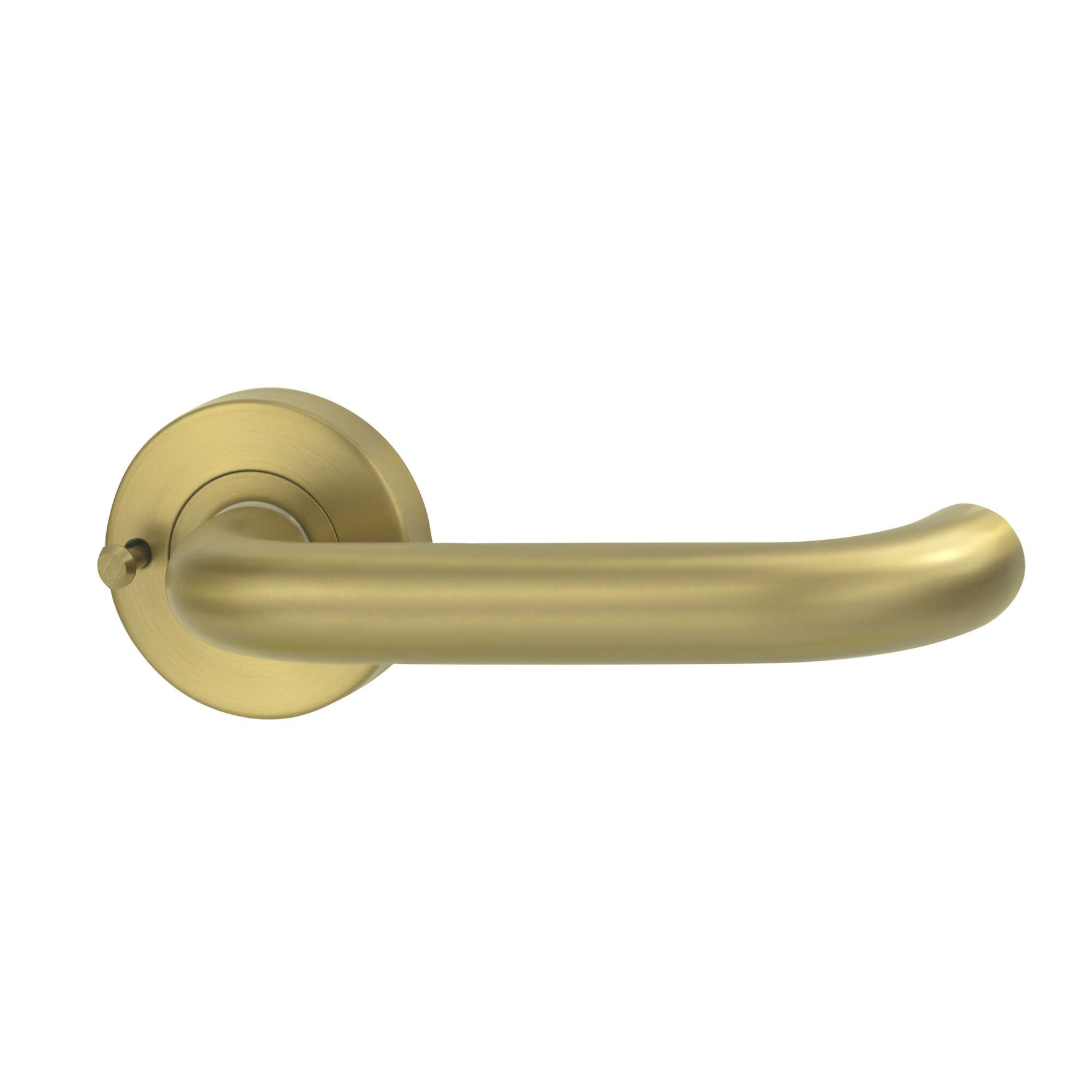

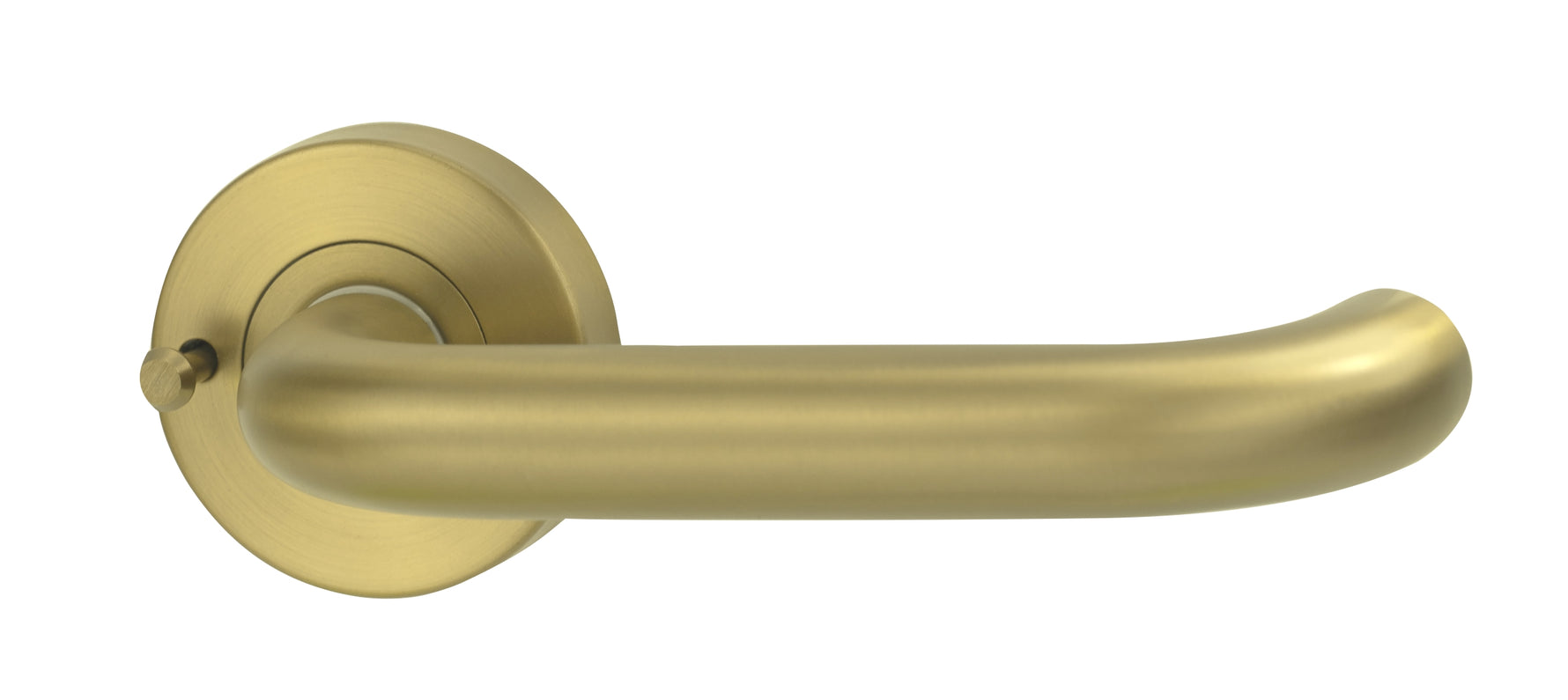

The Lockwood Vivid® Collection Lever 2 Privacy Leverset in PVD Satin Brass is a privacy-locking internal door set for bathrooms, ensuites and bedrooms in residential and multi-res applications, backed by a 25-Year Mechanical Warranty.
The Lever 2 handle (140mm length, 60mm projection) is a privacy-locking set - the internal thumb turn locks the latch bolt, and an external coin-slot emergency release allows access from outside without a key. Supplied with a 60mm privacy latch with internal privacy pin and external emergency release. The rose trim features fully concealed fixings beneath a removable trim plate. Available in PVD Satin Brass, PVD Satin Gun Metal and PVD Satin Bronze - this product is supplied in PVD Satin Brass via Physical Vapour Deposition (PVD) treatment over 304 stainless steel.
Features
- Finish: PVD Satin Brass, applied via Physical Vapour Deposition (PVD) over 304 stainless steel - four times the hardness of chrome plating with superior scratch, wear and corrosion resistance
- Lever 2 dimensions: 140mm length, 60mm projection
- Lever 2 complies with AS1428.1-2021 for accessible and mobility design
- Rose: Round rose with fully concealed fixings beneath removable trim
- Latch: 60mm privacy latch with internal privacy pin and external coin-slot emergency release
- Tested to D7 durability rating under AS4145.2-2008, equivalent to 300,000 operating cycles
- Rated C6 corrosion resistance under AS4145.2-2008, tested to 168 hours neutral salt spray
- Fire rated up to 2 hours on compliant door assemblies when paired with Vivid Collection escutcheons and a Lockwood Synergy mortice lock, tested to AS1905.1-2015
- Pack includes: 2 x lever, 2 x rose trim, privacy latch, face plate, privacy pin, pointed tool, 2 x spindle, 2 x springs, 2 x through-fix screws, 2 x hex inserts, striker plate with dust box, 4 x timber mounting screws
- 25-Year Mechanical Warranty
Specifications
| Model No | VIV2/V2SBPVD |
|---|---|
| EAN | 9340116133041 |
| Access and Mobility | Yes |
| Handle Type | Lever 2 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
| Rose Diameter | 55mm |
| Packing Type | Box |
| Backset | 60mm |
| Door Type | Hinged |
| Door Material | Timber |
| Tested to Standards | Tested to Australian Standard |
| Residential | Yes |
| Door Thickness Range | 32-45mm |
| Approved Standards Rating Level | Corrosion Security C6, Durability D7 |
| Case material for exterior | Stainless Steel |
| Case material for interior | Stainless Steel |
| Function | Privacy |
Documents
Description
The Lockwood Vivid® Collection Lever 2 Privacy Leverset in PVD Satin Brass is a privacy-locking internal door set for bathrooms, ensuites and bedrooms in residential and multi-res applications, backed by a 25-Year Mechanical Warranty.
The Lever 2 handle (140mm length, 60mm projection) is a privacy-locking set - the internal thumb turn locks the latch bolt, and an external coin-slot emergency release allows access from outside without a key. Supplied with a 60mm privacy latch with internal privacy pin and external emergency release. The rose trim features fully concealed fixings beneath a removable trim plate. Available in PVD Satin Brass, PVD Satin Gun Metal and PVD Satin Bronze - this product is supplied in PVD Satin Brass via Physical Vapour Deposition (PVD) treatment over 304 stainless steel.
Features
- Finish: PVD Satin Brass, applied via Physical Vapour Deposition (PVD) over 304 stainless steel - four times the hardness of chrome plating with superior scratch, wear and corrosion resistance
- Lever 2 dimensions: 140mm length, 60mm projection
- Lever 2 complies with AS1428.1-2021 for accessible and mobility design
- Rose: Round rose with fully concealed fixings beneath removable trim
- Latch: 60mm privacy latch with internal privacy pin and external coin-slot emergency release
- Tested to D7 durability rating under AS4145.2-2008, equivalent to 300,000 operating cycles
- Rated C6 corrosion resistance under AS4145.2-2008, tested to 168 hours neutral salt spray
- Fire rated up to 2 hours on compliant door assemblies when paired with Vivid Collection escutcheons and a Lockwood Synergy mortice lock, tested to AS1905.1-2015
- Pack includes: 2 x lever, 2 x rose trim, privacy latch, face plate, privacy pin, pointed tool, 2 x spindle, 2 x springs, 2 x through-fix screws, 2 x hex inserts, striker plate with dust box, 4 x timber mounting screws
- 25-Year Mechanical Warranty
Specifications
| Model No | VIV2/V2SBPVD |
|---|---|
| EAN | 9340116133041 |
| Access and Mobility | Yes |
| Handle Type | Lever 2 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
| Rose Diameter | 55mm |
| Packing Type | Box |
| Backset | 60mm |
| Door Type | Hinged |
| Door Material | Timber |
| Tested to Standards | Tested to Australian Standard |
| Residential | Yes |
| Door Thickness Range | 32-45mm |
| Approved Standards Rating Level | Corrosion Security C6, Durability D7 |
| Case material for exterior | Stainless Steel |
| Case material for interior | Stainless Steel |
| Function | Privacy |
