Lockwood Lever V2 Satin Bronze PVD Passage Set With Latch VIV1/V2BZPVD

The Lockwood Vivid® Collection Lever 2 Passage Leverset in PVD Satin Bronze is a non-locking internal door set for hallways, living areas and corridor doors in residential and multi-res applications, backed by a 25-Year Mechanical Warranty.

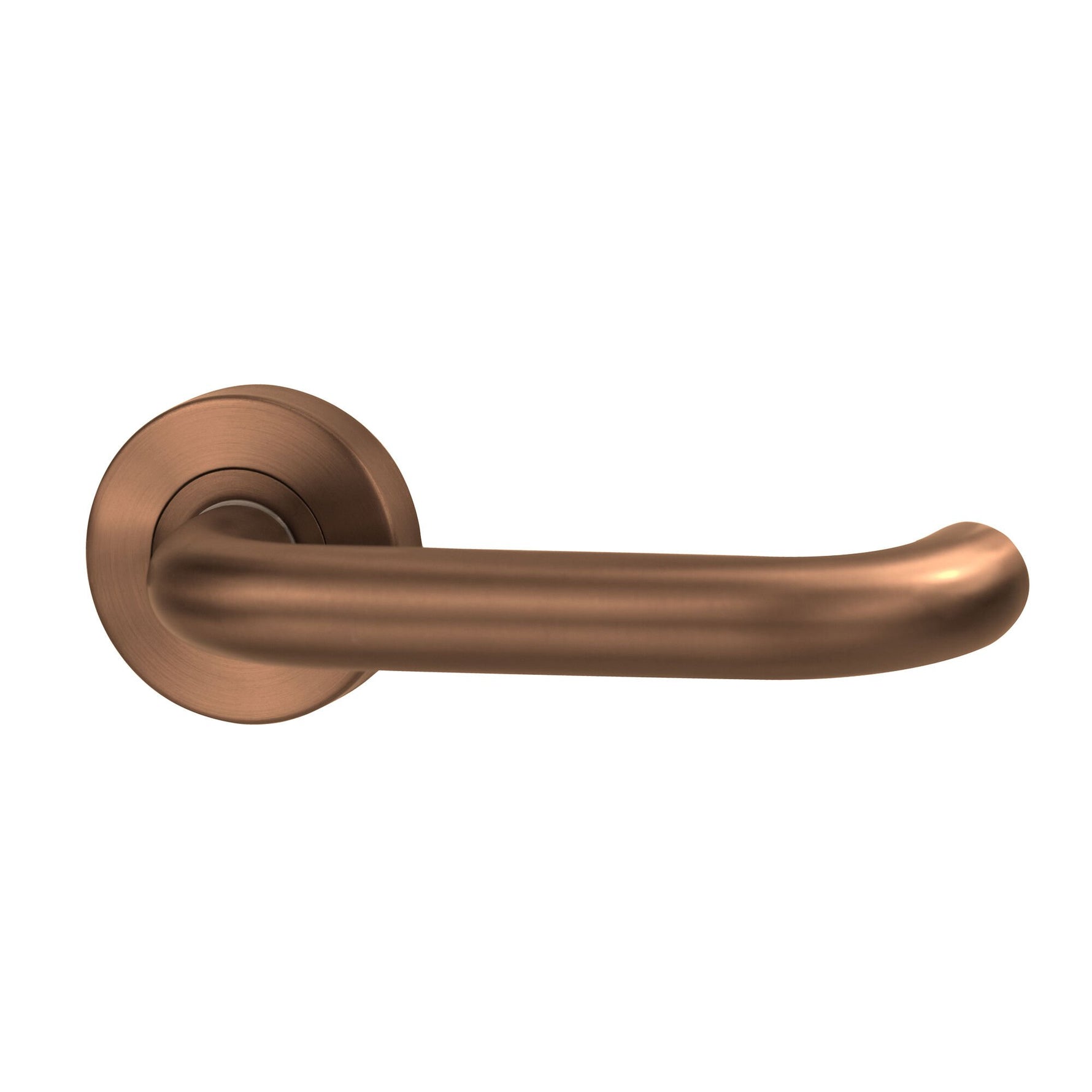

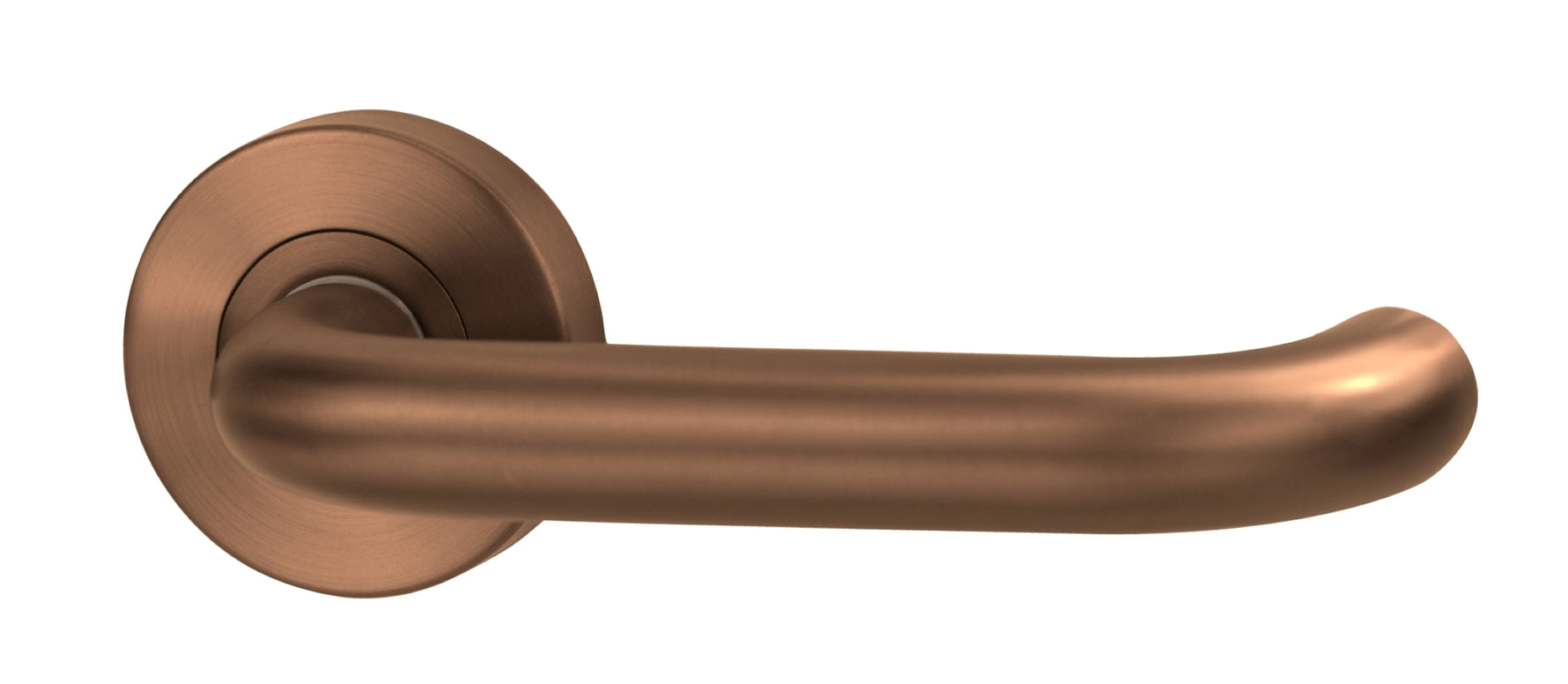

The Lever 2 handle (140mm length, 60mm projection) is a non-locking passage set - the latch retracts from either side with no key or turn required. Supplied with a 60mm tubular latch suitable for passage door applications. The rose trim features fully concealed fixings beneath a removable trim plate. Available in PVD Satin Brass, PVD Satin Gun Metal and PVD Satin Bronze - this product is supplied in PVD Satin Bronze via Physical Vapour Deposition (PVD) treatment over 304 stainless steel.

Features

• Finish: PVD Satin Bronze, applied via Physical Vapour Deposition (PVD) over 304 stainless steel - four times the hardness of chrome plating with superior scratch, wear and corrosion resistance
• Lever 2 dimensions: 140mm length, 60mm projection
• Lever 2 complies with AS1428.1-2021 for accessible and mobility design
• Rose: Round rose with fully concealed fixings beneath removable trim
• Latch: 60mm tubular latch suitable for passage door applications
• Tested to D7 durability rating under AS4145.2-2008, equivalent to 300,000 operating cycles
• Rated C6 corrosion resistance under AS4145.2-2008, tested to 168 hours neutral salt spray
• Fire rated up to 2 hours on compliant door assemblies when paired with Vivid Collection escutcheons and a Lockwood Synergy mortice lock, tested to AS1905.1-2015
• Pack includes: 2 x lever, 2 x rose trim, passage latch, face plate, 2 x spindle, 2 x springs, 2 x through-fix screws, 2 x hex inserts, striker plate with dust box, 4 x timber mounting screws
• 25-Year Mechanical Warranty

Specifications

Documents

• Lockwood Vivid Collection Catalogue.pdf
• Vivid Brochure.pdf
• Vivid Internal Door Furniture Installation.pdf
