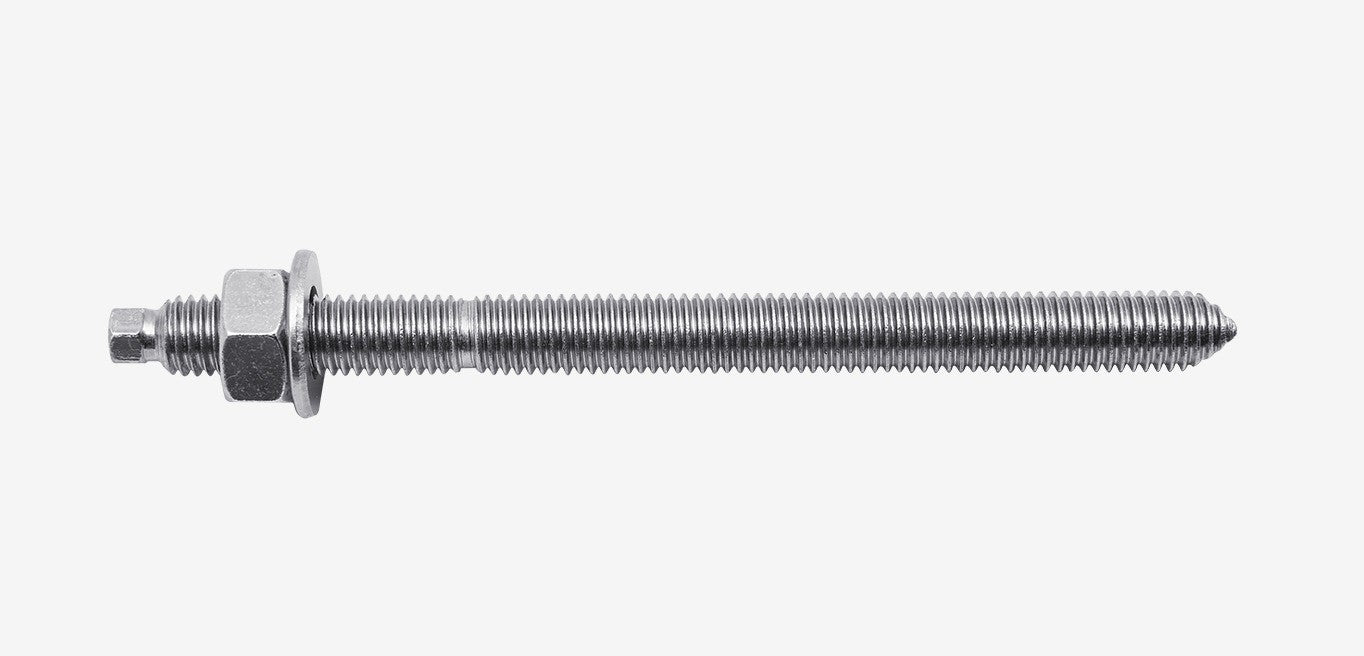

Ramset Chemset Stud M16X190MM Galv 10 Pack 100 Pack

ChemSet Anchor Studs are engineered from quality Grade 5.8 carbon steel to get the most out of adhesive tensile capacities and provide higher shear capacities than regular Grade 4.6 grade studs. Zinc-plated for indoor/dry-climate use, hot-dip galvanised to Australian Standards for outdoor use, or available in AISI 316 (A4) stainless steel for high-corrosion, coastal environments.

• High performance Grade 5.8 carbon steel for higher tensile/shear capacity than standard Grade 4.6 studs
• Pre-cut to standard chemical-anchoring lengths with a depth-set mark for correct embedment
• External hex drive for reliable capsule/adhesive installation
• Chisel-ended to prevent unthreading

Specifications

• Thread size: M16
• Overall length: 190mm
• Recommended drill hole: 18mm
• Recommended drill depth: 125mm
• Max fixture thickness: 40mm
• Effective (embedment) length: 165mm
• Finish: Hot-dip Galvanised (outdoor)
• Pack quantity: 10
