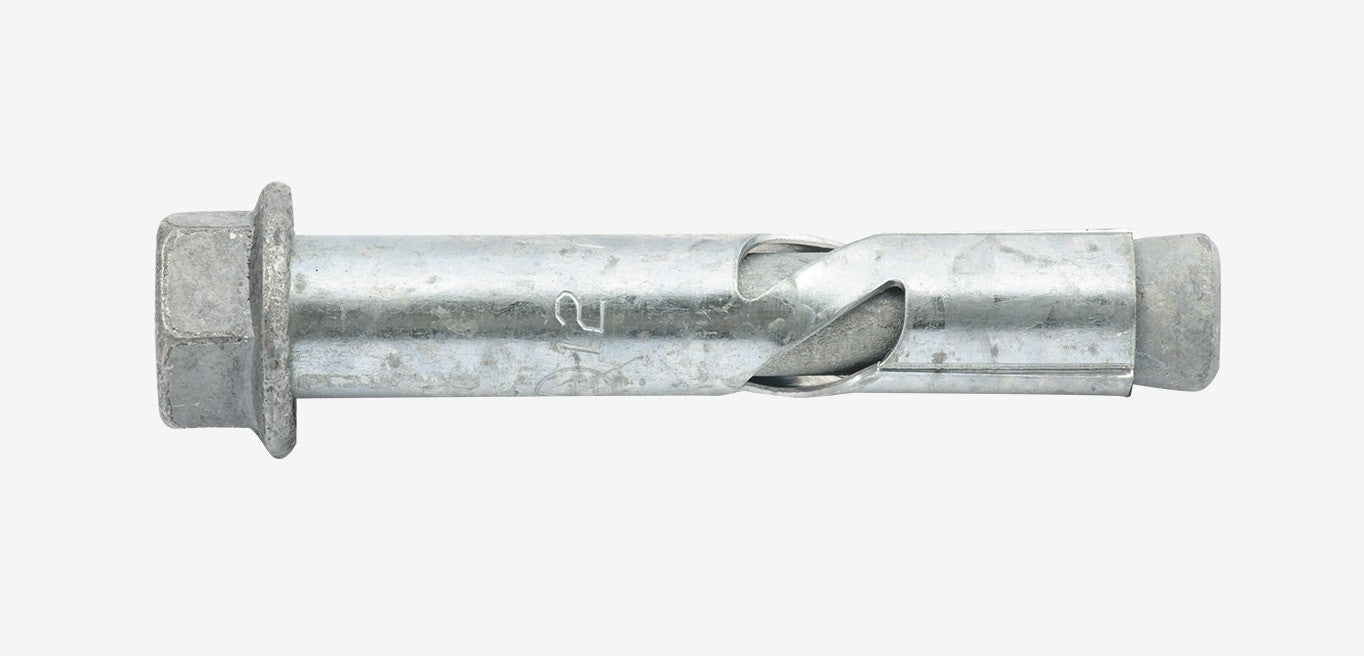

Ramset Dynabolt+ Galv 16mmx65mm 100 Pack

The DynaBolt Plus Sleeve Anchor is a medium-duty, torque-controlled expansion anchor with an integrated pull-down section, designed for anchoring timber and steel fixtures to concrete, brick or block. It is available in a variety of head styles and finishes.

• Patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load
• Fully assembled through-fixture anchor – no separate parts to lose on site
• Eliminates assembly, marking-out and re-positioning steps for fast, easy installation
• Multiple head styles (hex nut, hex bolt, countersunk/flat, round) suit a wide range of applications

Specifications

• Anchor size: M16
• Anchor length: 62mm
• Drilled hole diameter: 16mm
• Minimum hole depth: 80mm
• Max fixture thickness: 6mm
• Effective length: 51mm
• Fixture hole: 19mm
• Finish: Hot-dip galvanised, hex nut
