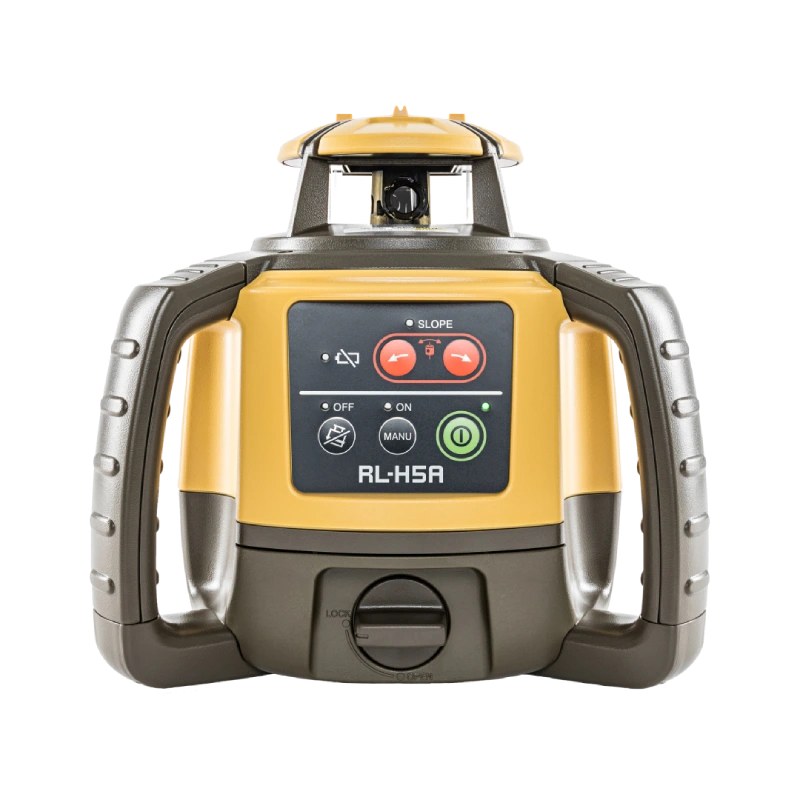

Topcon RL-H5A Self-Levelling Rotating Laser Rechargeable Battery with Premium LS100D Receiver 1021200-10
$2,296.00
$2,296.00
$2,296.00
The Topcon RL-H5A is a next-generation self-levelling rotating laser for grading, drainage, site set-up, excavation, concreting, earthworks and general construction.
Electronic self-levelling lets you press the power button and go to work in seconds. If the laser is disturbed on site it re-levels automatically. An elevation (height of instrument) alert sounds if the unit goes out of level. Dual handles and an IP66 housing are built for dust, rain and everyday job-site use.
This listing is Topcon RL-H5A Rotating Laser Rechargeable Battery with Premium - LS100D Receiver.
Key Features
- Long-range operation — 800 m diameter (400 m radius)
- Horizontal accuracy ±1.5 mm at 30 m (±10 arc seconds)
- Electronic self-levelling ±5°
- Simple manual slope capability
- Automatic height-of-instrument / elevation alert
- Up to 100 hours on 4 × D-cell alkaline batteries (60 hours with optional Ni-MH pack)
- IP66 dust and water protection
- 5 year Topcon warranty on the laser
Specifications
| Horizontal accuracy | ±1.5 mm at 30 m (±10 arc seconds) |
| Self-levelling range | ±5° |
| Operating range | 400 m radius / 800 m diameter |
| Rotation speed | 600 rpm |
| Laser class | 3R (visible, less than 5 mW) |
| Dust / water protection | IP66 |
| Operating time | 100 hours (D-cell) / 60 hours (Ni-MH option) |
| Operating temperature | -20°C to +50°C |
| Size | 205 × 211 × 172 mm |
| Warranty | 5 years (laser) |

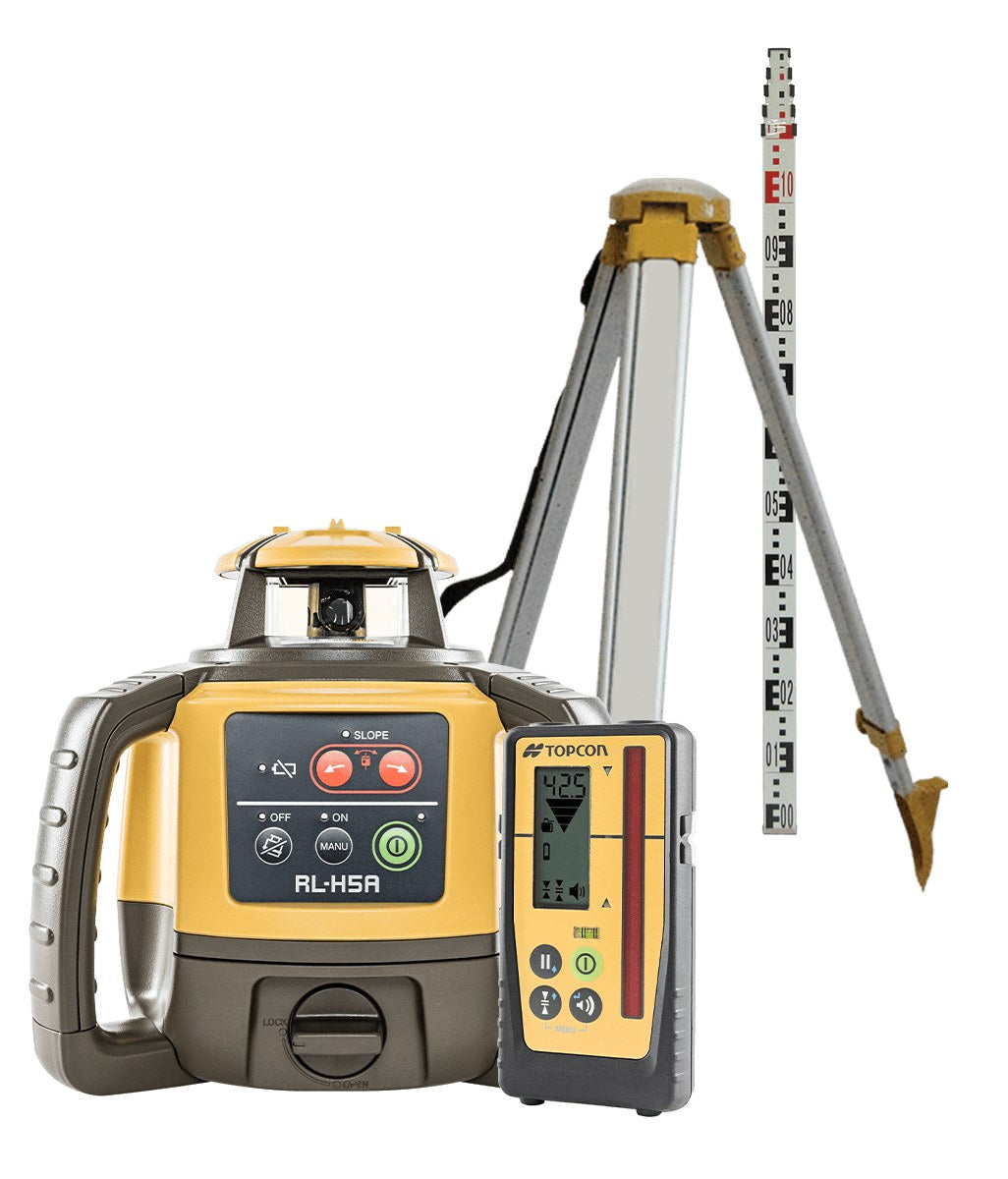

What's Included
- Topcon RL-H5A rotating laser
- LS-100D receiver and holder
- Rechargeable battery pack and charger
- Instructions and carry case
Video
- Topcon RL-H5A Next Generation Self-Levelling Rotating Laser
- Manually Match Slope RL-H5A
- Enable Height Alert: Topcon RL-H5A
- Powering On Topcon Rotating Laser RL-H5A
- Disable Height Alert Topcon RL-H5A
- Topcon RL H5A Recharge Standard Rotating Laser Level - Unboxing and Features
Documents
Description
The Topcon RL-H5A is a next-generation self-levelling rotating laser for grading, drainage, site set-up, excavation, concreting, earthworks and general construction.
Electronic self-levelling lets you press the power button and go to work in seconds. If the laser is disturbed on site it re-levels automatically. An elevation (height of instrument) alert sounds if the unit goes out of level. Dual handles and an IP66 housing are built for dust, rain and everyday job-site use.
This listing is Topcon RL-H5A Rotating Laser Rechargeable Battery with Premium - LS100D Receiver.
Key Features
- Long-range operation — 800 m diameter (400 m radius)
- Horizontal accuracy ±1.5 mm at 30 m (±10 arc seconds)
- Electronic self-levelling ±5°
- Simple manual slope capability
- Automatic height-of-instrument / elevation alert
- Up to 100 hours on 4 × D-cell alkaline batteries (60 hours with optional Ni-MH pack)
- IP66 dust and water protection
- 5 year Topcon warranty on the laser
Specifications
| Horizontal accuracy | ±1.5 mm at 30 m (±10 arc seconds) |
| Self-levelling range | ±5° |
| Operating range | 400 m radius / 800 m diameter |
| Rotation speed | 600 rpm |
| Laser class | 3R (visible, less than 5 mW) |
| Dust / water protection | IP66 |
| Operating time | 100 hours (D-cell) / 60 hours (Ni-MH option) |
| Operating temperature | -20°C to +50°C |
| Size | 205 × 211 × 172 mm |
| Warranty | 5 years (laser) |
What's Included
- Topcon RL-H5A rotating laser
- LS-100D receiver and holder
- Rechargeable battery pack and charger
- Instructions and carry case
Video
- Topcon RL-H5A Next Generation Self-Levelling Rotating Laser
- Manually Match Slope RL-H5A
- Enable Height Alert: Topcon RL-H5A
- Powering On Topcon Rotating Laser RL-H5A
- Disable Height Alert Topcon RL-H5A
- Topcon RL H5A Recharge Standard Rotating Laser Level - Unboxing and Features
Documents
