Topcon RL-H5B Self-Levelling Rotating Laser Dry Battery with Standard LS-80X Receiver 1021200-71

SKU: 1021200-71

$1,545.01

In stock
Topcon RL-H5B Self-Levelling Rotating Laser Dry Battery with Standard LS-80X Receiver 1021200-71

$1,545.01

$1,545.01

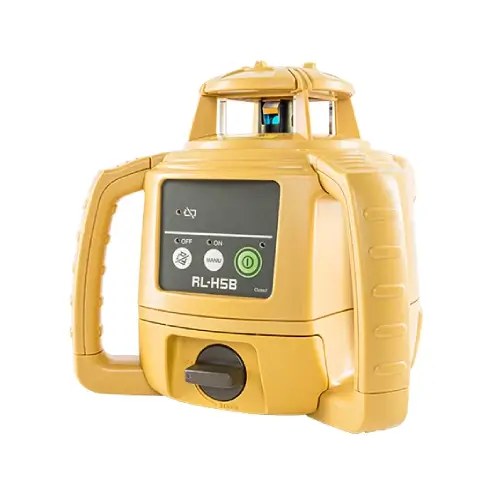

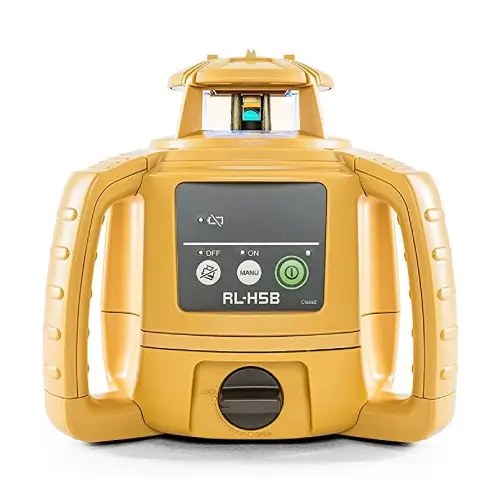

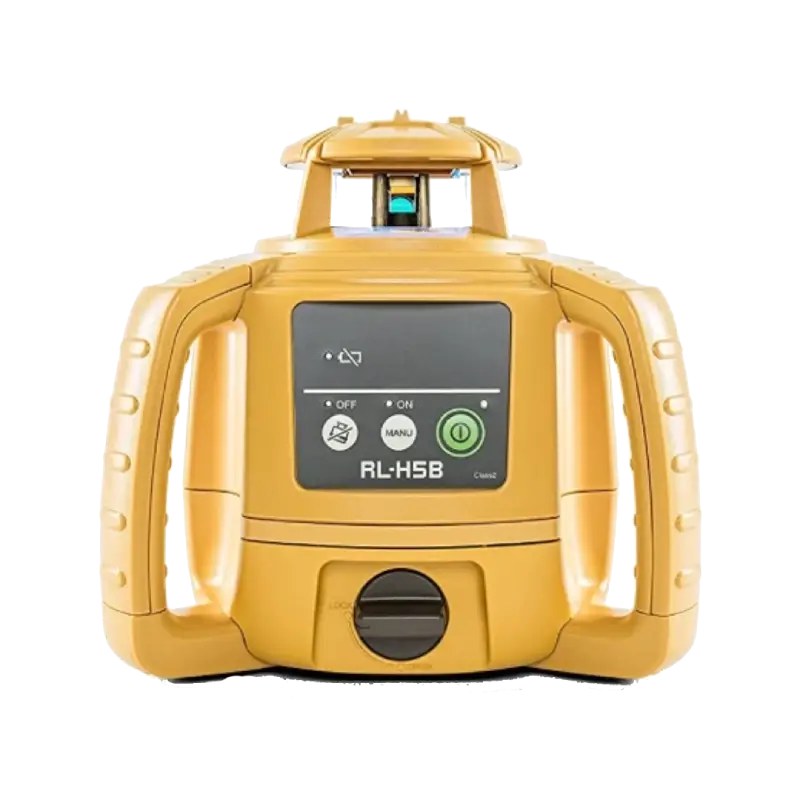

The Topcon RL-H5B is the compact horizontal self-levelling rotating laser in the RL-H5 series — built for general construction elevation checks, site set-out and everyday levelling.

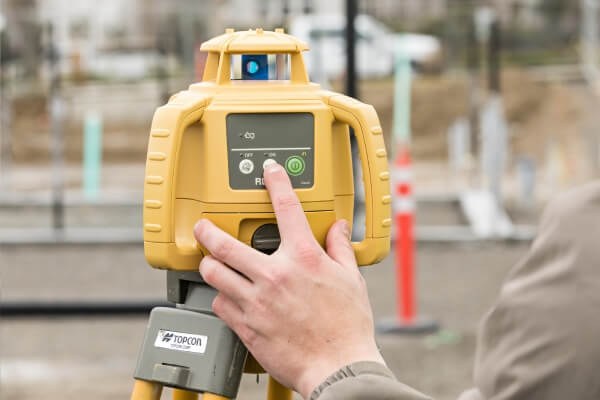

Press the power button and the electronic self-levelling motors take over. If the laser is disturbed it re-levels automatically. Dual handles and an IP66 housing stand up to dust, rain and site conditions.

This kit is the dry-battery standard pack with the LS-80X long-distance receiver.

Key Features

  • Operating range — 400 m diameter (200 m radius)
  • Horizontal accuracy ±3 mm at 30 m (±20 arc seconds)
  • Electronic self-levelling ±5°
  • Horizontal-only rotating laser
  • Up to 100 hours on 4 × D-cell alkaline batteries
  • IP66 dust and water protection
  • 5 year Topcon warranty on the laser

Specifications

Horizontal accuracy ±3 mm at 30 m (±20 arc seconds)
Self-levelling range ±5°
Operating range 200 m radius / 400 m diameter
Rotation speed 600 rpm
Laser class 2 (visible, less than 5 mW)
Dust / water protection IP66
Operating time 100 hours (D-cell)
Operating temperature -20°C to +50°C
Size 205 × 211 × 172 mm
Warranty 5 years (laser)

What's Included

  • Topcon RL-H5B rotating laser
  • LS-80X receiver and holder
  • Alkaline D-cell batteries
  • Instructions and carry case
