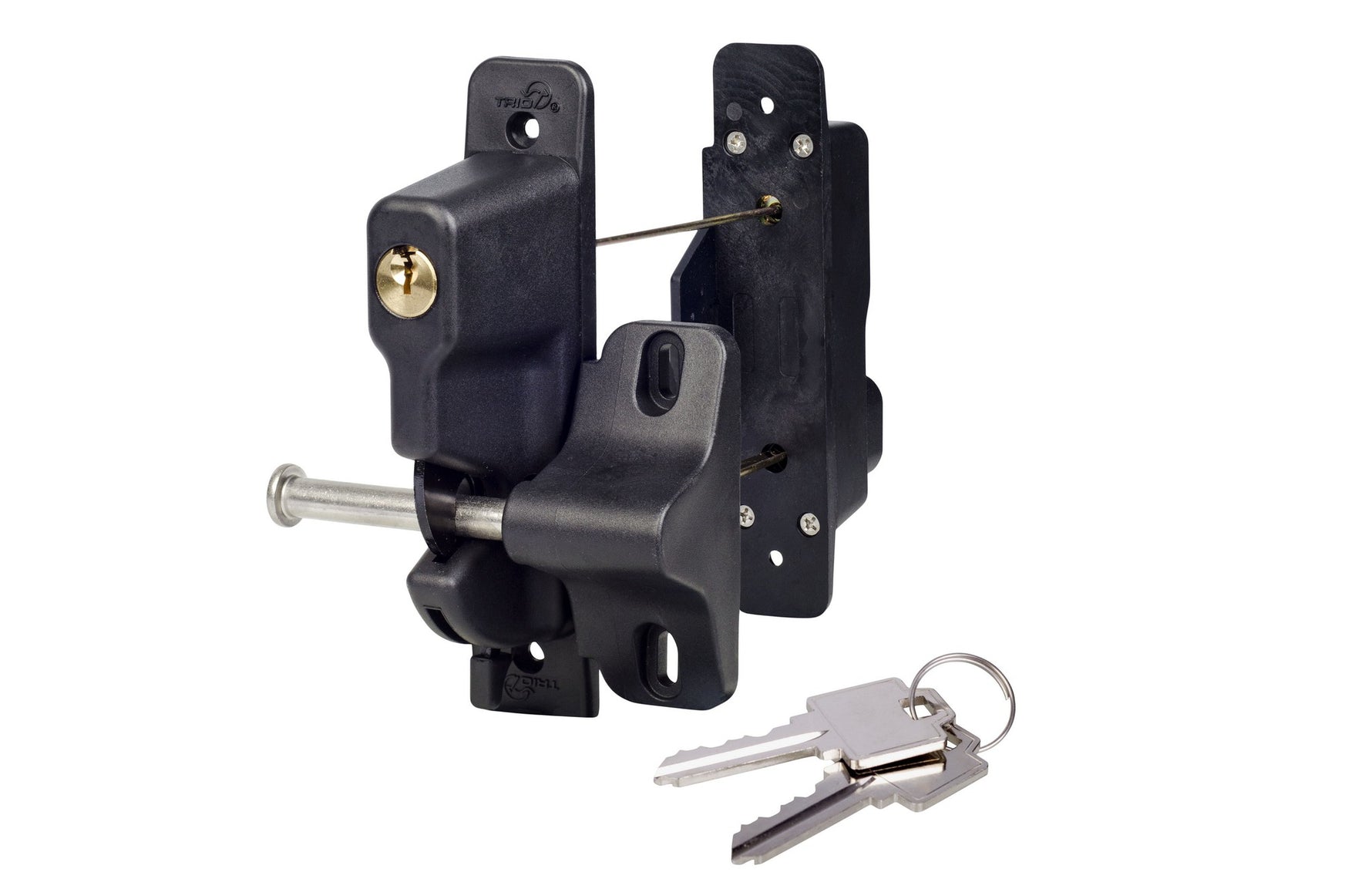

Trio Australia Gravity latch, Double sided, Lockable DPG20031312

Trio Australia Gravity latch, Double sided, Lockable DPG20031312

SKU: DPG20031312
: 9328879107004

$105.64

In stock
Trio Australia Gravity latch, Double sided, Lockable DPG20031312

$105.64

$105.64

A key-lockable double-sided gravity latch operable from both sides of the gate. Cut-to-length spindles suit fence posts from 50 to 127mm deep, and the assembly reverses for left- or right-hand gates.

Key Features

  • Made for both single and double gates
  • Locks and unlocks from both sides by key
  • Cut-to-length spindles suit posts 50–127mm deep
  • Reversible for left- or right-hand gates
  • Fit and forget

Technical Specifications

Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product code Trio's published trade code for this product is DPG200. The trailing digits in your sheet's code do not appear anywhere in Trio's literature or barcode, so they look like a supplier- or client-side suffix rather than part of the Trio code.
Trio product name Gravity Latch – Double
Mechanism Gravity (mechanical), keyed both sides
Post depth range 50–127mm. Spindles are supplied long and cut to suit (x = 127 − depth of post).
Mounting holes 2 holes, 15.9mm from the post edge, spaced 68.3mm apart
Reversing warning Trio: “INNER COMPONENTS MUST NOT BE DISTURBED WHILE REVERSING THE ASSEMBLIES.”
Barcode / EAN 9328879107004
Description

A key-lockable double-sided gravity latch operable from both sides of the gate. Cut-to-length spindles suit fence posts from 50 to 127mm deep, and the assembly reverses for left- or right-hand gates.

Key Features

  • Made for both single and double gates
  • Locks and unlocks from both sides by key
  • Cut-to-length spindles suit posts 50–127mm deep
  • Reversible for left- or right-hand gates
  • Fit and forget

Technical Specifications

Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product code Trio's published trade code for this product is DPG200. The trailing digits in your sheet's code do not appear anywhere in Trio's literature or barcode, so they look like a supplier- or client-side suffix rather than part of the Trio code.
Trio product name Gravity Latch – Double
Mechanism Gravity (mechanical), keyed both sides
Post depth range 50–127mm. Spindles are supplied long and cut to suit (x = 127 − depth of post).
Mounting holes 2 holes, 15.9mm from the post edge, spaced 68.3mm apart
Reversing warning Trio: “INNER COMPONENTS MUST NOT BE DISTURBED WHILE REVERSING THE ASSEMBLIES.”
Barcode / EAN 9328879107004
