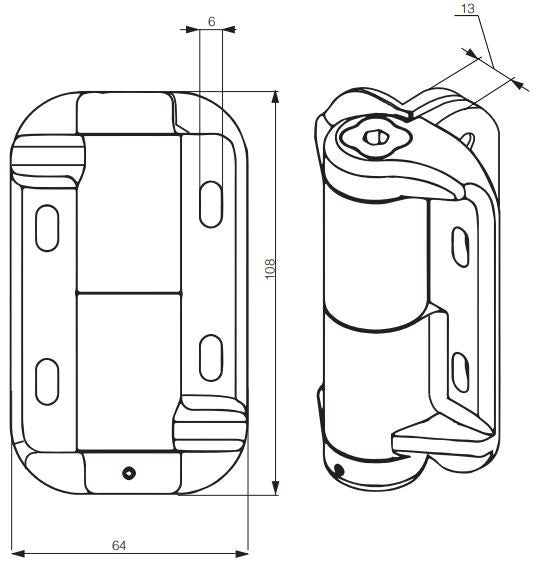

Trio Australia Hinge, Medium Duty,Adj Tension, Align Legs 45kg Pr DPH210
See more by Deadlocks & Latches

Trio Australia Hinge, Medium Duty,Adj Tension, Align Legs 45kg Pr DPH210

SKU: DPH210
: 9328879107042

$67.96

In stock
Trio Australia Hinge, Medium Duty,Adj Tension, Align Legs 45kg Pr DPH210

$67.96

$67.96

Heavy Duty Self-Alignment Self-Closing Hinge in black polymer, supplied as a pair. Self-closes gates up to 45kg per pair.

Key Features

  • Supplied as a matched pair
  • Impact-resistant black polymer – anti-rust, unaffected by moisture
  • Slotted leaves allow vertical adjustment during installation
  • Symmetrical holes let the hinge be inverted to suit left- or right-hand gates
  • Alignment legs locate the hinge against the post sides for faster, squarer installation
  • The DPH250 safety cap can be added separately

Technical Specifications

Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product name Heavy Duty Self-Alignment Self-Closing Hinge
Self-closing capacity Self-closes gates up to 45kg per pair.
Tension adjustment Adjustable
Mounting style Alignment legs
Maximum gate load Not published – Trio publishes a self-closing capacity only
Supplied as Pair
Mounting positions Within 150mm of the top and bottom rail surfaces
Difference from DPH200 Alignment legs instead of a flat back – this is the only functional difference Trio publishes
Safety cap DPH250 available separately
Barcode / EAN 9328879107042
Description

Heavy Duty Self-Alignment Self-Closing Hinge in black polymer, supplied as a pair. Self-closes gates up to 45kg per pair.

Key Features

  • Supplied as a matched pair
  • Impact-resistant black polymer – anti-rust, unaffected by moisture
  • Slotted leaves allow vertical adjustment during installation
  • Symmetrical holes let the hinge be inverted to suit left- or right-hand gates
  • Alignment legs locate the hinge against the post sides for faster, squarer installation
  • The DPH250 safety cap can be added separately

Technical Specifications

Finish Black
Range SafeAZ safety gate hardware
Material Polymer (Trio does not publish the polymer type)
Compliance Trio's published wording for the SafeAZ range is: “Trio Safety Products function well, are easy to install, durable and comply with the strict safety standards for both here in Australia and in New Zealand.” Trio does not name AS 1926.1 or any specific standard for this product, and publishes no certification. Verify current pool-barrier requirements with your local authority before specifying.
Care Inspect annually, or more often with heavy use. Do not use petroleum-based lubricants – lubricate with powdered graphite only. Keep free of sand, ice and dust.
Weight / packed dimensions Not published
Trio product name Heavy Duty Self-Alignment Self-Closing Hinge
Self-closing capacity Self-closes gates up to 45kg per pair.
Tension adjustment Adjustable
Mounting style Alignment legs
Maximum gate load Not published – Trio publishes a self-closing capacity only
Supplied as Pair
Mounting positions Within 150mm of the top and bottom rail surfaces
Difference from DPH200 Alignment legs instead of a flat back – this is the only functional difference Trio publishes
Safety cap DPH250 available separately
Barcode / EAN 9328879107042
