Tuff Range Joist Support 90x50mm JS9050
$2.00
$2.00

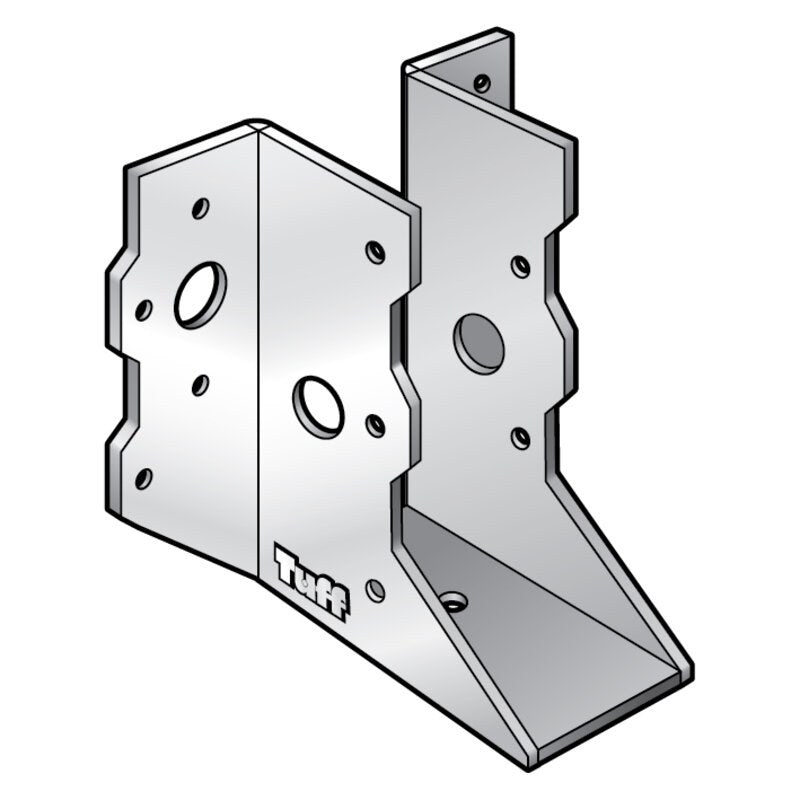

Tuff Joist Support
Key Features

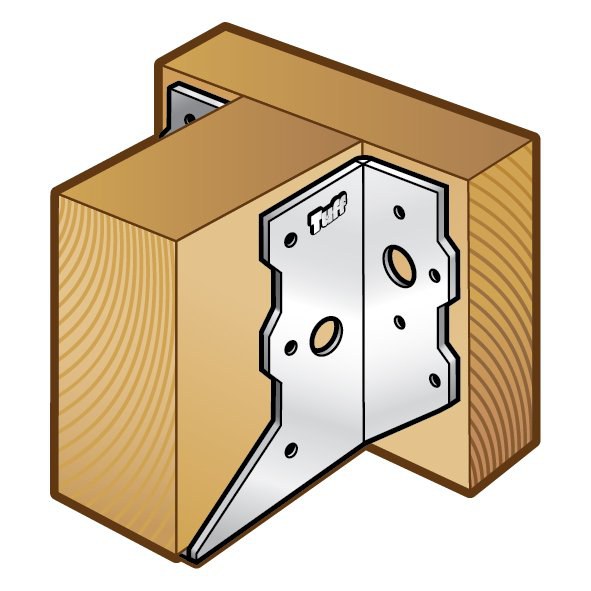

- Used for timber beam to beam joints
- The wide range (and sizes) of these brackets provides for all common sized timbers and for laminated timber beams
- The joist supports are strong, well designed, cost effective and easy to install
- Nailed to both the supporting beam and the supported beam with the joist support having wide flanges for ease of nailing
Specifications
| Specification | Value |
|---|---|
| Sales Quantity | Each |
| Carton Quantity | 45 (supplied in cartons of 45) |
| Dimension | 90mm X 50mm |
| Bolt Hole | 12.8mm (Large) + 3.4mm (Small) |
| Made From | 1mm Galvanised Steel |
| Grade | G300 Z275 |
Documents
Description
Tuff Joist Support
Key Features
- Used for timber beam to beam joints
- The wide range (and sizes) of these brackets provides for all common sized timbers and for laminated timber beams
- The joist supports are strong, well designed, cost effective and easy to install
- Nailed to both the supporting beam and the supported beam with the joist support having wide flanges for ease of nailing
Specifications
| Specification | Value |
|---|---|
| Sales Quantity | Each |
| Carton Quantity | 45 (supplied in cartons of 45) |
| Dimension | 90mm X 50mm |
| Bolt Hole | 12.8mm (Large) + 3.4mm (Small) |
| Made From | 1mm Galvanised Steel |
| Grade | G300 Z275 |
Documents
