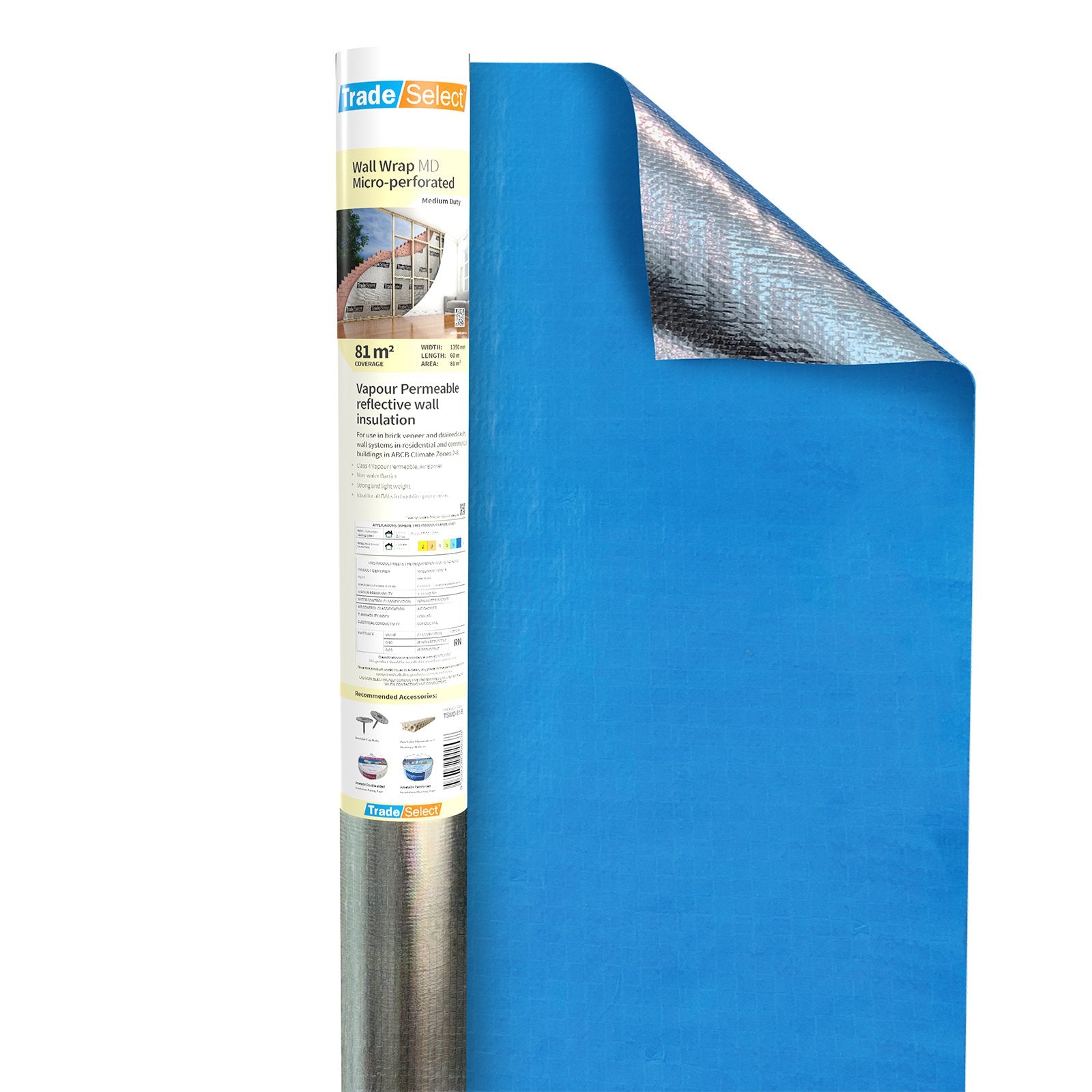

Vespol Wallwrap Perforated Medium Duty 1350mm x 60m 70496
$159.95
$159.95
$159.95
Trade Select® Wall Wrap MD Micro-perforated. Product Code: TSMD-B. Vapour permeable reflective wall insulation for use in brick veneer and drained cavity wall systems in residential and commercial buildings in Climate Zones 2–8.
Trade Select® Wall Wrap Micro-perforated is a Medium Duty, Vapour Permeable wall wrap designed for use in brick veneer and drained cavity wall systems to reduce the risk of interstitial condensation. The reflective foil side provides extra R-value when installed facing an air cavity, and the multi-layer structure provides superior strength, flexibility and durability.
Classified as Class 4 Vapour Permeable, a dense pattern of micro-perforations allows water vapour to escape from the wall structure. Trade Select® Wall Wrap Micro-perforated also acts as a barrier to air, radiant heat and dust penetration.
It is a flexible four-layer product made with a combination of anti-oxidant UV-stabilised woven polypropylene, 97% reflective aluminium foil, and fire-resistant polymer adhesive, backed by a UV-stabilised polymer flood coat. Products are pre-shrunk during the manufacturing process.
Features
- Micro-perforated to Class 4 Vapour Permeable
- Strong and light weight
- Air Barrier
- Low Flammability, suitable for all BALs in bushfire-prone areas
- 97% reflective
Application
Class 4 Vapour Permeable wall wraps are not recommended for wet tropical climate zones.
Total System R-Values
Based on NCC 2019. R-values apply to typical conditions for mainland Australian capital cities and have been calculated by an independent consulting engineer, in accordance with AS/NZS 4859.2:2018.
| System | Winter RT | Summer RT |
|---|---|---|
| Brick veneer wall with Trade Select® Wall Wrap Micro-perforated | 1.29 | 1.21 |
| Brick veneer wall with Trade Select® Wall Wrap Micro-perforated + R2.7 fibrous batt | 2.93 | 2.78 |
Material Properties and Classifications
Medium duty classifications in accordance with AS/NZS 4200.1:2017 and AS/NZS 4859.1:2018.
| Criteria | Reference | Result | Requirement |
|---|---|---|---|
| Resistance to Dry Delamination | AS/NZS 4201.1:1994 | Pass | Pass |
| Resistance to Wet Delamination | AS/NZS 4201.2:1994 | Pass | Pass |
| Shrinkage (Repeated wetting & drying) | AS/NZS 4201.3:1994 | 0.0% | < 0.5% |
| Nominal Thickness | 0.10 mm | Value | |
| Electrical Conductivity | AS/NZS 4200.1:2017 | Conductive | Classification |
| Duty | AS/NZS 4200.1:2017 | Medium | Classification |
| Tensile Strength Machine Direction | AS 1301.448s-91 | 11.5 kN/m | Min 9.5 kN/m |
| Tensile Strength Lateral Direction | AS 1301.448s-91 | 9.4 kN/m | Min 6.0 kN/m |
| Edge Tear Machine Direction | TAPPI T 470 om-89 | 444 N | Min 65 N |
| Edge Tear Lateral Direction | TAPPI T 470 om-89 | 358 N | Min 65 N |
| Air Control | AS/NZS 4200.1:2017 | Air Barrier | Classification |
| Emittance Value | AS/NZS 4201.5:1994 | Anti-glare side: 0.90, Foil side: 0.03 | Value |
| Emittance Classification | AS/NZS 4200.1:2017 | IR Non-reflective, IR Reflective | Classification |
| Emittance Category | AS/NZS 4200.1:2017 | RN | Category |
| Vapour Control | ASTM E96 | Class 4 Vapour Permeable | Class 1 to 4 |
| Vapour Permeance | ASTM E96 | 1.717 µg/N.s | Value |
| Water Control | AS/NZS 4201.4:1994 | Non-Water Barrier | Classification |
| Flammability Index | AS 1530.2-1993 | Low ≤ 5 | High (> 5) / Low (≤ 5) |
NCC Compliant Dimensions
- 1350 mm × 60 m (81 m²)
- 1350 mm × 30 m (40.5 m²)
- 1500 mm × 30 m (45 m²)
- Nominal thickness: 0.10 mm
Documents
Description
Trade Select® Wall Wrap MD Micro-perforated. Product Code: TSMD-B. Vapour permeable reflective wall insulation for use in brick veneer and drained cavity wall systems in residential and commercial buildings in Climate Zones 2–8.
Trade Select® Wall Wrap Micro-perforated is a Medium Duty, Vapour Permeable wall wrap designed for use in brick veneer and drained cavity wall systems to reduce the risk of interstitial condensation. The reflective foil side provides extra R-value when installed facing an air cavity, and the multi-layer structure provides superior strength, flexibility and durability.
Classified as Class 4 Vapour Permeable, a dense pattern of micro-perforations allows water vapour to escape from the wall structure. Trade Select® Wall Wrap Micro-perforated also acts as a barrier to air, radiant heat and dust penetration.
It is a flexible four-layer product made with a combination of anti-oxidant UV-stabilised woven polypropylene, 97% reflective aluminium foil, and fire-resistant polymer adhesive, backed by a UV-stabilised polymer flood coat. Products are pre-shrunk during the manufacturing process.
Features
- Micro-perforated to Class 4 Vapour Permeable
- Strong and light weight
- Air Barrier
- Low Flammability, suitable for all BALs in bushfire-prone areas
- 97% reflective
Application
Class 4 Vapour Permeable wall wraps are not recommended for wet tropical climate zones.
Total System R-Values
Based on NCC 2019. R-values apply to typical conditions for mainland Australian capital cities and have been calculated by an independent consulting engineer, in accordance with AS/NZS 4859.2:2018.
| System | Winter RT | Summer RT |
|---|---|---|
| Brick veneer wall with Trade Select® Wall Wrap Micro-perforated | 1.29 | 1.21 |
| Brick veneer wall with Trade Select® Wall Wrap Micro-perforated + R2.7 fibrous batt | 2.93 | 2.78 |
Material Properties and Classifications
Medium duty classifications in accordance with AS/NZS 4200.1:2017 and AS/NZS 4859.1:2018.
| Criteria | Reference | Result | Requirement |
|---|---|---|---|
| Resistance to Dry Delamination | AS/NZS 4201.1:1994 | Pass | Pass |
| Resistance to Wet Delamination | AS/NZS 4201.2:1994 | Pass | Pass |
| Shrinkage (Repeated wetting & drying) | AS/NZS 4201.3:1994 | 0.0% | < 0.5% |
| Nominal Thickness | 0.10 mm | Value | |
| Electrical Conductivity | AS/NZS 4200.1:2017 | Conductive | Classification |
| Duty | AS/NZS 4200.1:2017 | Medium | Classification |
| Tensile Strength Machine Direction | AS 1301.448s-91 | 11.5 kN/m | Min 9.5 kN/m |
| Tensile Strength Lateral Direction | AS 1301.448s-91 | 9.4 kN/m | Min 6.0 kN/m |
| Edge Tear Machine Direction | TAPPI T 470 om-89 | 444 N | Min 65 N |
| Edge Tear Lateral Direction | TAPPI T 470 om-89 | 358 N | Min 65 N |
| Air Control | AS/NZS 4200.1:2017 | Air Barrier | Classification |
| Emittance Value | AS/NZS 4201.5:1994 | Anti-glare side: 0.90, Foil side: 0.03 | Value |
| Emittance Classification | AS/NZS 4200.1:2017 | IR Non-reflective, IR Reflective | Classification |
| Emittance Category | AS/NZS 4200.1:2017 | RN | Category |
| Vapour Control | ASTM E96 | Class 4 Vapour Permeable | Class 1 to 4 |
| Vapour Permeance | ASTM E96 | 1.717 µg/N.s | Value |
| Water Control | AS/NZS 4201.4:1994 | Non-Water Barrier | Classification |
| Flammability Index | AS 1530.2-1993 | Low ≤ 5 | High (> 5) / Low (≤ 5) |
NCC Compliant Dimensions
- 1350 mm × 60 m (81 m²)
- 1350 mm × 30 m (40.5 m²)
- 1500 mm × 30 m (45 m²)
- Nominal thickness: 0.10 mm
Documents
