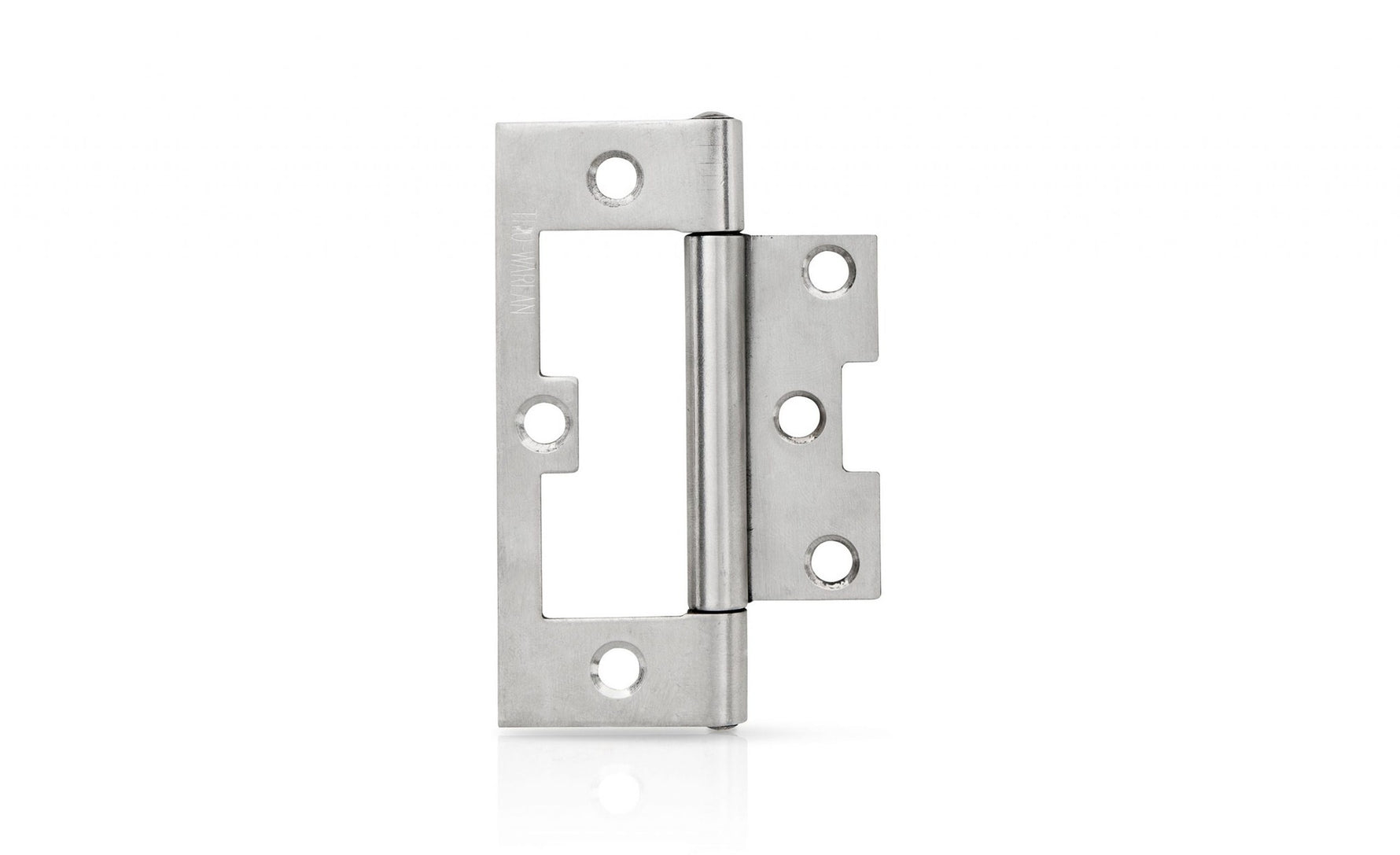

Trio Australia 100mm Ss Hirline bagged/screws PBWLH7165FPSS
See more by Door Hinges

Trio Australia 100mm Ss Hirline bagged/screws PBWLH7165FPSS

SKU: PBWLH7165FPSS
: 9328879114712

$12.69

In stock
Trio Australia 100mm Ss Hirline bagged/screws PBWLH7165FPSS

$12.69

$12.69

Trio's Warlan Hirline – a non-mortice quick fit hinge, “Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” These lines are supplied bagged with screws, so each hinge arrives ready to hang.

Key Features

  • Non-mortice – fits straight into the door gap with no rebate to cut
  • Supplied bagged with screws
  • Fixed pin
  • Recommended fixing 8 gauge x 25/30mm
  • Offered in stainless steel, zinc plated and black

Technical Specifications

Variant Fixed pin, timber fix
Finish Stainless Steel (SS)
Size 100 x 65 x 2.0mm
Material grade Not published for this code. Trio's legacy equivalent WLH7165FPSS20 is published as 304 stainless steel, but that grade belongs to that code, not this one.
Pack quantities Not published
Range REVIVE Warlan Quick Fit Hinge Light & Narrow
Hinge type Trio's definition: “Hirline Hinge (sometimes referred to as Quick Fix Hinge or Non Mortice Hinge or centre pin). Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” The leaves nest around a central pin so the hinge sits in the door gap with no rebate to cut.
Bearing Plain
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk)
Screws Included – Trio's description string ends “bagged/screws”
Recommended screw 8 gauge x 25/30mm
Weight / packed dimensions Not published
Dimensions recorded 100 x 65 x 2.0 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879114712
Description

Trio's Warlan Hirline – a non-mortice quick fit hinge, “Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” These lines are supplied bagged with screws, so each hinge arrives ready to hang.

Key Features

  • Non-mortice – fits straight into the door gap with no rebate to cut
  • Supplied bagged with screws
  • Fixed pin
  • Recommended fixing 8 gauge x 25/30mm
  • Offered in stainless steel, zinc plated and black

Technical Specifications

Variant Fixed pin, timber fix
Finish Stainless Steel (SS)
Size 100 x 65 x 2.0mm
Material grade Not published for this code. Trio's legacy equivalent WLH7165FPSS20 is published as 304 stainless steel, but that grade belongs to that code, not this one.
Pack quantities Not published
Range REVIVE Warlan Quick Fit Hinge Light & Narrow
Hinge type Trio's definition: “Hirline Hinge (sometimes referred to as Quick Fix Hinge or Non Mortice Hinge or centre pin). Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” The leaves nest around a central pin so the hinge sits in the door gap with no rebate to cut.
Bearing Plain
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk)
Screws Included – Trio's description string ends “bagged/screws”
Recommended screw 8 gauge x 25/30mm
Weight / packed dimensions Not published
Dimensions recorded 100 x 65 x 2.0 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879114712
