Trio Australia Butt 100x75x2.5 Bt Fp 304Ss Bb R1-175BBF
Trio Australia Butt 100x75x2.5 Bt Fp 304Ss Bb R1-175BBF
Trio Australia Butt 100x75x2.5 Bt Fp 304Ss Bb R1-175BBF
See more by Door Hinges

Trio Australia Butt 100x75x2.5 Bt Fp 304Ss Bb R1-175BBF

SKU: R1-175BBF
: 9328879040042

$16.94

In stock
Trio Australia Butt 100x75x2.5 Bt Fp 304Ss Bb R1-175BBF

$16.94

$16.94

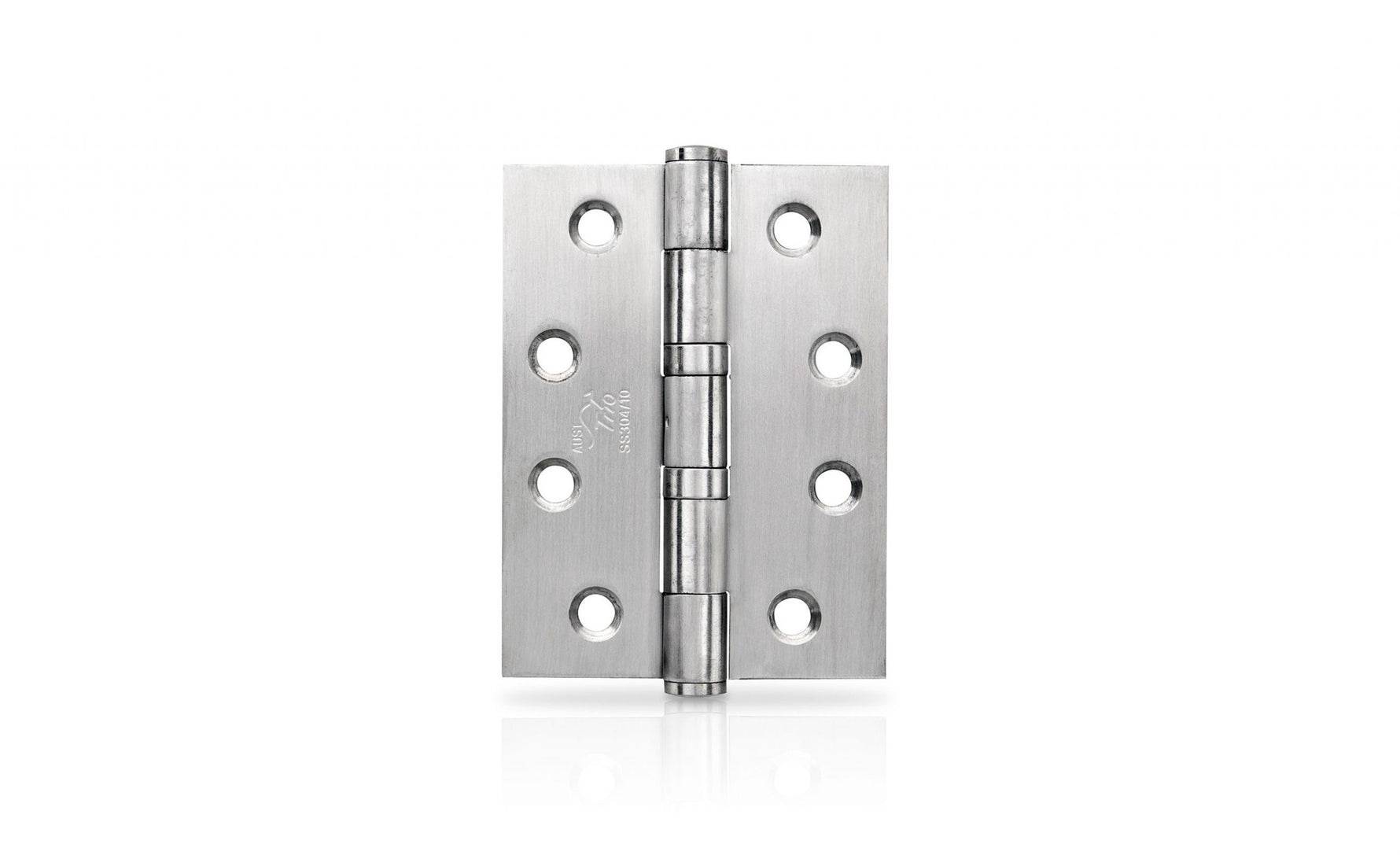

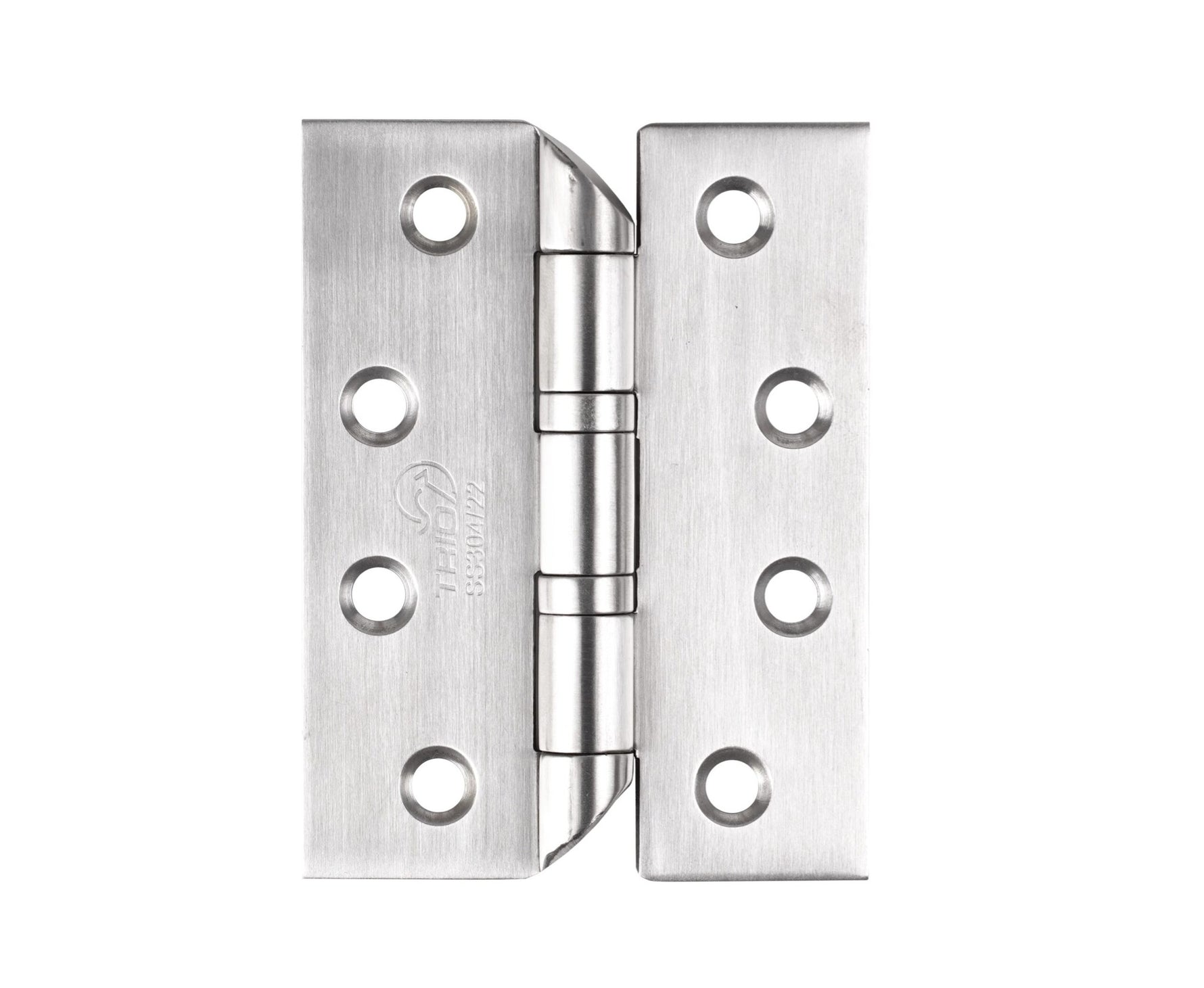

The ball-bearing version of Trio's 304 stainless architectural butt hinge. Bearings between the knuckles carry the door's weight on a rolling surface, giving smoother, quieter operation and longer service life on heavy or high-traffic doors.

Key Features

  • Ball-bearing knuckles for a smooth, quiet, long-life swing
  • 304 stainless steel, 2.5mm leaf
  • Fixed pin
  • Satin stainless finish
  • Trade Pack with screws; recommended fixing 10 gauge x 30mm

Technical Specifications

Variant Fixed pin, ball bearing
Finish Satin Stainless Steel (SSS)

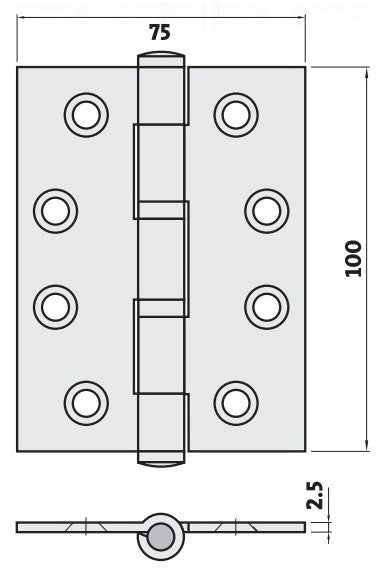

Size 100 x 75 x 2.5mm
Pin type Fixed pin (FP)
Pack quantities 20 per inner / 80 per outer
Range REVIVE R1 Architectural Butt Hinge, Ball Bearing
Hinge type Trio's definition: “Architectural Butt Hinge – These hinges need to be rebated and used to hang large or heavy doors. Suitable for residential and commercial use.”
Material 304 stainless steel
Bearing Ball bearing
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk) with screws, 20 per inner / 80 per outer
Screws Included
Recommended screw 10 gauge x 30mm
Door weight rating Not published
Weight / packed dimensions Not published
Dimensions recorded 100 x 75 x 2.5 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879040042
Description

The ball-bearing version of Trio's 304 stainless architectural butt hinge. Bearings between the knuckles carry the door's weight on a rolling surface, giving smoother, quieter operation and longer service life on heavy or high-traffic doors.

Key Features

  • Ball-bearing knuckles for a smooth, quiet, long-life swing
  • 304 stainless steel, 2.5mm leaf
  • Fixed pin
  • Satin stainless finish
  • Trade Pack with screws; recommended fixing 10 gauge x 30mm

Technical Specifications

Variant Fixed pin, ball bearing
Finish Satin Stainless Steel (SSS)
Size 100 x 75 x 2.5mm
Pin type Fixed pin (FP)
Pack quantities 20 per inner / 80 per outer
Range REVIVE R1 Architectural Butt Hinge, Ball Bearing
Hinge type Trio's definition: “Architectural Butt Hinge – These hinges need to be rebated and used to hang large or heavy doors. Suitable for residential and commercial use.”
Material 304 stainless steel
Bearing Ball bearing
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk) with screws, 20 per inner / 80 per outer
Screws Included
Recommended screw 10 gauge x 30mm
Door weight rating Not published
Weight / packed dimensions Not published
Dimensions recorded 100 x 75 x 2.5 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879040042
