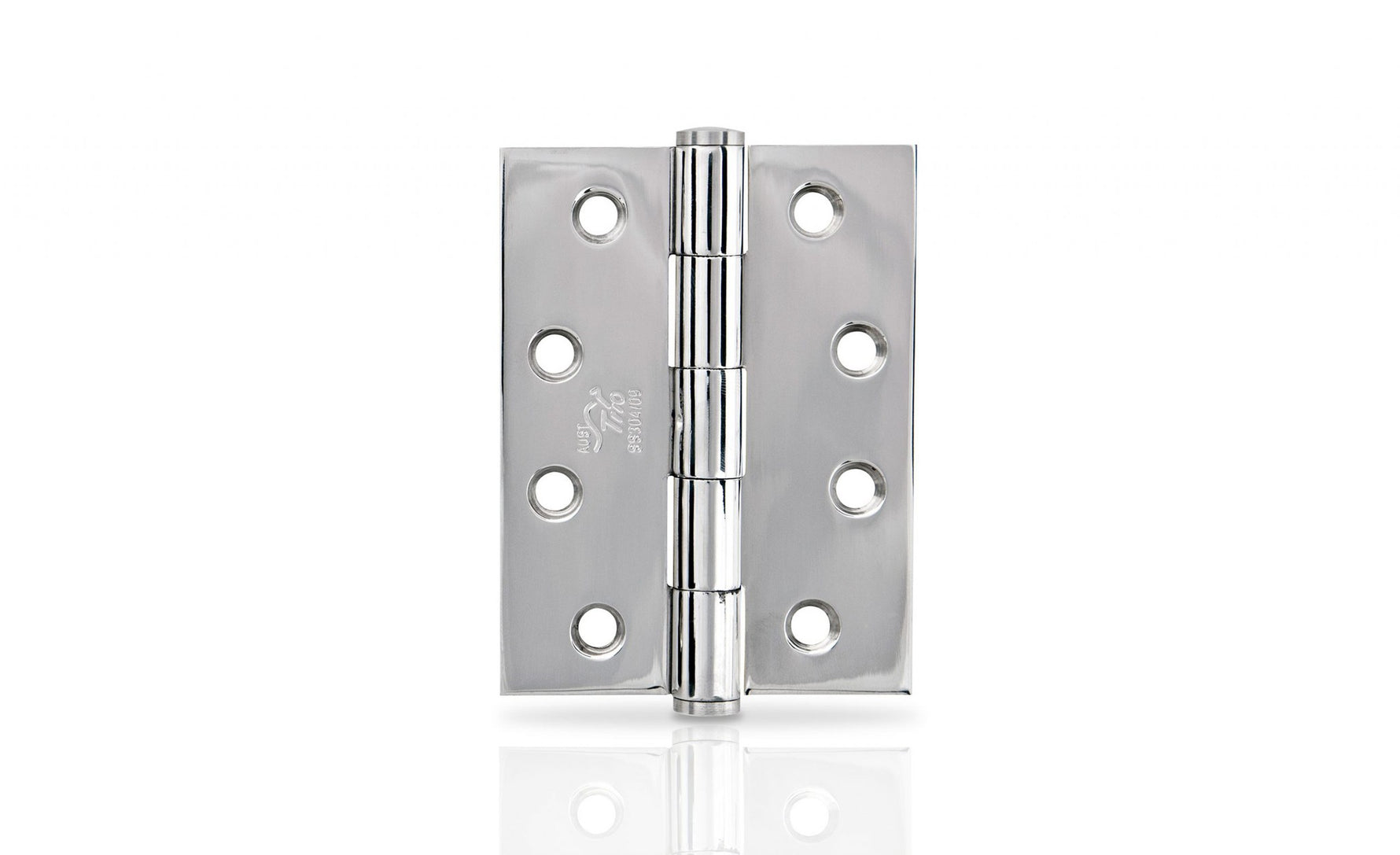

Trio Australia Butt 100x75x2.5 Lp Pss R1-175LPS
See more by Door Hinges

Trio Australia Butt 100x75x2.5 Lp Pss R1-175LPS

SKU: R1-175LPS
: 9328879078687

$18.81

In stock
Trio Australia Butt 100x75x2.5 Lp Pss R1-175LPS

$18.81

$18.81

Trio's REVIVE architectural butt hinge in 304 stainless steel – a rebated, full-mortice hinge built to carry large or heavy residential and commercial doors.

Key Features

  • 304 stainless steel throughout for corrosion resistance
  • 2.5mm leaf gauge for heavy doors
  • Fixed pin for security-sensitive openings or loose pin where the door must come off
  • Satin (SSS) or polished (PSS) stainless finish
  • Supplied as a Trade Pack with screws; recommended fixing 10 gauge x 30mm

Technical Specifications

Variant Loose pin
Finish Polished Stainless Steel (PSS)
Size 100 x 75 x 2.5mm
Pin type Loose pin (LP)
Finish note PSS = Polished Stainless Steel – a finish, not a grade
Pack quantities 20 per inner / 80 per outer
Range REVIVE R1 Architectural Butt Hinge
Hinge type Trio's definition: “Architectural Butt Hinge – These hinges need to be rebated and used to hang large or heavy doors. Suitable for residential and commercial use.”
Material 304 stainless steel
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk) with screws, 20 per inner / 80 per outer
Screws Included – Trio lists these codes under “Trade Packs with Screws”. The same hinge without screws is a different code.
Recommended screw 10 gauge x 30mm
Door weight rating Not published
Weight / packed dimensions Not published
Dimensions recorded 100 x 75 x 2.5 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879078687
Description

Trio's REVIVE architectural butt hinge in 304 stainless steel – a rebated, full-mortice hinge built to carry large or heavy residential and commercial doors.

Key Features

  • 304 stainless steel throughout for corrosion resistance
  • 2.5mm leaf gauge for heavy doors
  • Fixed pin for security-sensitive openings or loose pin where the door must come off
  • Satin (SSS) or polished (PSS) stainless finish
  • Supplied as a Trade Pack with screws; recommended fixing 10 gauge x 30mm

Technical Specifications

Variant Loose pin
Finish Polished Stainless Steel (PSS)
Size 100 x 75 x 2.5mm
Pin type Loose pin (LP)
Finish note PSS = Polished Stainless Steel – a finish, not a grade
Pack quantities 20 per inner / 80 per outer
Range REVIVE R1 Architectural Butt Hinge
Hinge type Trio's definition: “Architectural Butt Hinge – These hinges need to be rebated and used to hang large or heavy doors. Suitable for residential and commercial use.”
Material 304 stainless steel
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk) with screws, 20 per inner / 80 per outer
Screws Included – Trio lists these codes under “Trade Packs with Screws”. The same hinge without screws is a different code.
Recommended screw 10 gauge x 30mm
Door weight rating Not published
Weight / packed dimensions Not published
Dimensions recorded 100 x 75 x 2.5 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879078687
