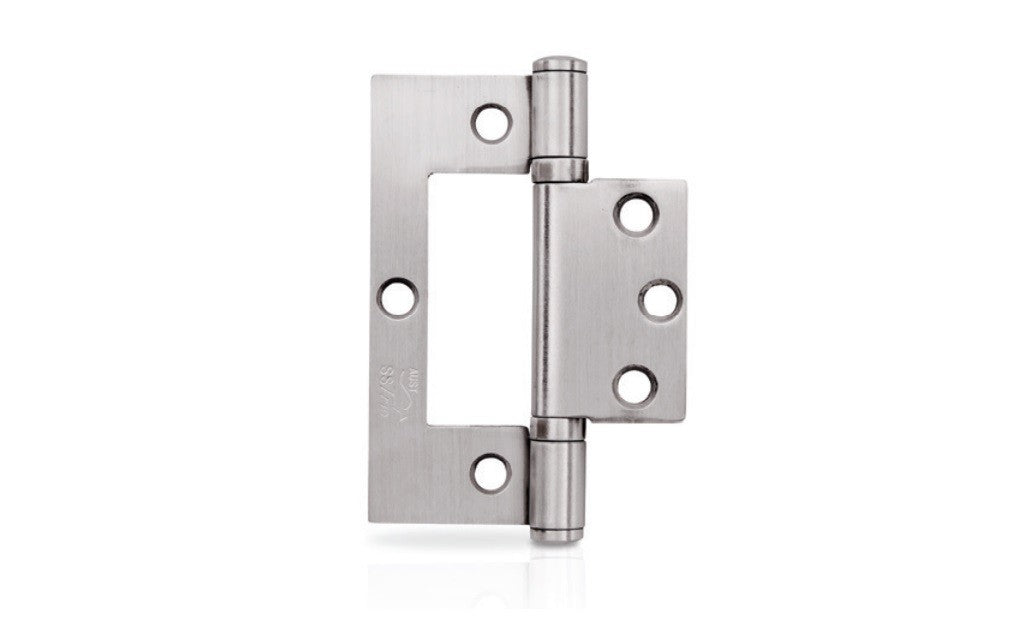

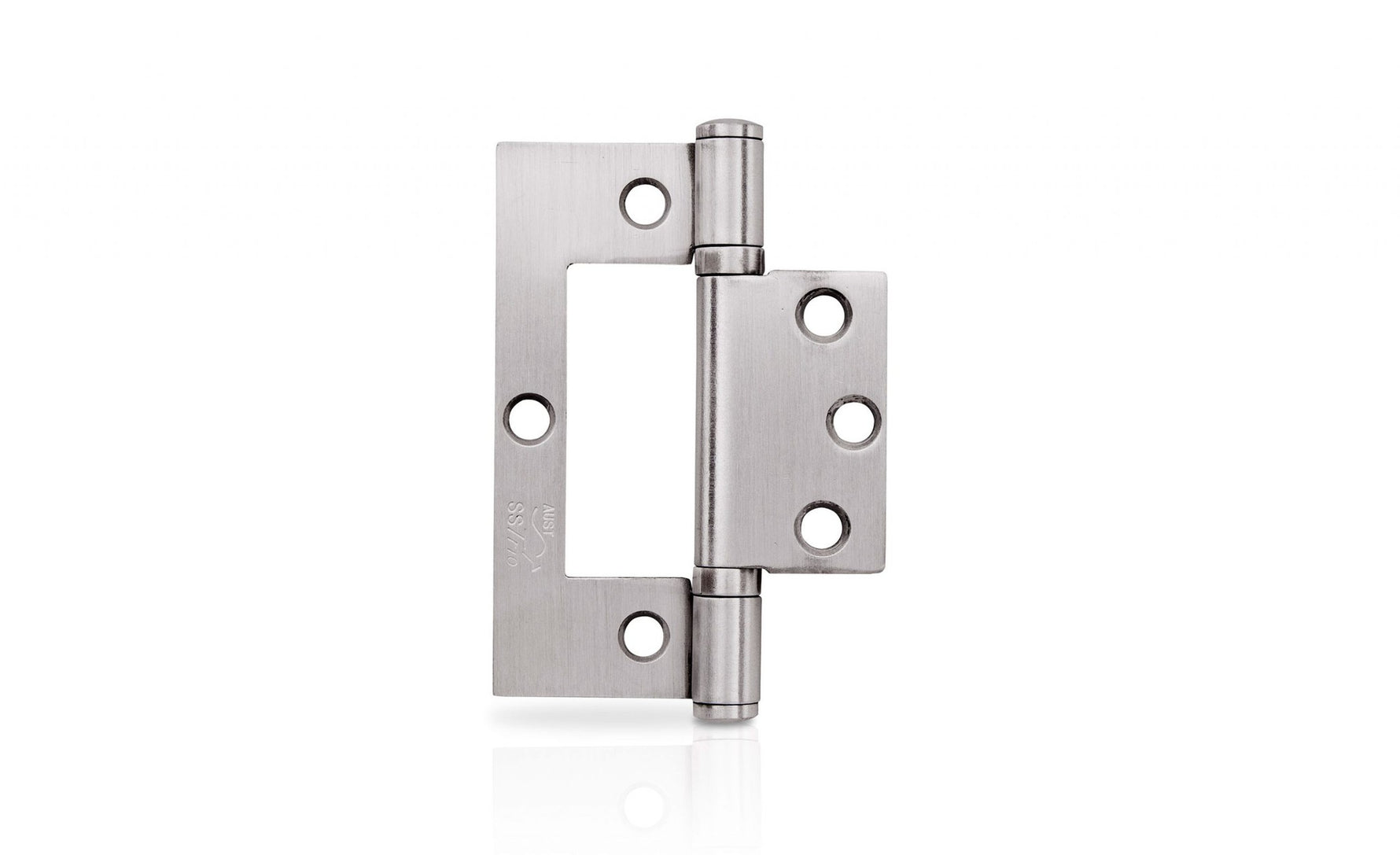

Trio Australia Hirline 100x70x2.5 A/F Fp Ss R3-170ASS
Trio Australia Hirline 100x70x2.5 A/F Fp Ss R3-170ASS
See more by Door Hinges

Trio Australia Hirline 100x70x2.5 A/F Fp Ss R3-170ASS

SKU: R3-170ASS
: 9328879115429

$17.23

In stock
Trio Australia Hirline 100x70x2.5 A/F Fp Ss R3-170ASS

$17.23

$17.23

Trio's architectural-grade Hirline: a non-mortice “quick fit” hinge in 304 stainless steel with ball bearings, so it fits without cutting a rebate yet still swings like a full architectural hinge.

Key Features

  • No rebating required – fits straight into the door gap
  • Ball-bearing knuckle
  • 304 stainless steel, 2.5mm leaf
  • Timber Fix (T/F) or Aluminium Fix (A/F) leaf pattern
  • Fixed pin, satin stainless finish, Trade Pack

Technical Specifications

Variant Aluminium fix
Finish Satin Stainless Steel (SSS)
Size 100 x 70 x 2.5mm
Fix type Aluminium Fix (A/F)
Pack quantities 20 per inner / 80 per outer
Range REVIVE R3 Architectural Quick Fit
Hinge type Trio's definition: “Hirline Hinge (sometimes referred to as Quick Fix Hinge or Non Mortice Hinge or centre pin). Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” The leaves nest around a central pin so the hinge sits in the door gap with no rebate to cut.
Material 304 stainless steel
Bearing Ball bearing
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk), 20 per inner / 80 per outer
Door weight rating Not published
Weight / packed dimensions Not published
Dimensions recorded 100 x 70 x 2.5 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879115429
Description

Trio's architectural-grade Hirline: a non-mortice “quick fit” hinge in 304 stainless steel with ball bearings, so it fits without cutting a rebate yet still swings like a full architectural hinge.

Key Features

  • No rebating required – fits straight into the door gap
  • Ball-bearing knuckle
  • 304 stainless steel, 2.5mm leaf
  • Timber Fix (T/F) or Aluminium Fix (A/F) leaf pattern
  • Fixed pin, satin stainless finish, Trade Pack

Technical Specifications

Variant Aluminium fix
Finish Satin Stainless Steel (SSS)
Size 100 x 70 x 2.5mm
Fix type Aluminium Fix (A/F)
Pack quantities 20 per inner / 80 per outer
Range REVIVE R3 Architectural Quick Fit
Hinge type Trio's definition: “Hirline Hinge (sometimes referred to as Quick Fix Hinge or Non Mortice Hinge or centre pin). Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” The leaves nest around a central pin so the hinge sits in the door gap with no rebate to cut.
Material 304 stainless steel
Bearing Ball bearing
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk), 20 per inner / 80 per outer
Door weight rating Not published
Weight / packed dimensions Not published
Dimensions recorded 100 x 70 x 2.5 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879115429
