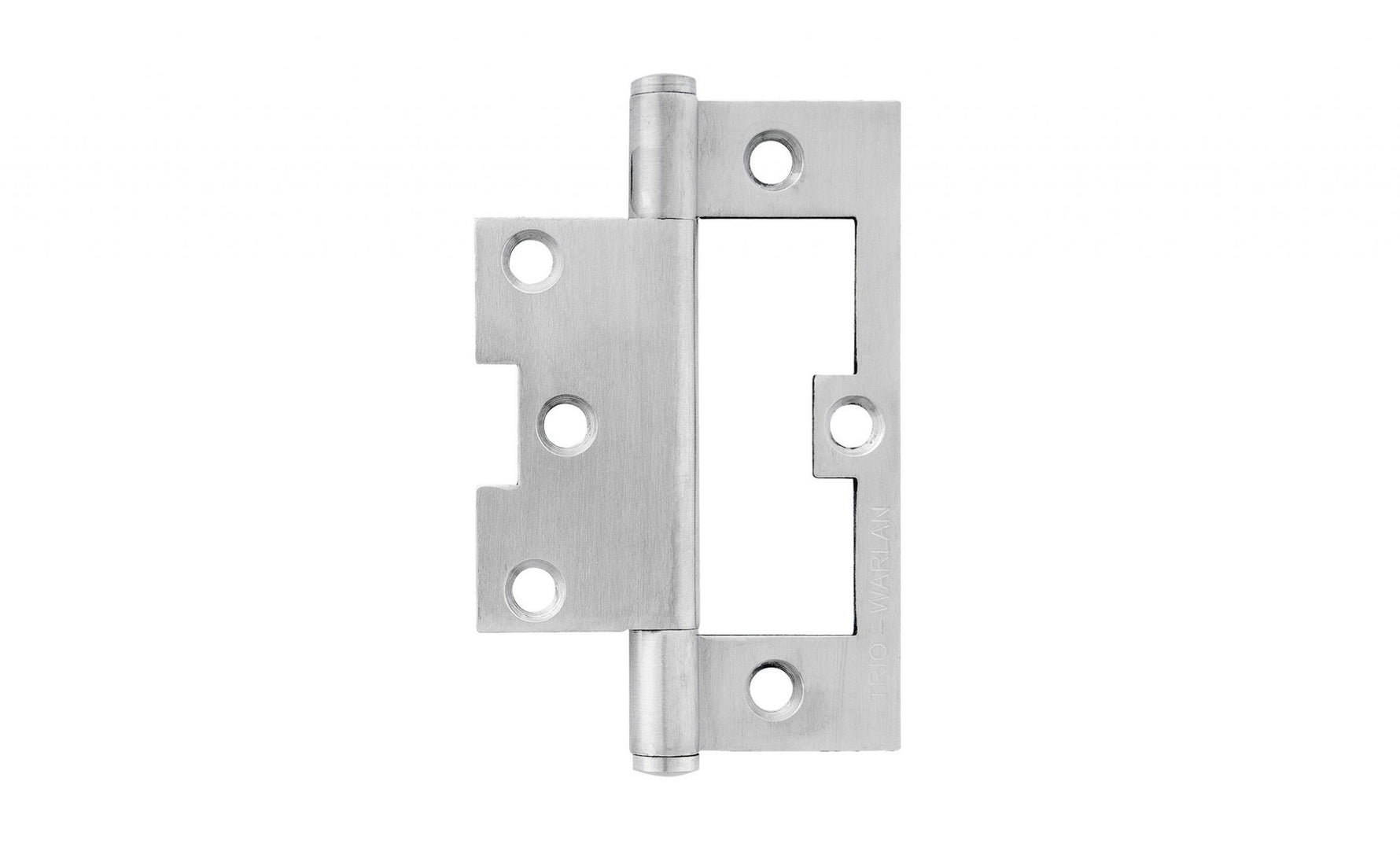

Trio Australia Hirline Flat 100x65x2.0 Bt Fp Ss R1-W7165F
See more by Door Hinges

Trio Australia Hirline Flat 100x65x2.0 Bt Fp Ss R1-W7165F

SKU: R1-W7165F
: 9328879101477

$13.86

In stock
Trio Australia Hirline Flat 100x65x2.0 Bt Fp Ss R1-W7165F

$13.86

$13.86

The lighter, plain-bearing members of Trio's stainless Hirline / Quick Fit family. No rebate to cut and no mortice chisel needed – ideal for lighter internal doors, cupboard doors and retrofit work where the original hinge position must be reused.

Key Features

  • Non-mortice – fits without rebating
  • Stainless steel, Timber Fix leaf
  • Fixed pin
  • Three sizes down to 75mm
  • Satin stainless finish, Trade Pack

Technical Specifications

Variant Timber fix, fixed pin
Finish Satin Stainless Steel (SSS)
Size 100 x 65 x 2.0mm
Fix type Timber Fix (T/F)
Pack quantities Not published
Range REVIVE R1-W Architectural Quick Fit
Hinge type Trio's definition: “Hirline Hinge (sometimes referred to as Quick Fix Hinge or Non Mortice Hinge or centre pin). Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” The leaves nest around a central pin so the hinge sits in the door gap with no rebate to cut.
Material Stainless steel – Trio does not publish the grade for these codes. Do not assume 304.
Bearing Plain
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk)
Door weight rating Not published
Weight / packed dimensions Not published
Dimensions recorded 100 x 65 x 2.0 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879101477
Description

The lighter, plain-bearing members of Trio's stainless Hirline / Quick Fit family. No rebate to cut and no mortice chisel needed – ideal for lighter internal doors, cupboard doors and retrofit work where the original hinge position must be reused.

Key Features

  • Non-mortice – fits without rebating
  • Stainless steel, Timber Fix leaf
  • Fixed pin
  • Three sizes down to 75mm
  • Satin stainless finish, Trade Pack

Technical Specifications

Variant Timber fix, fixed pin
Finish Satin Stainless Steel (SSS)
Size 100 x 65 x 2.0mm
Fix type Timber Fix (T/F)
Pack quantities Not published
Range REVIVE R1-W Architectural Quick Fit
Hinge type Trio's definition: “Hirline Hinge (sometimes referred to as Quick Fix Hinge or Non Mortice Hinge or centre pin). Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” The leaves nest around a central pin so the hinge sits in the door gap with no rebate to cut.
Material Stainless steel – Trio does not publish the grade for these codes. Do not assume 304.
Bearing Plain
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack (TPk)
Door weight rating Not published
Weight / packed dimensions Not published
Dimensions recorded 100 x 65 x 2.0 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879101477
